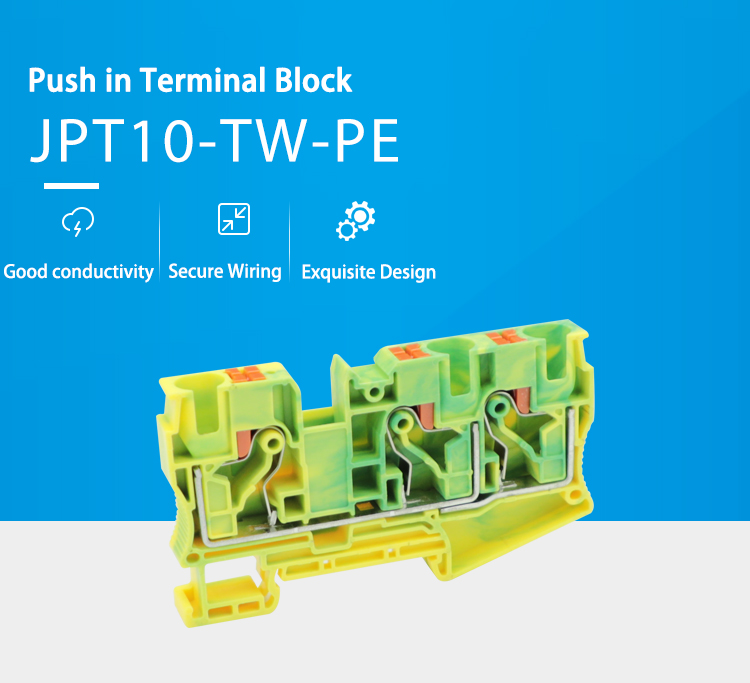

PT10-TW-PE Push in Screwless Multi Conductor Ground Terminal Block
  • PT10-TW-PE Push in Screwless Multi Conductor Ground Terminal BlockPT10-TW-PE Push in Screwless Multi Conductor Ground Terminal Block
  • PT10-TW-PE Push in Screwless Multi Conductor Ground Terminal BlockPT10-TW-PE Push in Screwless Multi Conductor Ground Terminal Block
  • PT10-TW-PE Push in Screwless Multi Conductor Ground Terminal BlockPT10-TW-PE Push in Screwless Multi Conductor Ground Terminal Block
  • PT10-TW-PE Push in Screwless Multi Conductor Ground Terminal BlockPT10-TW-PE Push in Screwless Multi Conductor Ground Terminal Block

PT10-TW-PE Push in Screwless Multi Conductor Ground Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number:PT10-TW-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:PT10-TW-PE

Send Inquiry

Product Description

    The PT10-TW-PE push-in screw-free multi-conductor grounding terminal block revolutionizes grounding solutions: The screw-free design that locks upon push-in completes highly reliable connections within seconds, eliminating the risk of loosening and supporting simultaneous connection of multiple conductors to meet the complex requirements of modern electrical systems. High-quality materials are highly conductive, resistant to vibration, high temperature and mechanical stress. The compact design is suitable for space-constrained scenarios. It is efficiently applied in fields such as industrial equipment, data centers, and building automation, providing engineers with a convenient and high-performance grounding option.

TECHNICAL PARAMETERS

Model Number PT10-TW-PE
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) L88.7/H50/W10.2 mm
Connection method Push-in connection
Material Nylon PA66
Rated Voltage/Current 1000V/70A
Cross section, solid/soft Cable 0.5-16mm²/0.5-10mm²
Conductor Size 20-8 AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WKDQ, OEM serivce is supporting
Packing Detail 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
