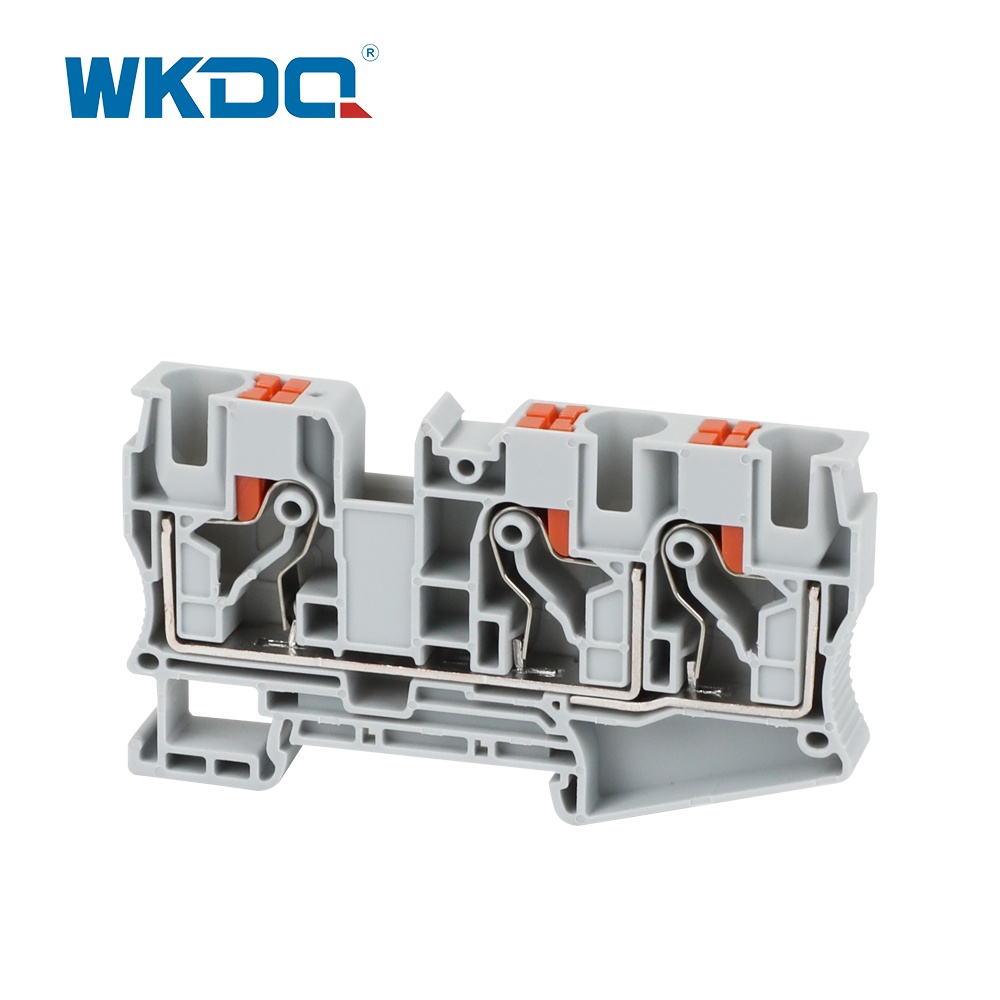

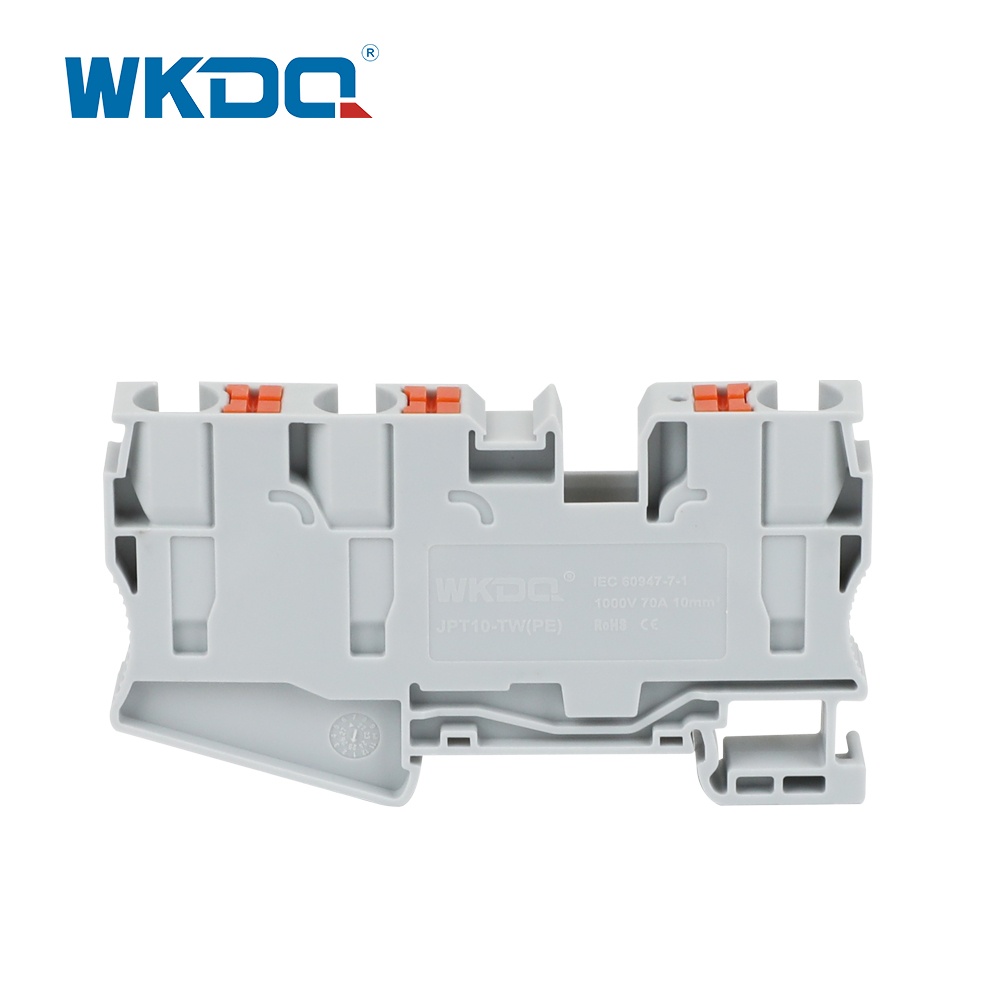

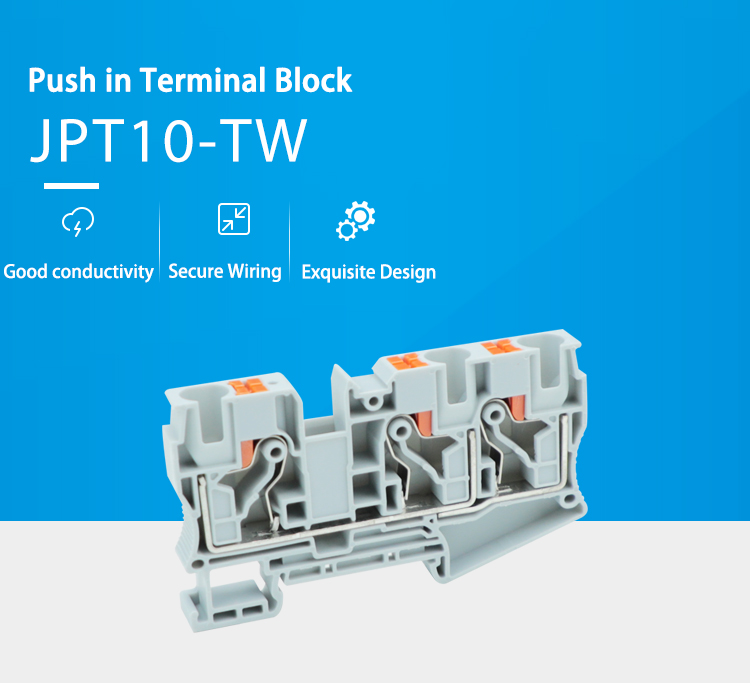

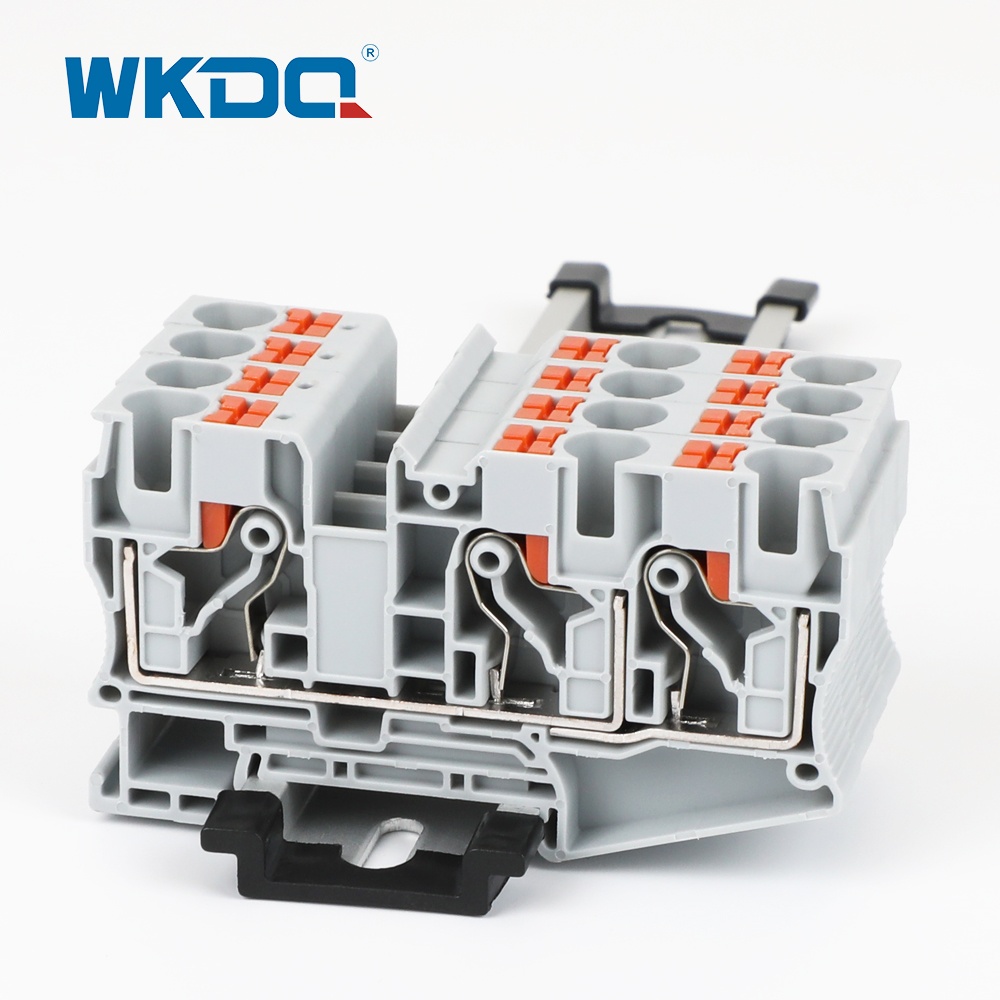

PT10-TW Ut Series Push in Screwless Multi Conductor Terminal Block
  • PT10-TW Ut Series Push in Screwless Multi Conductor Terminal BlockPT10-TW Ut Series Push in Screwless Multi Conductor Terminal Block
  • PT10-TW Ut Series Push in Screwless Multi Conductor Terminal BlockPT10-TW Ut Series Push in Screwless Multi Conductor Terminal Block
  • PT10-TW Ut Series Push in Screwless Multi Conductor Terminal BlockPT10-TW Ut Series Push in Screwless Multi Conductor Terminal Block
  • PT10-TW Ut Series Push in Screwless Multi Conductor Terminal BlockPT10-TW Ut Series Push in Screwless Multi Conductor Terminal Block
  • PT10-TW Ut Series Push in Screwless Multi Conductor Terminal BlockPT10-TW Ut Series Push in Screwless Multi Conductor Terminal Block

PT10-TW Ut Series Push in Screwless Multi Conductor Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number:PT10-TW
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:PT10-TW

Send Inquiry

Product Description

    The PT10-TW Ut series push-in screwless multi-conductor terminal block revolutionizes electrical connection. The screwless push-in structure enables quick insertion and simultaneous connection of multiple conductors, simplifying wiring and shortening installation time. High-quality materials are resistant to vibration and mechanical stress, stable and reliable. The compact design is suitable for space-constrained scenarios and is applicable to industrial machinery, control cabinets and electronic equipment, providing an efficient and convenient connection solution for the electrical field.

TECHNICAL PARAMETERS

Model Number PT10-Tw
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) L88.7/H50/W10.2 mm
Connection method Push-in connection
Material Nylon PA66
Rated Voltage/Current 1000V/70A
Cross section, solid/soft Cable 0.5-16mm²/0.5-10mm²
Conductor Size 20-8 AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WKDQ, OEM serivce is supporting
Packing Detail 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
