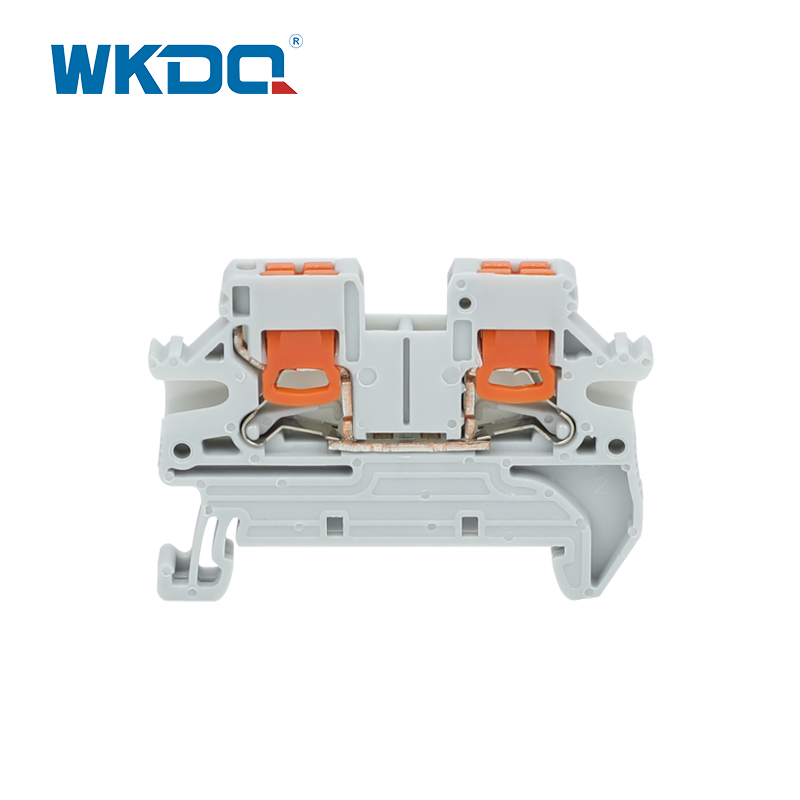

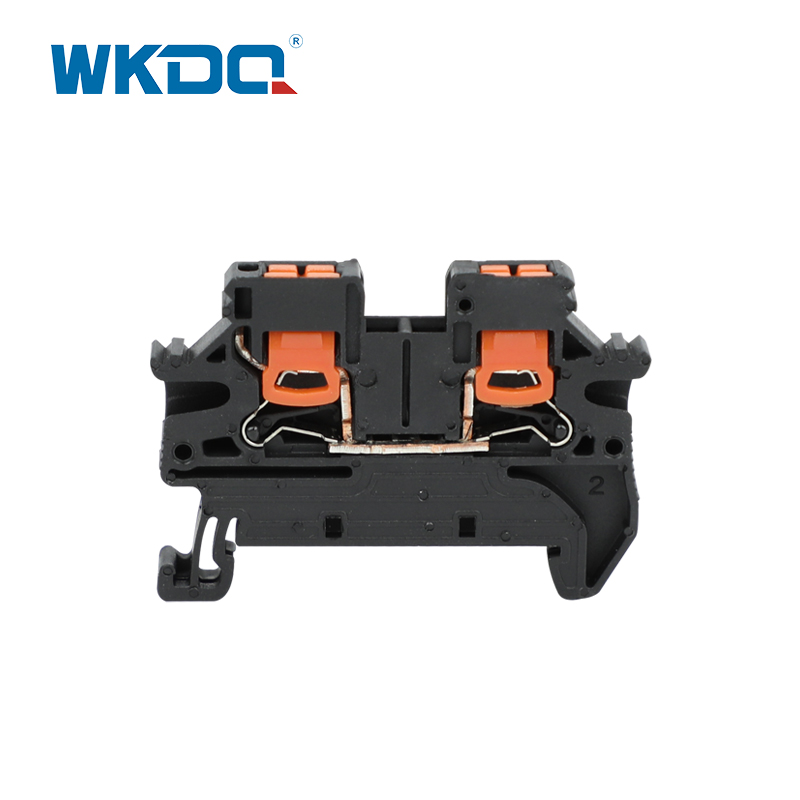

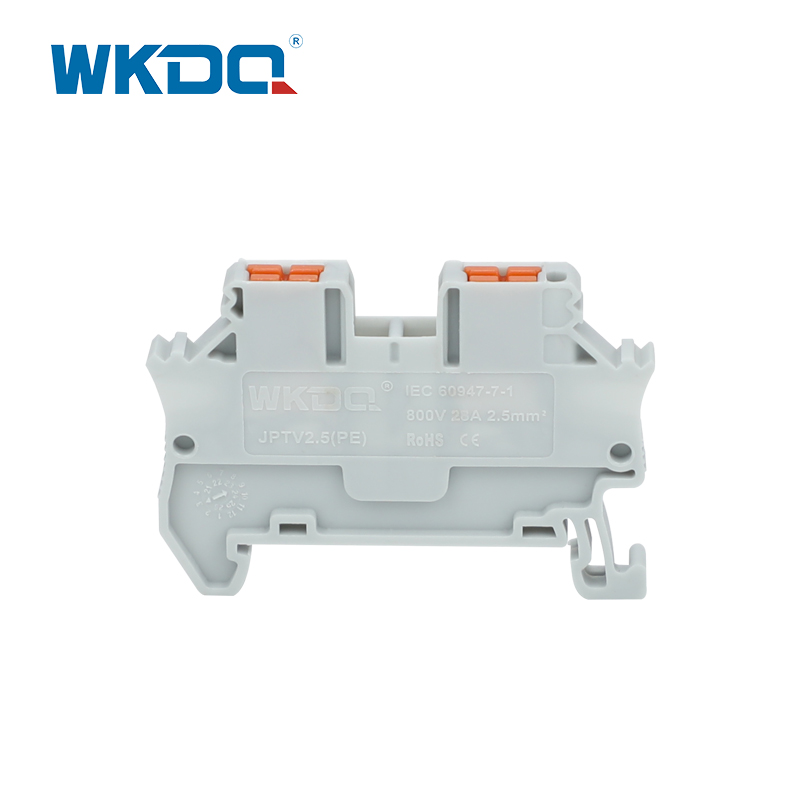

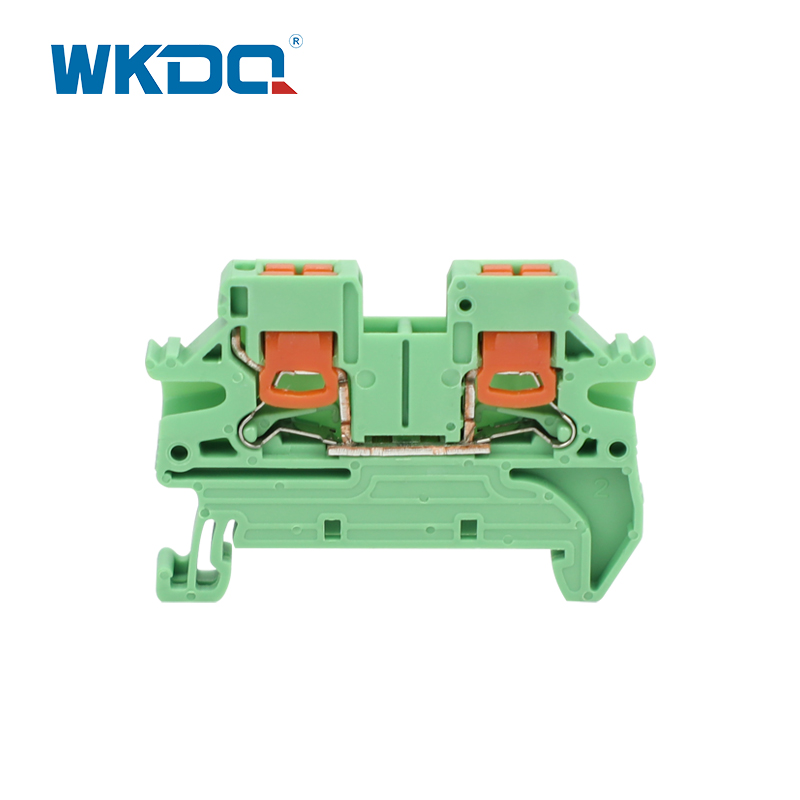

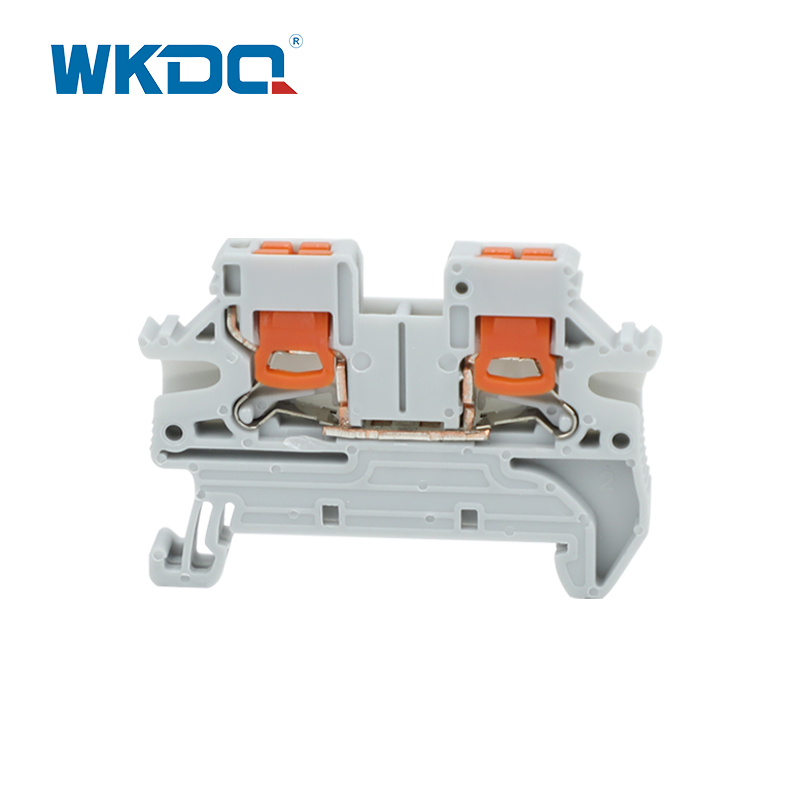

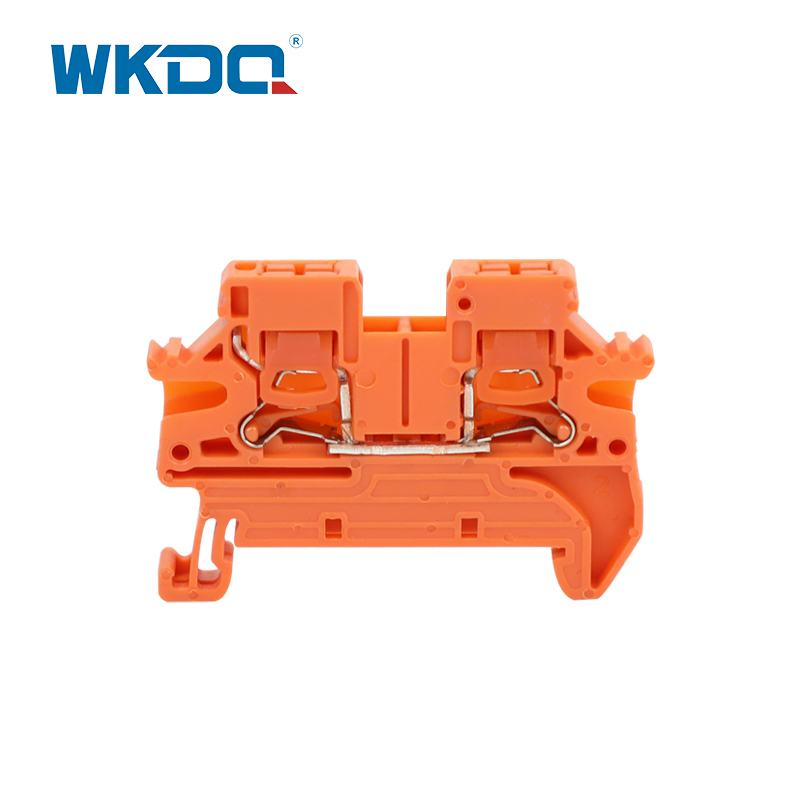

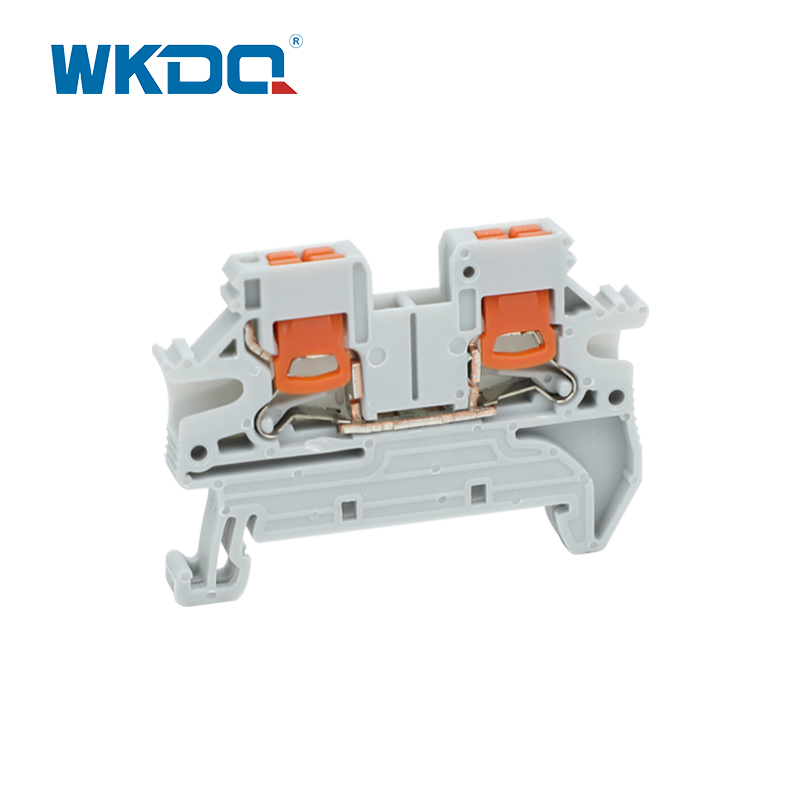

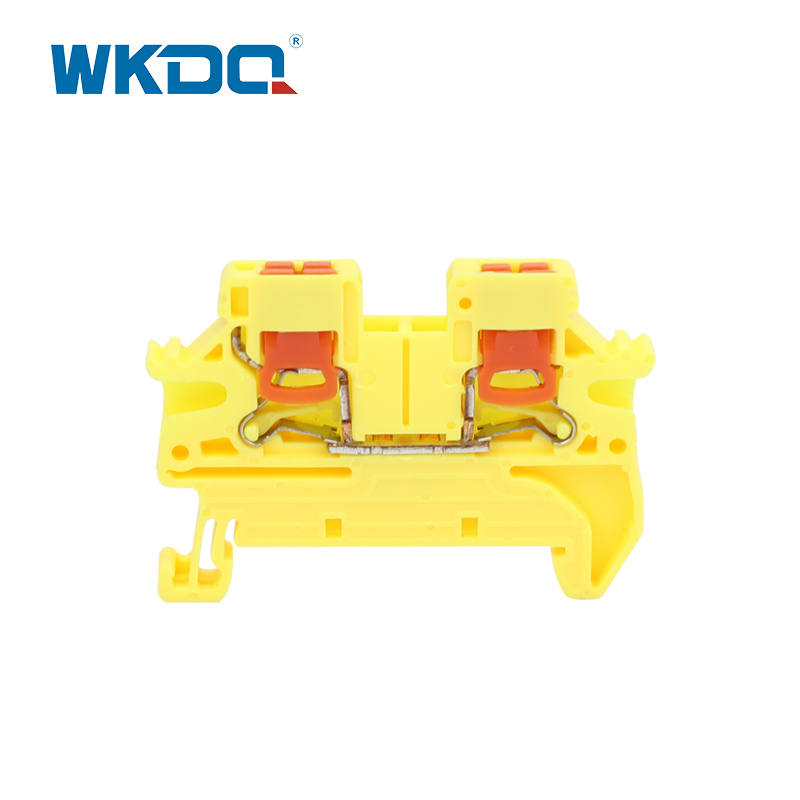

Push In Terminal Block Side Entry

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTV 2.5
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPTV 2.5

Send Inquiry

Product Description

The new PUSH IN modular terminal (including side entry models) adopts engineering nylon PA66 and nickel plated brass materials, with push in no tool wiring technology as the core, suitable for matching rings or solid wires.Side entry wiring without bending radius, clear marking, and easy to read design with side connection identification and cable labels, achieving fast installation, simple layout and high reliability. For efficient deployment of compact industrial electrical systems.

Model Number	JPTV 2.5

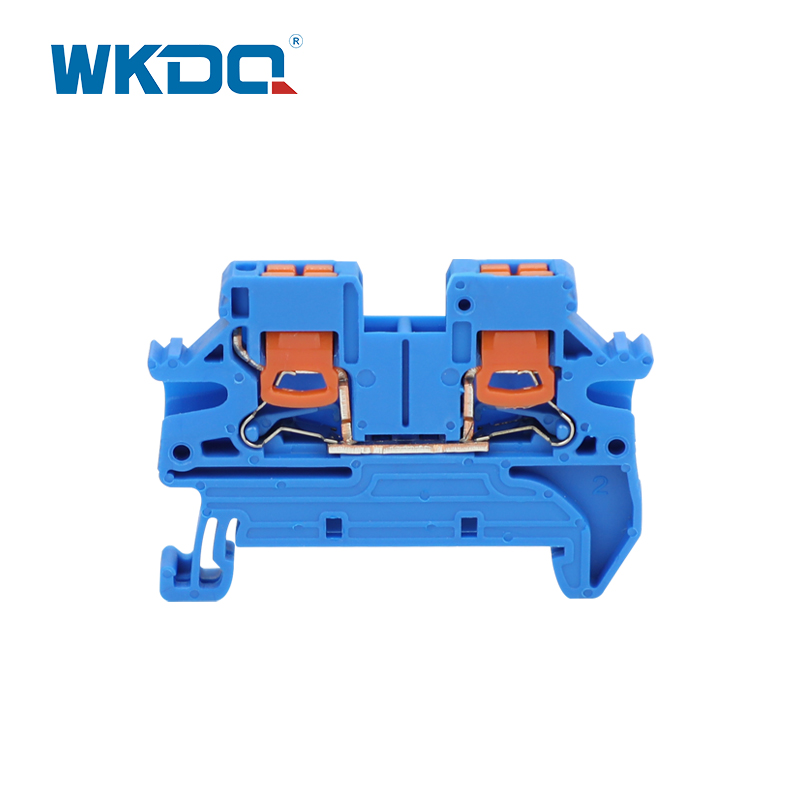

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	49.4/35.2/5.2
Connection method	Push in connection
Material	Anti inflaming Nylon PA66
Rated Voltage/Current	800V/28A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5mm²
Conductor Size	24-12 AWG

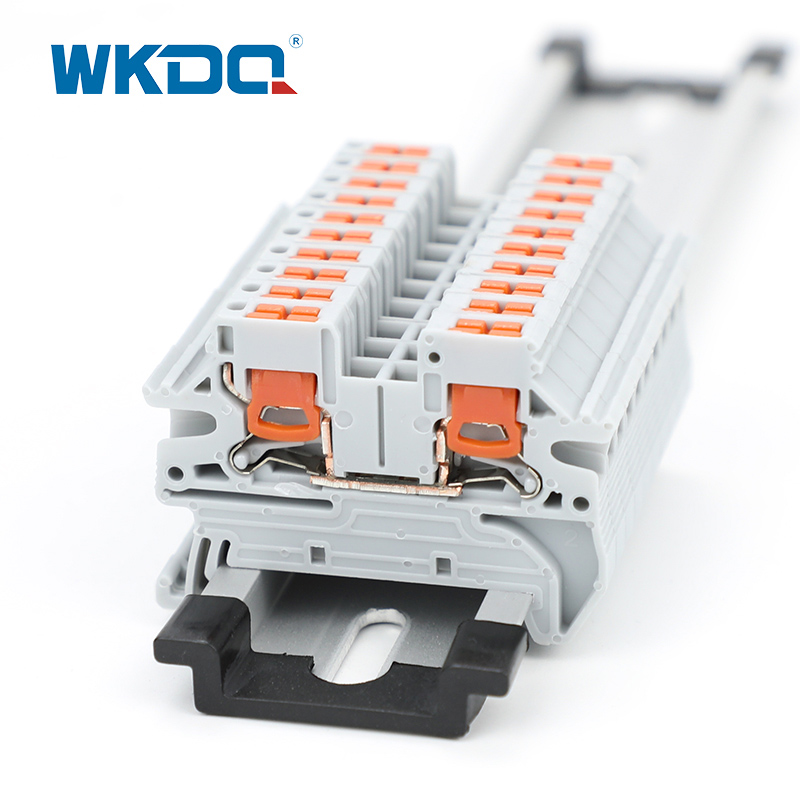

Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WKDQ, OEM serivce is supporting
Packing Detail	5.79g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
