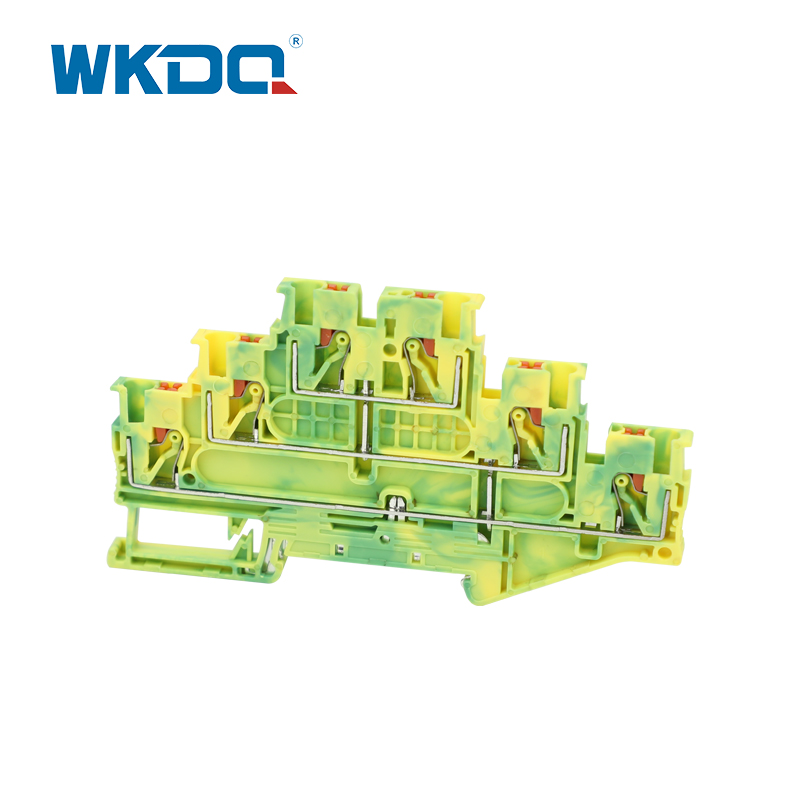

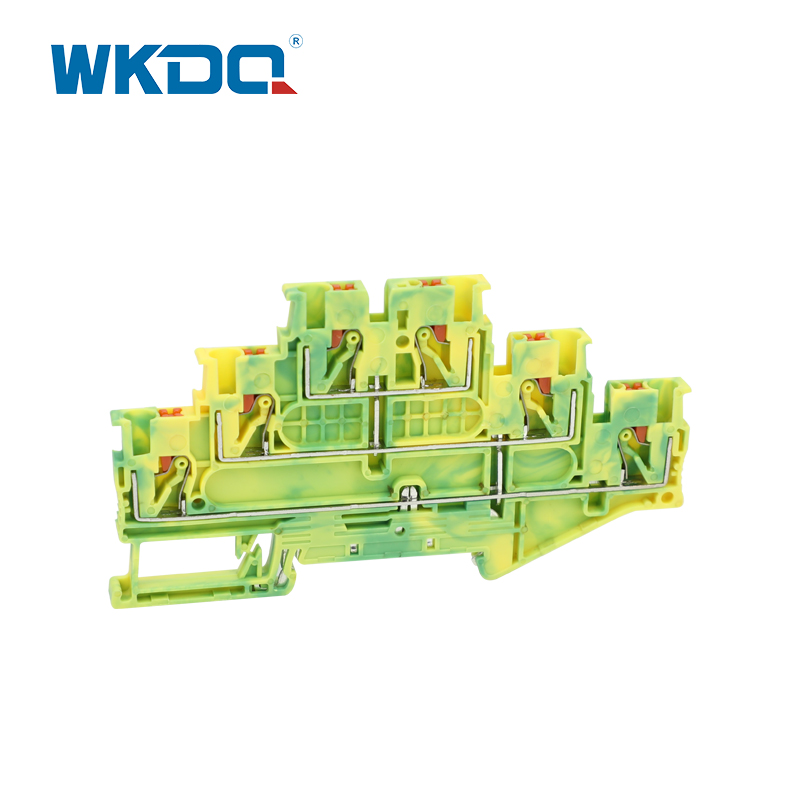

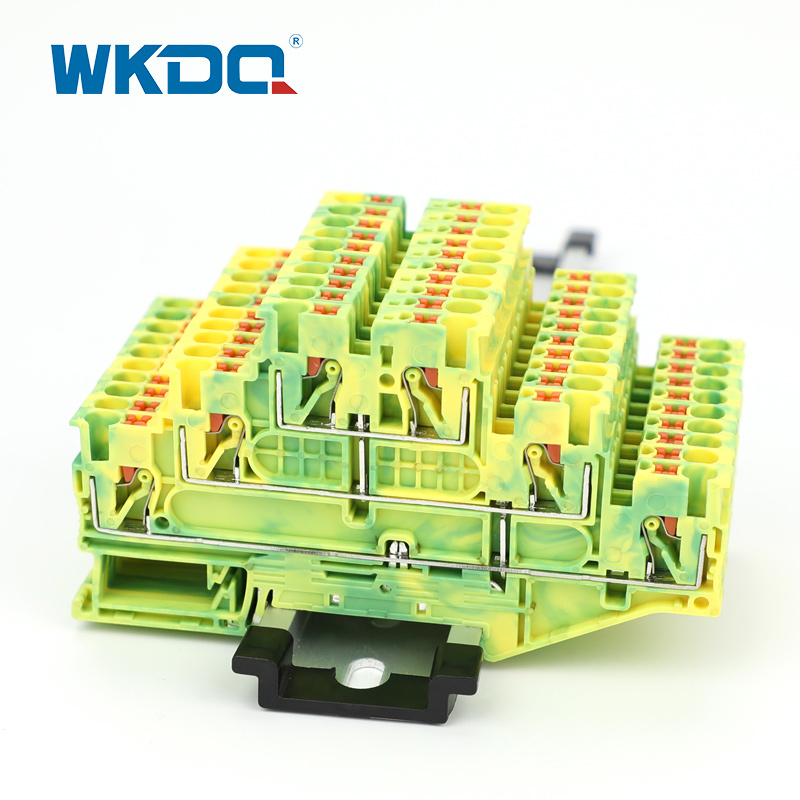

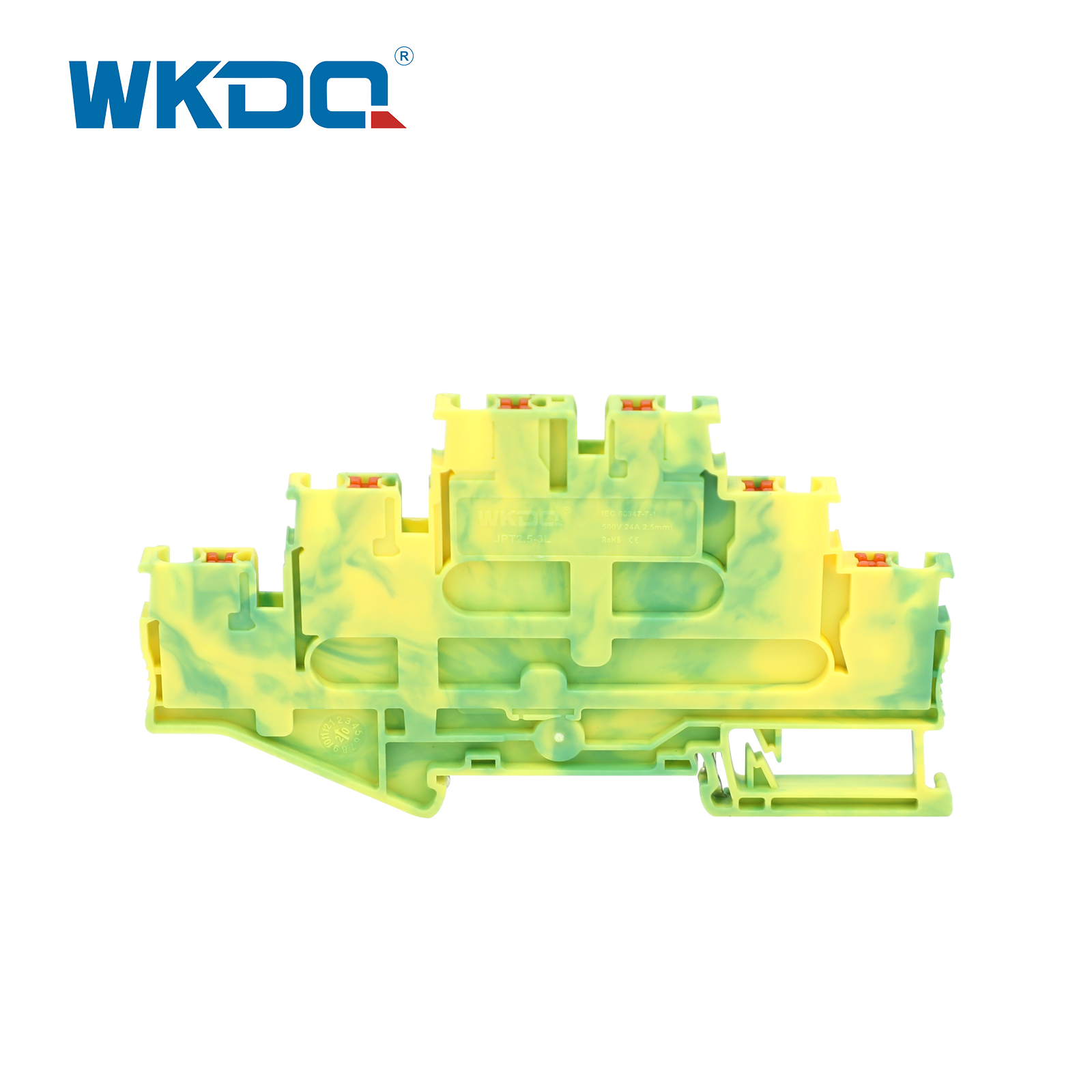

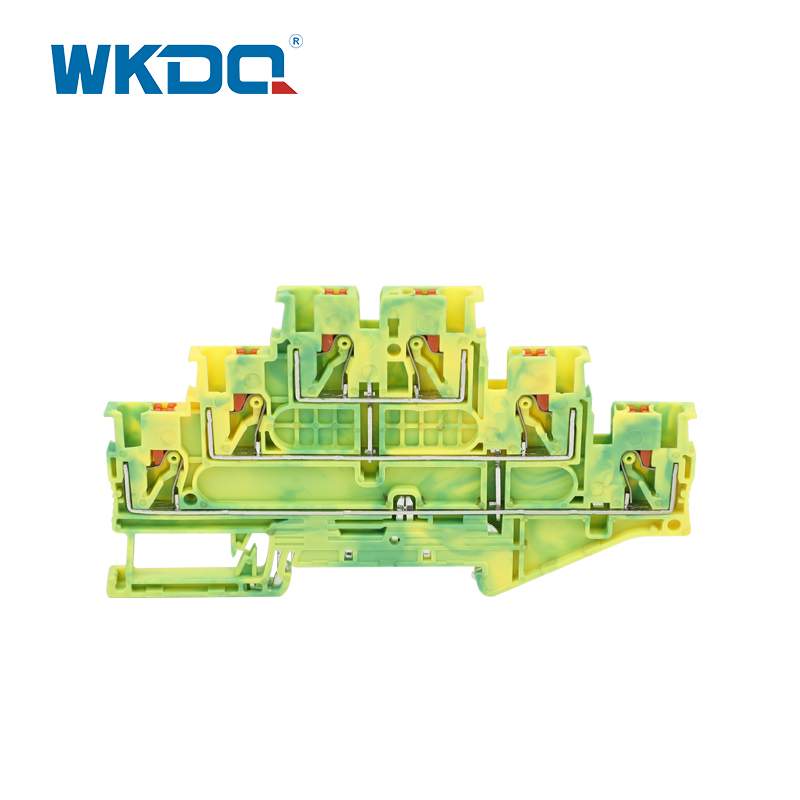

Push In DIN Rail PE Triple Level Ground Terminal Block

Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 2.5-3L-PE
Packaging Details: box
Delivery Time: 2-7days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

The PT three-level terminal block adopts flame-retardant nylon PA66 and stainless steel spring structure, supporting single module three potential distribution, compact design suitable for narrow spaces; The wiring points are clearly marked in layers, and the conductors are inserted directly without tools and installed on DIN rails to ensure highly reliable connections.

Model Number	JPT 2.5-3L-PE
Color	Yellow-Green other color can be customized
Length/Height/Wide (mm)	L103 /H56.4/ W5.2 mm
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	500V/24A
Cross, solid/stranded Wire	0.14-4mm²/0.14-2.5mm²
Conductor Size	24-12 AWG
Mounting type	NS35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Certification	CE/ROHS/CQC/ISO 9001
