Pushi In Terminal Block DIN Rail

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 10
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etcSend Inquiry

Model:JPT 10

Send Inquiry

Product Description

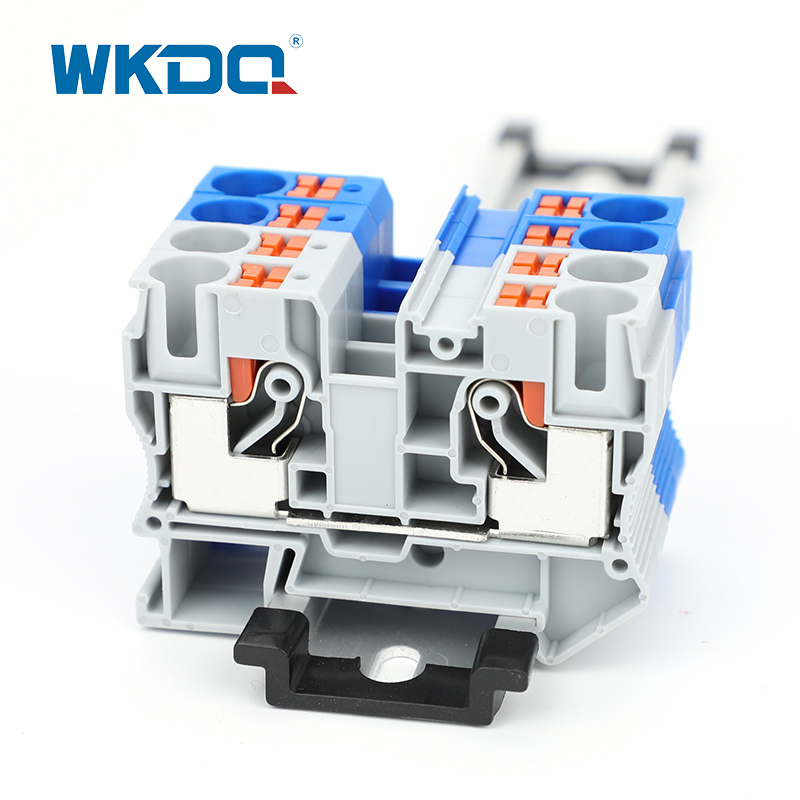

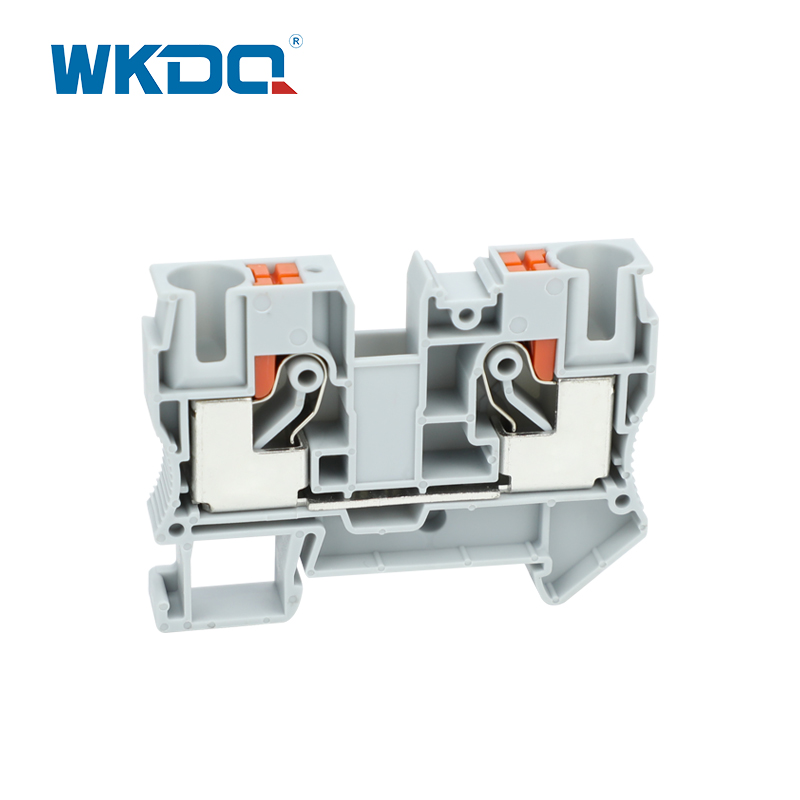

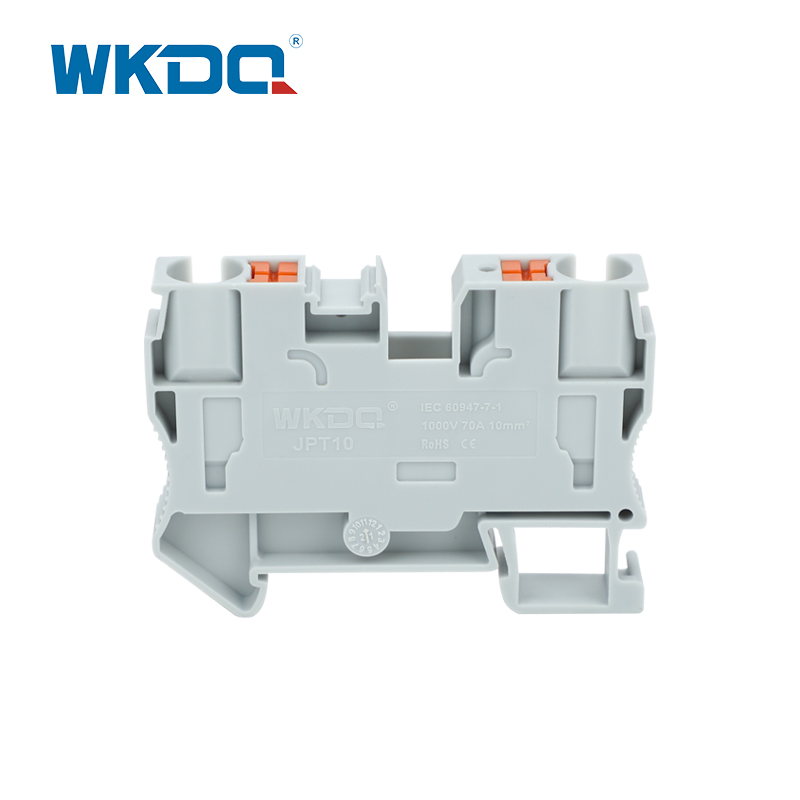

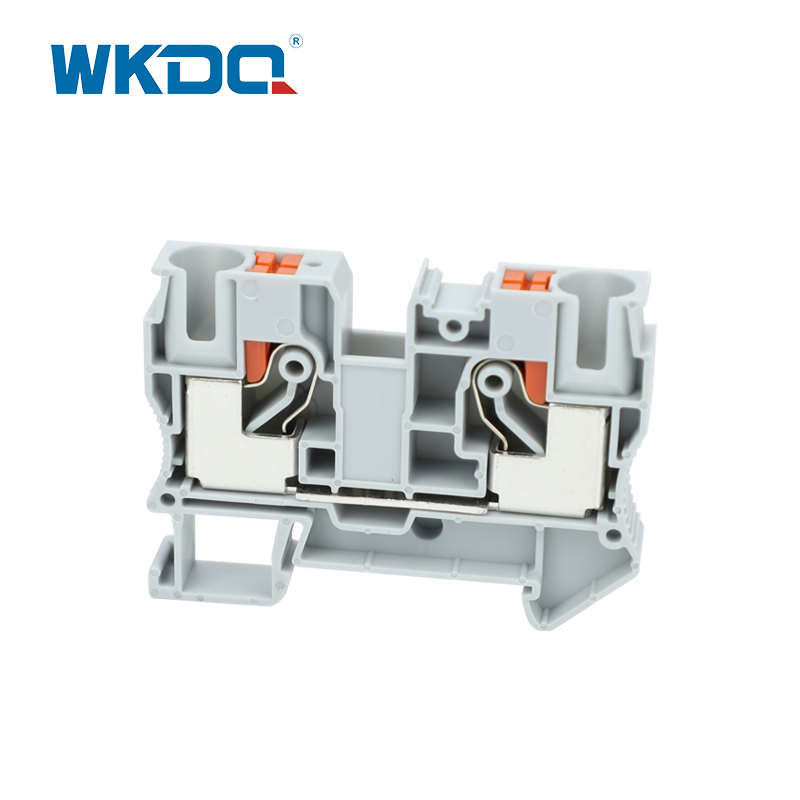

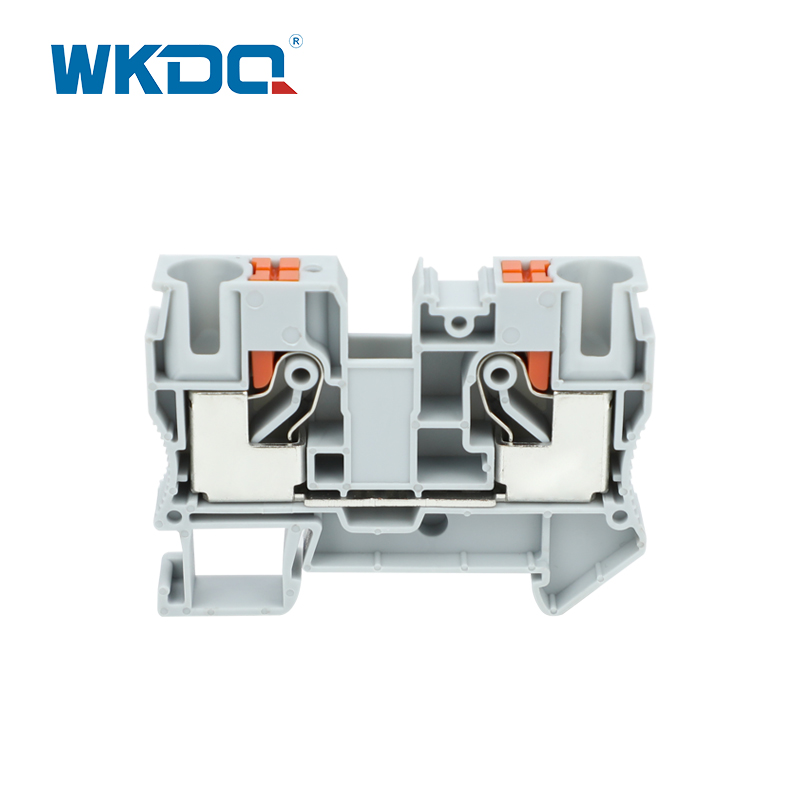

The push in terminal block is made of flame-retardant PA66 nylon and copper material, supporting quick wiring without tools (insertion force reduced by 50%), compatible with wire diameters of 0.25-16mm ², and the front outlet structure saves 35mm DIN rail installation space. Integrated anti-miscontact color buttons, bridge slot and identification slot, supporting end cover/partition/marking strip and other accessories, to meet the needs of industrial electronic control system high-density wiring safe connection and modular expansion, both corrosion and vibration resistance.

Model Number	JPT 10

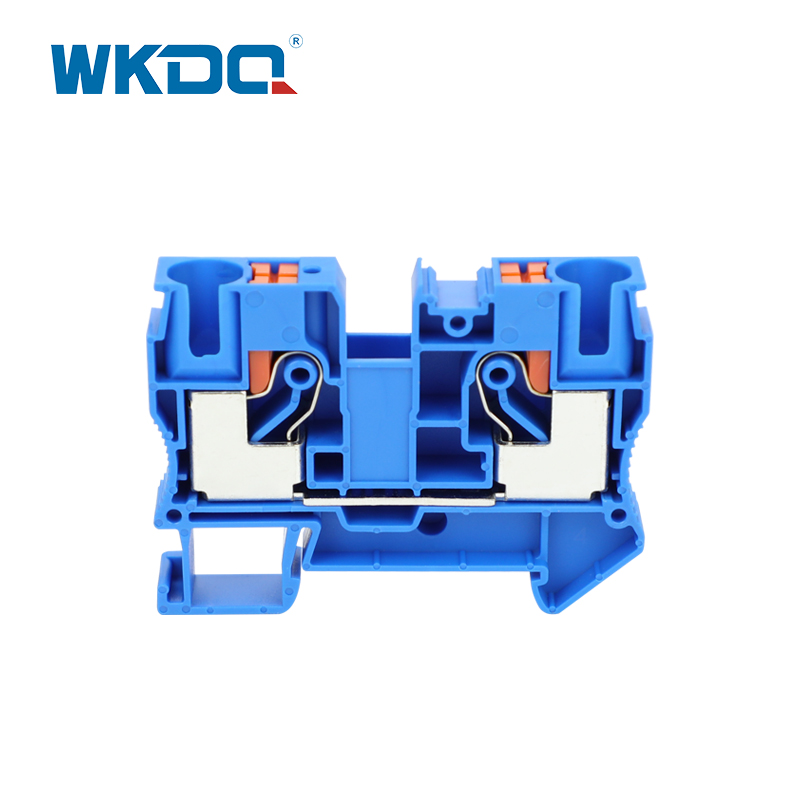

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	L67.7/H49.5/W10.2 mm
Connection method	Push in connecting
Material	Nylon PA66
Rated Voltage/Current	1000V/57A
Cross section, solid/soft Cable	0.5-16mm² / 0.5-10mm²
Conductor Size	20-5 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	26g/pc, 40PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
