Push In Terminal Block High Current
  • Push In Terminal Block High CurrentPush In Terminal Block High Current
  • Push In Terminal Block High CurrentPush In Terminal Block High Current
  • Push In Terminal Block High CurrentPush In Terminal Block High Current
  • Push In Terminal Block High CurrentPush In Terminal Block High Current
  • Push In Terminal Block High CurrentPush In Terminal Block High Current
  • Push In Terminal Block High CurrentPush In Terminal Block High Current

Push In Terminal Block High Current

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT1 6
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPT16

Send Inquiry

Product Description

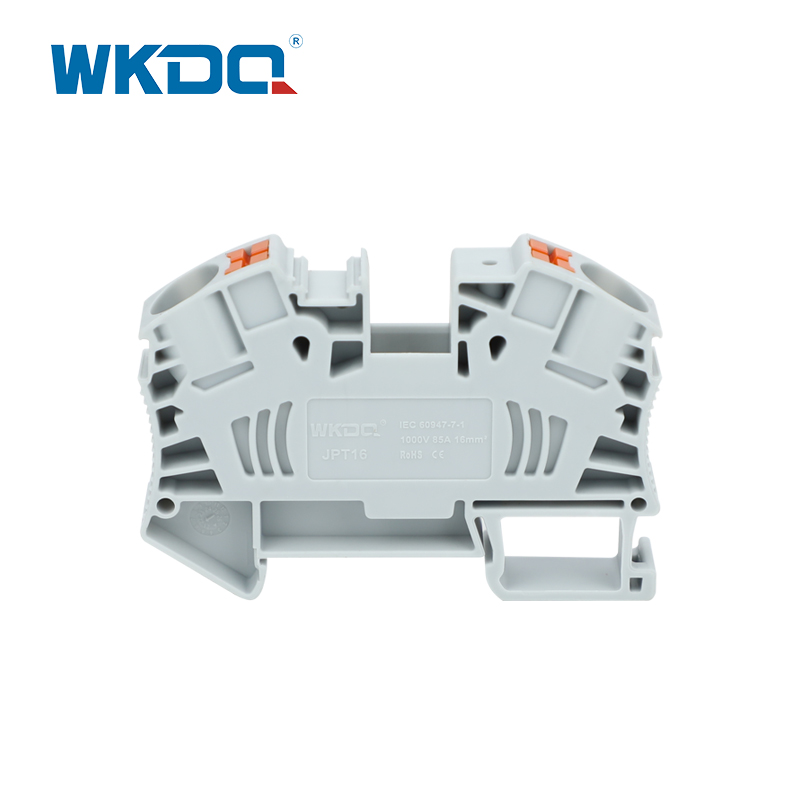

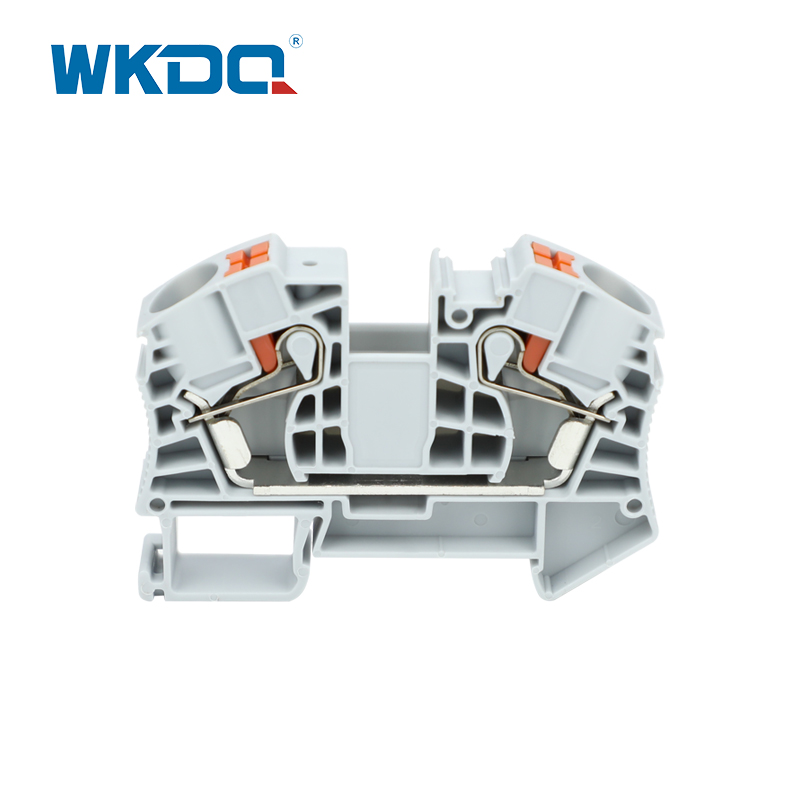

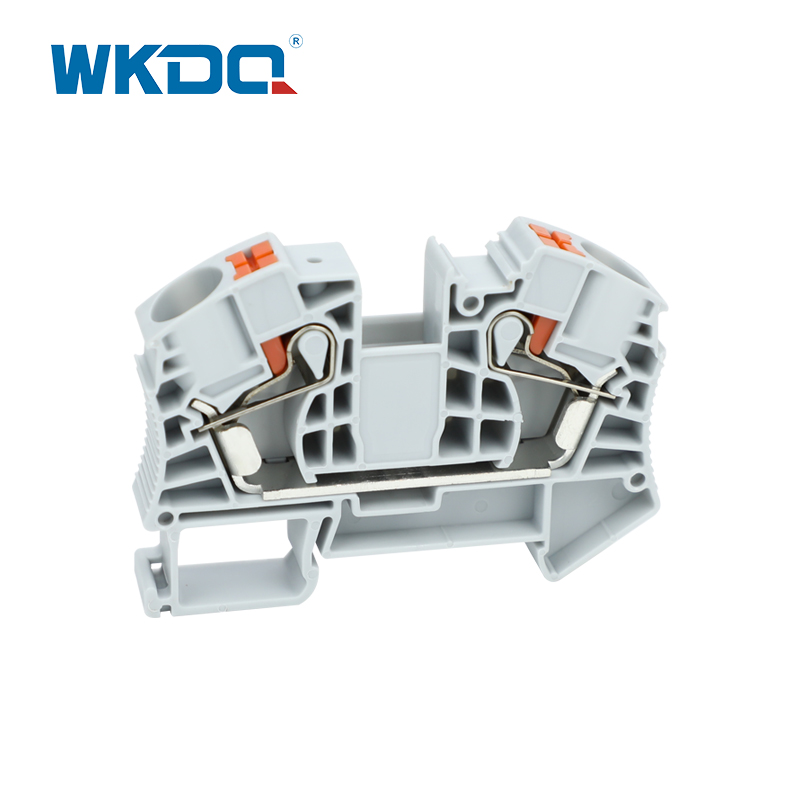

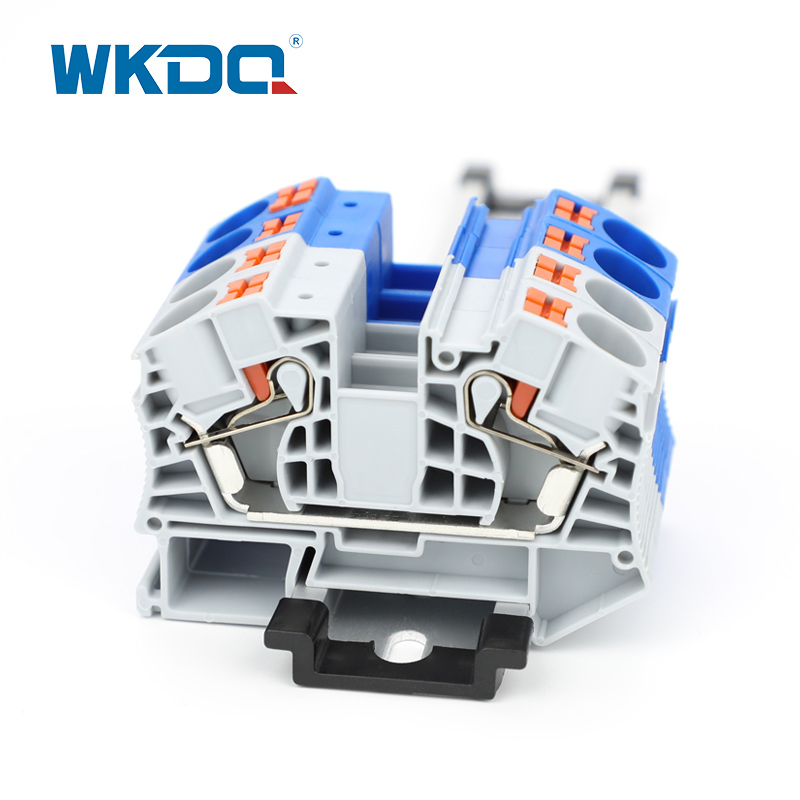

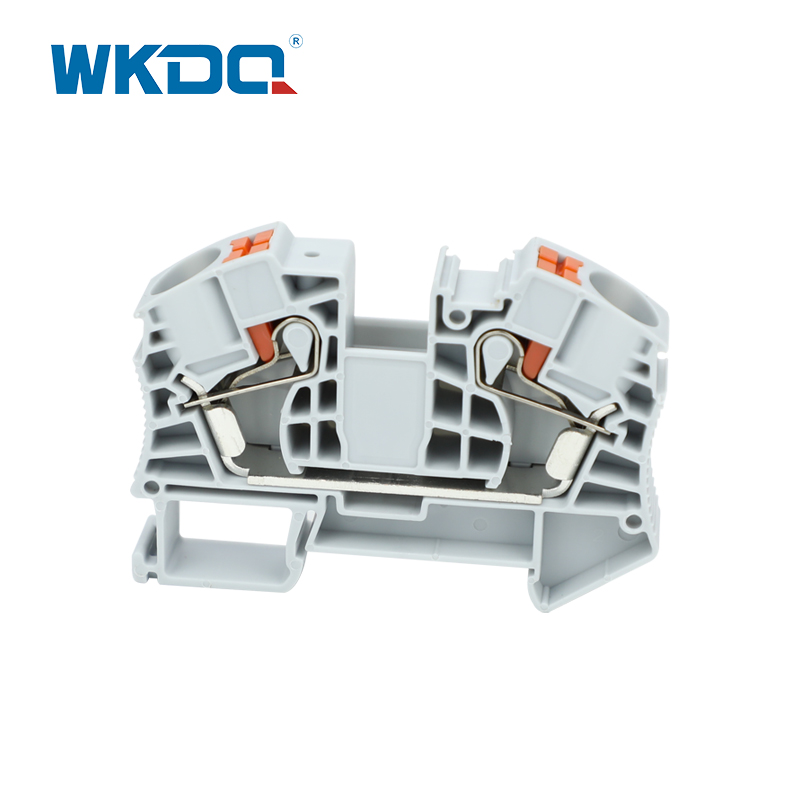

JPT16 high current push-in terminal block ‌ :

1. Flame-retardant nylon PA66+ copper conductor ‌, tool-free push wire (push-button plug and remove wire) ‌, the insertion relay reduced by 50%‌.

2. Shockproof and rust-proof design suitable for harsh industrial environment ‌, compact front-end wire structure optimization high-density space wiring ‌, compatible with 35mm standard DIN guide rail ‌.

3. Support potential distribution bridge and identification management ‌. Accessories such as end cover, partition board, and marking strip are available ‌, providing efficient and secure interconnection solutions for high-current scenarios.

Model Number JPT 16

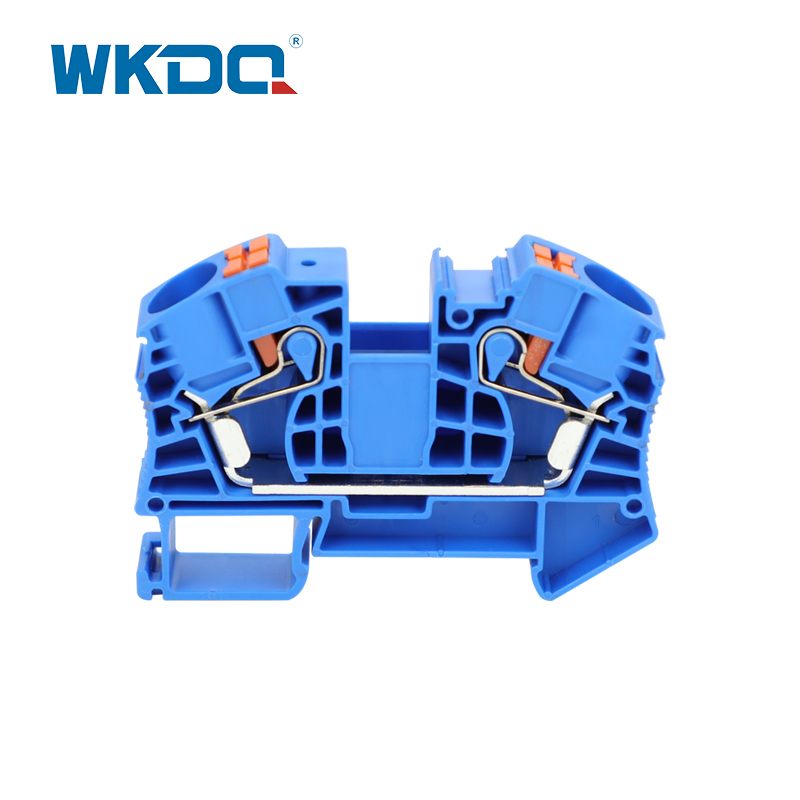

Color Grey, Blue, other color can be customized
Length/Height/Wide (mm)
L75.4/H52.6/W12.2
Connection method Push in connecting
Material Nylon PA66
Rated Voltage/Current 1000V/57A
Cross section, solid/soft Cable 0.5-25mm² / 0.5-16mm²
Conductor Size 20-5 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 25g/pc, 20PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
