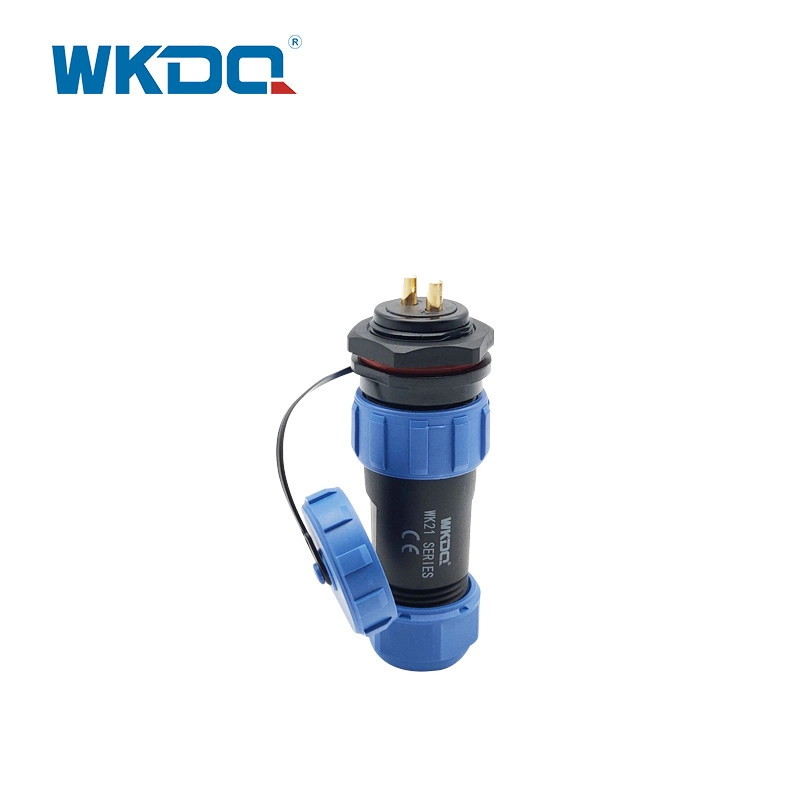

Sp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female Cable
  • Sp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female CableSp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female Cable
  • Sp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female CableSp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female Cable
  • Sp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female CableSp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female Cable
  • Sp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female CableSp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female Cable
  • Sp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female CableSp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female Cable

Sp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female Cable

A WK SP threaded coupling waterproof connector is a type of electrical connector that features an SP (Single Pole) threaded coupling mechanism and is designed to provide a reliable and waterproof connection in challenging environments. It is commonly used in outdoor applications where protection against water, dust, and other contaminants is crucial.

Send Inquiry

Product Description

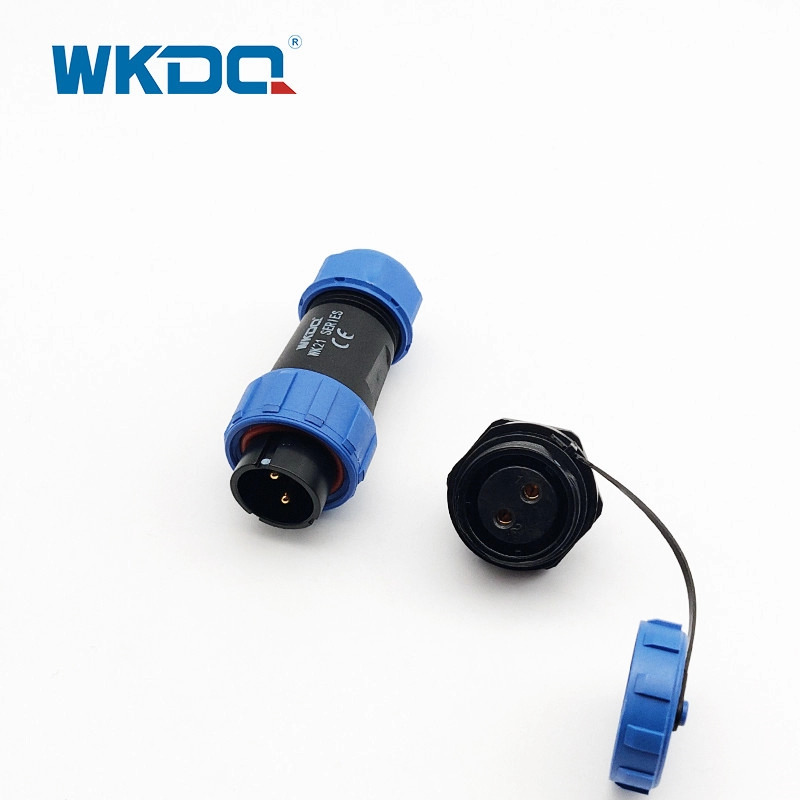

The WK SP threaded coupling connector typically consists of a male plug and a female socket. The male plug has a threaded coupling nut, while the female socket has a corresponding threaded receptacle. The threads on the coupling nut and receptacle enable a secure and tight connection when twisted together.


To ensure waterproofing, SP threaded coupling connectors often incorporate additional sealing features. These may include rubber gaskets, O-rings, or other sealing elements placed between the mating surfaces of the plug and socket. These seals prevent water, moisture, and dirt from entering the connection points.

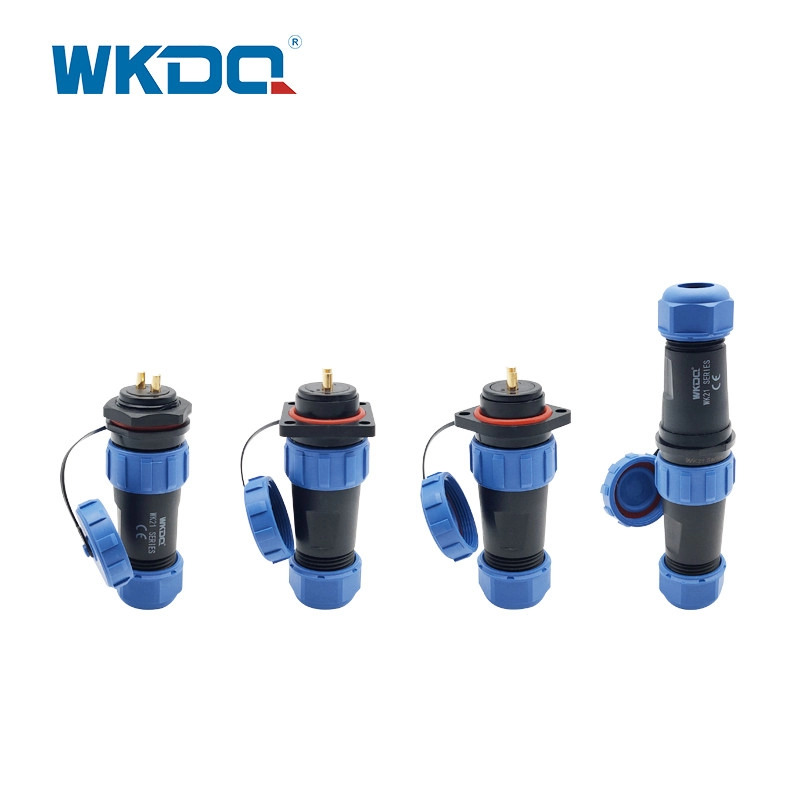

SP threaded coupling waterproof connectors are available in various sizes, configurations, and voltage/current ratings to suit different applications. They are commonly used in outdoor lighting, power distribution systems, telecommunications equipment, and other industrial or commercial applications where protection against the elements is essential.

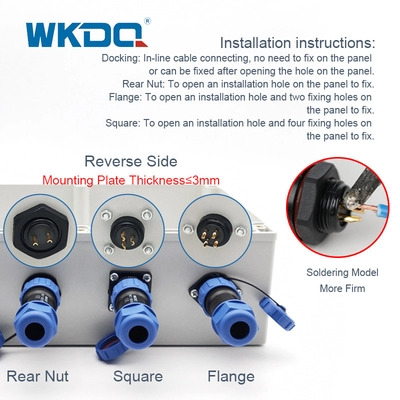

When using SP threaded coupling waterproof connectors, it's important to ensure proper mating and alignment of the threads to achieve a secure and watertight connection. Following the manufacturer's instructions and guidelines for installation and maintenance will help ensure the reliable and waterproof performance of these connectors.

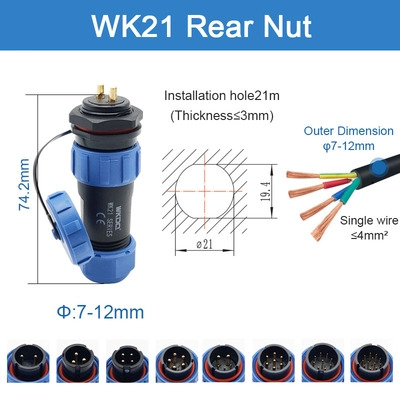

Technical Parameters

Coupling Threaded Coupling
Shell material PC, Nylon66, fire resistance: V-0
Insert material PPS, max temperature 260 ℃
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range 7-12mm
IP rating IP68
Mating cycle 500
Temperature range -40℃ ~ + 85℃
Insulation resistance 2000 M Ω



Hot Tags: Sp Threaded Coupling Waterproof Connector Wk21 Rear Nut Pin Male And Female Cable, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
