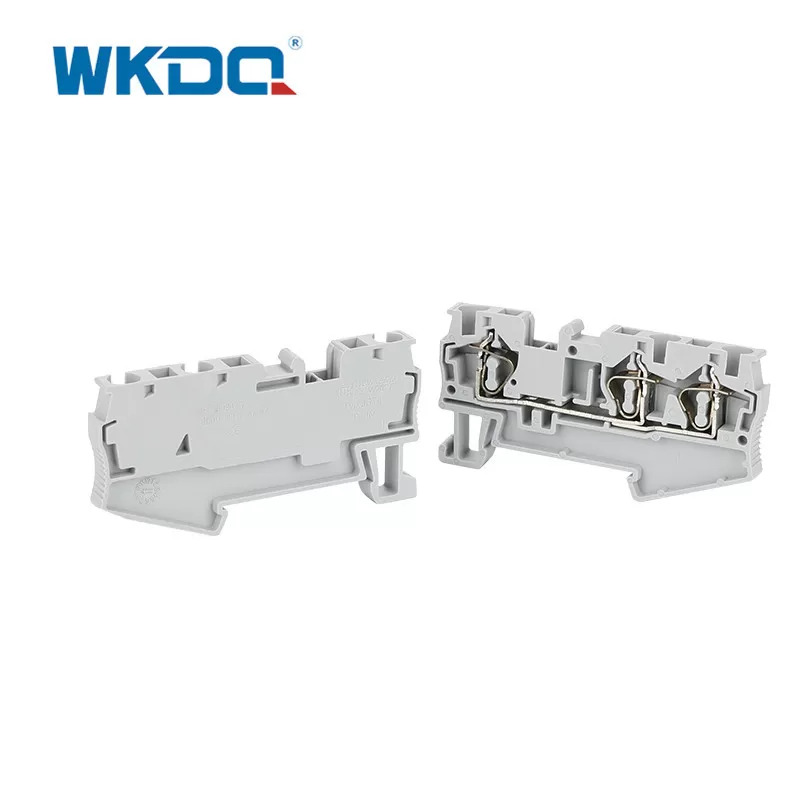

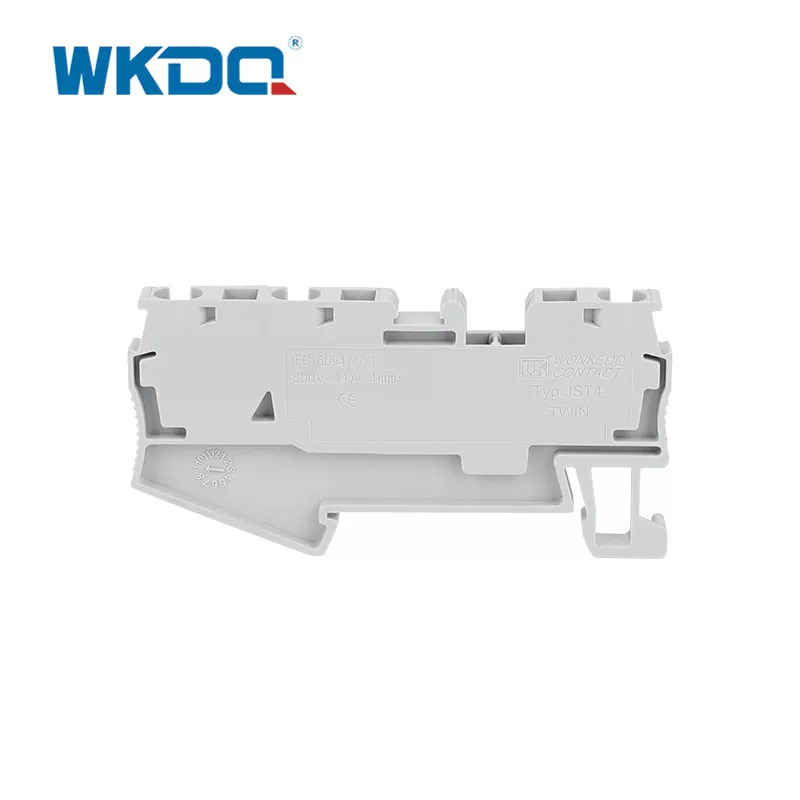

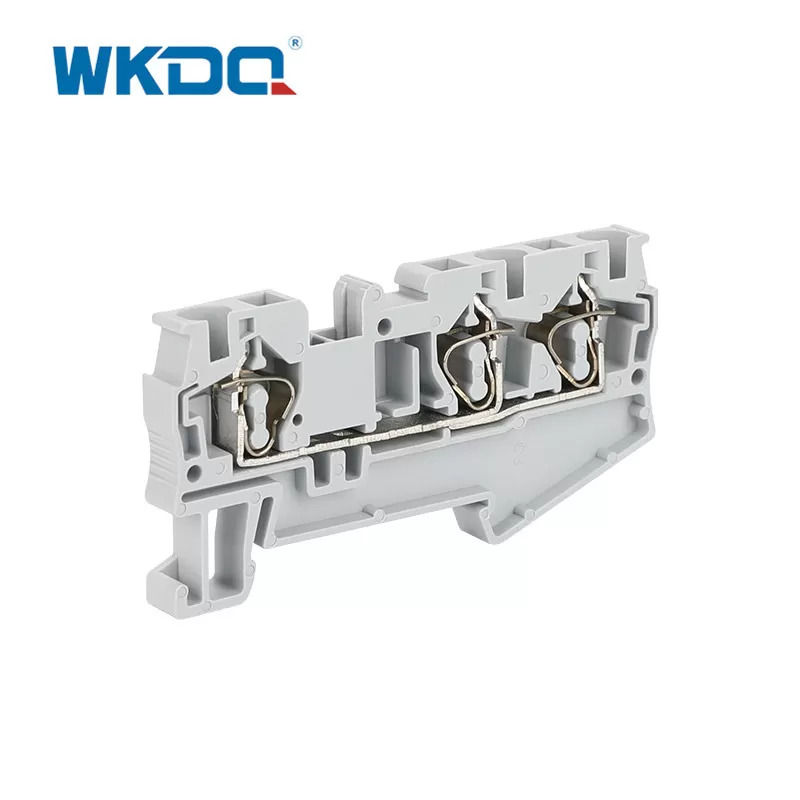

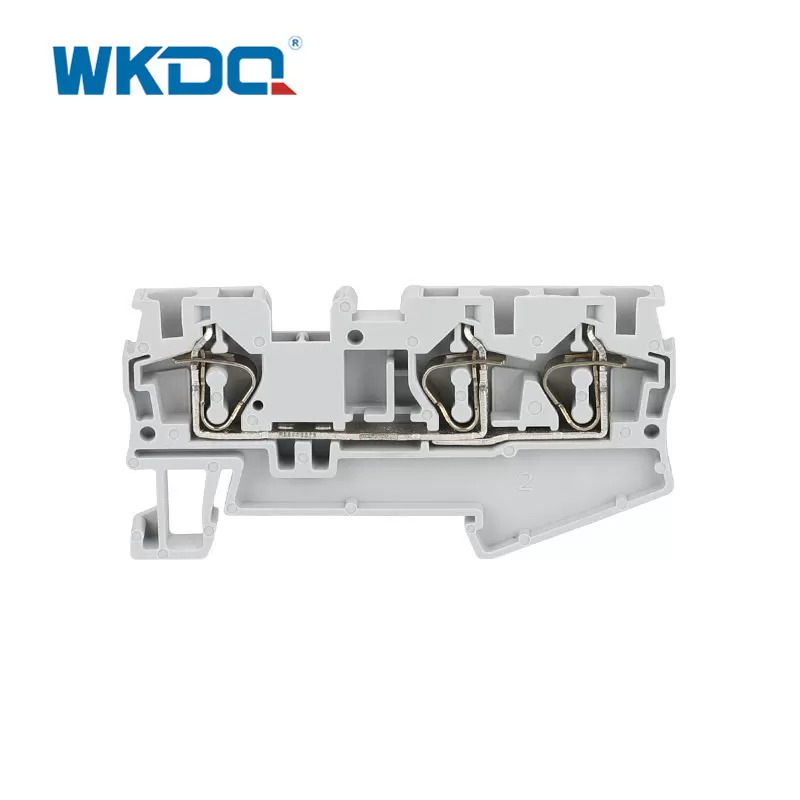

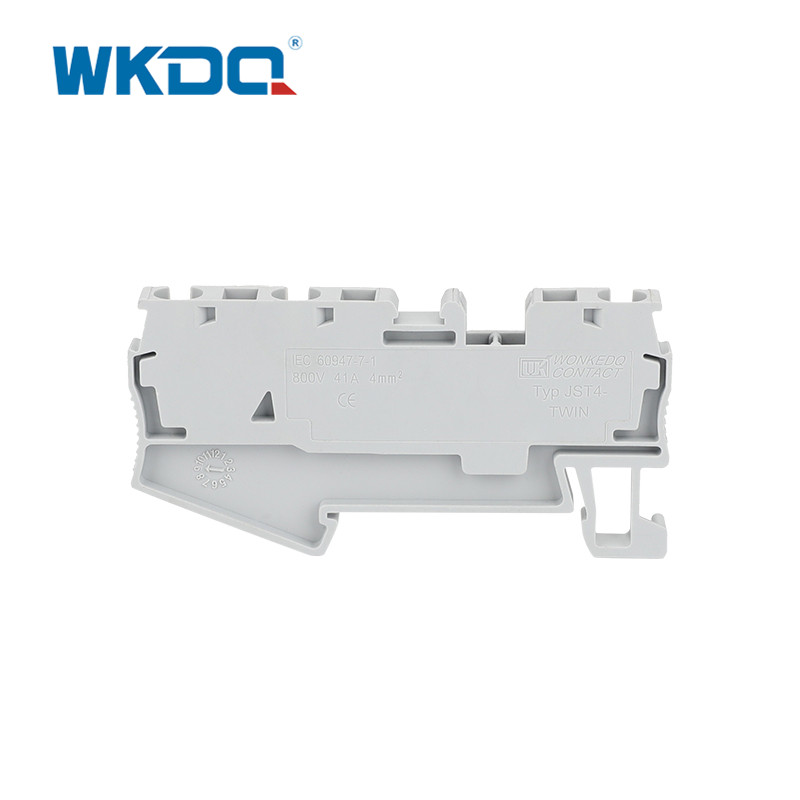

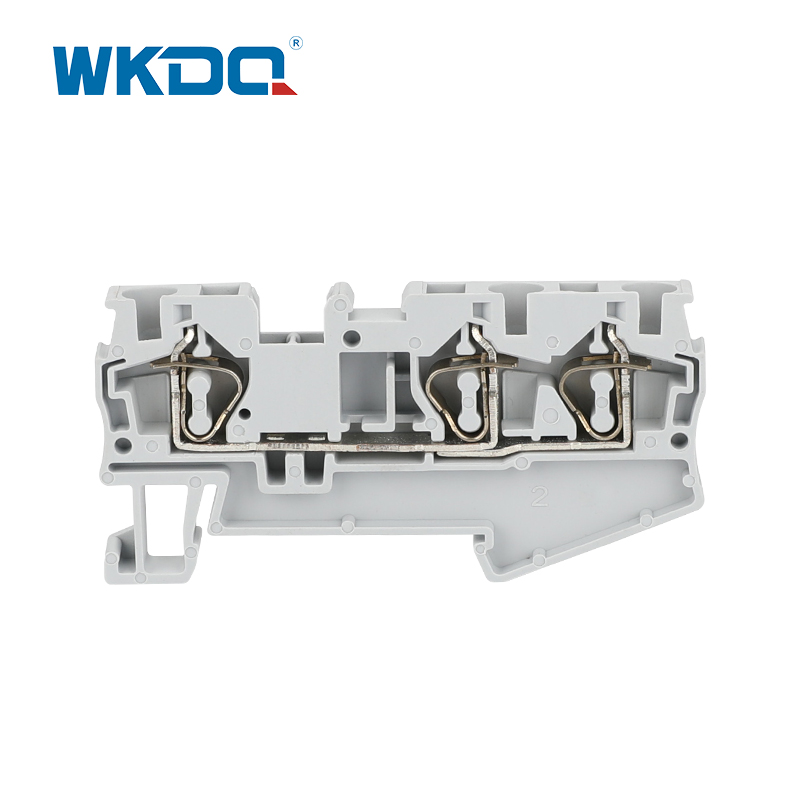

Spring Cage Nylon PA66 Spring Cage Din Rail Terminal
  • Spring Cage Nylon PA66 Spring Cage Din Rail TerminalSpring Cage Nylon PA66 Spring Cage Din Rail Terminal
  • Spring Cage Nylon PA66 Spring Cage Din Rail TerminalSpring Cage Nylon PA66 Spring Cage Din Rail Terminal
  • Spring Cage Nylon PA66 Spring Cage Din Rail TerminalSpring Cage Nylon PA66 Spring Cage Din Rail Terminal
  • Spring Cage Nylon PA66 Spring Cage Din Rail TerminalSpring Cage Nylon PA66 Spring Cage Din Rail Terminal
  • Spring Cage Nylon PA66 Spring Cage Din Rail TerminalSpring Cage Nylon PA66 Spring Cage Din Rail Terminal

Spring Cage Nylon PA66 Spring Cage Din Rail Terminal

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 4 TWIN
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

DIN Rail Terminal Blocks are increasingly being utilized in various applications such as building projects, automation assembly, elevators, and railways. These terminal blocks offer several advantages:

Easy installation and modification: Terminal blocks can be easily added or removed from the rail without disturbing other wire terminations, allowing for quick and convenient circuit modifications.

Minimized complexity: Terminal blocks simplify control wiring, making it easier to manage and troubleshoot electrical connections.

Safe and secure connection: Terminal blocks provide a reliable and safe connection, ensuring that wires are securely fastened and protected against accidental disconnections.

Gas-tight and corrosion-proof: The terminal blocks feature a gas-tight connection and corrosion-proof contact points, ensuring stable and reliable electrical connections over an extended period.

Long-lasting durability: Built to withstand demanding environments, these terminal blocks offer excellent durability and can endure prolonged usage without compromising performance.

High-quality materials: The terminal blocks are made from high-quality, anti-flaming plastic materials that meet stringent safety standards, providing added protection against fire hazards.

Multi-conductor capability: With multi-conductor terminal blocks, you can connect up to three conductors with individual wiring at each terminal point, saving time and reducing costs.

Compact size and front entry: The terminal blocks feature an extremely compact design and front entry connection, enabling easy and efficient wiring even in tight spaces.

Efficient use of space: Multi-conductor terminal blocks allow for the distribution of potentials, optimizing space utilization and reducing costs in wiring applications.

Wide range of accessories: A variety of accessories are available to complement the terminal blocks, including end plates, end brackets, marker tags, and jumpers, providing flexibility and customization options for your specific needs.

In summary, DIN Rail Terminal Blocks offer easy operation, safe and reliable connections, long-lasting durability, and compatibility with a range of accessories. These features make them an ideal choice for various applications, providing efficient and secure electrical connections while minimizing complexity and maximizing space utilization.


Technical Parameters

Model Number JST 4-TW

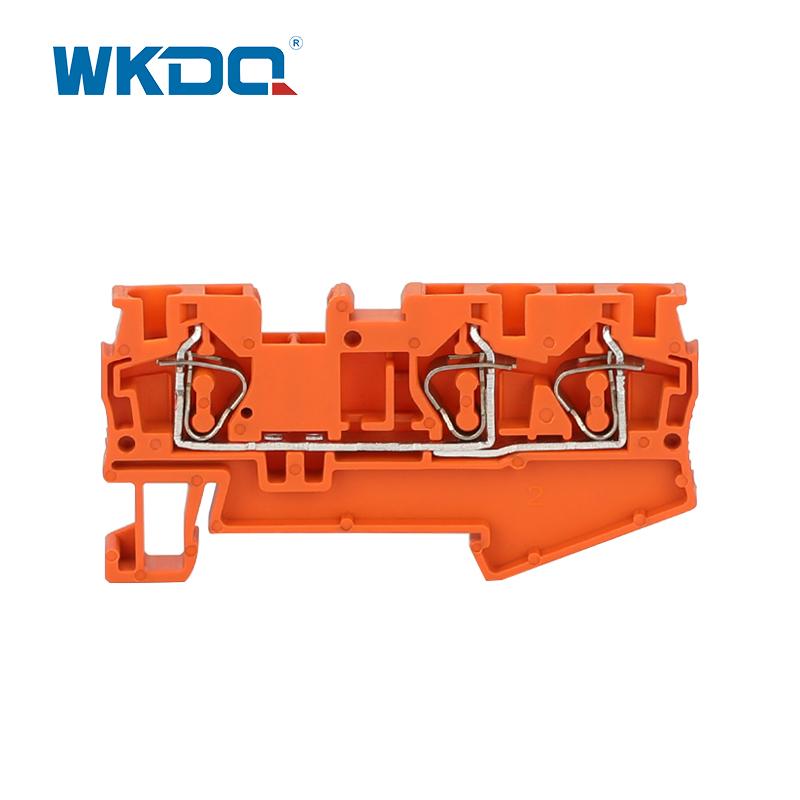

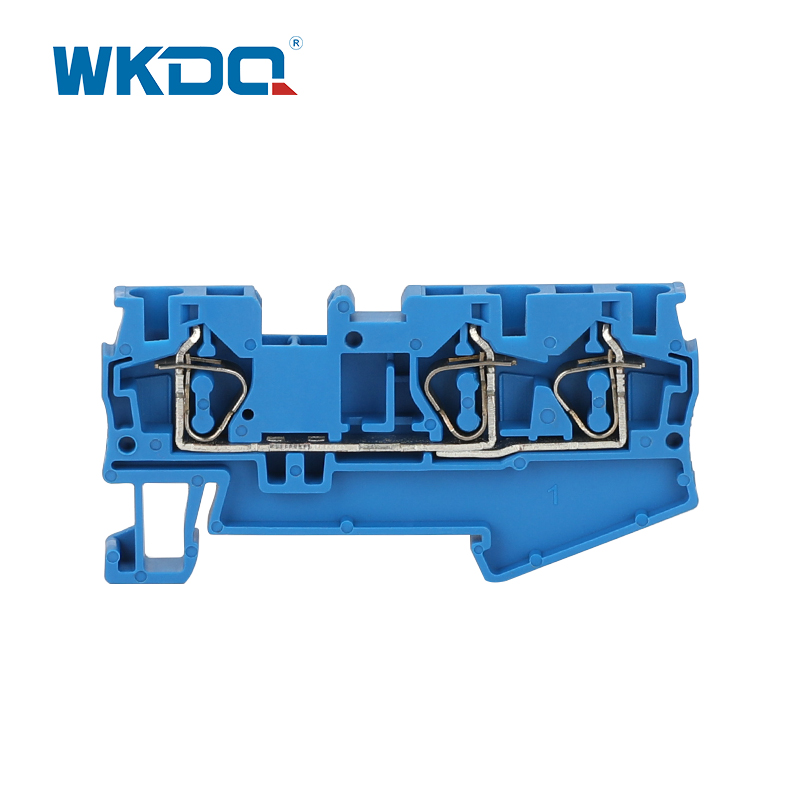

Color Grey, Blue, other color can be customized
Dimension (mm) L71.5/H36.5/W6.2
Connection method Spring cage connection
Material Anti-flaming Nylon PA66
Rated Voltage/Current 800V/41A
Cross, hard/stranded Cable 0.5-6mm² / 0.5-4 mm²
Conductor 20-10 AWG

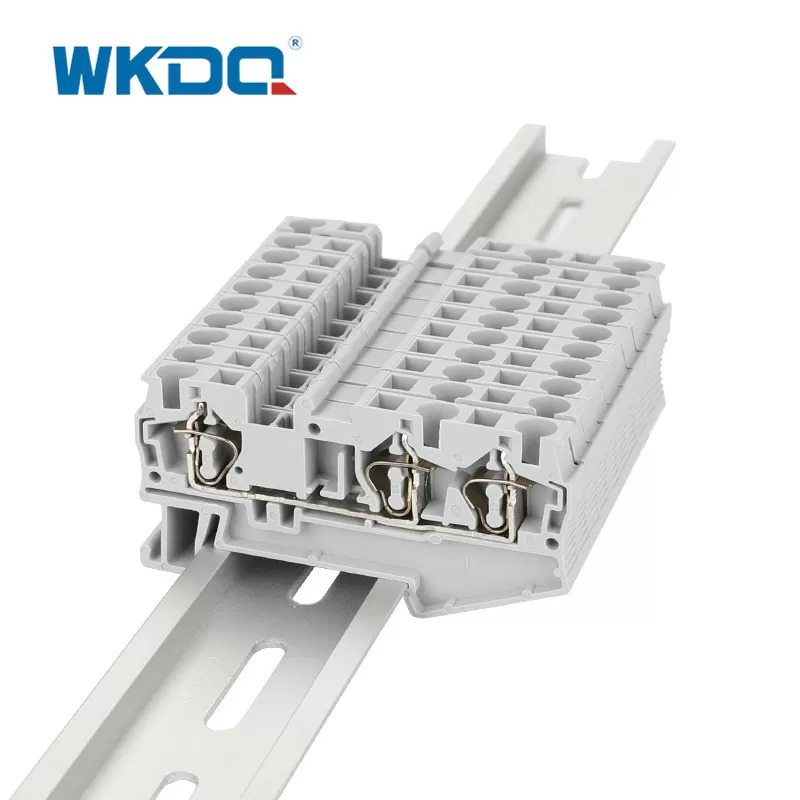

Mounting NS 35 DIN rail
Standard IEC 60947-7-1
Brand WonkeDQ, LOGO can be customized
Packing Detail 11.6g/pc, 55PCS/BOX, 2200PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
