Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: D-JST 2.5
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

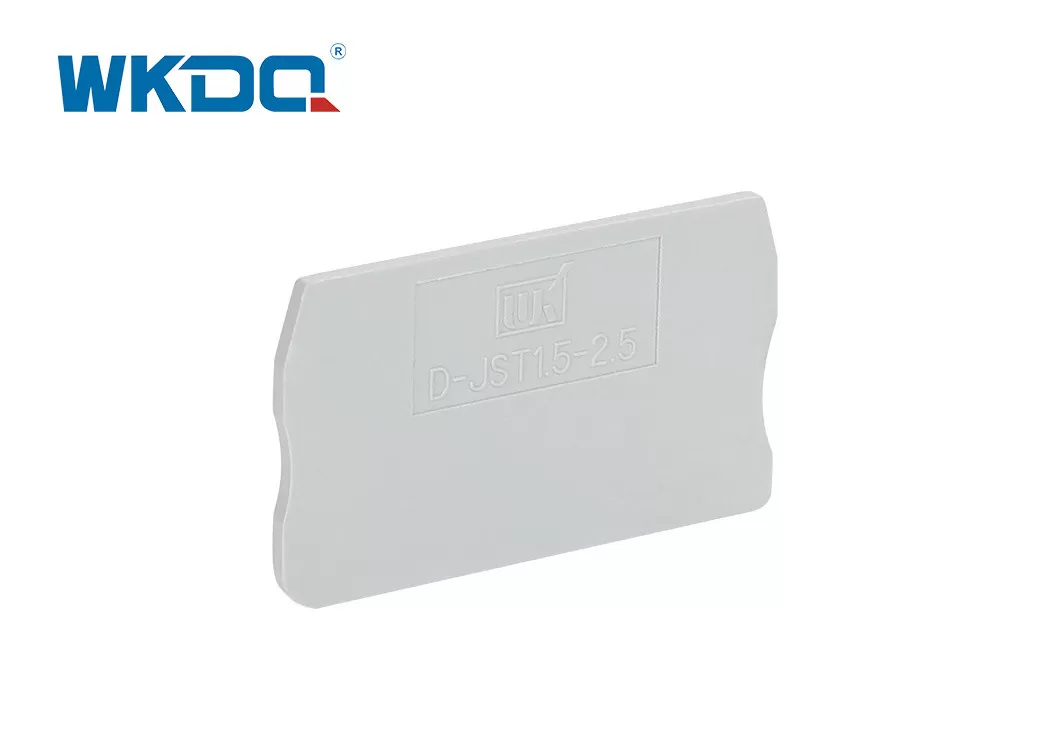

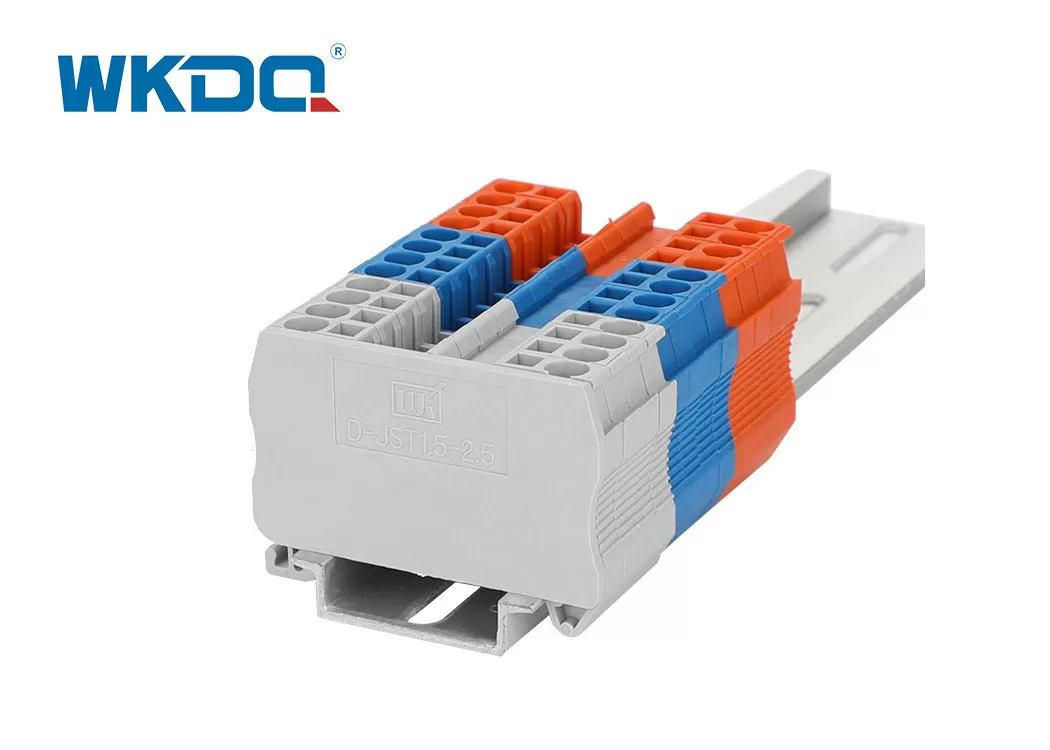

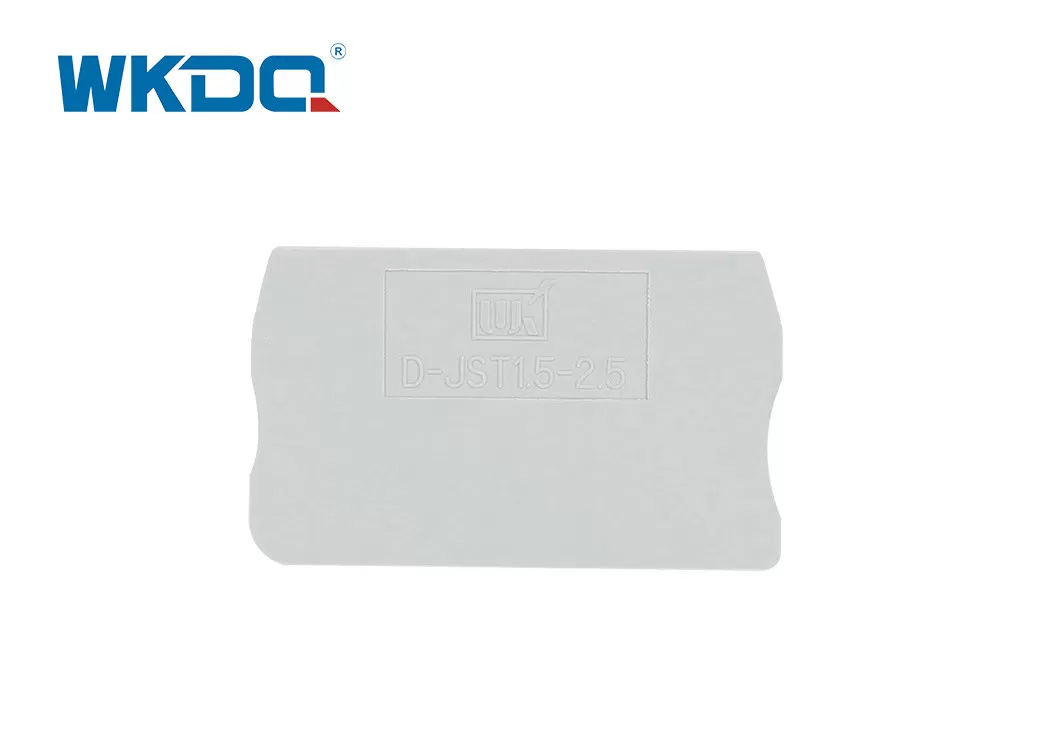

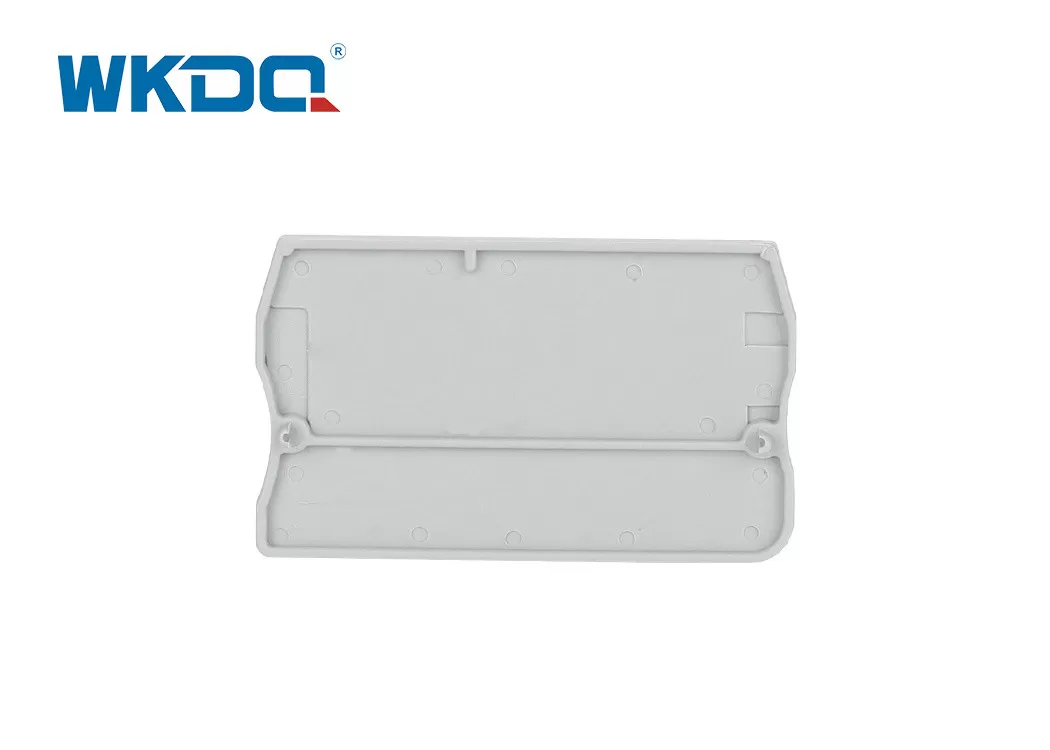

The ST series DIN rail terminal cover plate adopts an adaptive snap-fit design, which can be quickly installed at the end of the terminal to prevent dust and accidental contact. High flame-retardant material and anti-corrosion contact points ensure long-term stable connection. The compact structure saves 30% of the rail space, improves operation and maintenance efficiency, and is compatible with accessories such as bridge plates and identification strips, meeting the safety wiring requirements of multiple scenarios including industry and power.
erminal Blocks Model No. | End Cover Model No. | Dimension(mm) | Weight |
JST 1.5 | D-JST 2.5 | 49.2x30x2.2 | 1.88g/pc |
JST 2.5 | |||
JST 4 | D-JST 4 | 56.5x30x2.2 | 2.18g/pc |
JST 6 | D-JST 6 | 70x36.6x2.2 | 3.72g/pc |
JST 10 | D-JST 10 | 71.5x43x2.3 | 4.6g/pc |
JST 2.5-TW | D-JST2.5-3 | 61x29.5x2.2 | 2.41g/pc |
JST 2.5-QUATTRO | D-JST2.5-4 | 72x29.5x2.2 | 2.78g/pc |
JST 4-QUATTRO | D-ST4-QUATTRO | 87.5x30x2.2 | 3.38g/pc |
JSTTB 2.5 | D-JSTTB 2.5 | 68x40x2.2 | 3.51g/pc |
JST 2.5-3L | D-JST2.5-3L | 99x51x2.2 | 6.11g/pc |
