Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number:UT10
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

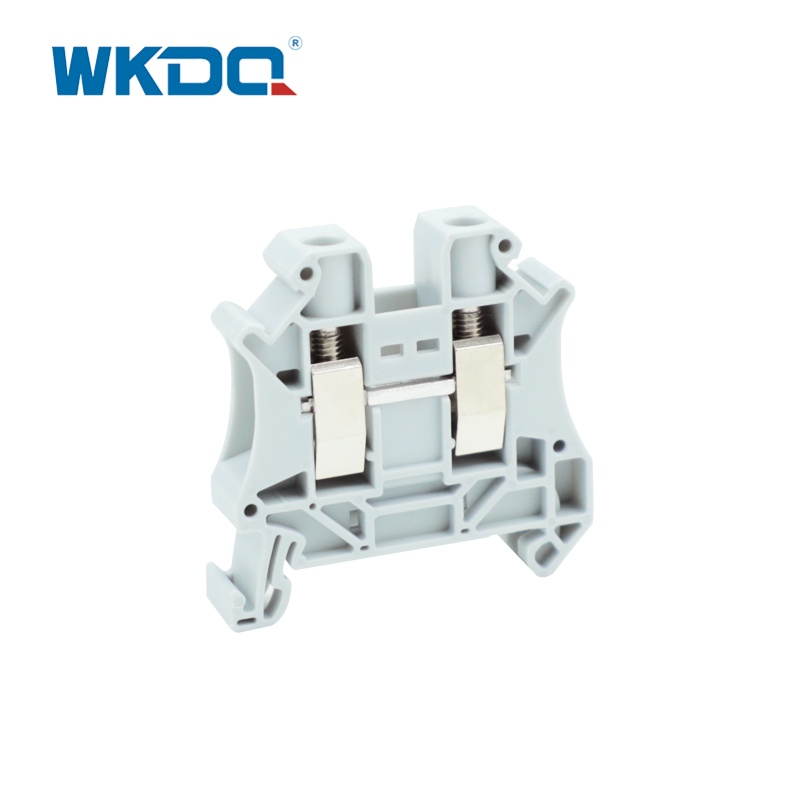

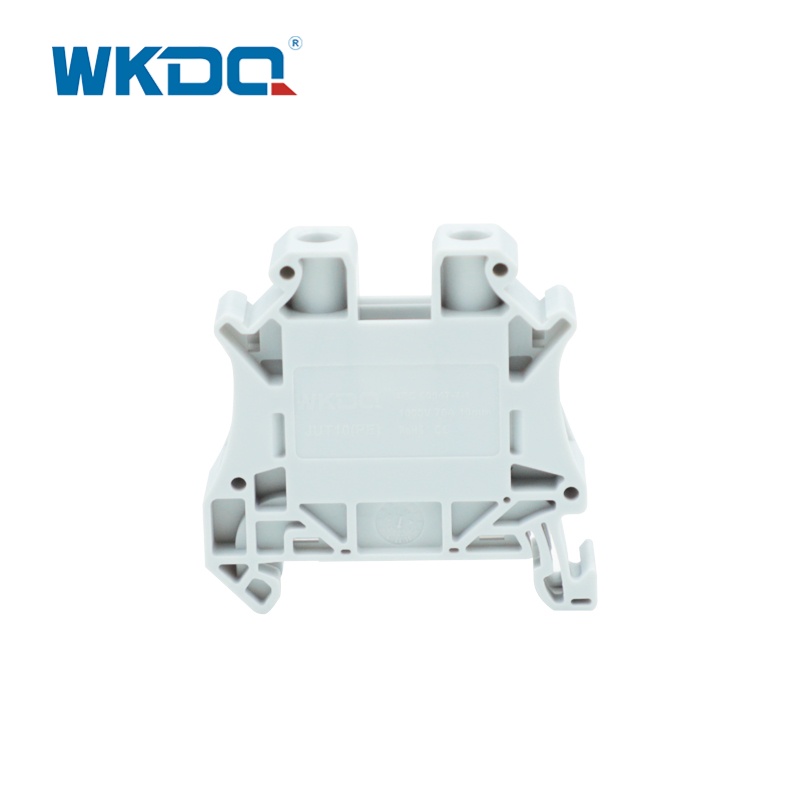

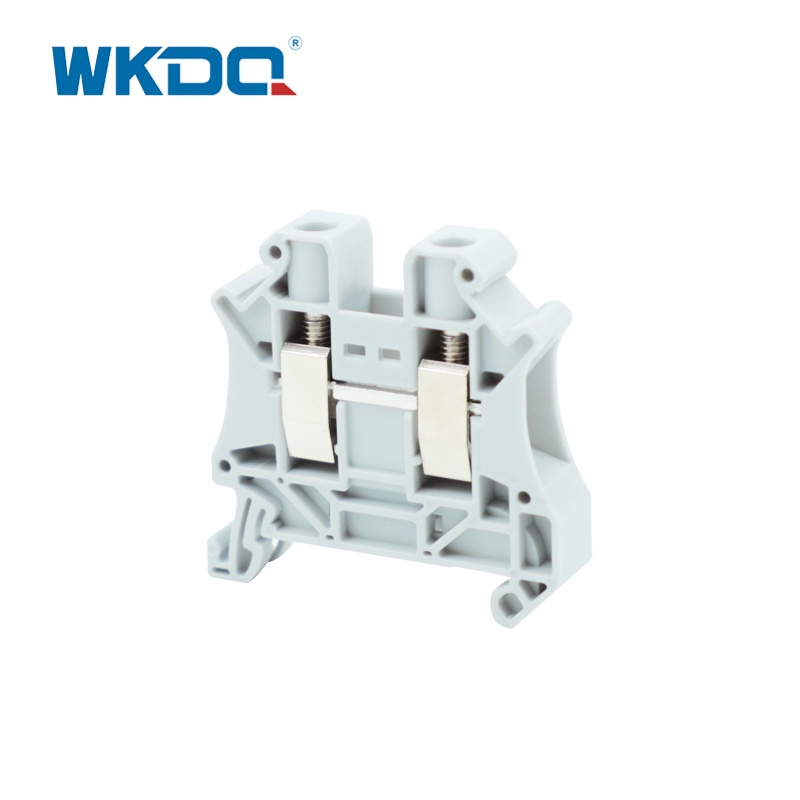

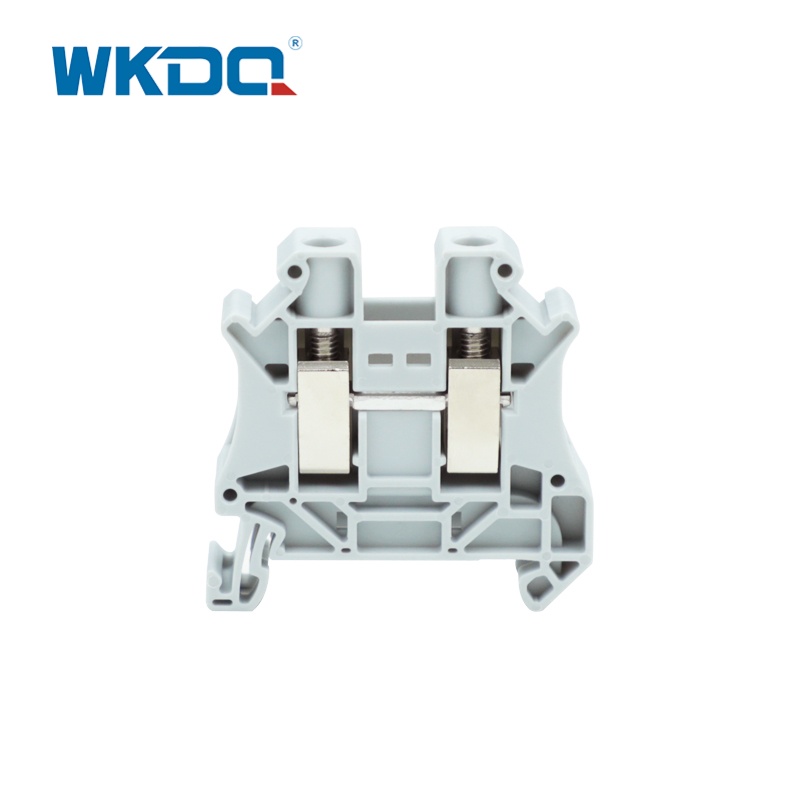

The UT10 is a high-performance terminal block engineered to handle high-current electrical connections in industrial and commercial settings. Featuring a DIN rail mounting system, it ensures quick and straightforward installation, making it suitable for control panels, power distribution networks, and heavy-duty machinery. Built with premium flame-retardant materials, it delivers superior resistance to heat, impact, and electrical hazards, ensuring long-term reliability in challenging environments. The screw connection mechanism guarantees secure, vibration-resistant, and gas-tight connections, compatible with both solid and stranded copper wires.
Designed for durability and ease of use, the UT10 is a dependable solution for demanding electrical applications. Each unit undergoes stringent testing to comply with industry standards, ensuring consistent performance and safety. With its compact form and universal compatibility, the UT10 is a top choice for professionals seeking efficient and robust electrical connections in modern industrial systems.
TECHNICAL PARAMETERS
Model Number | UT10 |
Color | Grey, Blue, other color can be customized |
Length/Height/Wide (mm) | L47/H46.9/W10.2 mm |
Connection method | Screw connection |
Material | Flame resistant Nylon PA66,Tin plated copper conductor |
Rated Voltage/Current | 1000V/76A |
Cross section, solid/soft Cable | 0.5-16mm²/0.5-10mm² |
Conductor Size | 20-8 AWG |
Mounting Type | DIN Rail NS 35 |
Standard | IEC 60947-7-1 |
LOGO | WKDQ, OEM serivce is supporting |
Packing Detail | 9.3g/PC, 100PCS/BOX, 3000PCS/CTN |
Certification | CE/RoHS/CQC/ISO 9001 |
