UT6 6mm2 Screw Test Disconnect Terminal Block
  • UT6 6mm2 Screw Test Disconnect Terminal BlockUT6 6mm2 Screw Test Disconnect Terminal Block
  • UT6 6mm2 Screw Test Disconnect Terminal BlockUT6 6mm2 Screw Test Disconnect Terminal Block
  • UT6 6mm2 Screw Test Disconnect Terminal BlockUT6 6mm2 Screw Test Disconnect Terminal Block
  • UT6 6mm2 Screw Test Disconnect Terminal BlockUT6 6mm2 Screw Test Disconnect Terminal Block
  • UT6 6mm2 Screw Test Disconnect Terminal BlockUT6 6mm2 Screw Test Disconnect Terminal Block

UT6 6mm2 Screw Test Disconnect Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number:UT6
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:UT6

Send Inquiry

Product Description

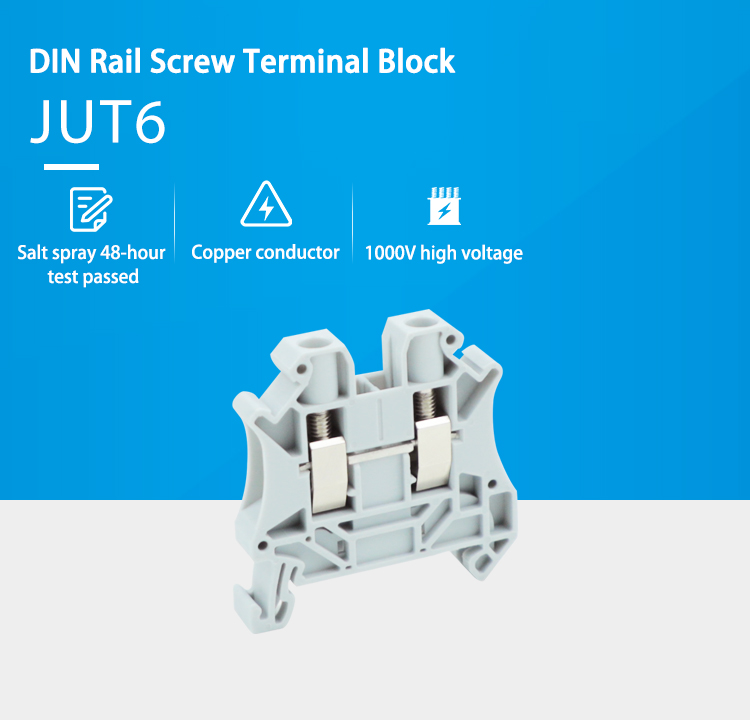

    The UT6 screw terminal block is specially designed for efficient and safe industrial/automation connections, and is easy to install with DIN rails. High-quality flame-retardant material, heat-resistant and impact-resistant, with flexible multi-wire connection. The screw connection is anti-vibration and airtight, compatible with fixed/twisted copper wires. Economical and reliable, in line with industry standards, it provides stable connection solutions for professional systems.

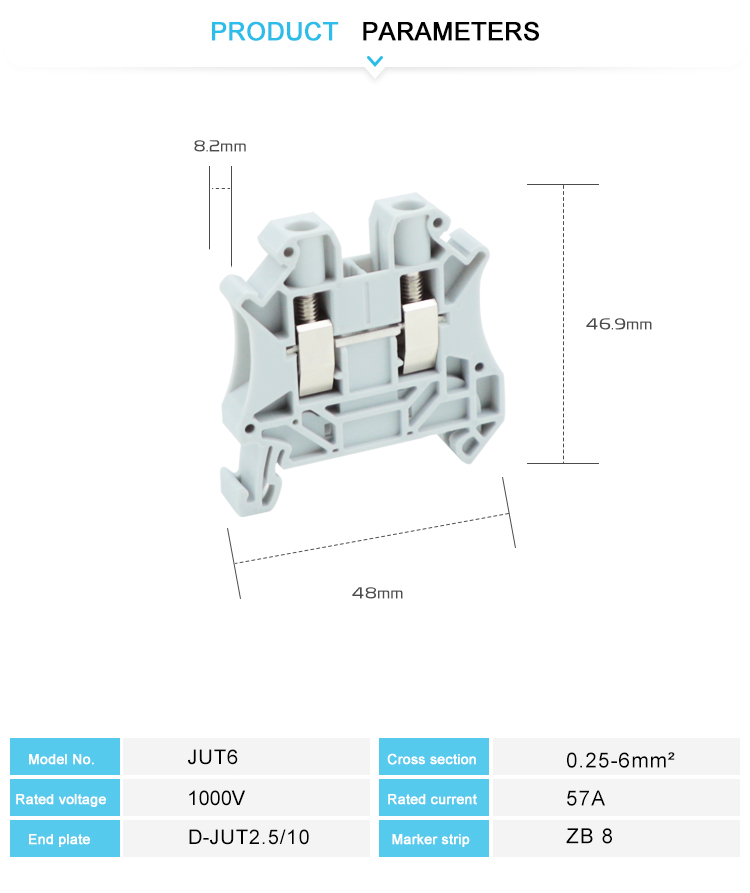

TECHNICAL PARAMETERS


Model Number UT6
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) L47/H46.9/W8.2 mm
Connection method Screw connection
Material Anti inflaming Nylon PA66
Rated Voltage/Current 1000V/57A
Cross section, solid/soft Cable 0.2-10mm²/0.25-6mm²
Conductor Size 23-10 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WKDQ, OEM serivce is supporting
Packing Detail 9.3g/PC, 100PCS/BOX, 3000PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
