12 P Plastic X3 PVC Screw Terminal Block Strips For 10 Amp Power Cables Choc Block Cable Joiner
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: X3
Packaging Details: Box
Delivery Time: 2-7days
Supply Ability: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Model Number: | X3 | Number Of Contacts: | 1 - 10 |
| Color: | White | Material: | Flame Resistant Nylon PA66 V0 |
| Cross Section, Solid/soft Cable: | 0.14-1.5 Mm2 / 0.14-1.5 Mm2 | Standard: | IEC 60947-7-1 |
| Brand Name: | WONKEDQ | Type: | Spring |
| Conductor Size: | 26-16 AWG, 26-16AWG | Connection Method: | Push-in Connection |
| Rated Voltage/Current: | 500V/17.5A | Mounting Type: | DIN Rail NS 35 |
| Packing Detail: | 100PCS/BOX | ||
| High Light: | terminal grounding busbar , neutral bus bar | ||

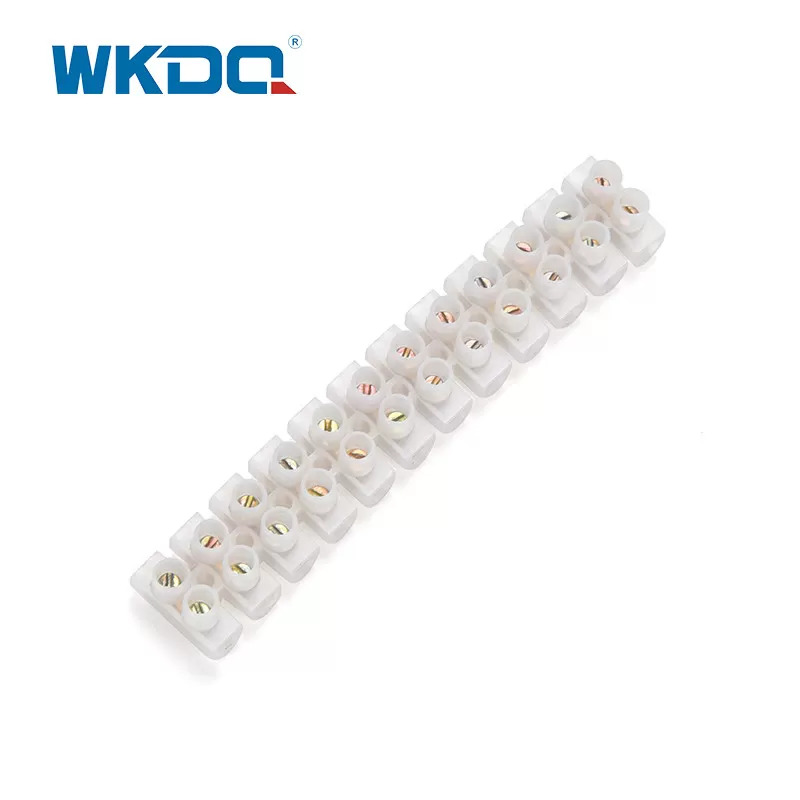

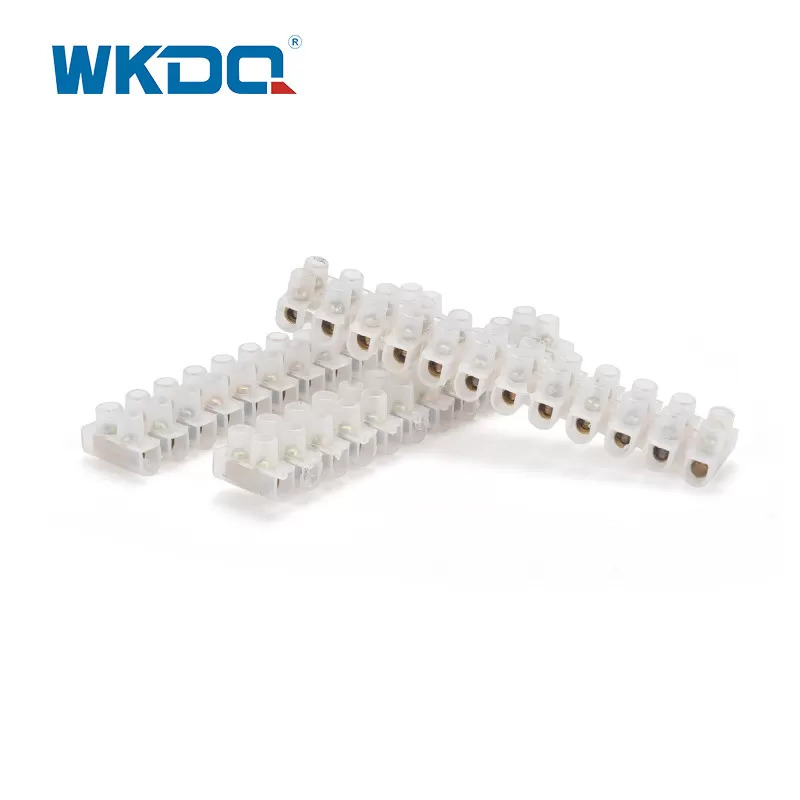

Our terminal block features two rows with a total of 12 positions, equipped with screws for secure wire connections. Each position is designed to accept two wires, allowing for efficient wiring configurations.
The screws in the terminal block ensure reliable contact and provide a secure connection for the wires. Additionally, they help prevent accidental contact with the terminals, enhancing safety during installation and operation.
This versatile terminal block finds wide application in various settings, including lamps, decorative lighting, factories, household appliances, power distribution cabinets, distribution boxes, and other transmission equipment. It is particularly suitable for wire and cable access points, facilitating efficient and organized wiring connections.
l Fantastic design, 12 position, 10A. Two row, 300V terminal strip.
l High-grade material, Transparent appearance, super toughness, extendability, not easy to oxidation, work well.
l Brass Conductor with good conductive
l The internal conductive part adopts brass firmware and fastening galvanized screw, the conductive performance is high, the insulation performance is good.
TECHNICAL PARAMETERS
| Item No | Dimension | Cross section | Current |
| X3-0312 | L91/H15.5/W12.5 mm | 4mm² | 3A |
| X3-0512 | L109/H15.4/W13 mm | 6mm² | 5A |
| X3-1012 | L129/H19.6/W14.7 mm | 10mm² | 10A |
| X3-1512 | L128/H20.1/W16 mm | 12mm² | 15A |
| X3-2012 | L131/H21.1/W15.2 mm | 14mm² | 20A |
| X3-3012 | L149/H22.7/W15.8 mm | 16mm² | 30A |
| X3-6012 | L184/H27.5/W22.8 mm | 25mm² | 60A |
| X3-8012 | L198/H33.6/W26.5 mm | 30mm² | 80A |
