15 Mm Din Rail 35mm End Clamp Terminal Block End Stop / End Bracket

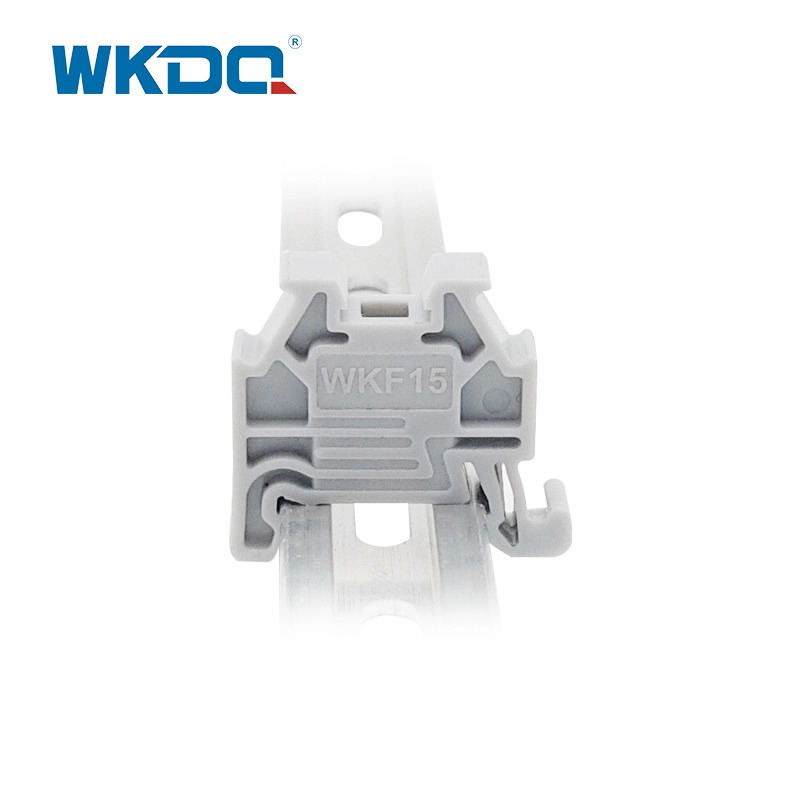

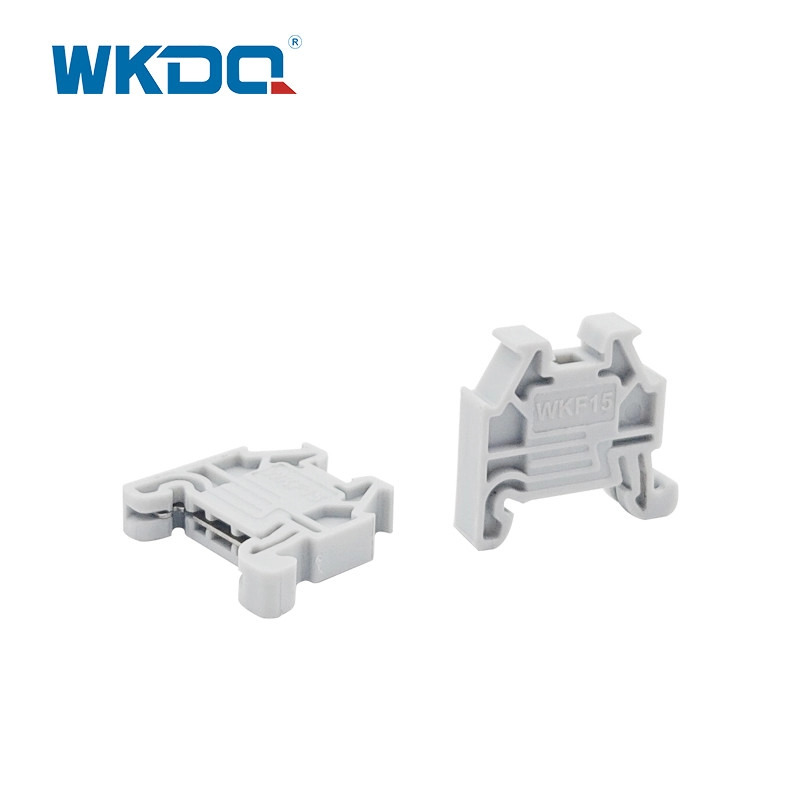

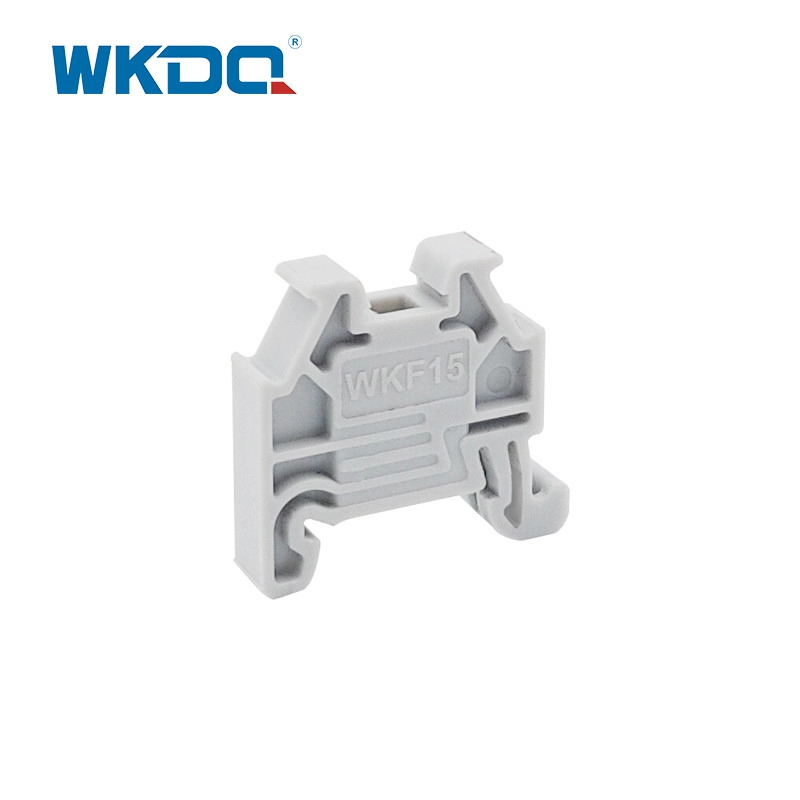

The WKDQ 15 Mm Din Rail 35mm End Clamp Terminal Block End Stop / End Bracket is a component used to secure and terminate DIN rail-mounted terminal blocks at the end of a DIN rail. Here are some details about this component:

DIN Rail: The DIN rail is a standardized metal mounting rail used to mount various electrical components in control panels, distribution boards, and other electrical enclosures. The 35mm width indicates the standardized size of the DIN rail, and it is compatible with many DIN rail-mounted components.

15mm End Clamp: The 15mm end clamp is designed to secure the terminal blocks or other components at the end of the DIN rail. It holds them in place and prevents them from sliding off the rail. End clamps are typically adjustable to accommodate different sizes of terminal blocks and provide a secure fit.

Terminal Block End Stop/End Bracket: The terminal block end stop or end bracket is used at the end of the DIN rail to provide a physical barrier for the terminal blocks or other components. It ensures proper alignment and stability, preventing them from shifting or coming loose from the rail.

The combination of the 15mm end clamp and terminal block end stop/end bracket provides a complete solution for securing and terminating terminal blocks or other components at the end of the DIN rail. It helps maintain organization and stability within electrical enclosures.

It's important to ensure compatibility between the specific end clamp and end stop/end bracket with the DIN rail and terminal blocks being used. Manufacturers often provide detailed specifications and guidelines for their components, so referring to the product datasheets or consulting the manufacturer directly can provide the most accurate information for a particular model.

TECHNICAL PARAMETERS
