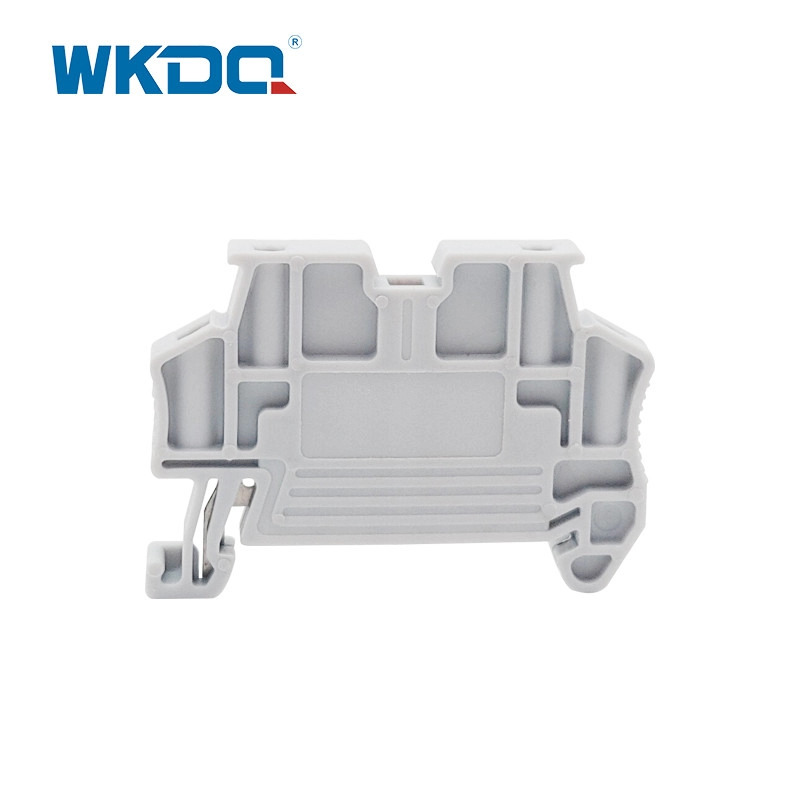

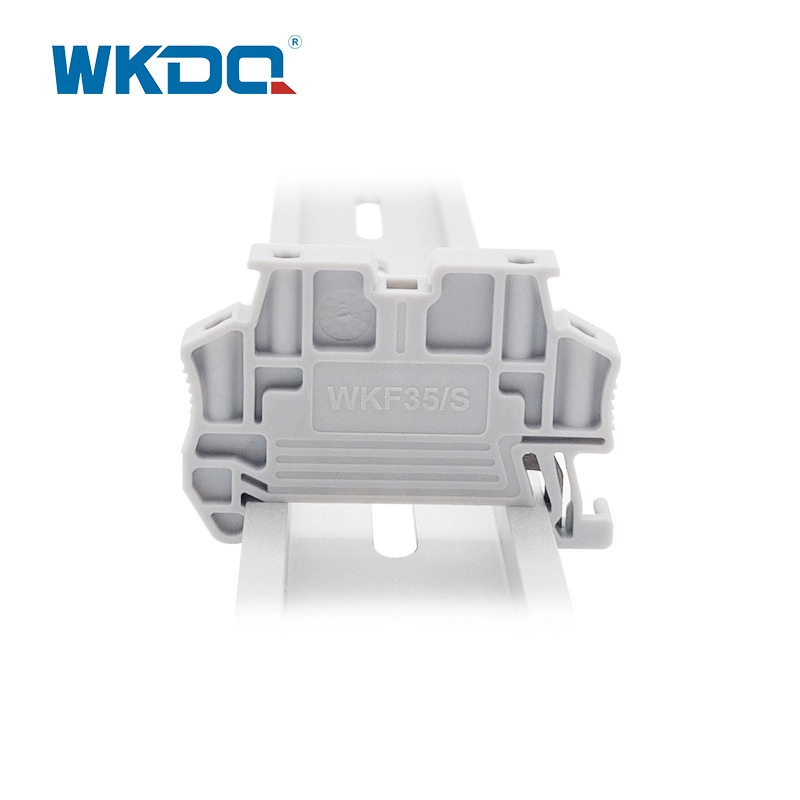

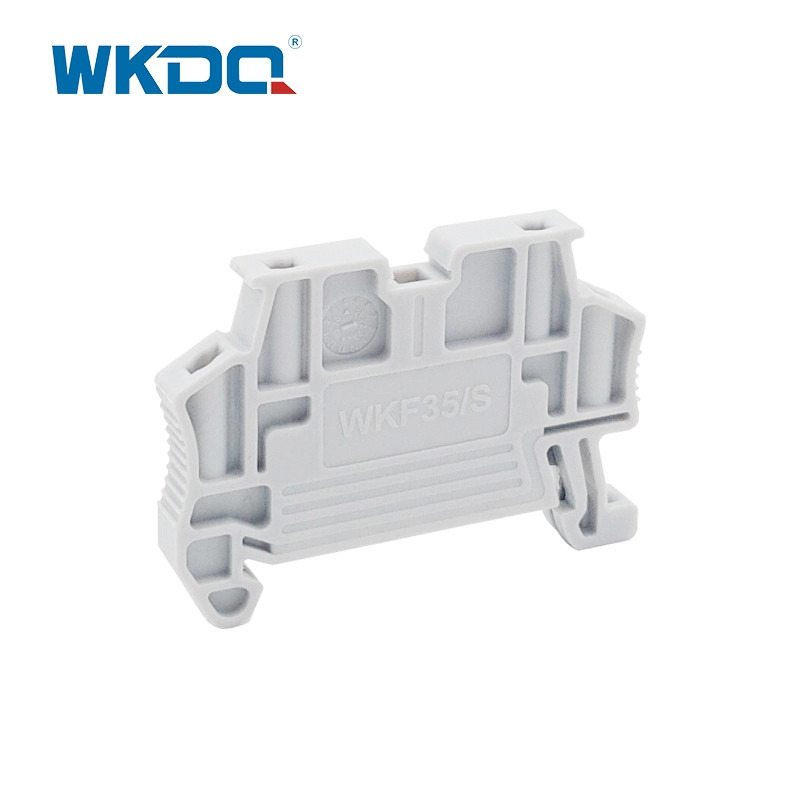

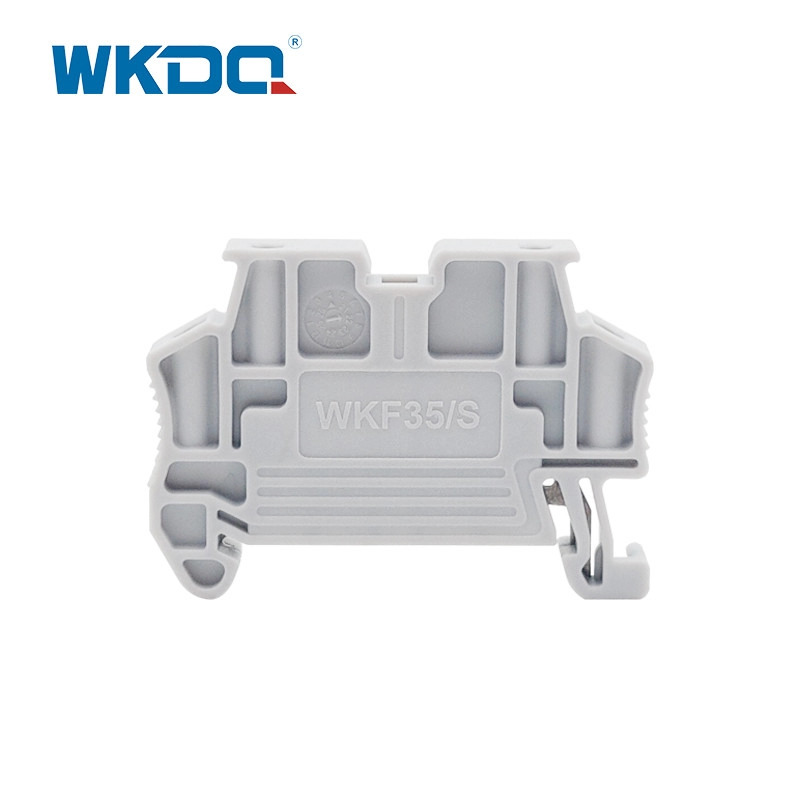

Utra Thin 35mm Din Rail Terminal Block End Bracket Stop Clamp

The Utra Thin 35mm Din Rail Terminal Block End Bracket Stop Clamp is a specialized component used to secure and terminate terminal blocks at the end of a 35mm DIN rail.

Send Inquiry

Product Description

The WKDQ Utra Thin 35mm Din Rail Terminal Block End Bracket Stop Clamp is a specialized component designed to secure and terminate terminal blocks at the end of a DIN rail. Here are some details about this component:

DIN Rail: The DIN rail is a standardized metal mounting rail used in electrical installations to mount various components, including terminal blocks, relays, circuit breakers, and other devices. The 35mm width indicates the standardized size of the DIN rail, and it is compatible with many DIN rail-mounted components.

Ultra-Thin Design: The ultra-thin design of this terminal block end bracket stop clamp means that it has a slim profile. This feature allows for space-saving installation in applications with limited clearance or tight enclosures.

Terminal Block End Bracket: The terminal block end bracket is used at the end of the DIN rail to provide support and stability for the terminal blocks or other components. It helps secure them in place and prevents them from moving or sliding off the rail.

Stop Clamp: The stop clamp is an integral part of the end bracket and ensures a secure fit and positioning of the terminal blocks. It holds them firmly in place and prevents them from shifting or coming loose.

The ultra-thin 35mm DIN rail terminal block end bracket stop clamp is designed to provide a compact and secure solution for terminating terminal blocks at the end of the DIN rail. Its slim profile allows for installation in space-constrained environments.

It's important to ensure compatibility between the specific end bracket stop clamp and the DIN rail and terminal blocks being used. Manufacturers often provide detailed specifications and guidelines for their components, so referring to the product datasheets or consulting the manufacturer directly can provide the most accurate information for a particular model.


TECHNICAL PARAMETERS

Model Number WKF35 Terminal Fixture
Color Grey,
Length/Height/Wide (mm) 49.3 / 35.5/ 5.2mm
Install method Din Rail installed
Material Nylon PA66
Standard IEC 60947-7-1
LOGO WKDQ
Packing Detail 100PCS/BOX,
Certification CE/RoHS/CQC/ISO 9001
