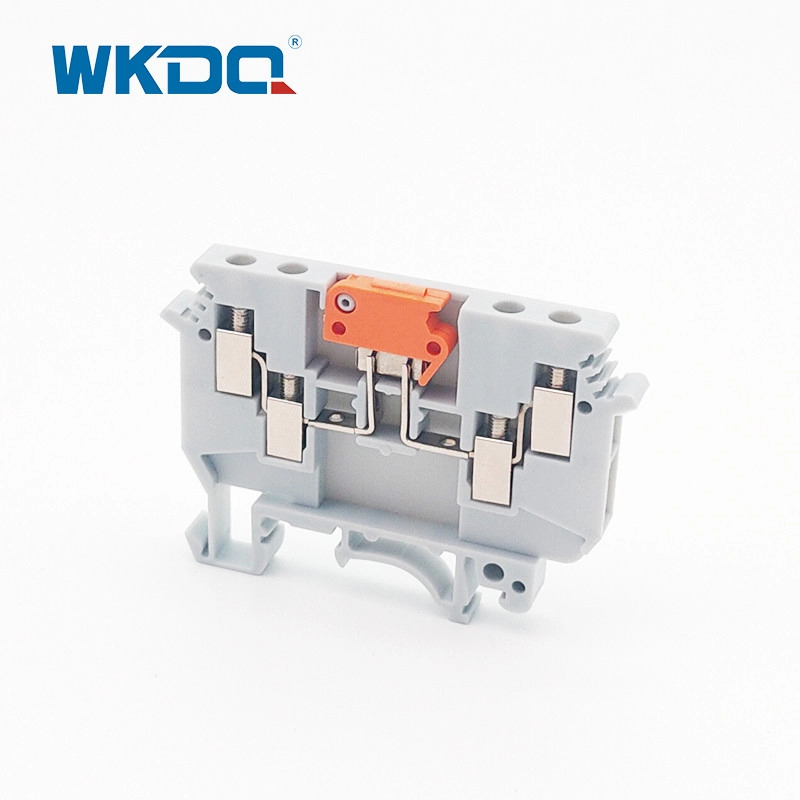

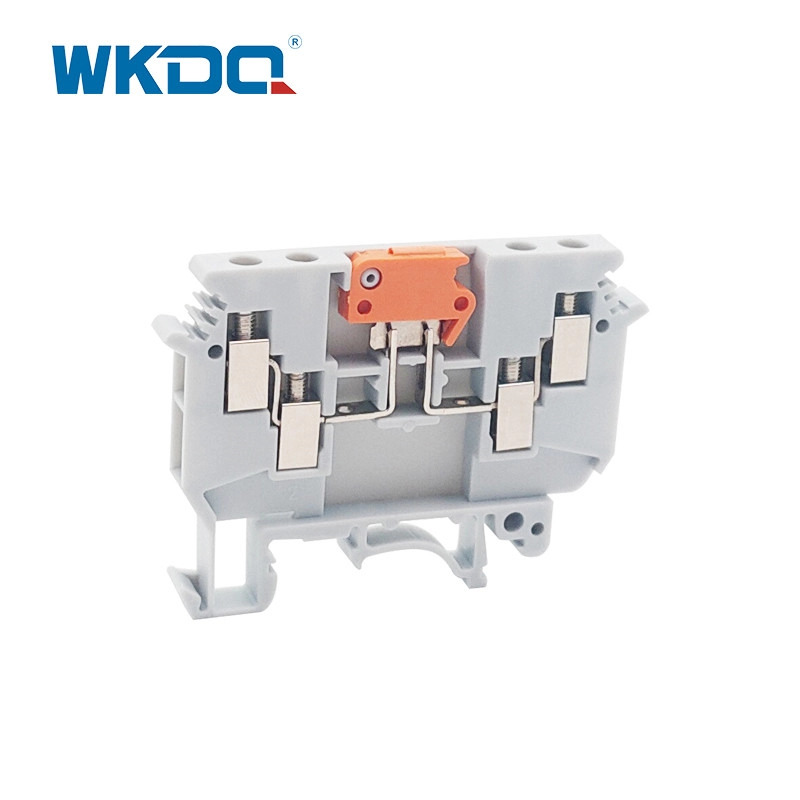

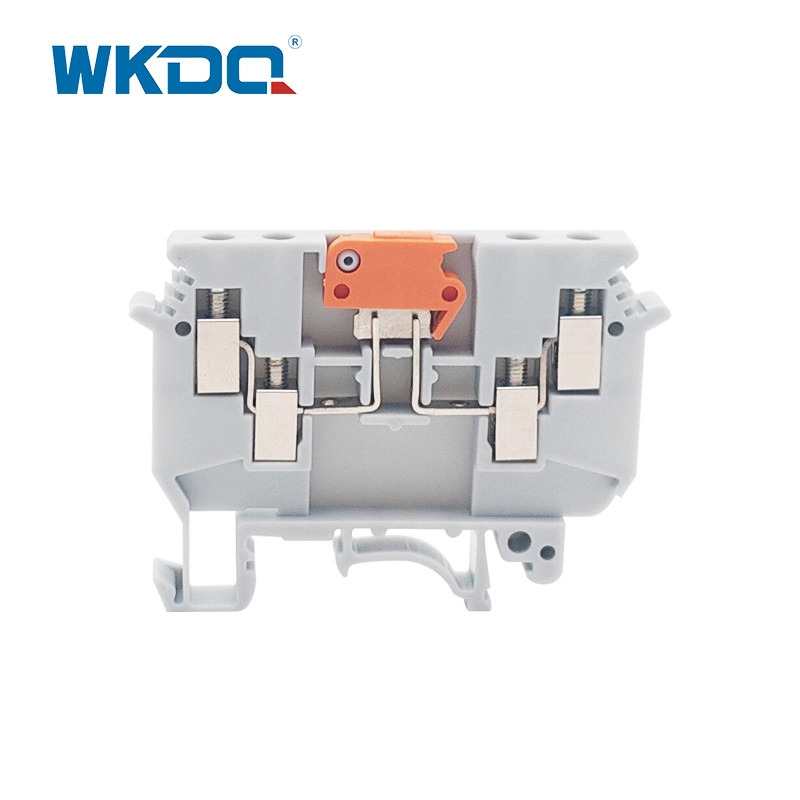

16A Din Rail Screw Type Knife Disconnect Terminal Block 4 Conducts 4 Mm² 690V

Our Knife disconnect terminal block offers a space-saving design and is equipped with 4 conductors. It comes with test socket screws for easy insertion of test plugs, allowing for quick and efficient localization of malfunctions and off-load maintenance. Here are the key features and specifications:

Material: The terminal block is made from Vo anti-flaming Nylon PA 66 and Brass metal, ensuring both durability and safety.

Long-lasting Durability: The terminal block is designed to have a long lifespan, providing reliable performance over an extended period of time.

Reliable and Safe Connection: It offers a reliable and safe connection, ensuring secure electrical connections and minimizing the risk of faults or accidents.

Space-saving Thin Structure: The terminal block features a thin structure, saving valuable space in electrical installations.

Low Transition Resistance: It has low transition resistance, allowing for efficient current flow. The current load capacity can reach up to 16A.

Perfect for Electrical Machine Control Systems: The Knife disconnect terminal block is perfectly suitable for use in electrical machine control systems, offering optimal performance and functionality.

Universal Foot for Din Rail NS 35: It comes with a universal foot that can be easily installed on Din Rail NS 35, providing flexibility in mounting options.

Convenient Circuit Separation: The terminal block allows for convenient separation of circuits using a lever-type disconnect knife, isolating plug, or rotary contact.

User-friendly Current Measurement: It features a testing facility on both sides of the disconnect point, enabling easy and accurate current measurement.

Safe Operation: The disconnect lever is latched into the end positions, ensuring safe operation and minimizing the risk of accidental disconnection.

Clear Identification: The disconnect point is clearly marked with color coding, allowing for easy identification and differentiation in the wiring system.

In summary, our Knife disconnect terminal block offers a space-saving, durable, and reliable solution for electrical machine control systems. It ensures safe and efficient connections, convenient circuit separation, and user-friendly operation. The terminal block is designed for long-lasting performance and comes with clear identification for easy identification in the wiring system.

TECHNICAL PARAMETERS
