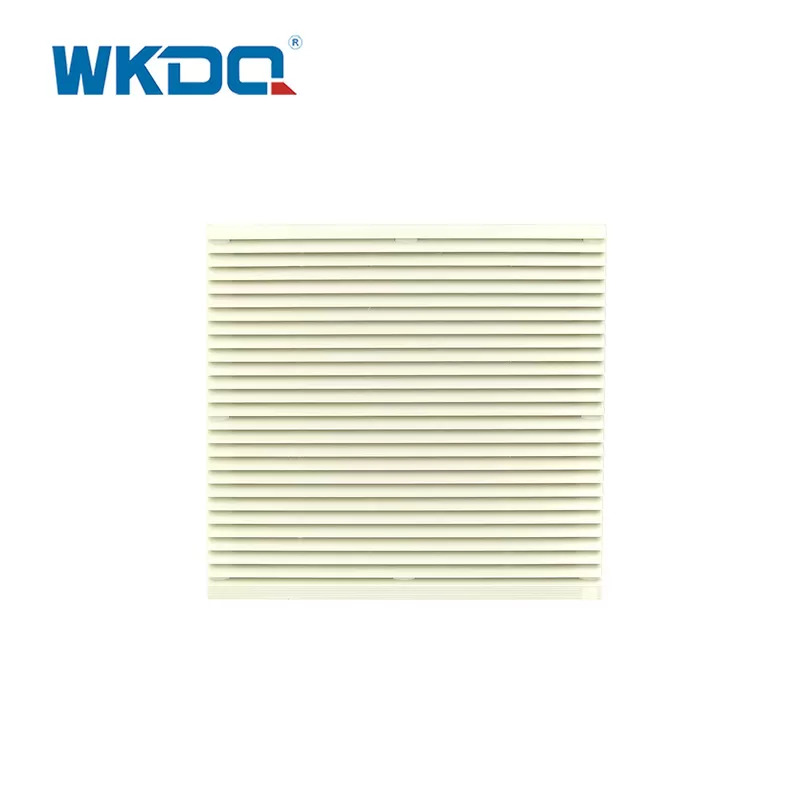

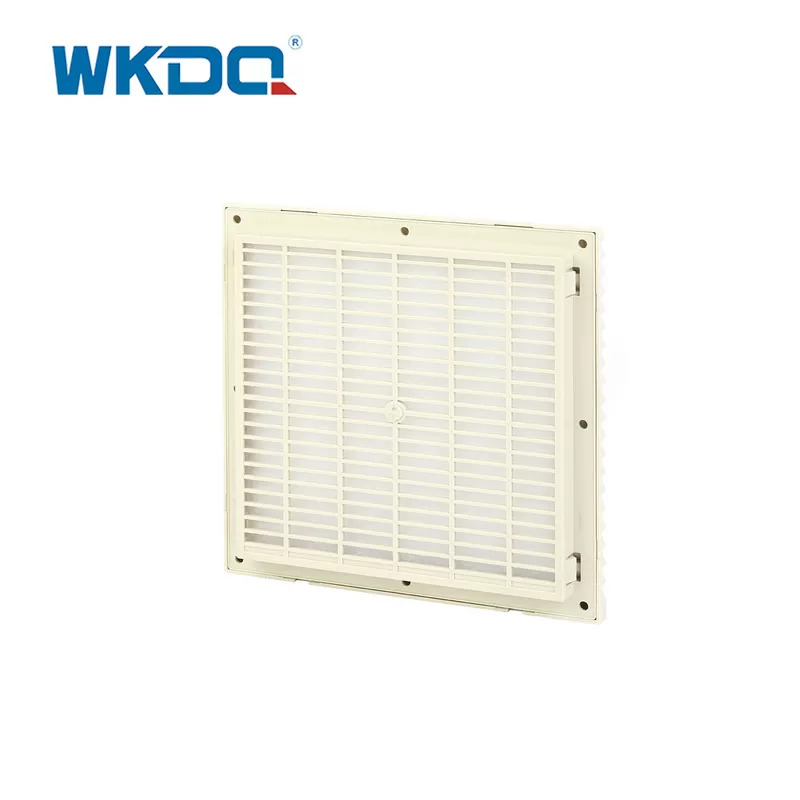

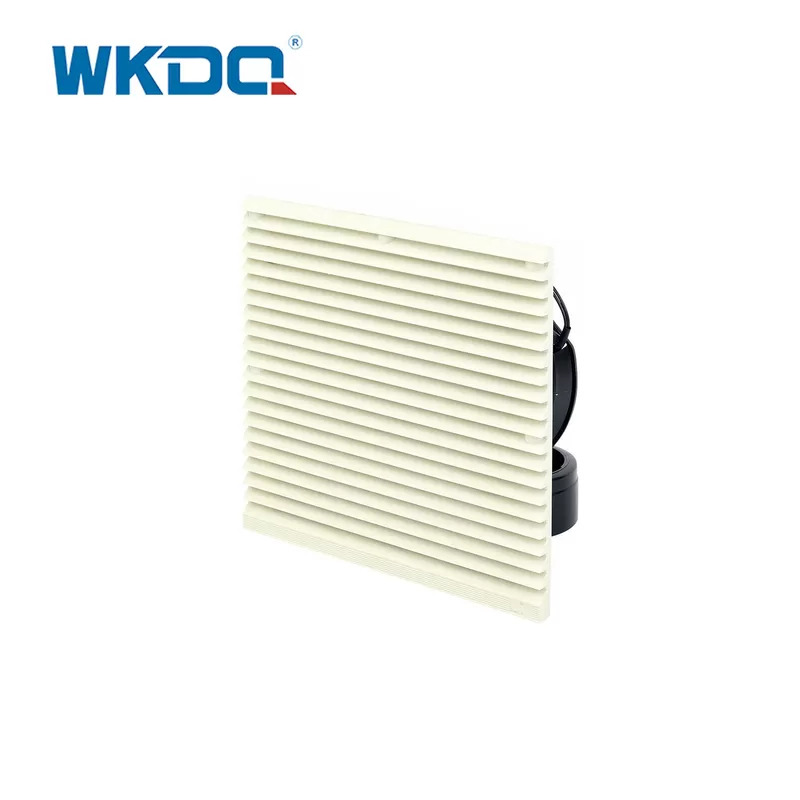

3325-300 Electrical Cabinet Ventilation Fans 230V Quickly Snap Click Fit Design
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: 3325-300
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Type No.: | 3325-300 | Insulation Material: | Flame Retardant Plastic ABS |
| Packing Unit: | 0.207kgs/pc | Voltage: | 230V |
| Current: | 120mA | Weight: | 0.207kgs |
| High Light: | electrical enclosure cooling fans , electrical cabinet cooling fans | ||
Use these fans for ventilation and spot cooling of internal machinery components in space limited areas.The fan&filter can prevent rain water entering in the ultrathin filter, the arc structure of surface leaf barrier may avoid rain water enter.
Long durable time.
Reliable and safe function.
It can prevent dust particles more than 10 microns.
Frame material is made from heat resistance and anti-flame ABS.
The protection level of sealed box can reach IP54.
It is easy to change the filter pad by using the groove handle on shutter.
The waterproof hood can make the protection level up to IP55.
The rainproof function of ventilation cascade can prevent mechanical damage and damp entering.
The design adapt to current market requirement:Super flat,Fast installation,High power.
Click-fit design can quickly snap into the electric cabinet wall.
To clean and exchange the filter mat, it is only necessary to open the lockable door of the outdoor hood.
Available in different dimensions.
TECHNICAL PARAMETERS
| Filter unit Part No. | 3325-300 |
| Fan with filter unit Part No. | 3325-230 |
| Unimpeded air flow | 230m³/h |
| Noise level | 54dB |
| Surface dimension (mm) | 255x255 |
| Installation hole size (mm) | 224x224 |
| Voltage/Current | 230V/280mA |
| Input Power Rating | 41W |
| Temperature range | -10℃~+55℃ |
| Packing detail: 3325-300 (Filter unit) | 0.315kgs/pc |
| Packing detail: 3325-230 (Fitler with Fan) | 1.208kgs/pc |
| Certificate | CE, RoHS, CQC |
Other size available
|
Filter Unit Item No. |
Installation hole size (mm) |
Distance between hole (mm) |
Overall size L/H/W(mm) |
Matched Fan size(mm) |
| 3321-300 | 92x92 | 102x102 | 116.5x116.5 | 92x92x25 |
| 3322-300 | 124x124 | 132x132 | 148.5x148.5 | 120x120x38 |
| 3323-300 | 177x177 | 185x185 | 204x204 | 120x120x38 |
| 3325-300 | 224x224 | 234x234 | 255x255 | 172x150x51 |
| 3326-300 | 290x290 | 300x300 | 320x320 | 225x225x80 |
