35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JMBKKB 2.5-PV
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

Our double-level terminal blocks feature a space-saving and cost-effective design. Here are the key features and specifications:

Space-saving and Cost-saving Design: The compact design of our double-level terminal blocks helps save valuable space while providing efficient wiring solutions. This design also offers cost savings by optimizing material usage.

Stable and Low Contact Resistances: The terminal blocks ensure stable and reliable electrical connections with low contact resistances, minimizing power loss and maintaining consistent performance.

Guaranteed Quality Materials: We guarantee the use of high-quality materials in our terminal blocks, ensuring durability and long-term reliability in various applications.

Flame-resistant Construction: The terminal blocks are made from In V0 flame-resistant PA 66 with brass conductors and pressure housings. This construction enhances safety and provides reliable electrical insulation.

Marking Identification Tags: Our terminal blocks allow for marking identification tags at both levels, enabling clear and organized labeling for easy circuit identification.

Suitable for Broad Range of Wire Cross-sections and Types: The terminal blocks are designed to accommodate a wide range of wire cross-sections and types, providing versatility and flexibility in wiring configurations.

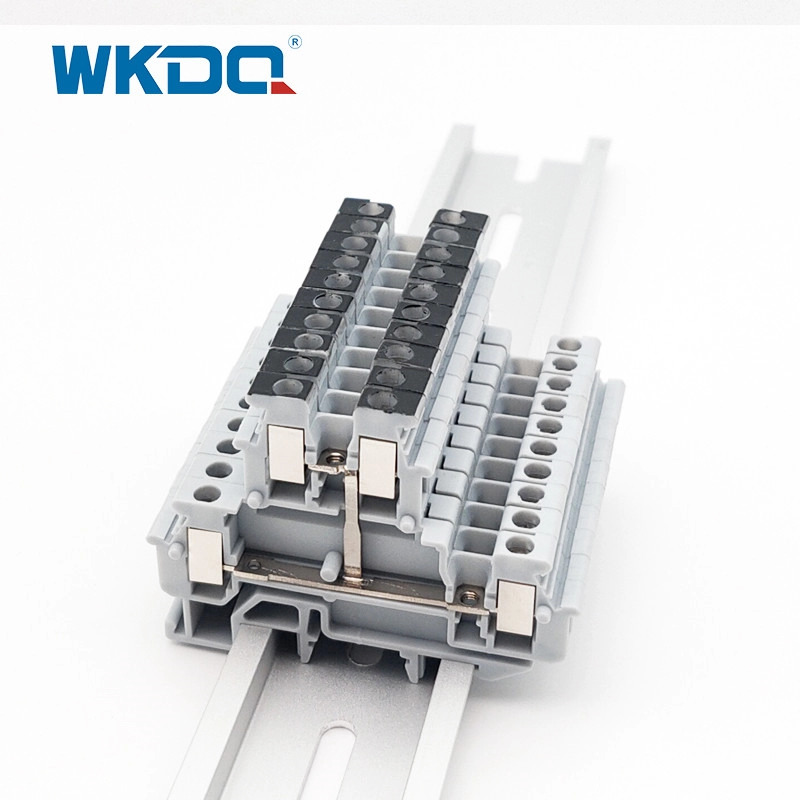

Universal Foot for Din Rail NS 35: They come with a universal foot that can be easily installed on Din Rail NS 35, providing convenient and secure mounting options.

Comprehensive Accessories: We offer a variety of accessories to complement the terminal blocks, including end covers, end brackets, partition plates, marking holders, fixed bridges, insertion bridges, separating plates, and more. These accessories enhance functionality and customization possibilities.

In summary, our double-level terminal blocks feature a space-saving design, stable contact resistances, and guaranteed high-quality materials. They are made from flame-resistant components and allow for clear marking identification. With compatibility for various wire sizes and types, along with a range of available accessories, our terminal blocks provide versatile and efficient wiring solutions.


TECHNICAL PARAMETERS

Model No. JMBKKB 2.5-PV 2 Levels Terminal Blocks

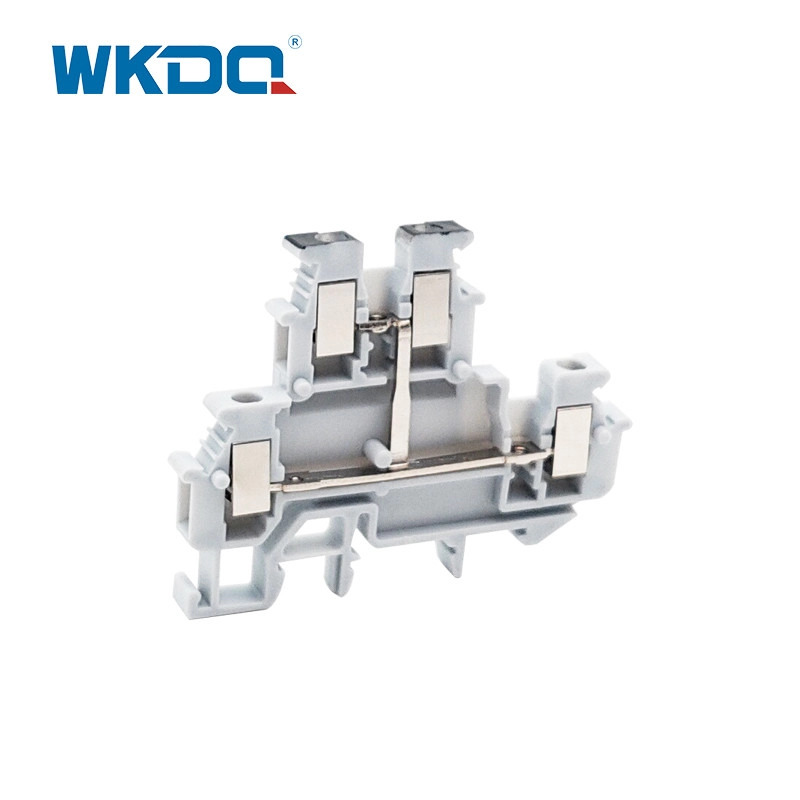

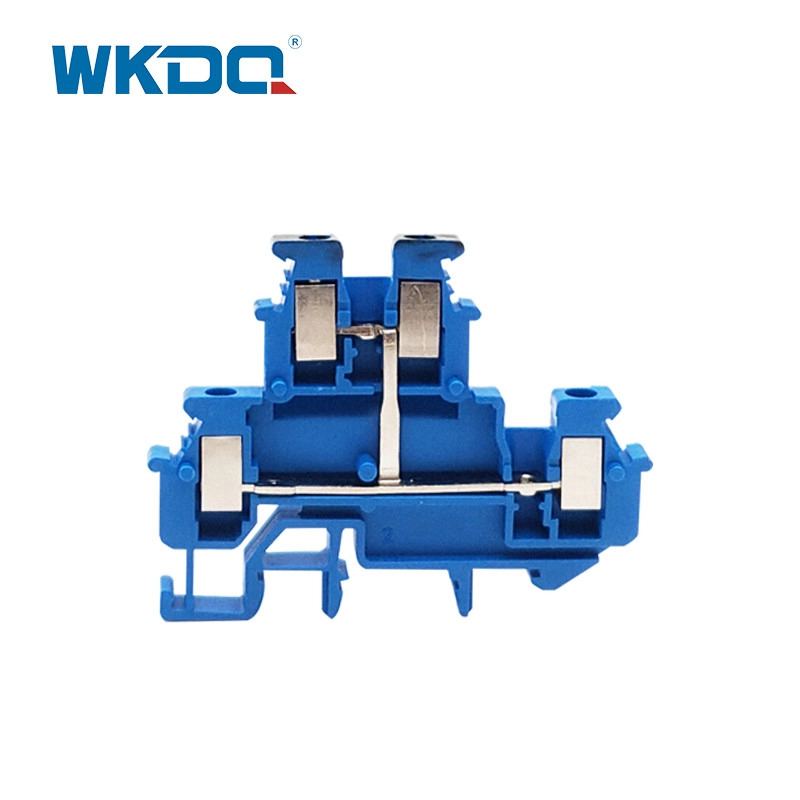

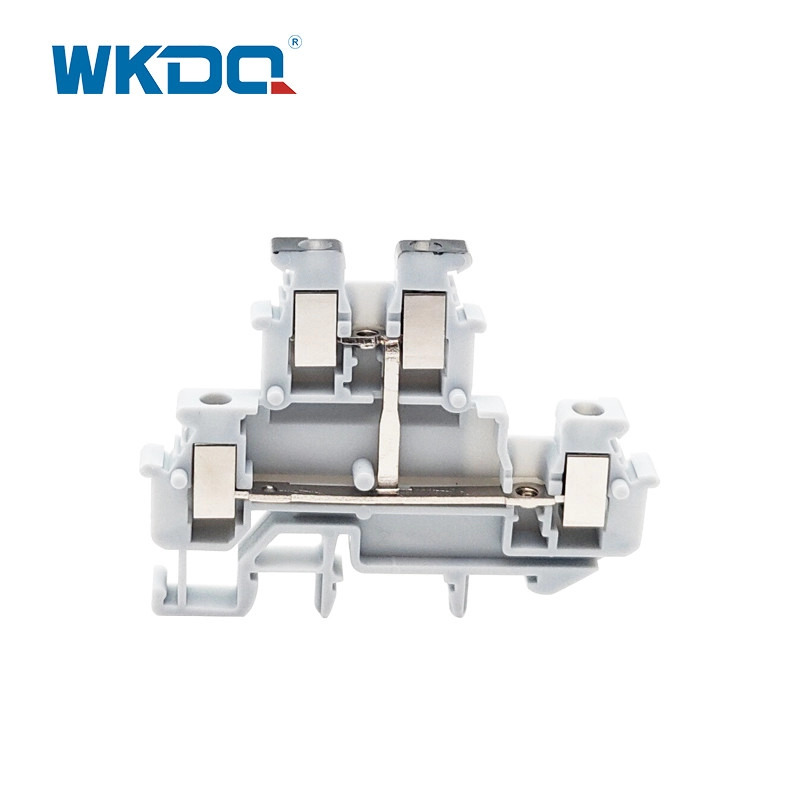

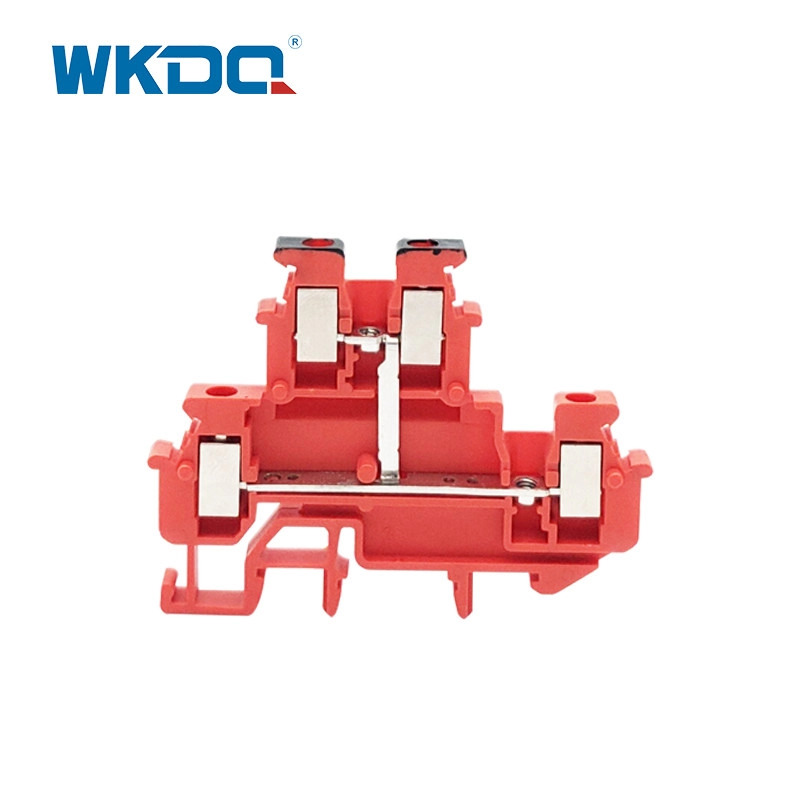

Color Grey, Blue, Red, other color can be customized
Length/Height/Wide (mm) 62.5/47.5/5.2
Connection method Connecting by screw tighten
Material Nylon66/ PA66
Rated Voltage/Current 500V/32A
Cross section, solid/soft Cable 0.2-4 mm² / 0.2-2.5 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WKDQ, LOGO can be customized
Packing Detail 10.9 g/pc, 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
