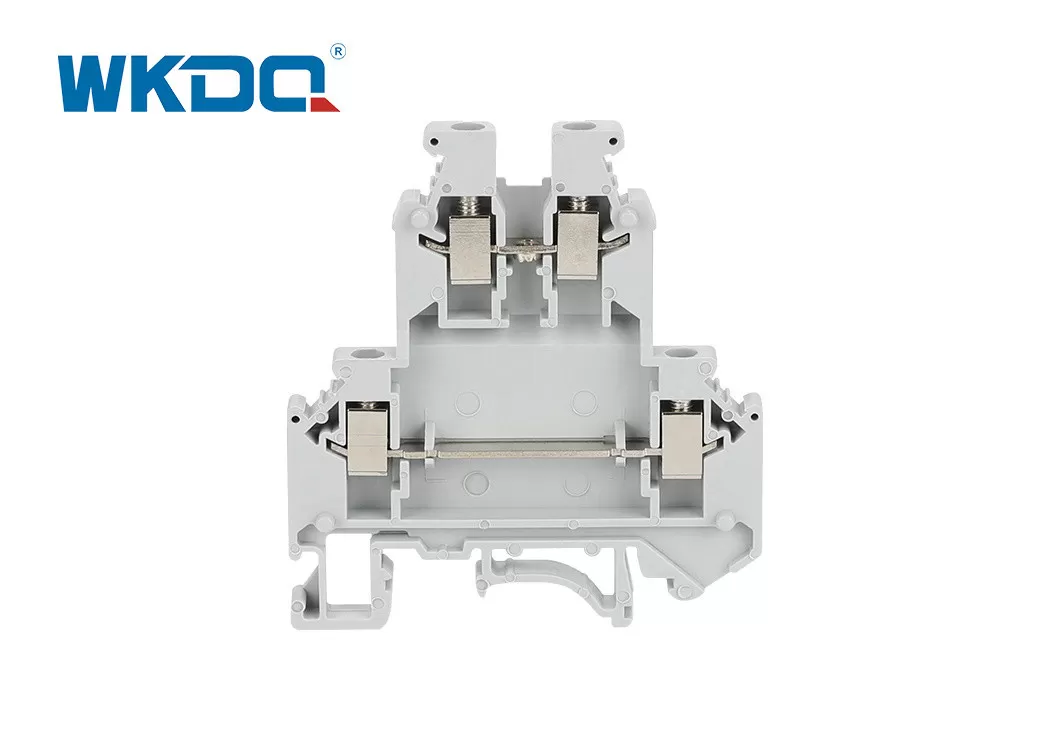

Anti Flaming DIN Rail Terminal Block
  • Anti Flaming DIN Rail Terminal BlockAnti Flaming DIN Rail Terminal Block

Anti Flaming DIN Rail Terminal Block

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: Uk Series
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etcSend Inquiry

Send Inquiry

Product Description

WonkeDQ's Terminal blocks are specifically designed for demanding conditions, ensuring long-term use and reliable performance. The JUK Terminal Blocks offer a comprehensive range of terminal blocks along with compatible accessories for JST and JPT series, reducing inventory and logistic costs. The modular design of the terminal blocks optimizes space utilization, providing flexibility and easy installation.

Our screw terminal blocks are made from high-grade brass, known for its resistance to strain, cracking, and corrosion. This ensures durability and prevents electrolytic corrosion and rusting. The metal surfaces are protected with an environmentally friendly plated surface.

Key features of our terminal blocks include:

  1. Manufactured to meet standard specifications.
  2. Reliable and of high quality.
  3. Sturdy structure for enhanced durability.
  4. Long-lasting performance, even in demanding conditions.
  5. Simple and convenient operation.
  6. Ensures safe and reliable performance.
  7. Made from safe and high-quality materials.
  8. Perfectly suited for electrical machine control systems.

The JUK universal screw terminal block series incorporates essential features for practical applications. It is constructed from flame retardant engineering nylon PA66 with brass screw metal. These terminal blocks effortlessly connect two conductors, including those with large cross sections. They can be easily mounted on DIN Rail 35mm, whether it is made of steel or aluminum.

WonkeDQ's Terminal blocks provide a reliable and efficient solution for various electrical applications. They ensure safe and secure connections, offering ease of use and durability.

Model Number JUK 2.5B
Color Grey, Blue
Length/Height/Wide (mm) 42.5/41/6.2
Connection method Screw connection
Material Nylon PA66
Rated Voltage/Current 800V/32A
Cross section, solid/soft Cable 0.2-4 mm / 0.2-2.5 mm
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 6.9g/pc, 50PCS/BOX,3000PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
