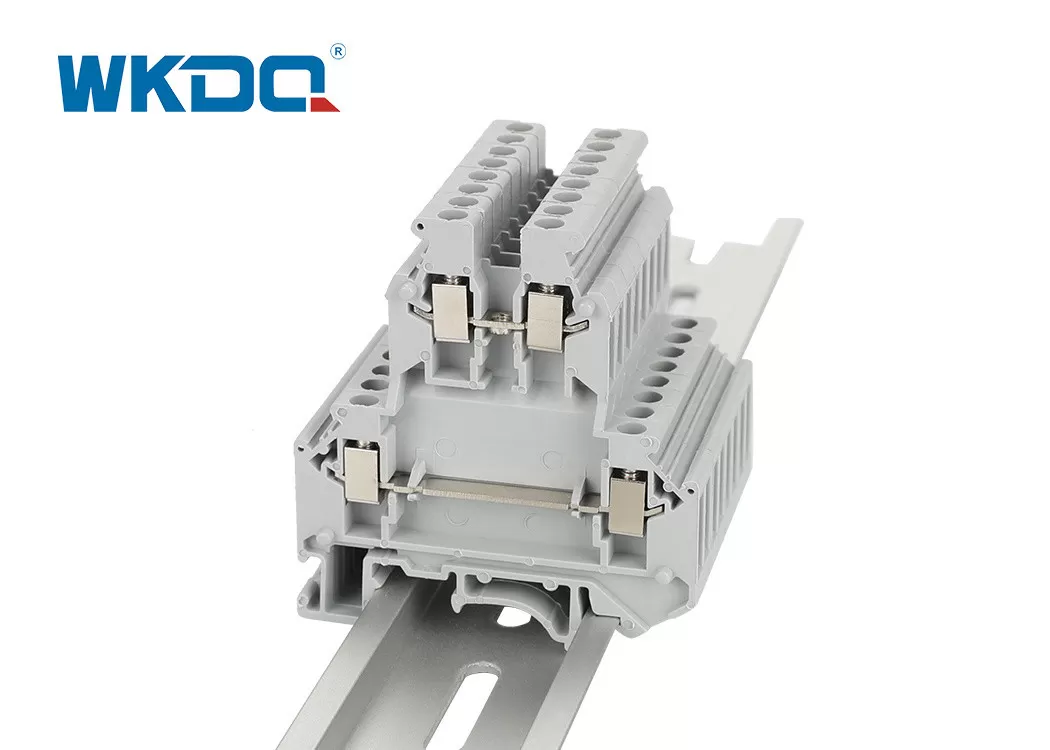

Feed Through Terminal Blocks
  • Feed Through Terminal BlocksFeed Through Terminal Blocks

Feed Through Terminal Blocks

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK5 HESI Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

WonkeDQ's terminal blocks are specifically designed to meet the unique requirements of sensor technology and machine control applications. These versatile terminal blocks offer a range of functionalities, including device protection, power distribution, and quick error identification.

Constructed from flame-retardant PA66 with nickel-plated brass metal, these terminal blocks provide a secure and reliable connection. They are designed with user convenience in mind, ensuring easy operation. The durable construction of these terminal blocks ensures long-lasting performance, even in demanding conditions.

Safety is a top priority, and these terminal blocks guarantee safe and reliable connections. The safety lever locks in the end position, providing added security. The terminal blocks also feature a large surface area for easy labeling and identification, facilitating efficient wiring and organization.

Fuse selection is based on the maximum power consumption, allowing for optimal protection. Some models are equipped with illuminated displays, indicating when a fuse is blown for quick and easy error identification.

Installation is effortless, as these terminal blocks are compatible with Din Rail size 35mm. This standard sizing enables easy integration into existing setups.

One of the notable features of these terminal blocks is the ability to open the circuit without removing the wire. This feature greatly simplifies maintenance and troubleshooting tasks, enhancing operational efficiency.

Additionally, these terminal blocks can accommodate LED lights, offering additional functionality and customization options.

WonkeDQ's terminal blocks for sensor technology and machine control provide a versatile and efficient solution, ensuring protection, power distribution, and quick error identification. Their robust construction and user-friendly features make them an ideal choice for a wide range of applications.

Model Number JUK 5-HESI
Color Grey, Black
Length/Height/Wide (mm) 73.5/56.5/8.2
Connection method Screw connection
Material Nylon PA66
Voltage/Current 800V/6.3A
Cross section, solid/soft Cable 0.2-4 mm² / 0.2-4 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
Brand Customized logo are supported
Package 17.35g/pc, 50PCS/BOX,1000PCS/CTN
Certificates CE/RoHS/CQC/ISO 9001
