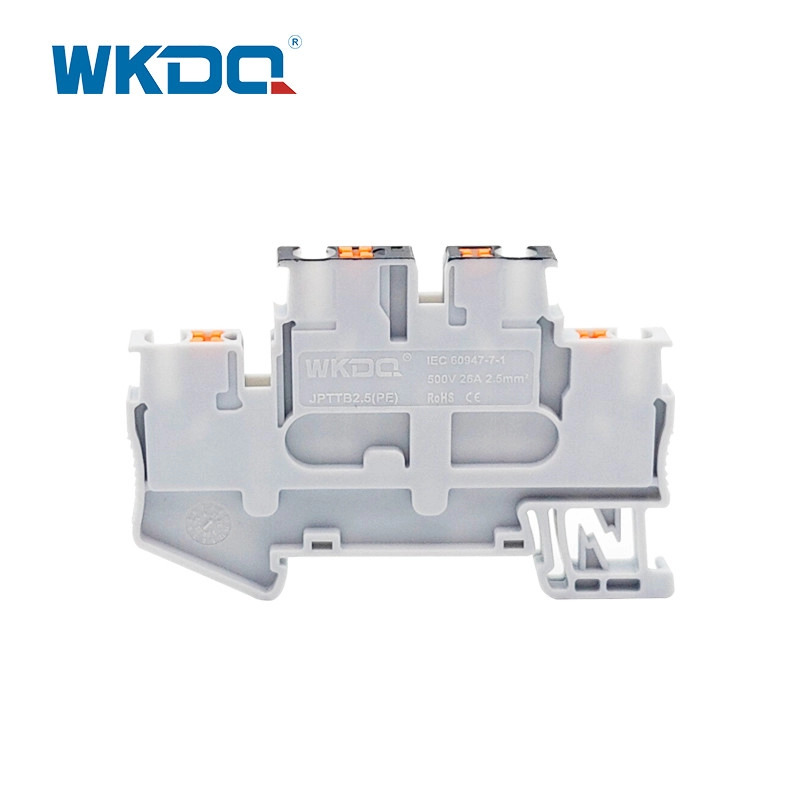

High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified

Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTTB 2.5-PV
Delivery Time: 2-7days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

DIN Rail Mounted Feed Through Terminals in PA 66 Housing offers the complete range suitable for all control and power application. The proven spring clamp design offers high contact force and is easy to use. The special foot design provides the slot for easy mounting and removal of a single terminal from the stack, using a screwdriver.The conductor can be easily released – without special tools. With space savings in mind, the terminal blocks are small, adjustable and provide maximum flexibility and easy installation.

l Includes two-level or three-level terminal blocks for high density wiring applications

l To achieve electrical interconnection

l Flexibility: snap onto symmetrical and asymmetrical rails

l available in addition to our generic grey to help you quickly identify any specific functions.

TECHNICAL PARAMETERS

Model No.	JPTTB 2.5-PV
Color	Grey,Blue, other color can be customized
Length/Height/Wide (mm)	68/47.5/5.2
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/22A
Cross section, solid/soft Cable	0.14-4mm²/0.14-2.5mm²
Conductor Size	26-12AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	10.23g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
