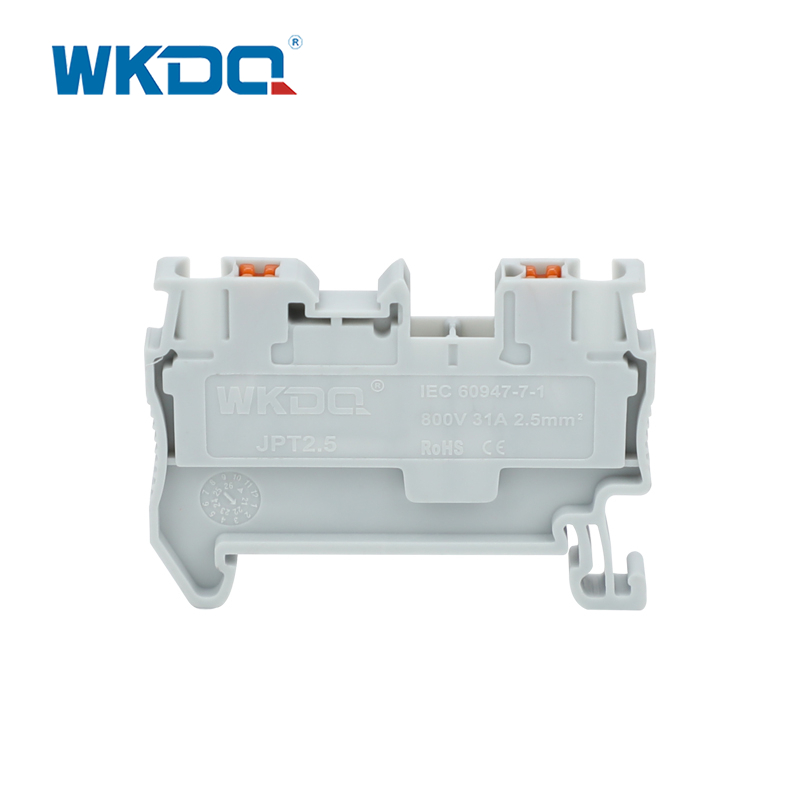

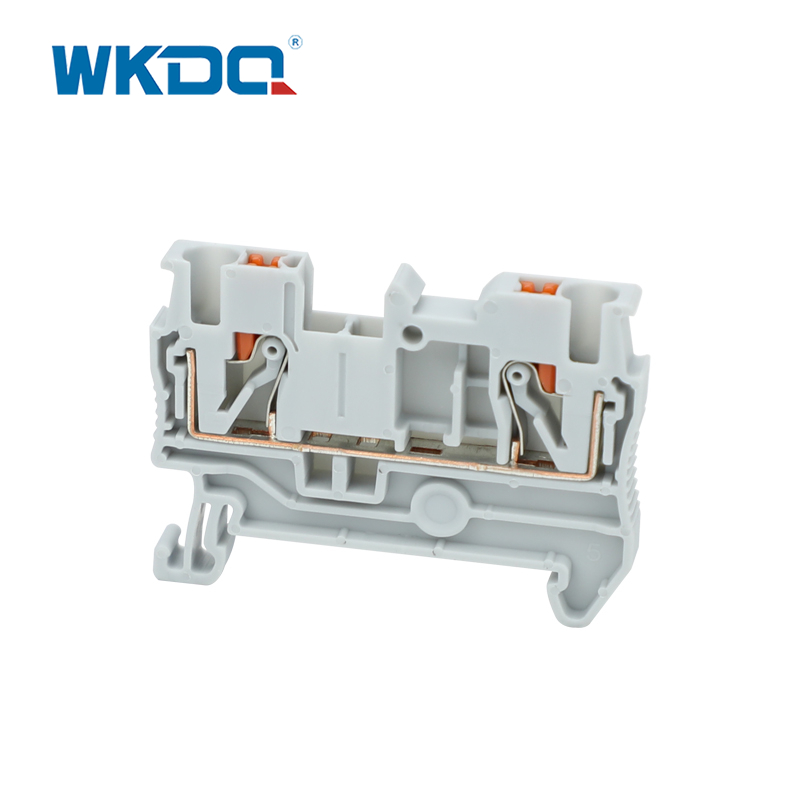

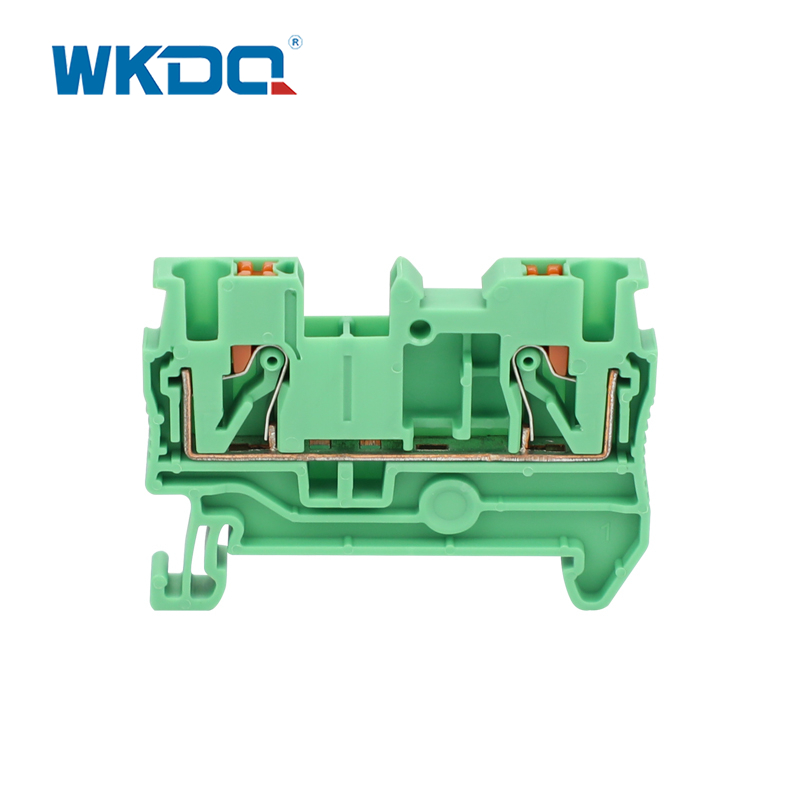

JPT 2.5/1P Plug In Connection Terminal Block Quick CE Certificate For Self Assembly
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 2.5/1P
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Model:JPT 2.5/1P
Send Inquiry
Product Description
The plug-in connection enables the time-saving and modular configuration of your application.
1. Made from engineering flame retardants nylon PA66,brass conductor, stainless steel pressure spring.
2. This plug-in connection allows to combine basic terminal blocks which are available in Push-in, spring-cage, fast connection, and screw connection versions with one another in any configuration.
3. The compact design and front connection enable wiring in a confined space.
4. With universal foot which can be installed on Din Rail NS 35.
5. Electric potential distribution can use fixed bridges in the terminal center.
6. All types of accessories: End cover, End Stopper, Marker strip, Plug-in bridge, Marker carrier,etc.
TECHNICAL PARAMETERS
| Model Number | JPT 2.5/1P |
| Color | Grey,other color can be customized |
| Length/Height/Wide (mm) | 48.5/35.5/5.2 |
| Connection method | Plug in connection |
| Material | Anti inflaming Nylon PA66 |
| Rated Voltage/Current | 500V/24A |
| Cross section, solid/soft Cable | 0.2-4mm² / 0.2-2.5mm² |
| Conductor Size | 24-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WKDQ, OEM serivce is supporting |
| Packing Detail | 5.79g/pc, 100PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
