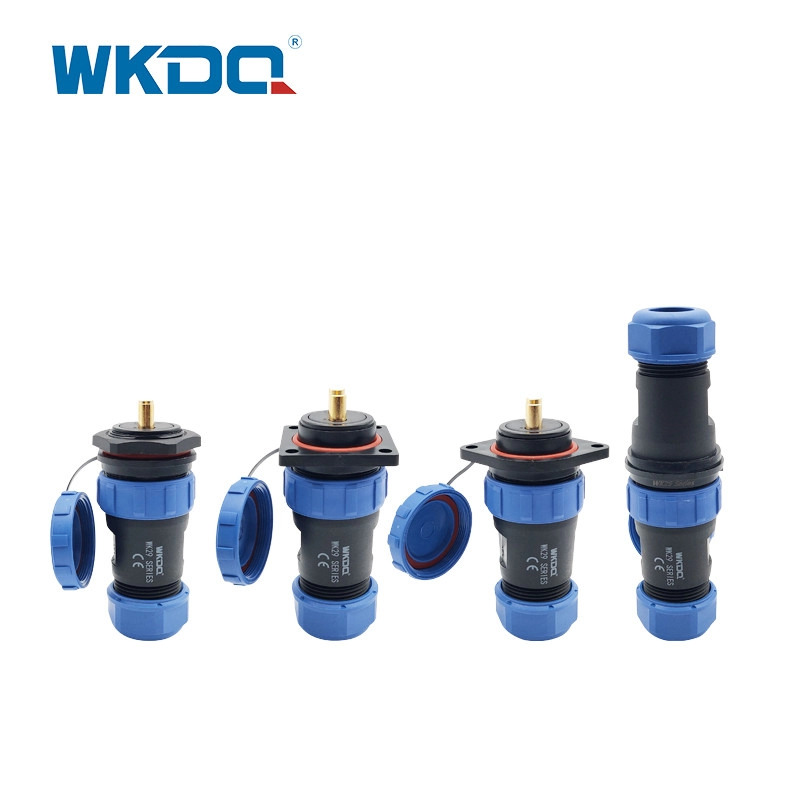

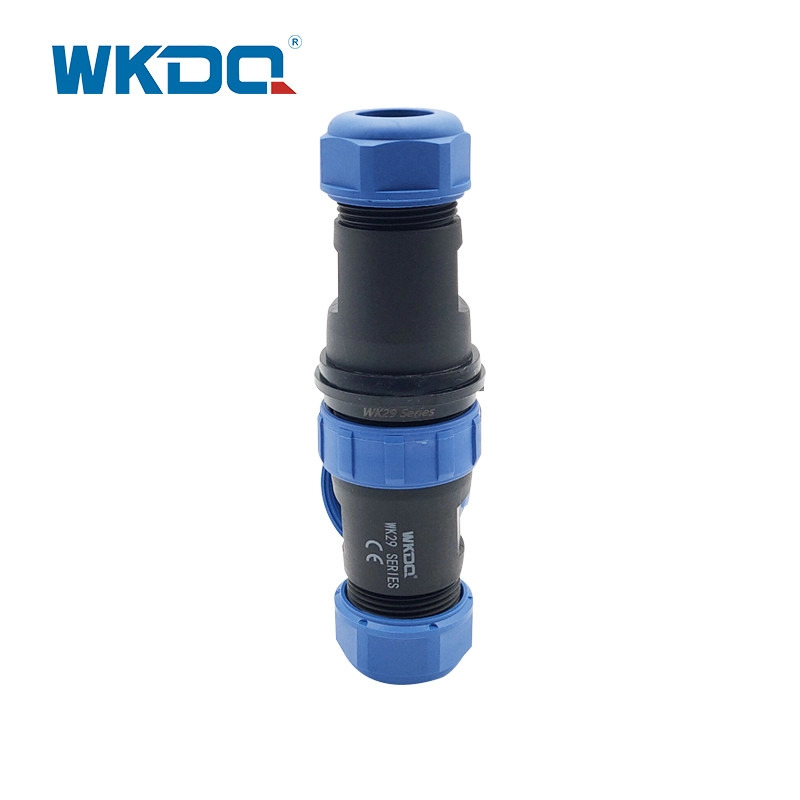

IP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking Pin
  • IP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking PinIP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking Pin
  • IP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking PinIP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking Pin
  • IP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking PinIP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking Pin
  • IP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking PinIP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking Pin
  • IP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking PinIP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking Pin

IP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking Pin

For WKDQ IP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking Pin, everyone has different special concerns about it, and what we do is to maximize the product requirements of each customer, so the quality of our IP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking Pin has been well received by many customers and enjoyed a good reputation in many countries.

Send Inquiry

Product Description

For a WKDQ IP68 Threaded Plug Socket Waterproof Connector Inline Type Wk29 Docking Pin, you can consider connectors from established series such as the M12, M16, or M23 series. These connectors are widely used in various industries and offer reliable waterproofing capabilities.

Here are the key features of these connectors:

IP68 Rating: These connectors are designed to provide excellent waterproofing capabilities, typically with an IP68 rating or higher. They are fully protected against dust and can withstand continuous immersion in water beyond 1 meter depth.

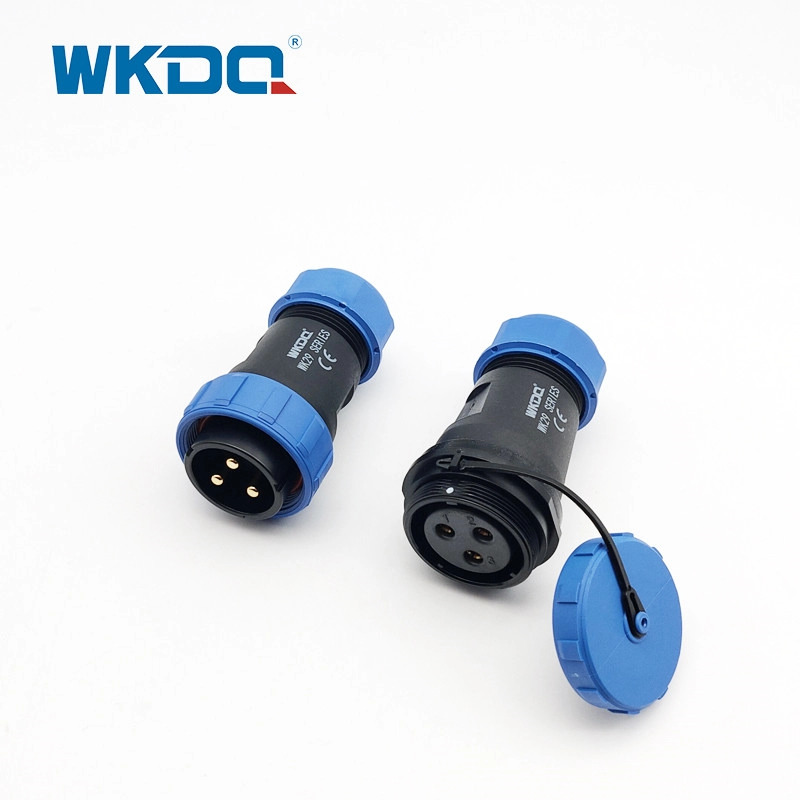

Threaded Plug and Socket: The connectors utilize a threaded coupling mechanism, ensuring a secure and reliable connection. The threaded design allows for easy mating and unmating of the connectors, providing a tight fit.

Inline Type Docking Pin: These connectors feature an inline type docking pin configuration, where the pins are aligned in a straight line within the connector. This facilitates the connection and disconnection of the mating plugs and sockets.

Cable Connector: These connectors are designed for use as cable connectors, allowing for the direct attachment of cables or wires. They typically consist of a plug connector and a socket connector, providing a reliable electrical connection.

When selecting an IP68 threaded plug socket waterproof connector with an inline type docking pin, consider factors such as the specific connector series (e.g., M12, M16, M23), the number of pins required for your application, wire gauge compatibility, and any additional requirements specific to your use case. It is recommended to consult the manufacturer's datasheets or technical specifications to ensure the connector meets your specific needs.


TECHNICAL PARAMETERS

Coupling Threaded Coupling
Shell material PC, Nylon66, fire resistance: V-0
Insert material PPS, max temperature 260 ℃
Contact material Brass with gold plating
Termination Solder

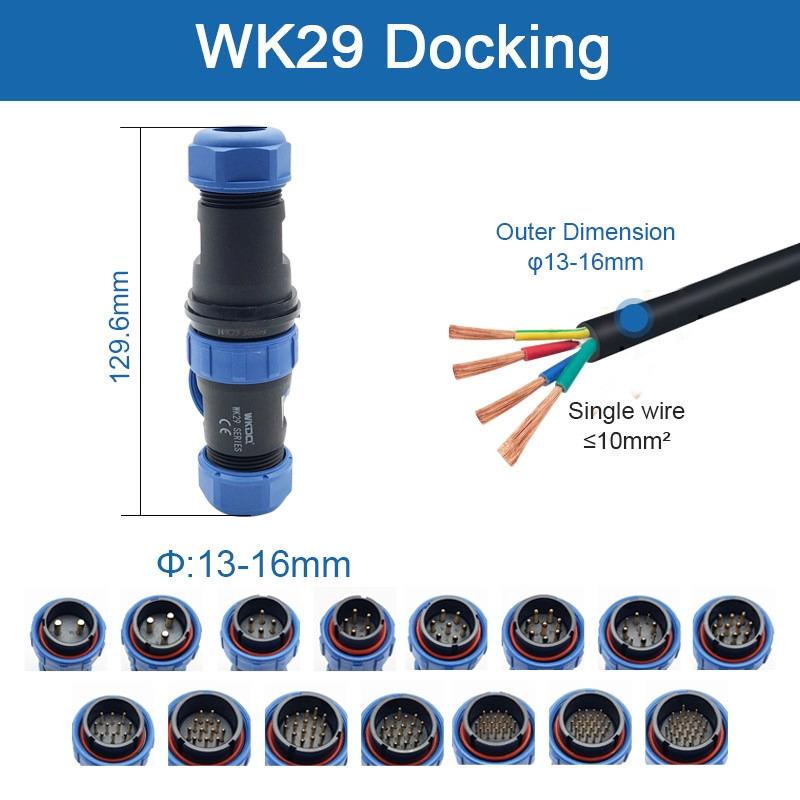

Cable outer diameter range 13-16mm
IP rating IP68
Mating cycle 500
Temperature range -40℃ ~ + 85℃
Insulation resistance 2000 M Ω
