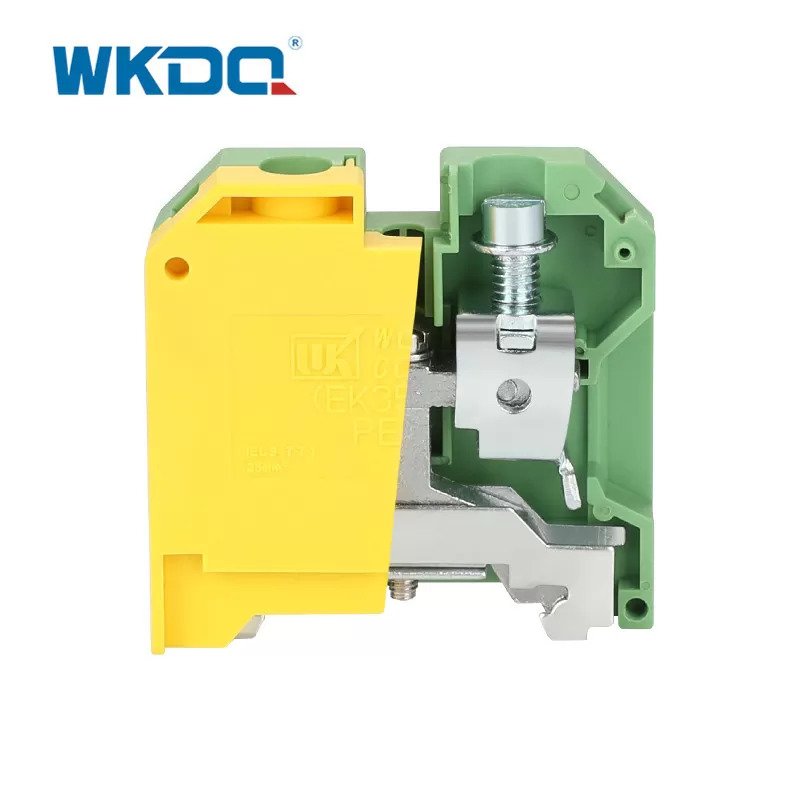

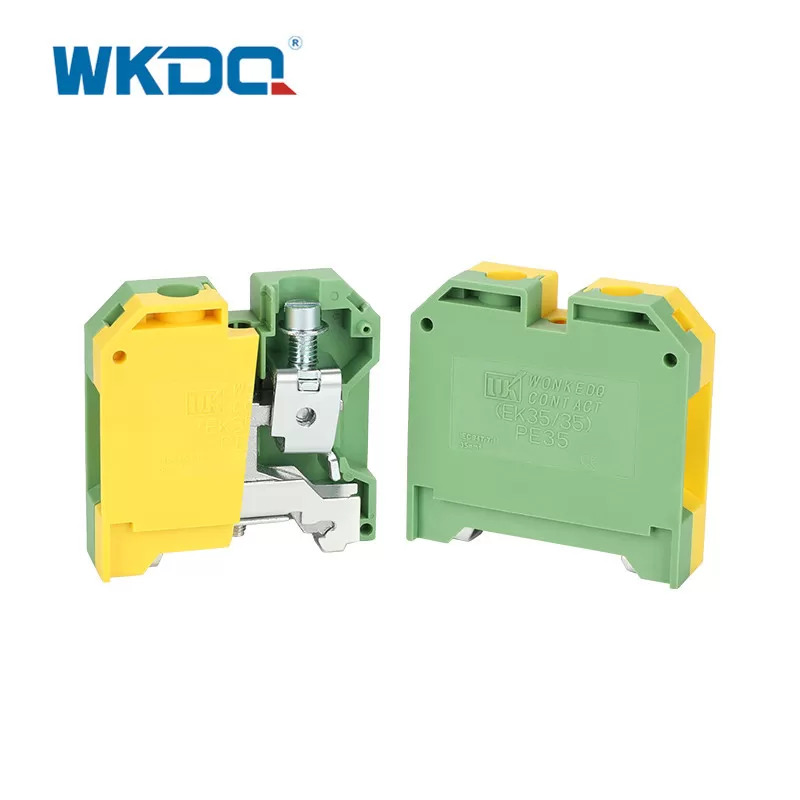

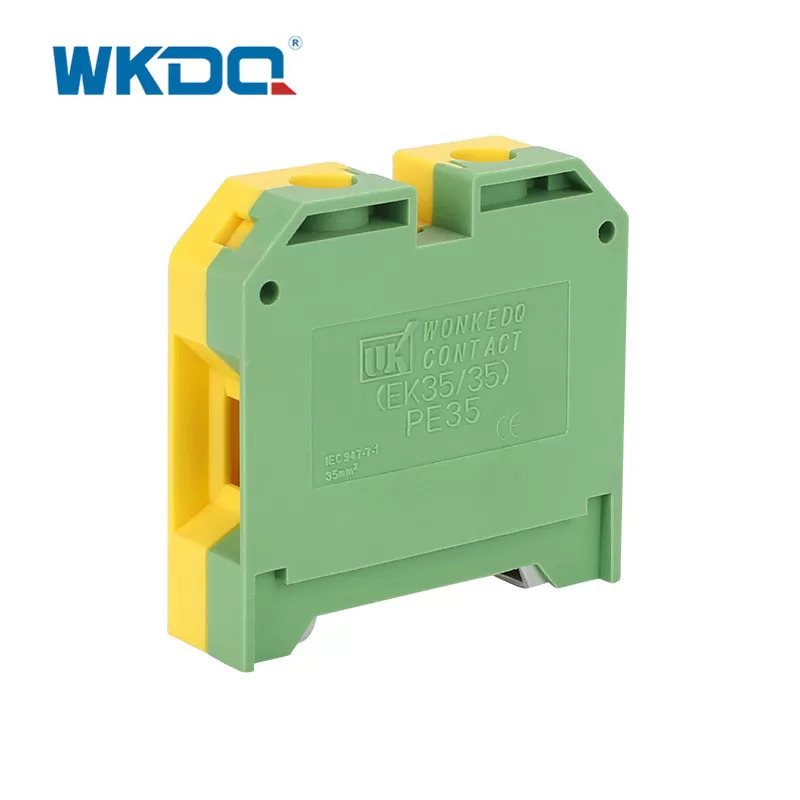

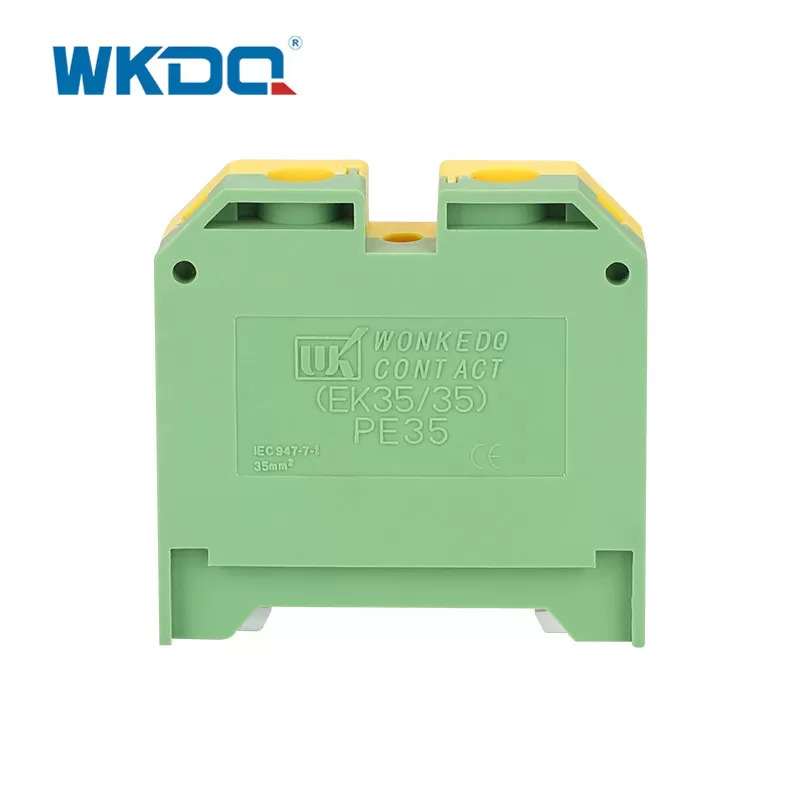

JEK 3535 Modular Screw Down Terminal Block EK Screw Earth Grounding 16.2mm Wide
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JEK 35/35
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Model:JEK35/35
Send Inquiry
Product Description
| Model Number: | JEK 35/35 | Length: | 59mm |
| Height: | 57mm | Wide: | 16.2mm |
| Voltage: | 800V | Current: | 125A |
| High Light: | electrical screw terminal block connector , screw down wire connector | ||
The housings of the ground circuit terminal blocks are molded with a material in the international recognized colors of green and yellow, which are used to signify a ground connection.
Steady structure.
Safe and stable performance.
Cost-saving design.
Shock resistance & Corrosion resistance.
Made from safe and high quality materials.
Simple and convenient installation.
Perfectly suitable for electrical machine control systems.
An excellent vibration proof protection against loosening.
Maintenance-free conductor connection and long-term reliable using.
Made from engineering nylon PA 66 with brass foot.
Optimum screwdriver guidance through closed screw shafts.
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section.
Maintenance-free conductor connection and long-term reliable using.
Low voltage drop and gas-tight connecting.

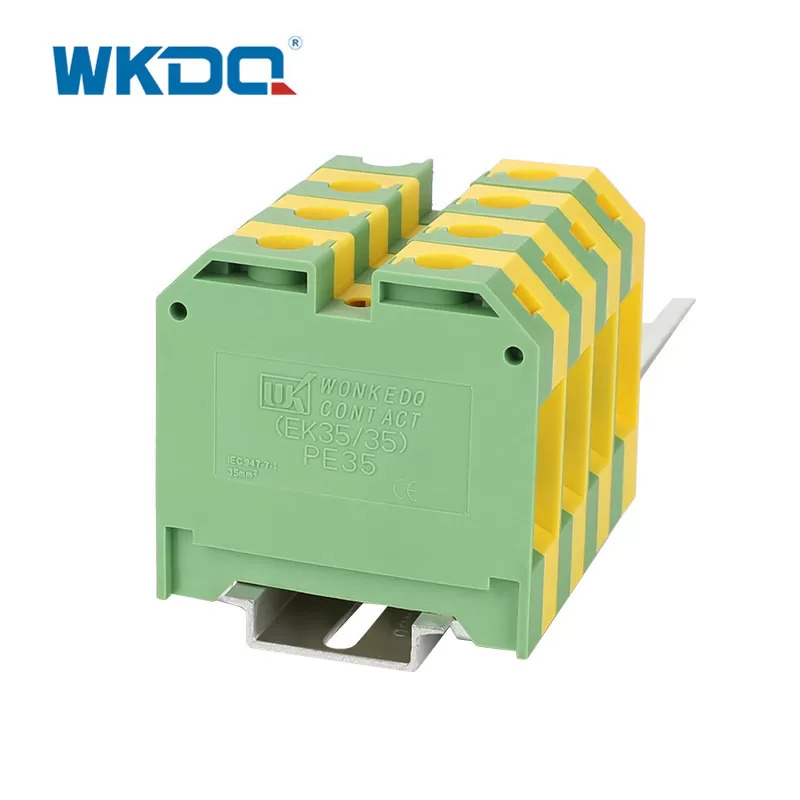

Stable foot can be fixed on the DIN Rail 35mm.
TECHNICAL PARAMETERS
| Part No. | JEK 35/35 |
| Color | Yellow/Green, other color can be customized |
| Length/Height /Wide (mm) | 59/57/16.2 |
| Connection method | Screw connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 800V/125A |
| Rated Cross section | 35 mm² |
| Mounting Type | NS 35 DIN Rail |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 77.37g/pc, 20PCS/BOX,360PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
