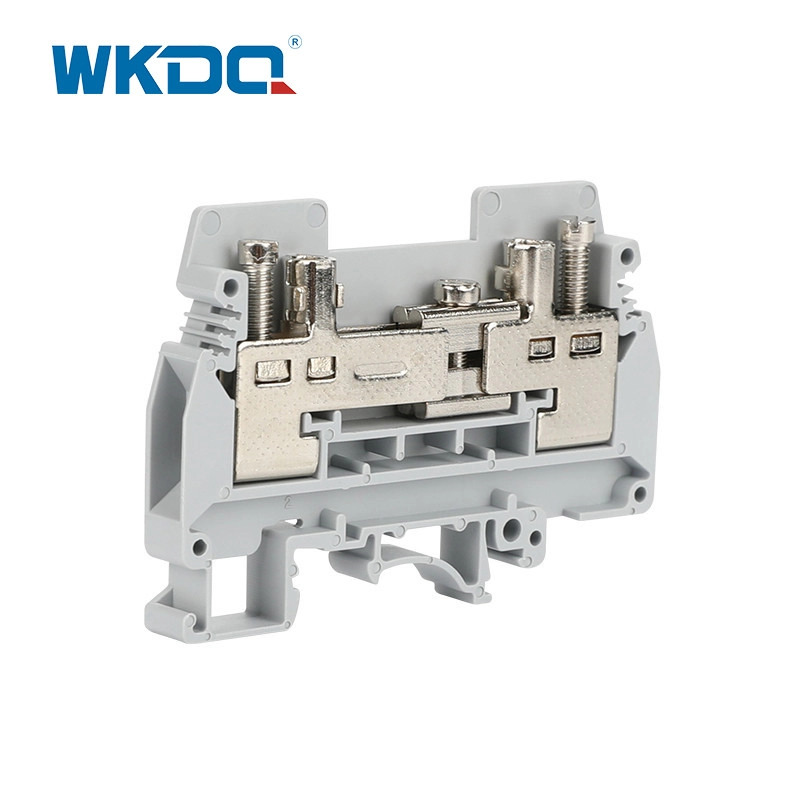

JERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal Block
  • JERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal BlockJERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal Block
  • JERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal BlockJERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal Block
  • JERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal BlockJERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal Block
  • JERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal BlockJERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal Block
  • JERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal BlockJERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal Block

JERTK_S Din Rail Screw Terminal Block 6mm2 Test Disconnect Terminal Block

Place of Origin: China,Zhejiang
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JERTK/S
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

Test disconnect terminal blocks provide a convenient solution for implementing test circuits in secondary current transformer circuits. With just two compact terminal blocks, you can easily set up a simple current transformer test circuit. Here are the key features and specifications:

Ease of Operation: The test disconnect terminal blocks are designed for easy operation, simplifying the process of setting up and conducting test circuits.

Steady Structure: These terminal blocks feature a sturdy and robust structure, ensuring stability and durability in various operating conditions.

Strong Resistance to Short Circuit: They offer a high degree of resistance to short circuits, providing added safety and protection during testing.

Safe and Stable Performance: The terminal blocks ensure safe and stable performance, maintaining reliable connections and accurate measurements.

Easy Switch Condition Identification: The switch condition on the terminal blocks can be easily distinguished, allowing for clear identification of the circuit status.

Safe and High-quality Material: The terminal blocks are made from safe and high-quality materials, specifically Inflaming retarding PA 66 with corrosion-proof metal. This ensures electrical safety and reliability.

Universal Foot for 35mm DIN Rail: They are equipped with a universal foot that can be easily installed on 35mm DIN Rail, providing flexibility in mounting options.

Compact Design for Current Transformer and Voltage Transducer Measuring Sets: These terminal blocks are compact and allow for easy design of current transformer and voltage transducer measuring sets according to specific requirements. This enables fast implementation and safe operation.

Comprehensive Range of Accessories: Various accessories are available for these terminal blocks, including end covers, end stoppers, partition plates, marker trips, fixed bridges, insertion bridges, and more. These accessories enhance functionality and customization options.

In summary, the test disconnect terminal blocks provide a high level of comfort and convenience for test circuits in secondary current transformer applications. They are easy to operate, offer a steady structure, and ensure strong resistance to short circuits. With their safe and stable performance, they enable efficient and accurate testing. Made from safe and high-quality materials, they guarantee reliable operation. The terminal blocks can be easily mounted on 35mm DIN Rail using the universal foot. Their compact design allows for flexible configuration of current transformer and voltage transducer measuring sets. Additionally, a comprehensive range of accessories is available to further enhance functionality.


TECHNICAL PARAMETERS

Model Number JERTK/S, Test disconnect terminal block
Color Grey, other color can be customized
Length/Height/Wide (mm) 72.5/51/8.2
Connection method Screw connection
Material Nylon/ PA66
Rated Voltage/Current 400V/57A
Cross section, solid/soft Cable 0.5-10 mm² / 0.5-6 mm²
Conductor Size 20-8 AWG
Mounting Type Din Rail NS 35
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 33.81g/pc, 50PCS/BOX, 1000PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
