Home > Products > Electrical Terminal Block > JUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail Mounted

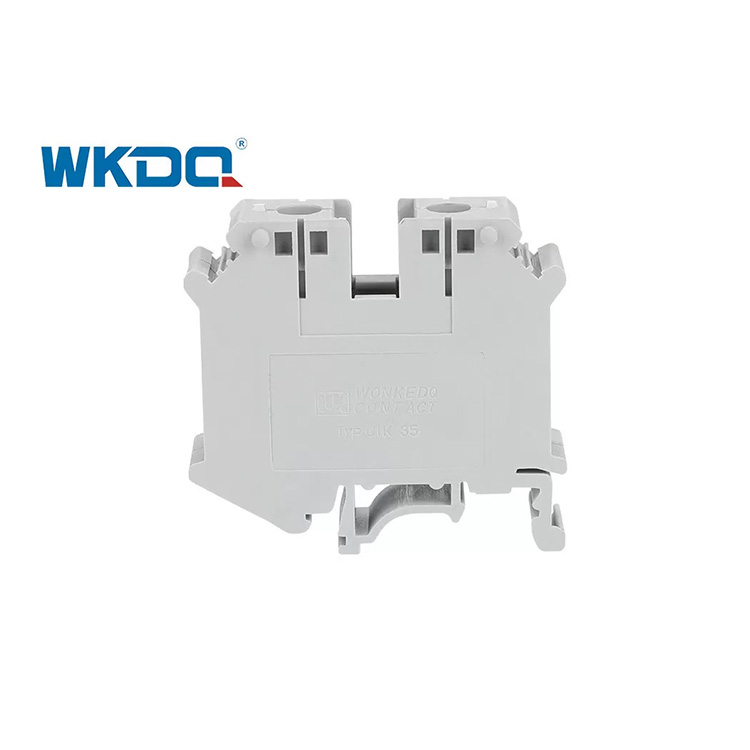

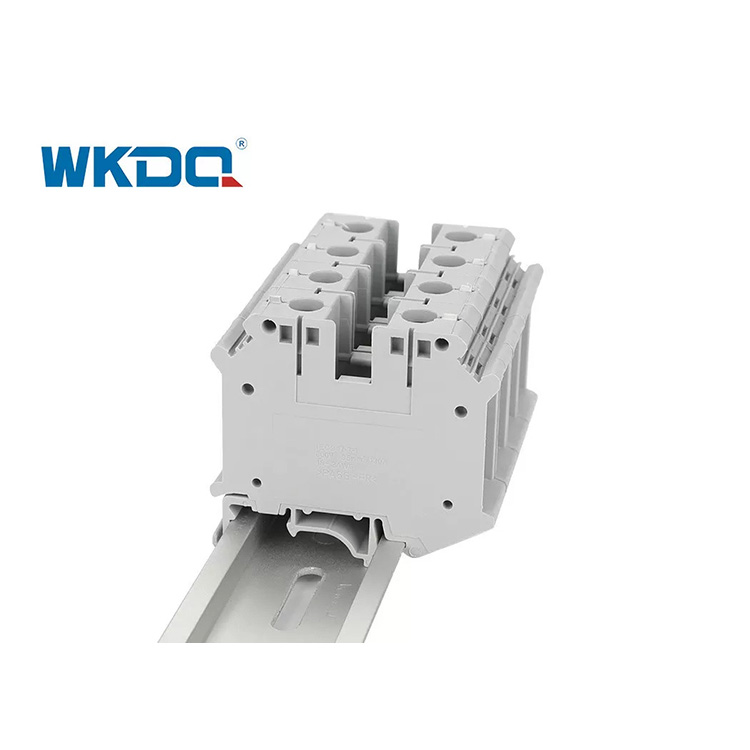

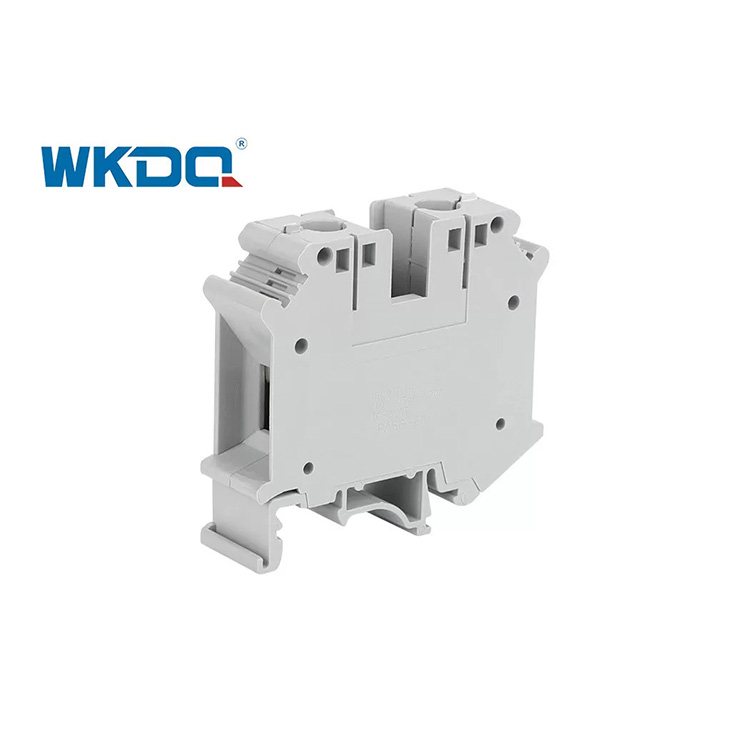

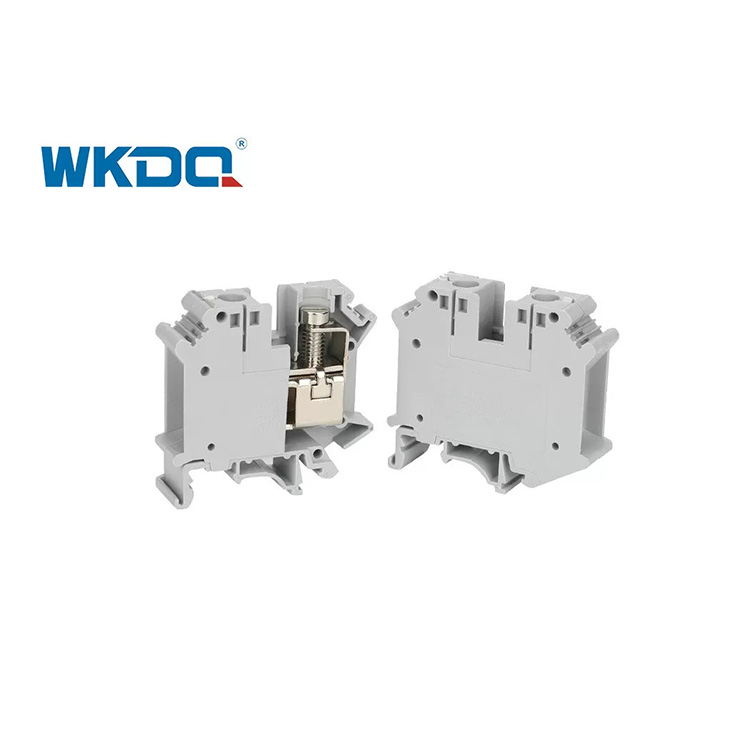

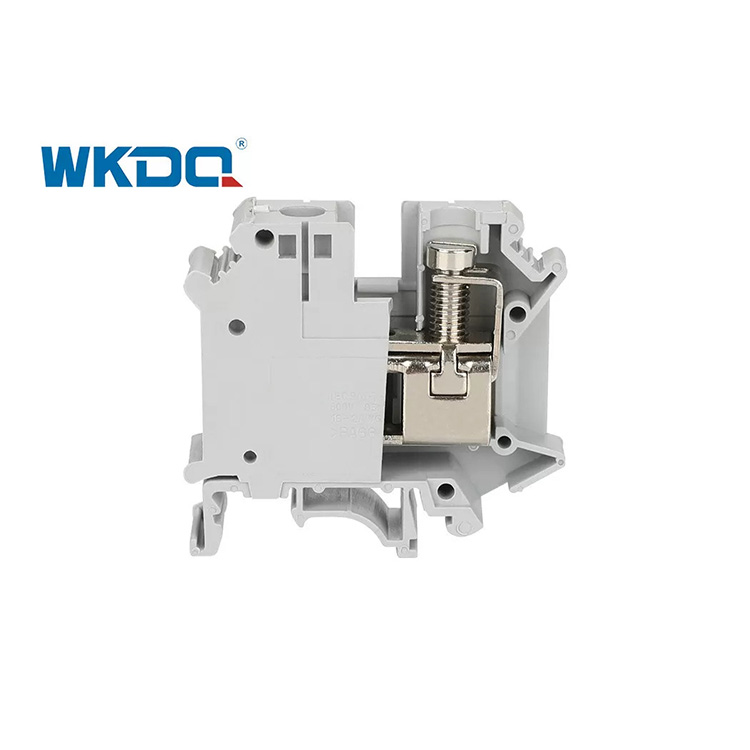

JUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail Mounted
  • JUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail MountedJUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail Mounted
  • JUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail MountedJUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail Mounted
  • JUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail MountedJUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail Mounted
  • JUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail MountedJUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail Mounted
  • JUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail MountedJUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail Mounted

JUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail Mounted

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUIK 35

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUIK 35

Send Inquiry

Product Description

    The WonkeDQ JUK series screw terminal block has passed international certification. It adopts flame-retardant PA66 engineering plastic and brass screw assembly, is compatible with 35mm DIN rail for immediate installation, and supports fixed bridge/inserted bridge potential distribution. The anti-corrosion contact points and strong contact force (≤0.1mΩ) ensure long-term reliable connection of large wire diameters. The low structural height is suitable for flat distribution boxes. It is equipped with a full range of accessories such as end covers and Bridges, meeting the requirements of efficient and safe power distribution in harsh scenarios.

Technical Parameters

Model No. JUIK 35
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) 56/51/15.2
Connection method Screw connection
Material Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current 1000V/150A
Cross section, solid/soft Cable 0.75-35 mm² / 0.75-35 mm²
Conductor Size 18-2 AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 43.90g/pc, 20PCS/BOX, 600PCS/CTN
Certification CE/RoHS/CQC/ISO 9001



Hot Tags: JUIK 35 Universal Terminal Block Relay , Electric Wire Connector Blocks Din Rail Mounted, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
