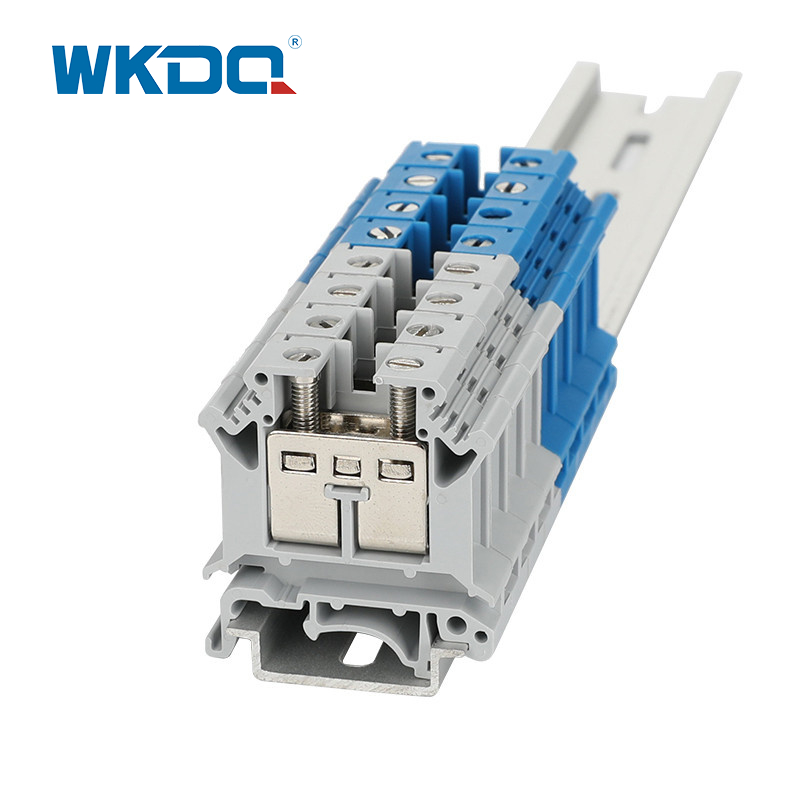

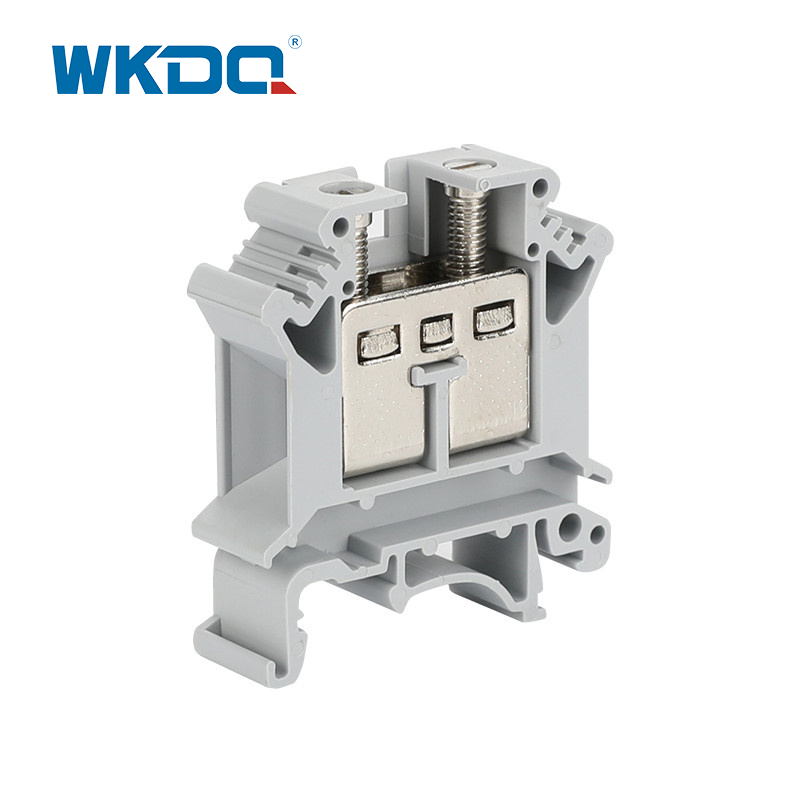

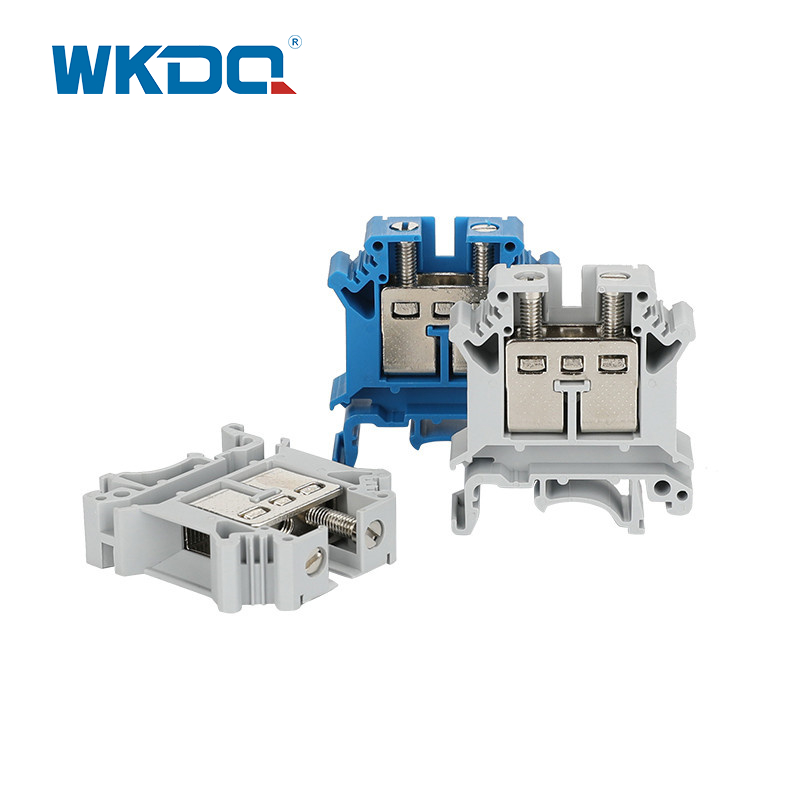

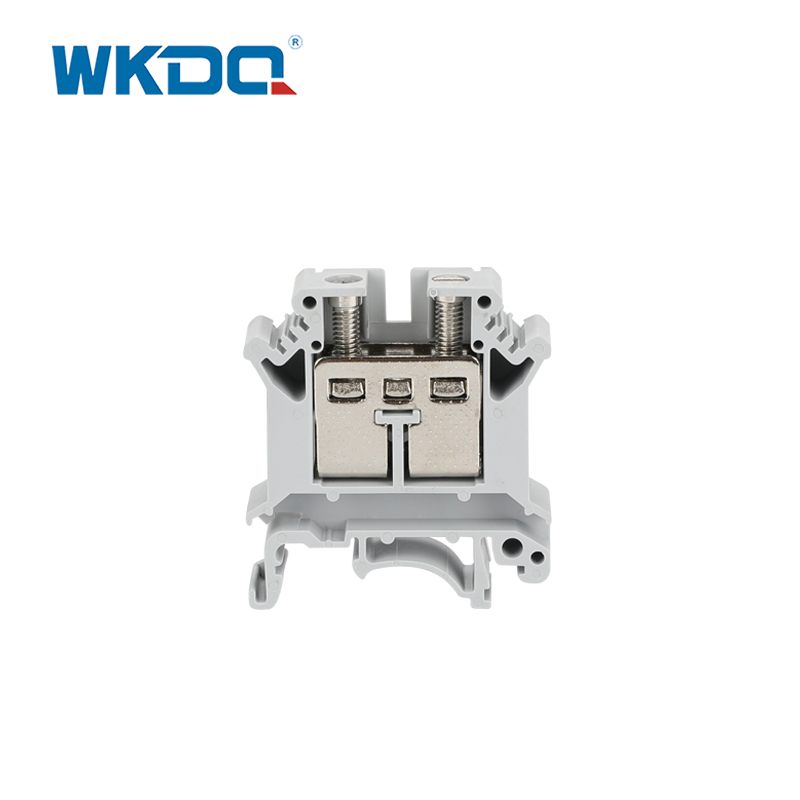

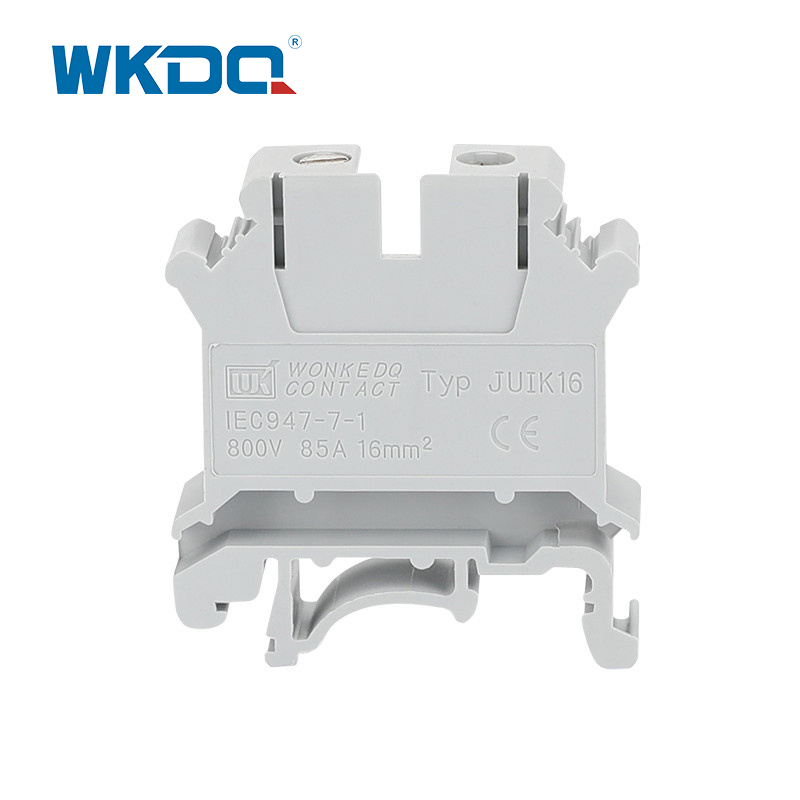

JUK 16 Wonkedq Industrial Terminal Blocks Inflaming Retarding Plastic Body

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK 16

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUK 16

Send Inquiry

Product Description

WONKEDQ terminal blocks cover various types of products such as modular terminals and distribution blocks. They are made of PA66 V0 flame-retardant material and shock-resistant design. They support DIN rails for immediate installation and disassembly, and do not require pre-treatment of wires to achieve low contact resistance (ensuring conductive safety) and quick installation. It is suitable for fields such as electronic devices and mechanical manufacturing, and has become the preferred connection solution for demanding scenarios with its high reliability and industry compliance.

Technical Parameters

Item No.	JUK 16

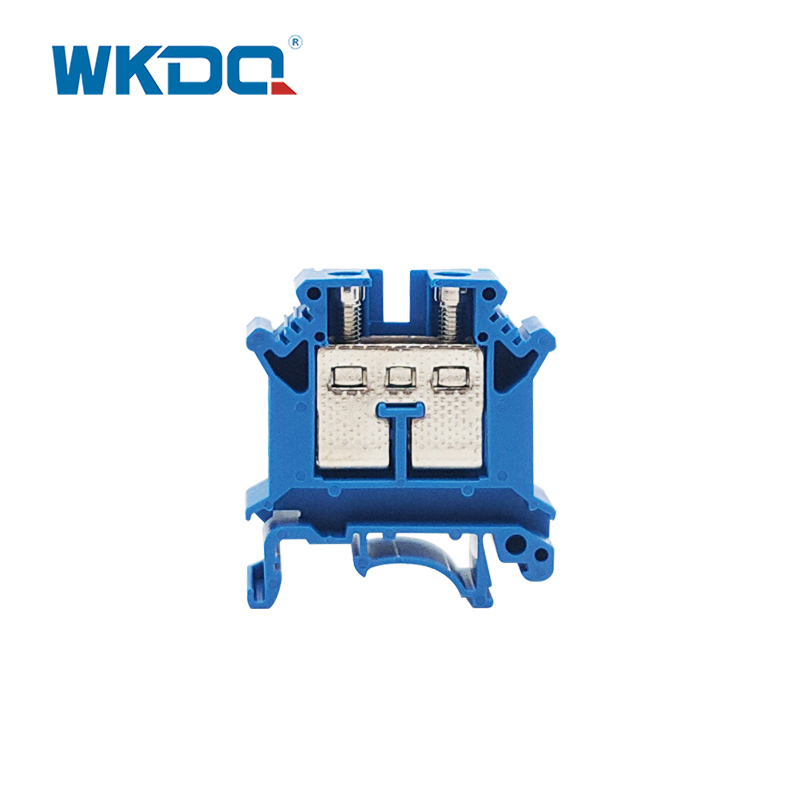

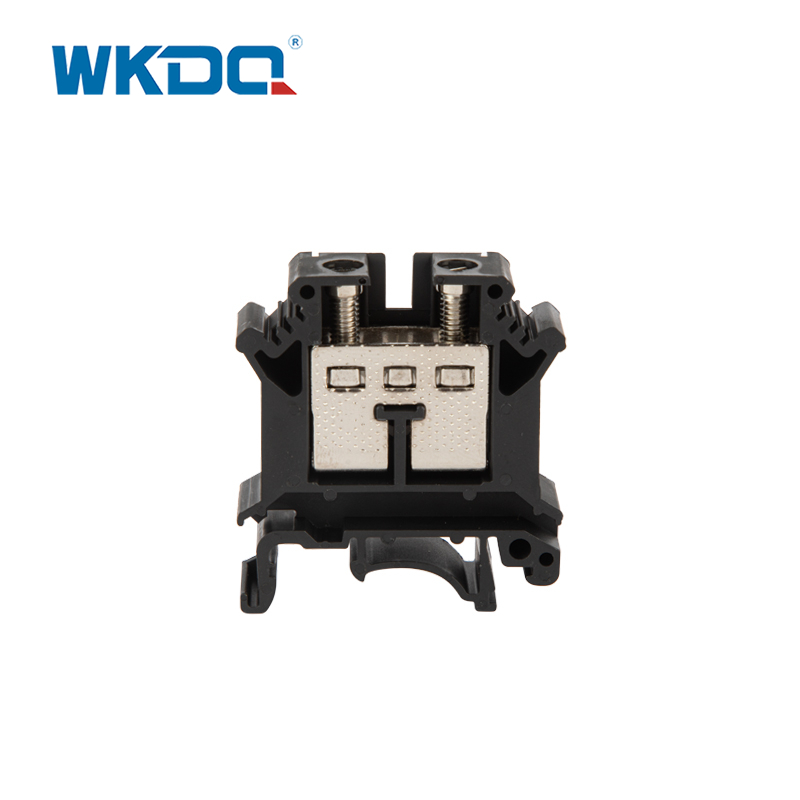

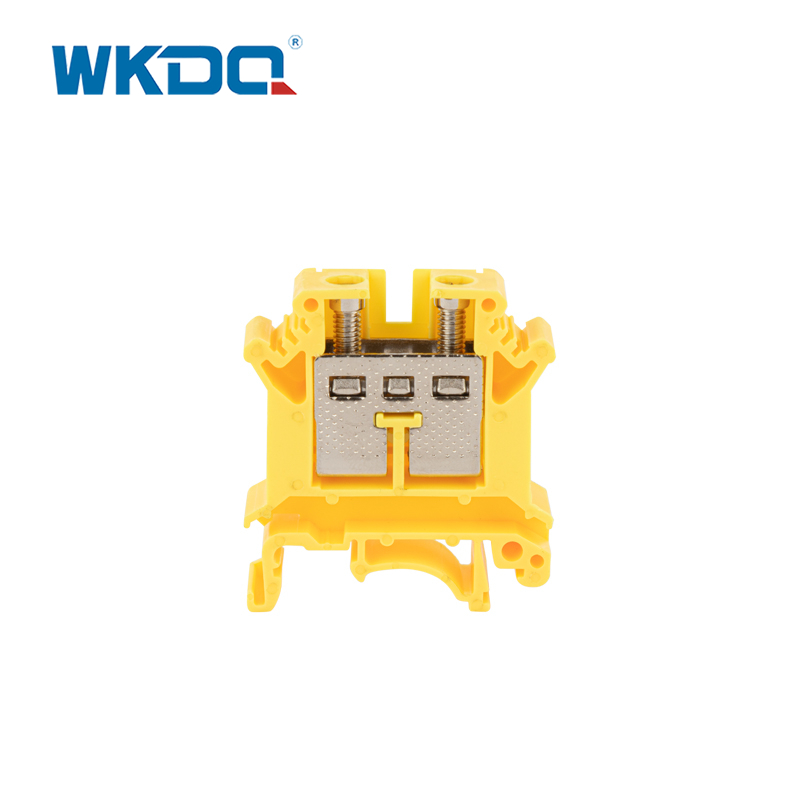

Color	Normally Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/53/12.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/101A
Cross section, solid/soft Cable	2.5-25 mm /4-16 mm
Conductor Size	12-4 AWG
Mounting Type	NS 35/7.5
International Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Package	22.05g/pc, 50PCS/BOX,1000PCS/CTN
Certific	CE, RoHs, CQC,etc
