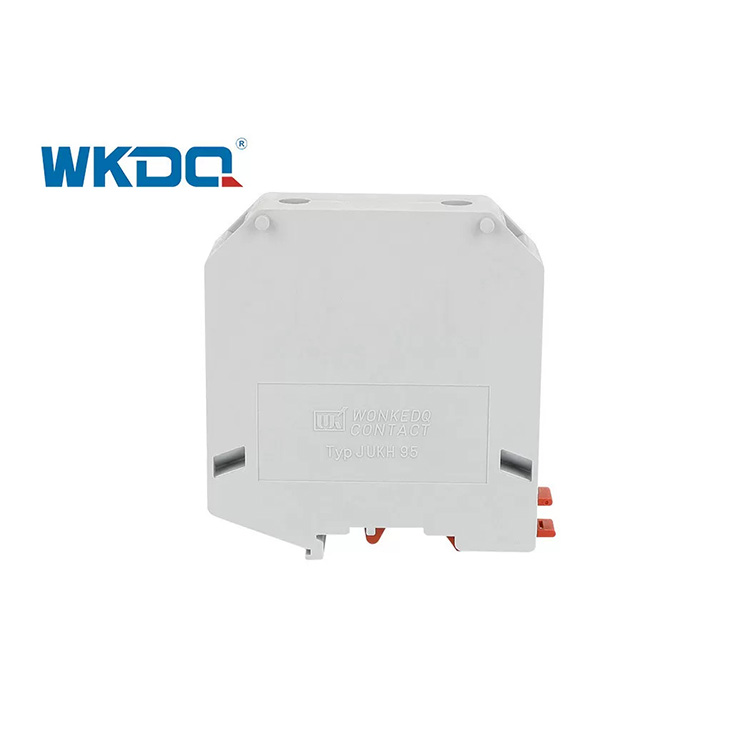

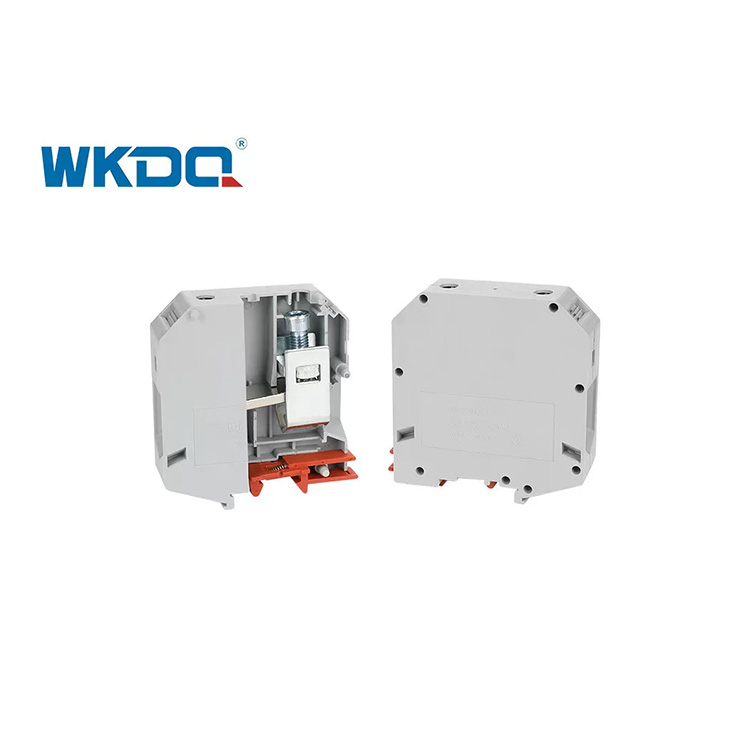

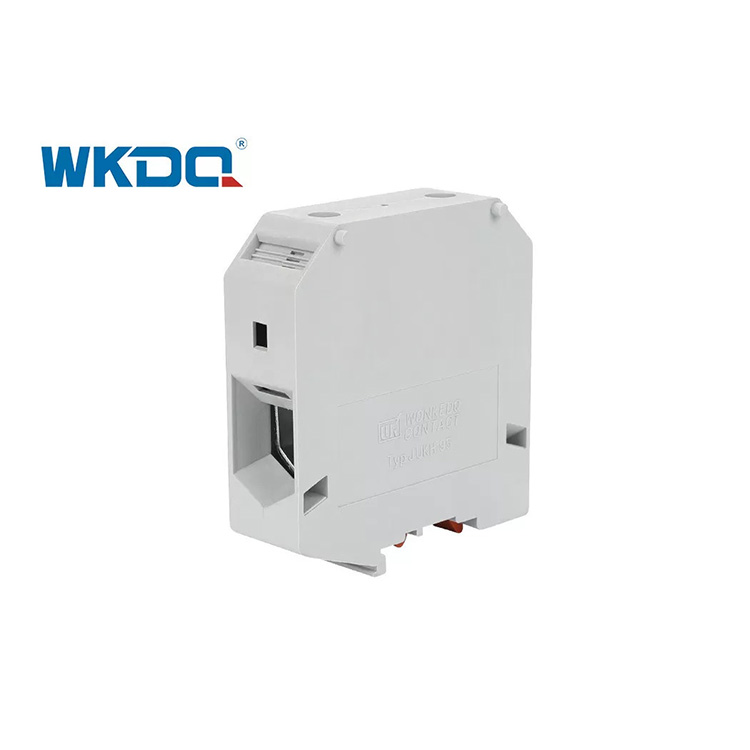

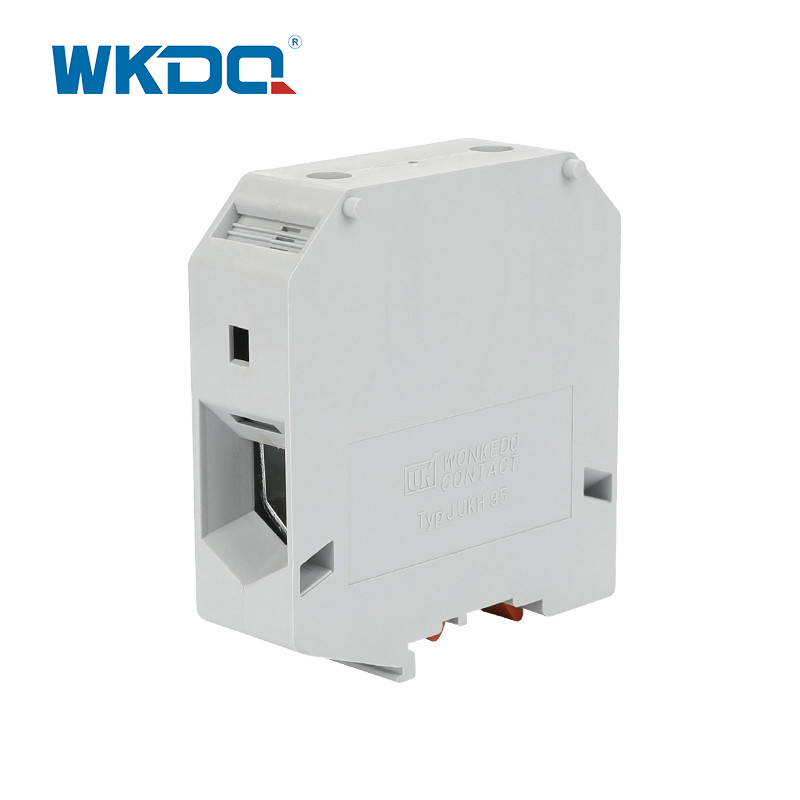

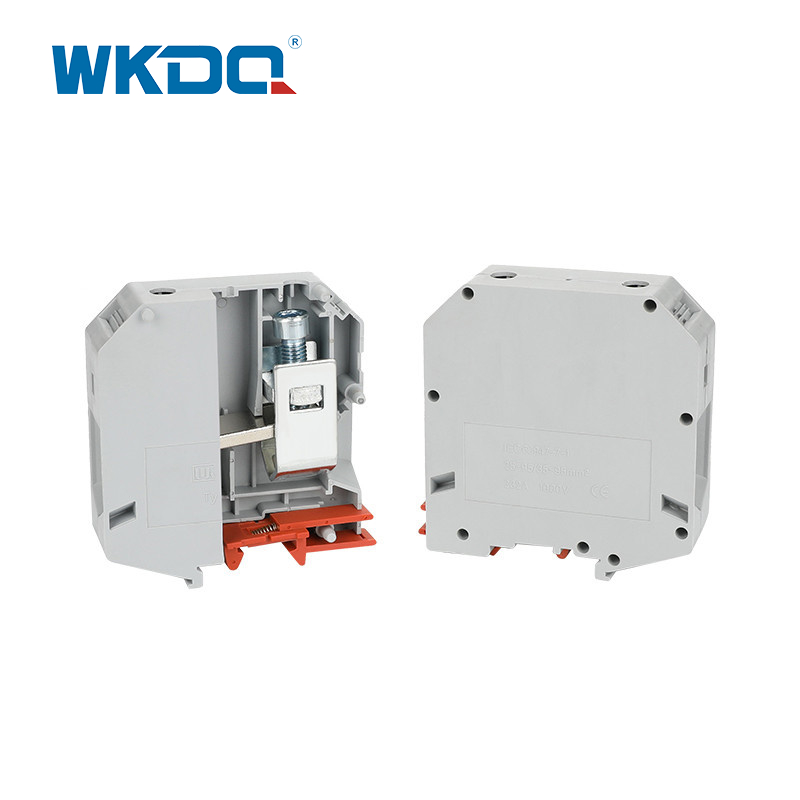

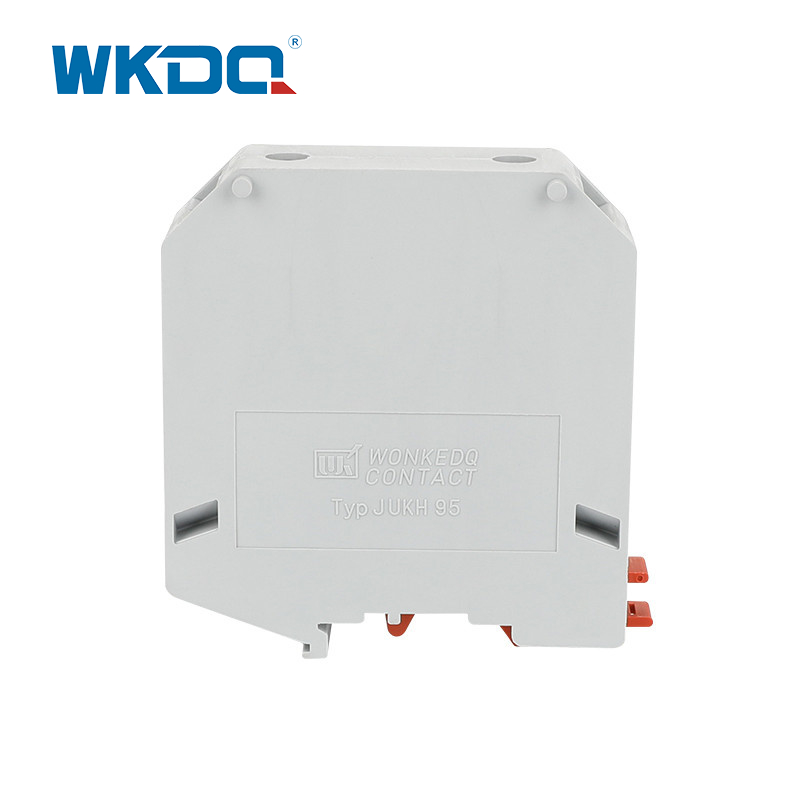

JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
  • JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage InstallationJUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
  • JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage InstallationJUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
  • JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage InstallationJUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
  • JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage InstallationJUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
  • JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage InstallationJUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation

JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUKH 95
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

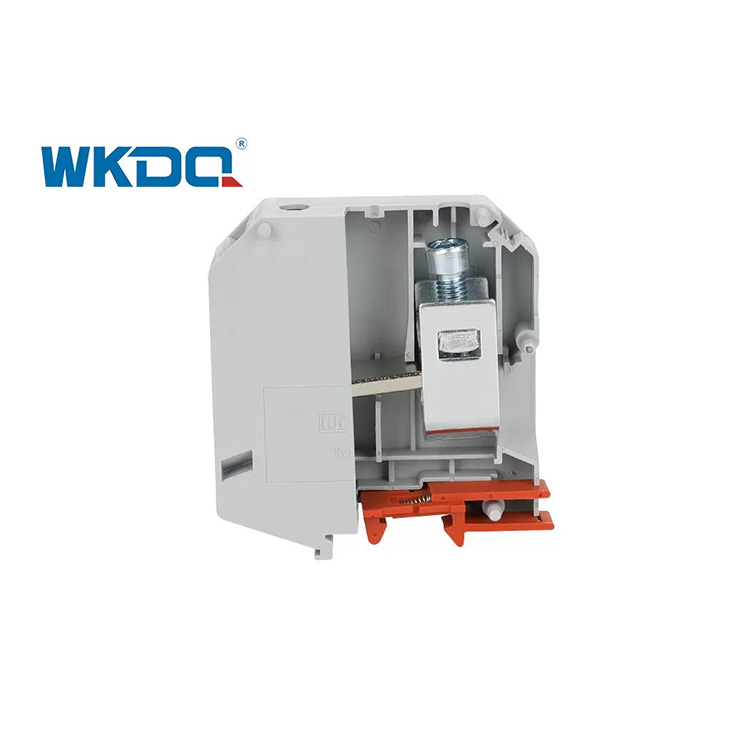

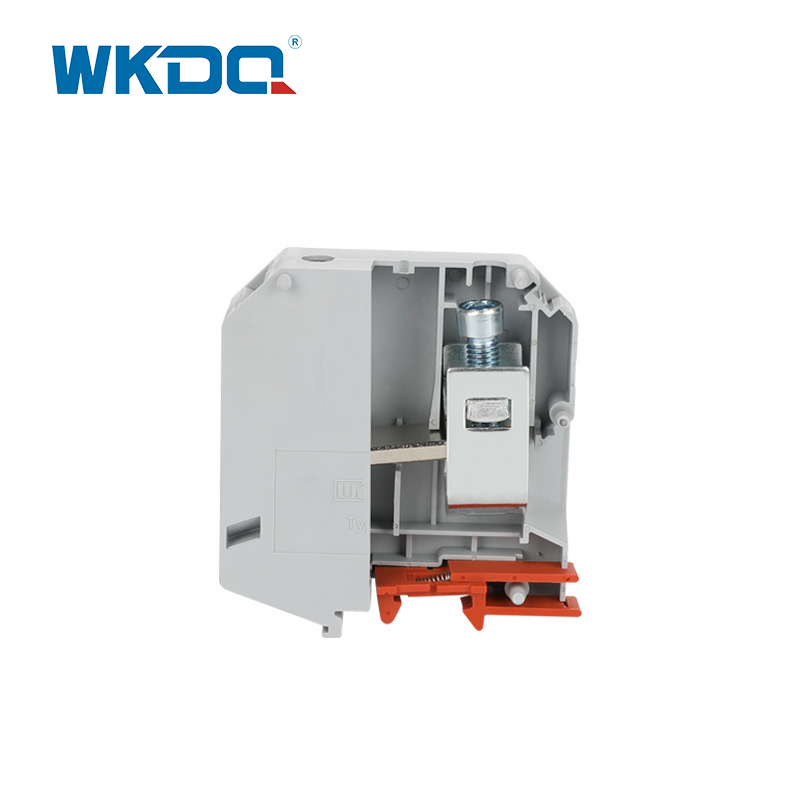

The JUKH High current terminal blocks provide a safe and reliable connection with superior construction features. These include three-point centering of the wire in the prism-shaped sleeve base, a fluted contact surface for low contact resistance, and screws secured with spring-loaded elements. Additional details about these terminal blocks are as follows:

Elastic Structure for Screw Self-Locking: The terminal blocks utilize an elastic structure that enables self-locking of the screws, ensuring a secure and stable connection.

Made from Industrial Flame Retardant Nylon PA66: The terminal blocks are constructed from high-quality industrial flame retardant nylon PA66, providing excellent durability and safety.

Enclosed Insulating Case: Each terminal block features an enclosed insulating case, providing insulation and protection for the connections.

Long Durable Time: The terminal blocks are designed to have a long lifespan, ensuring reliable performance over an extended period.

Perfectly Suitable for Electrical Machine Control Systems: These terminal blocks are well-suited for various electrical machine control systems, meeting the requirements of different applications.

Comprehensive Range of Accessories: The terminal blocks come with a wide range of accessories, including plug-in bridges, marking strips, and marking holders, to enhance convenience and organization in wiring installations.

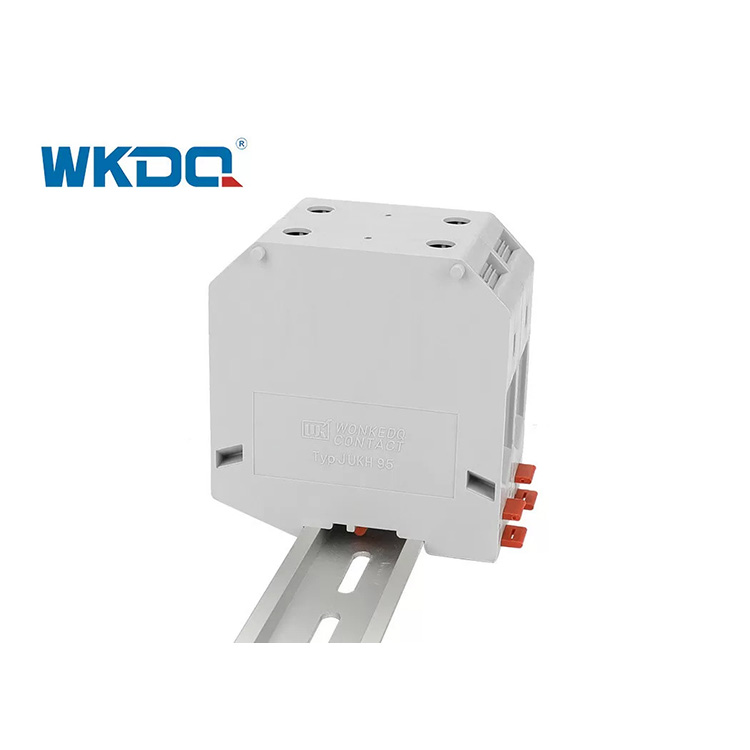

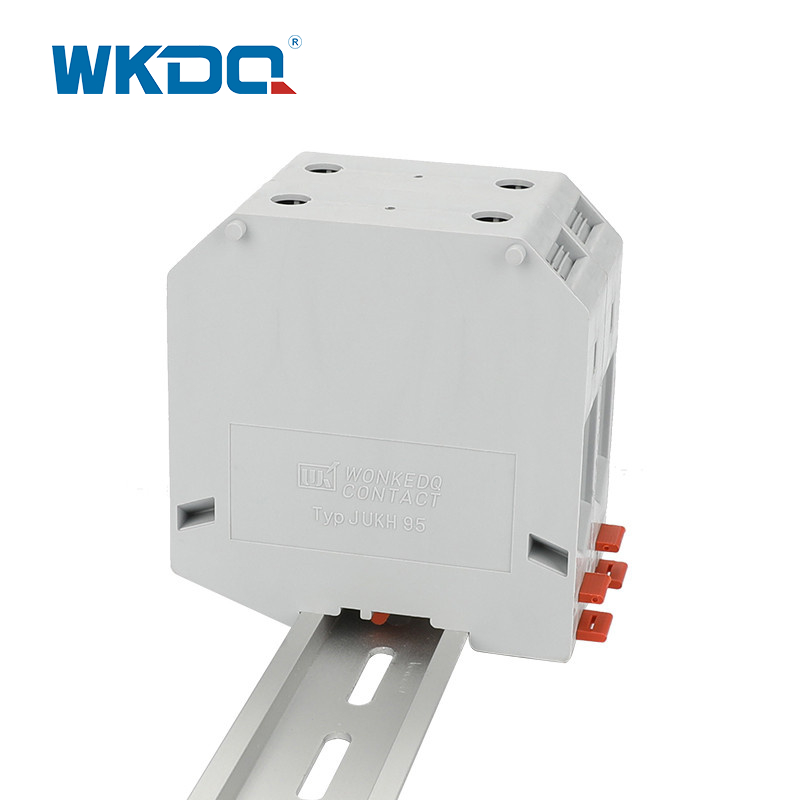

Compatible with DIN Mounting 35mm: The terminal blocks have a universal foot that can be easily installed on DIN mounting rails with a width of 35mm.

Accommodates Two Conductors Easily: The terminal blocks enable easy connection of two conductors, including larger cross-sections, without any difficulties.

In summary, the JUKH High current terminal blocks offer a safe and reliable connection, thanks to their superior construction and features. They are made from industrial flame retardant nylon PA66, have an enclosed insulating case, and provide a long-lasting performance. These terminal blocks are suitable for electrical machine control systems and come with a comprehensive range of accessories. Their compatibility with DIN mounting rails and ability to accommodate two conductors make them versatile and practical for various applications.


TECHNICAL PARAMETERS

Model Number JUKH 95

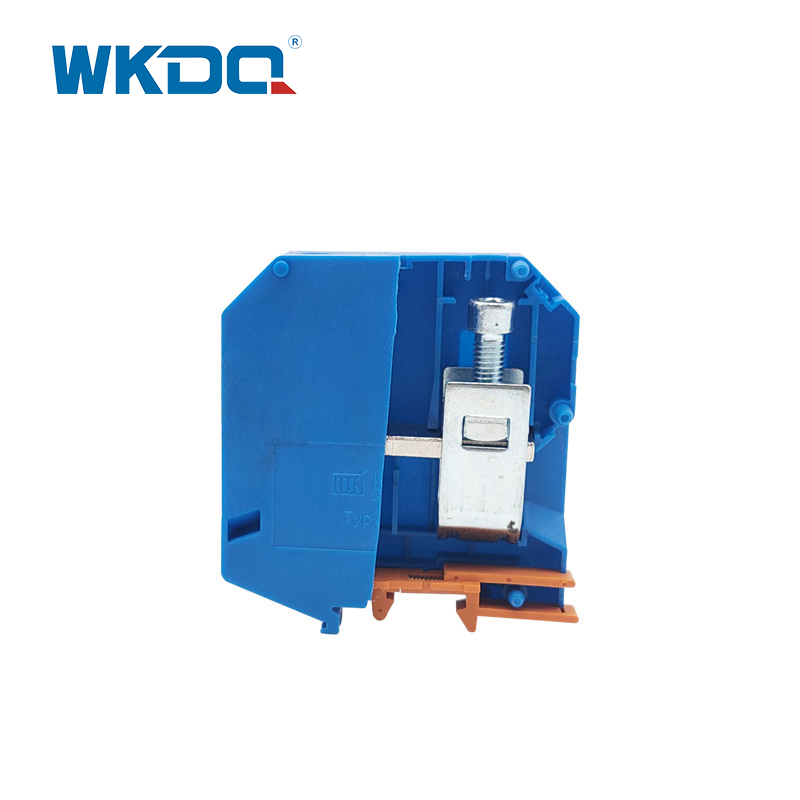

Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) 83/90.5/25
Connection method Screw connection
Material Nylon PA66
Rated Voltage/Current 1000V/232A
Cross section, solid/soft Cable 25-95 mm² / 35-95 mm²
Conductor Size 4-000 AWG
Mounting Type NS 35 DIN rail
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 194.23g/pc, 120PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
