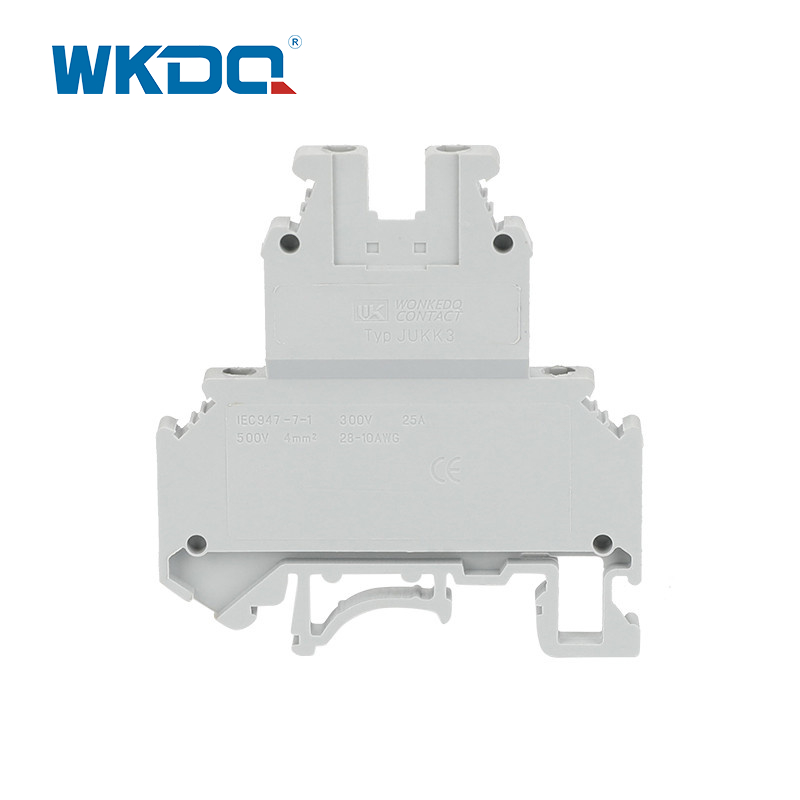

JUKK 3 High Safety Power Distribution Terminal Block Double Level Types

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUKK 3
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

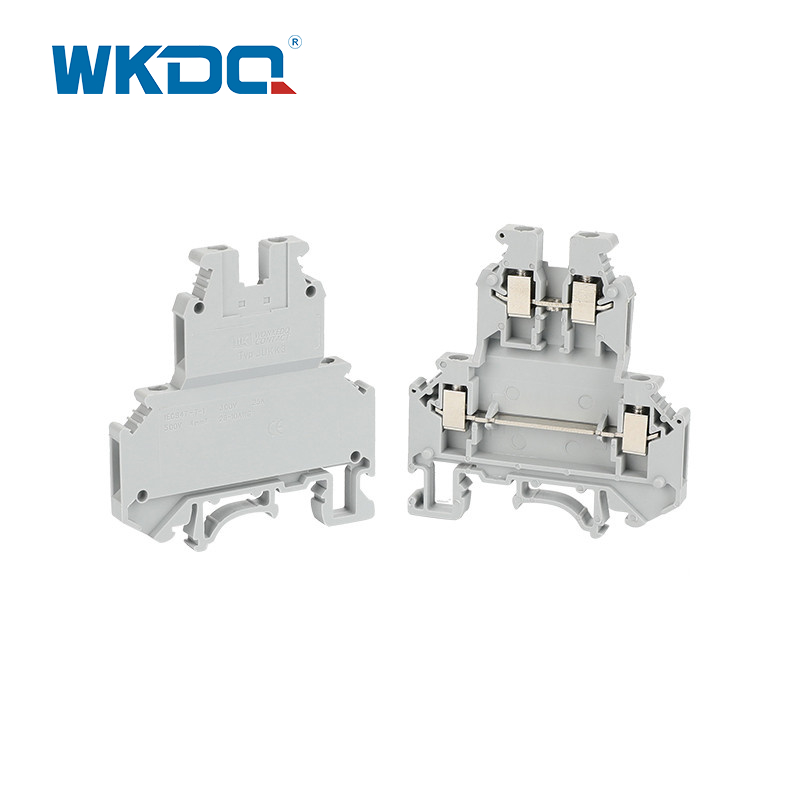

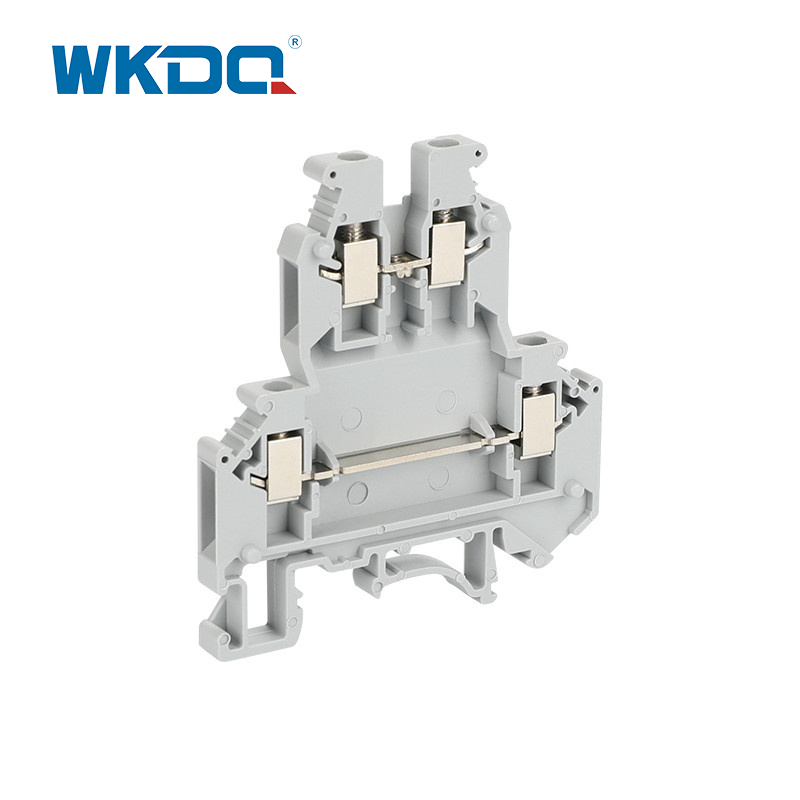

WonkeDQ's Double Deck Terminal blocks are designed to provide multiple potentials within a single terminal block, making it convenient to build potential distribution. Each level of the terminal block has function shafts that enable the establishment of various potentials.

The terminal blocks offer ease of operation, ensuring a user-friendly experience. They are built to be durable, ensuring a long service life and reliable performance. The stable and low contact resistances of the terminal blocks contribute to a secure and efficient electrical connection.

With a space-saving and time-saving design, these terminal blocks are suitable for applications where compactness is essential. They are particularly well-suited for electrical machine control systems, where reliable connections and efficient wiring are crucial.

WonkeDQ guarantees the quality of all materials used in their terminal blocks, ensuring that they meet high standards of performance and safety. The terminal blocks are made from inflaming retarding plastic and feature plated copper connection bars, providing excellent electrical conductivity and fire resistance.

Each level of the terminal block is equipped with labeling fields, allowing for easy identification and organization of connections. This helps streamline installation, troubleshooting, and maintenance processes.

The Double Deck Terminal blocks are designed to fulfill the requirements of providing required potentials and protective conductor connections in a single terminal housing. This simplifies wiring arrangements and reduces the need for additional components.

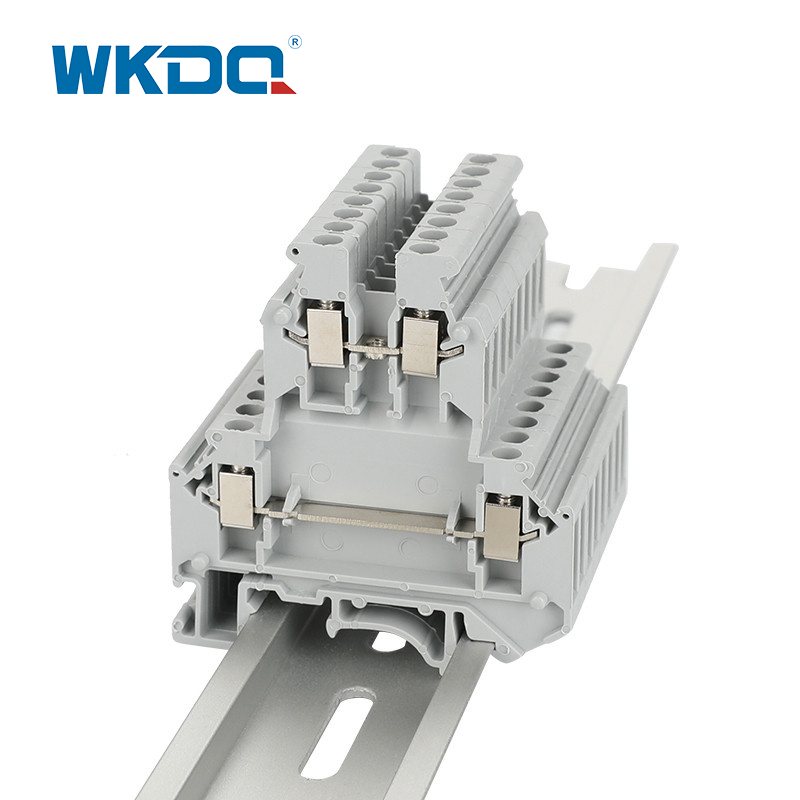

The terminal blocks feature a universal foot, enabling easy installation on DIN Rail NS 35, a commonly used mounting standard in industrial applications. This ensures compatibility and flexibility in various installation setups.


TECHNICAL PARAMETERS

Part No. JUKK 3, Multi-Level Terminal Blocks
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) 57/62/5.2
Connection method Screw connection
Material Nylon PA66
Rated Voltage/Current 500V/32A
Cross section, solid/soft Cable 0.2-4 mm² / 0.2-2.5 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, OEM Serivce
Packing Detail 11.73g/pc, 50PCS/BOX, 2250PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
