Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK 5-HESILED
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

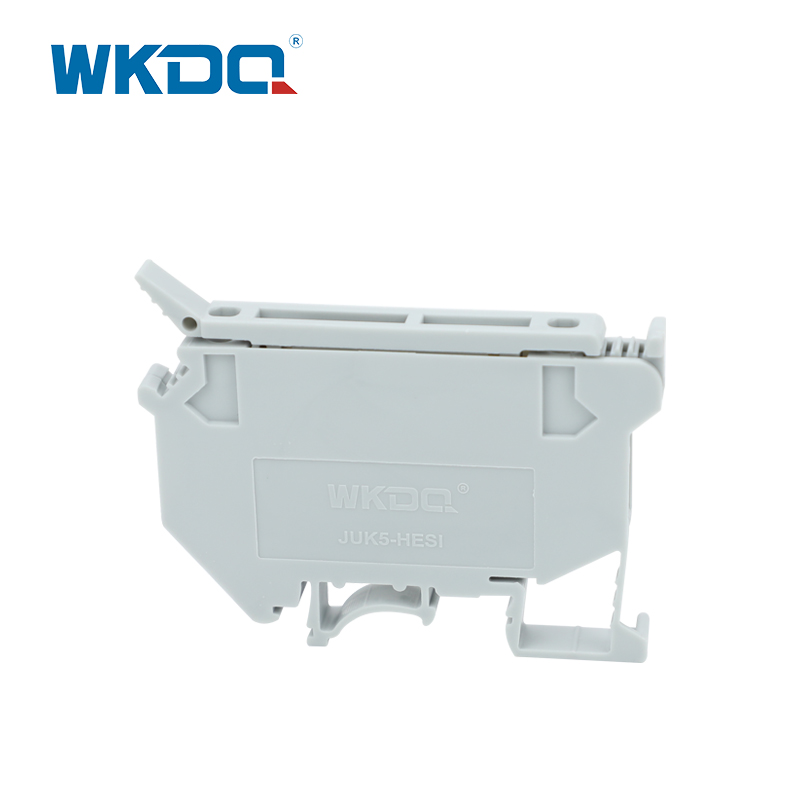

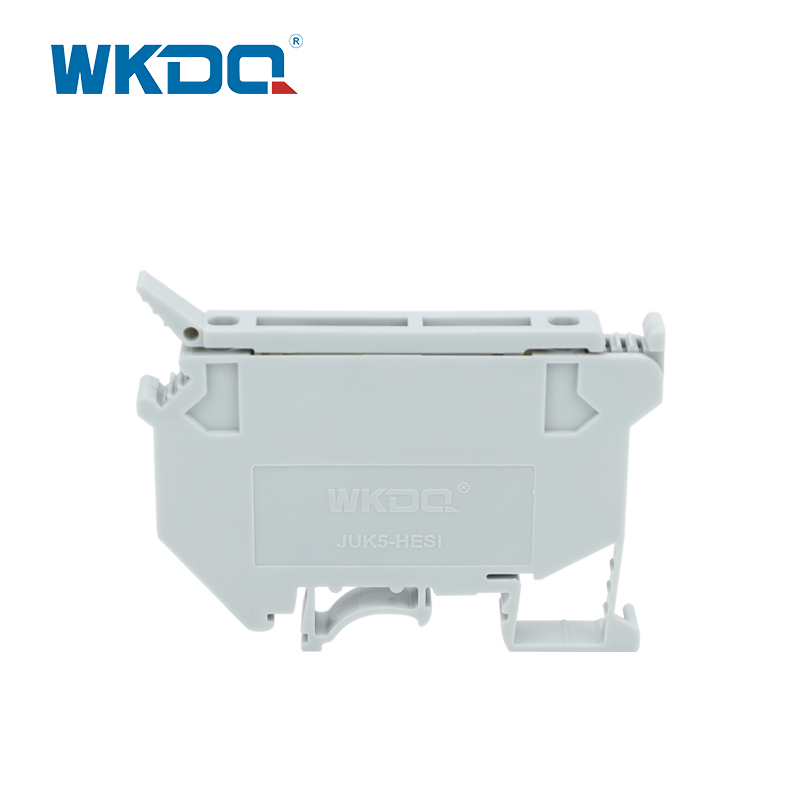

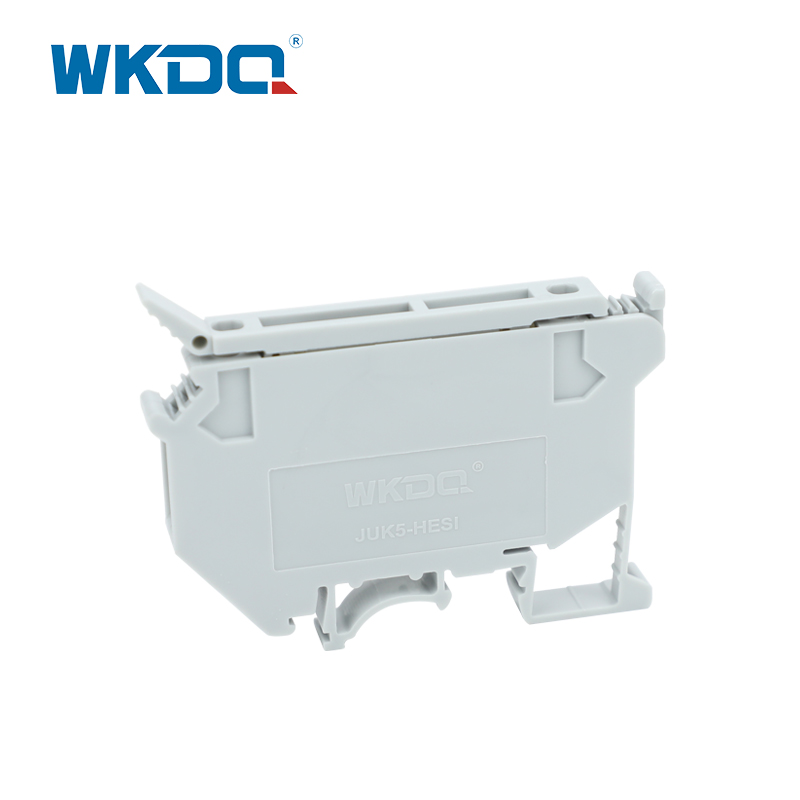

WonkeDQ presents an affordable solution for fuse terminal blocks featuring a lever design. These terminal blocks offer a cost-effective and reliable method for inserting and extracting fuses. They are specifically designed to cater to budget-conscious applications without compromising on quality.
The cost-saving design of these terminal blocks enables economical solutions while maintaining high standards. They are constructed with durability in mind, ensuring a prolonged service life even in challenging environments. With stable and low contact resistances, they guarantee dependable and efficient electrical connections.
The installation and removal of these terminal blocks from the terminal rail are straightforward and time-saving, simplifying both initial setup and subsequent maintenance tasks. They are particularly well-suited for utilization in electrical machine control systems, providing reliable performance and protection.
The terminal blocks are manufactured using flame-retardant PA 66 with brass metal, ensuring safe and high-quality operation. They offer a cost-efficient alternative to other manufacturers' UK5 HESI terminal blocks, delivering significant cost savings without compromising functionality.

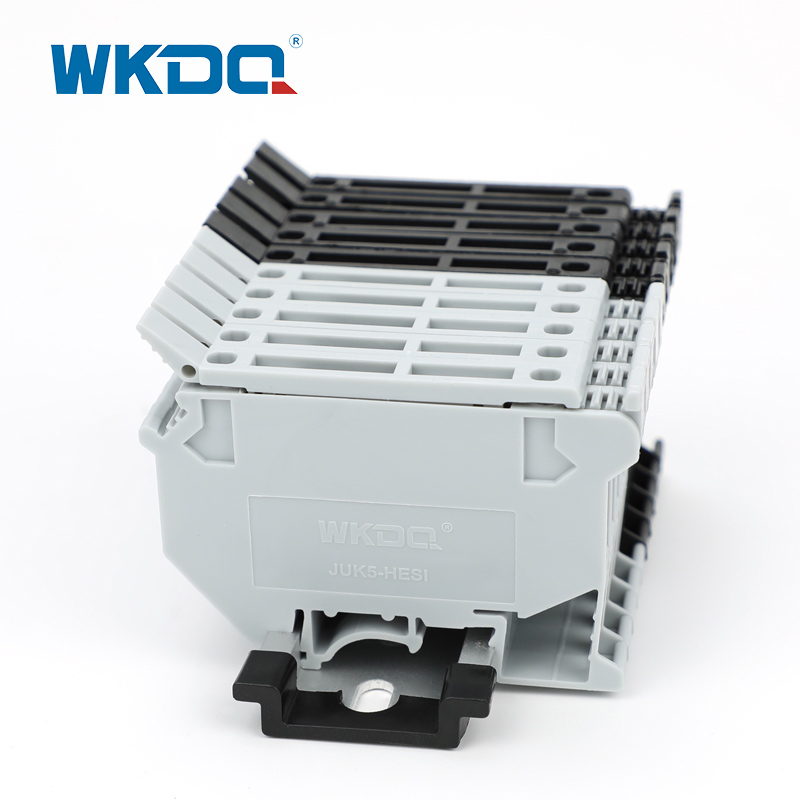

WonkeDQ's hinge-arm fuse blocks provide enhanced overcurrent protection, further enhancing the safety of your electrical systems. These terminal blocks can be directly mounted on DIN rails, simplifying the installation process and reducing the requirement for additional mounting hardware.
To complement these fuse terminal blocks, a comprehensive range of accessories is available. These include end covers, end stoppers, partition plates, marker trips, fixed bridges, separating plates, and more. These accessories offer flexibility and customization options to meet the specific requirements of various applications.

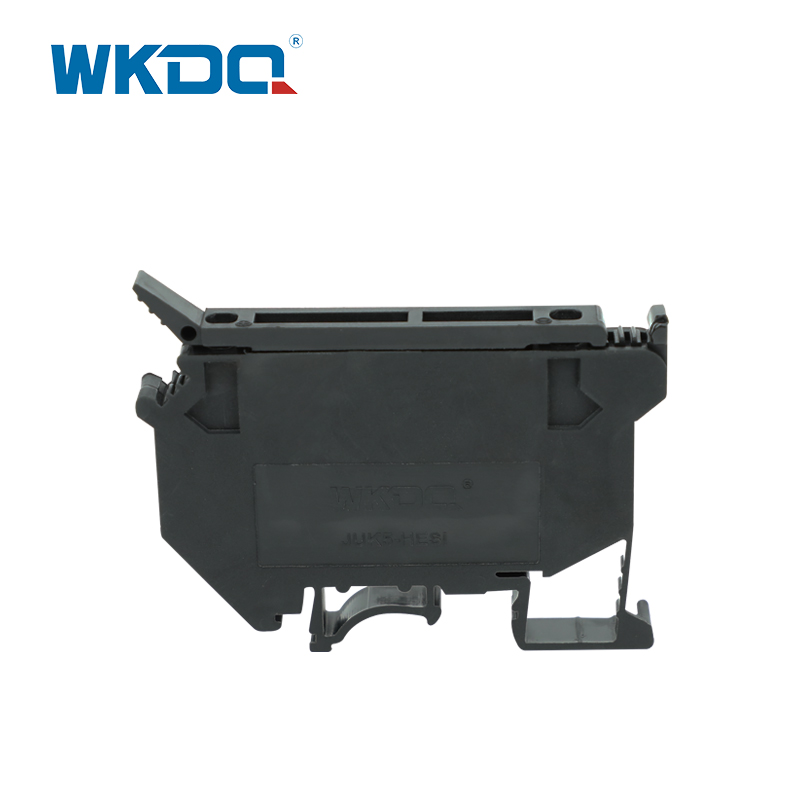

Model No. | JUK 5-HESILED, Fuse terminal block, black |
Color | Black, other color can be customized |
Length/Height/Wide (mm) | 73.5/56.5/8.2 |
Connection method | Connection by screw tighten |
Material | Nylon PA66 |

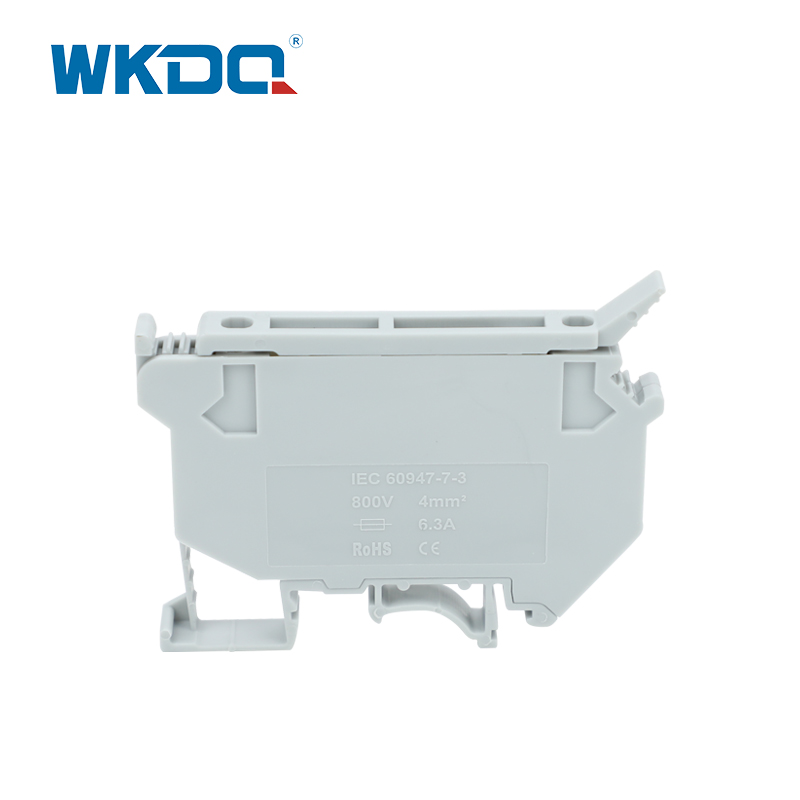

Rated Voltage/Current | 800V/6.3A |
Cross section, solid/soft Cable | 0.2-4 mm² / 0.2-4 mm² |
Conductor Size | 24-12 AWG |
Mounting Type | NS 35/7.5 |
Standard | IEC 60947-7-1 |
LOGO | Customized LOGO can be made. |
Packing Detail | 17.35g/pc, 50PCS/BOX,1000PCS/CTN |
Certification | CE/RoHS/CQC/ISO 9001 |
