Plug and Socket Connector

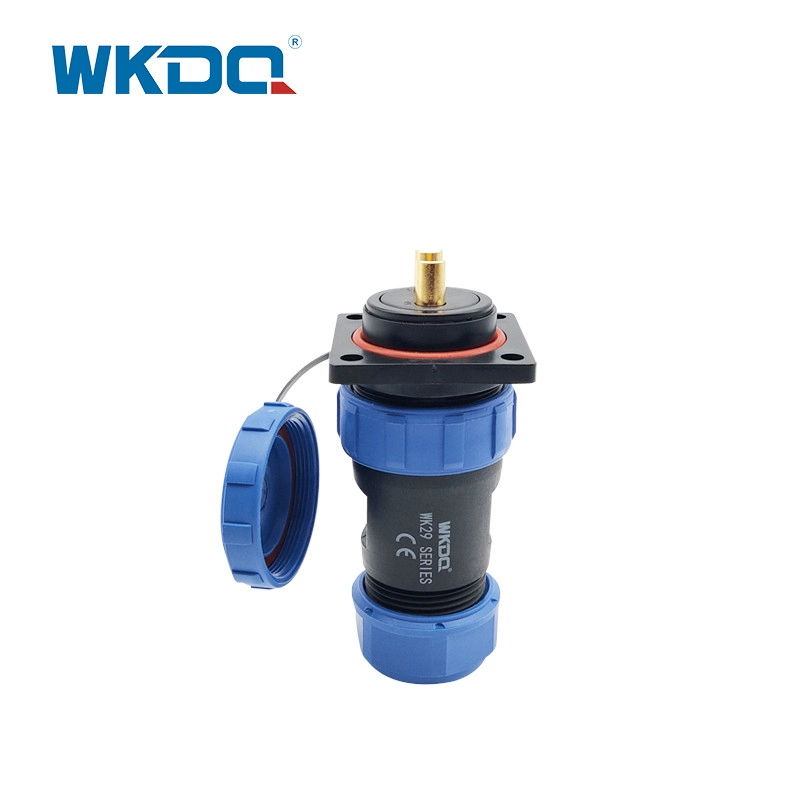

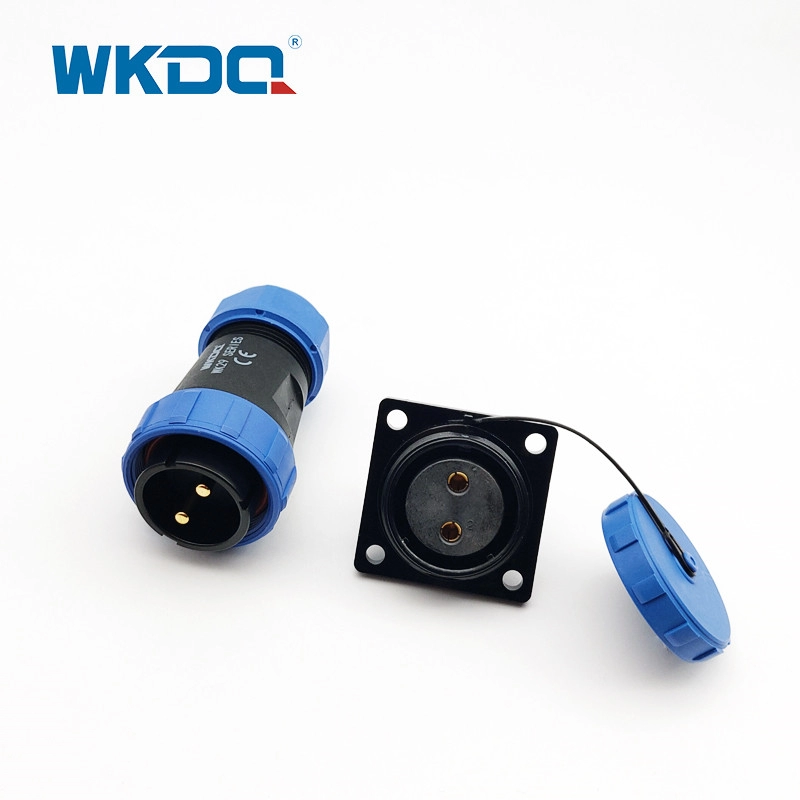

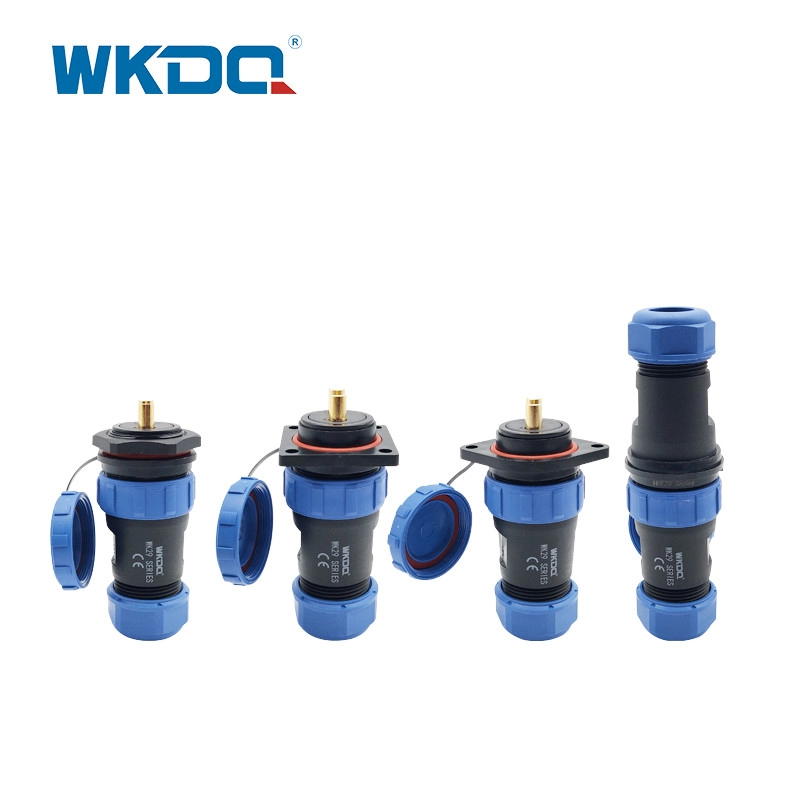

A circular multipole plug socket waterproof connector is an electrical connector specifically designed for outdoor or harsh environments where protection against water and dust is necessary. These connectors are widely used in applications such as outdoor lighting, marine equipment, industrial machinery, and other outdoor electrical installations.

Here are some key features and characteristics of a circular multipole plug socket waterproof connector:

Circular Design: These connectors typically have a circular shape with a threaded coupling mechanism, ensuring a secure and robust connection.

Multipole Configuration: The connectors consist of multiple contacts or poles that allow the transmission of electrical signals, power, or data. The number of poles can vary depending on the specific application requirements.

Waterproofing: One of the primary features of these connectors is their waterproof capability. They are designed to prevent water ingress, protecting the electrical connections from moisture-related issues.

IP Rating: The waterproofing level is indicated by an IP (Ingress Protection) rating. Common IP ratings for waterproof connectors include IP65, IP67, and IP68. These ratings indicate the level of protection against water and dust intrusion.

Robust Construction: The connectors are built to withstand challenging environmental conditions, including temperature variations, vibrations, and mechanical stress. They are often made from durable materials such as stainless steel or ruggedized plastic.

Sealing Mechanism: The connector typically employs a sealing mechanism, such as O-rings or gaskets, to create a watertight seal when mated. This ensures the integrity of the connection even in wet or dusty environments.

Locking Mechanism: Circular multipole connectors often feature a locking mechanism to ensure a secure connection. This mechanism prevents accidental disconnection due to vibrations or pulling forces.

Versatility: These connectors can support various types of signals or power transmission, including low voltage, high voltage, audio, video, data, and fiber optic connections. They can accommodate different types of pins, sockets, or fiber optic inserts, depending on the application.

When choosing a circular multipole plug socket waterproof connector, it is important to consider factors such as the required IP rating, the number of poles needed, the voltage and current requirements, and any specific environmental conditions or industry standards that must be met.
