Screw Clamp Terminal Block
  • Screw Clamp Terminal BlockScrew Clamp Terminal Block
  • Screw Clamp Terminal BlockScrew Clamp Terminal Block
  • Screw Clamp Terminal BlockScrew Clamp Terminal Block
  • Screw Clamp Terminal BlockScrew Clamp Terminal Block
  • Screw Clamp Terminal BlockScrew Clamp Terminal Block

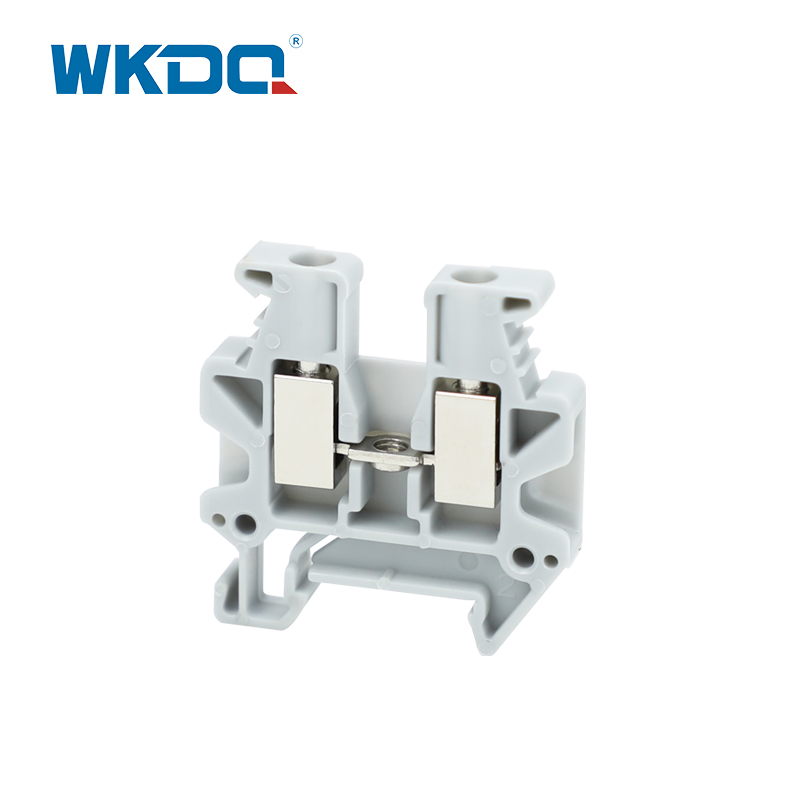

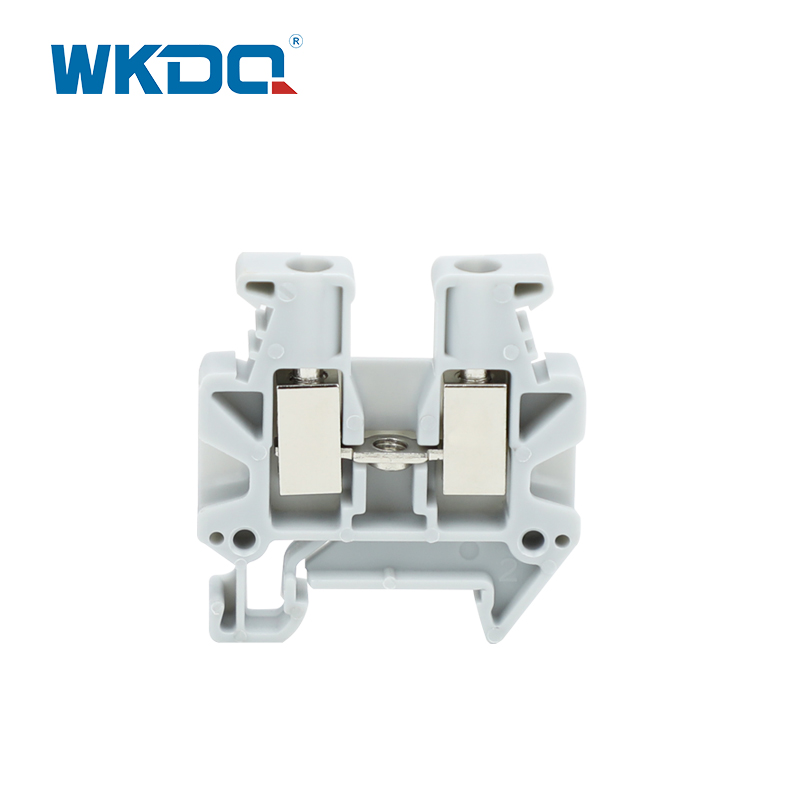

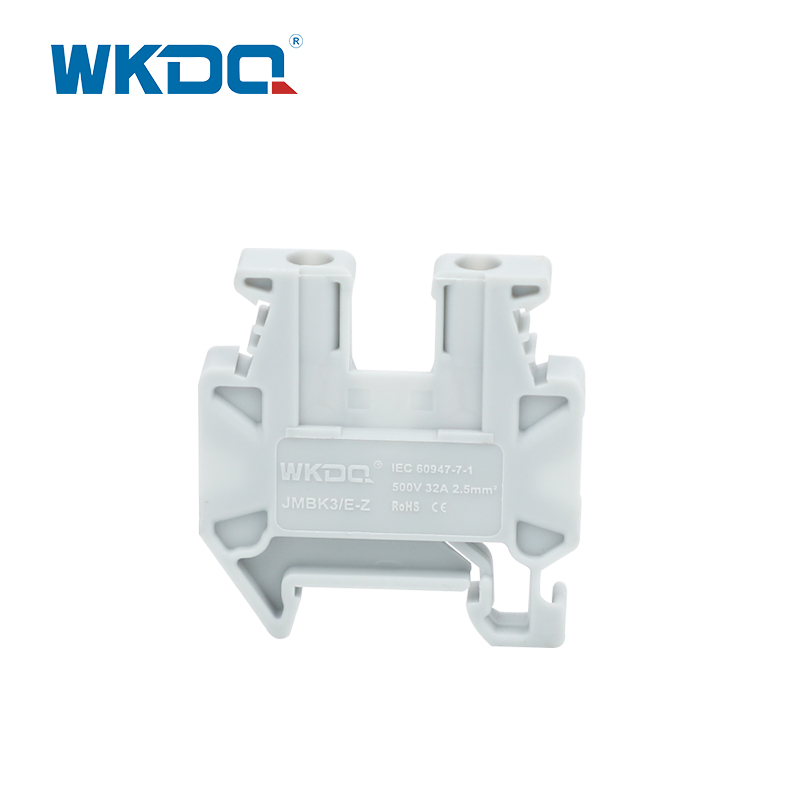

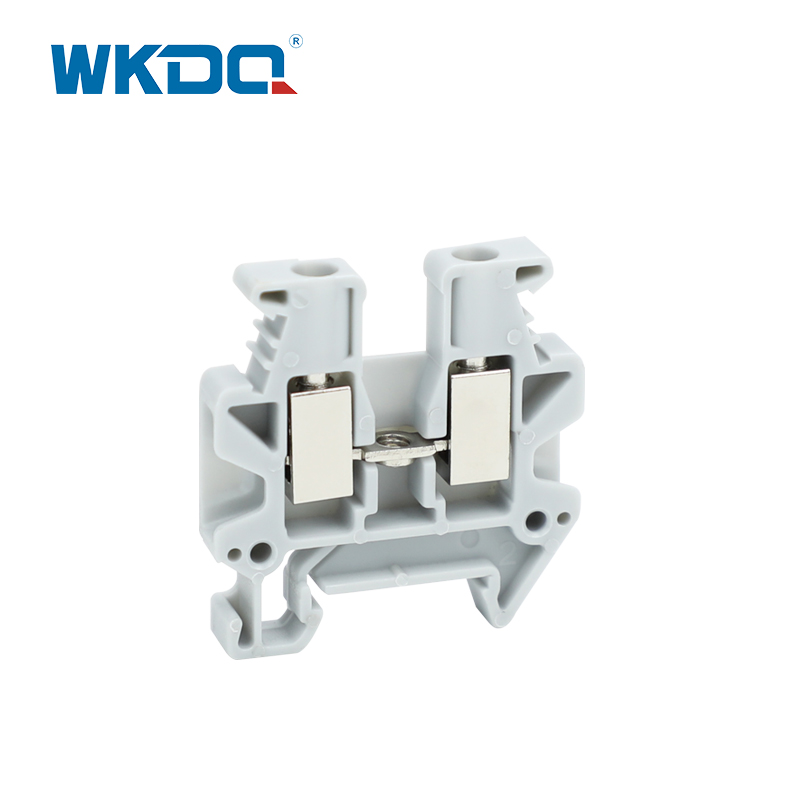

Screw Clamp Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JMBK3/E-Z
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

The Screw Clamp Terminal Block series, including the JMBK3/E-Z screw connection terminal blocks, is specifically designed to be mounted on a 15mm width DIN rail, offering excellent vibration resistance and maintenance-free operation. These terminal blocks provide a convenient and organized solution for connecting multiple wire connections in various applications.

Key features of the JMBK3/E-Z screw connection terminal blocks, including the Screw Clamp Terminal Block, include:

High-Quality Material: The terminal blocks, including the Screw Clamp Terminal Block, are constructed from industrial-grade PA 6.6 material with flame-retardant properties, ensuring safety and reliability. The conductive elements, including those in the Screw Clamp Terminal Block, are made from brass, providing strong contact force and excellent electrical connections.

Easy Mounting: Designed for easy mounting, these terminal blocks, including the Screw Clamp Terminal Block, simplify the installation process, reducing costs and saving time during wiring tasks.

Electric Potential Distribution: The terminal blocks, including the Screw Clamp Terminal Block, allow for efficient electric potential distribution by utilizing fixed bridges in the terminal center or insertion bridges in the clamping space. This flexibility enables convenient power distribution tasks.

Suitable for Solar Combiner and Power Distribution: The JMBK3/E-Z terminal blocks, including the Screw Clamp Terminal Block, are well-suited for various applications, including assembly for solar combiners or power distribution systems, providing versatility and adaptability.

Variety of Bridges: A wide range of high-quality bridges is available for these terminal blocks, including the Screw Clamp Terminal Block, allowing for easy customization and enabling optimal performance in various power distribution tasks. This ensures durability and reliable operation.

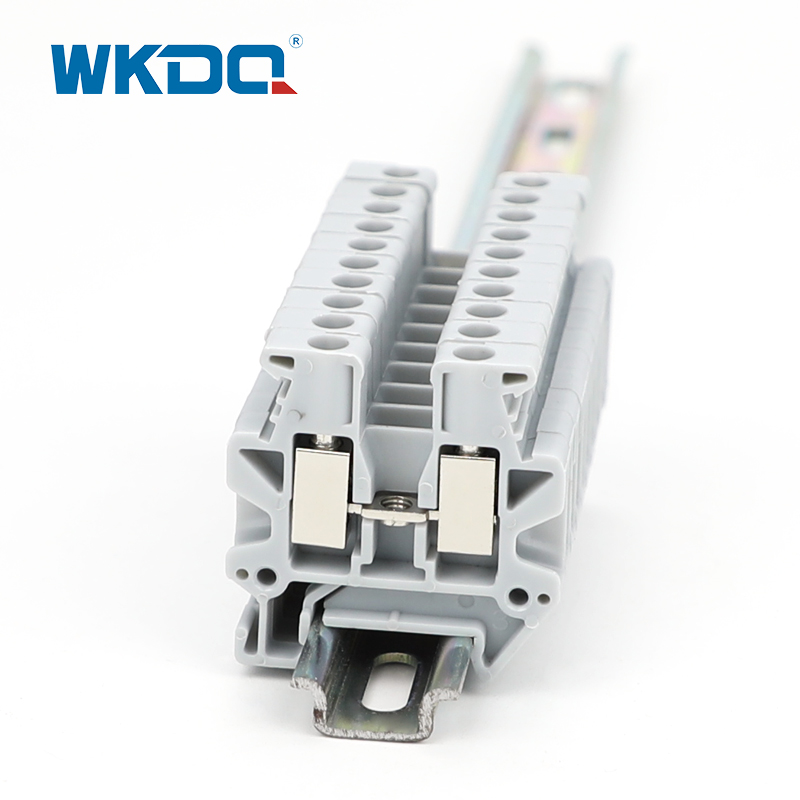

DIN Rail Compatibility: All terminal blocks in the JMBK3/E-Z series, including the Screw Clamp Terminal Block, can be easily installed on DIN Rail NS 15mm, providing seamless compatibility and straightforward integration into existing systems.

With their high-quality construction, strong contact force, and easy installation, the JMBK3/E-Z screw connection terminal blocks, including the Screw Clamp Terminal Block, offer reliable and efficient solutions for organizing wire connections and performing power distribution tasks. These terminal blocks ensure safe and secure connections while providing convenience and flexibility in electrical installations.


Part No. JMBK3/E-Z
Color Grey, other color can be customized
Length/Height/Wide (mm) L30.2/H26.6/W5.2
Connection method Screw connection
Material Nylon66/ PA66
Rated Voltage/Current 500V/32A
Cross section, solid/soft Cable 0.2-2.5 mm²
Conductor Dimension 24-10 AWG
Mounting Type DIN Rail 15mm
Standard IEC 60947-7-1
LOGO OEM provided
Packing Detail 4.45g/pc, 100PCS/box
Certification CE/RoHS/CQC/ISO 9001
