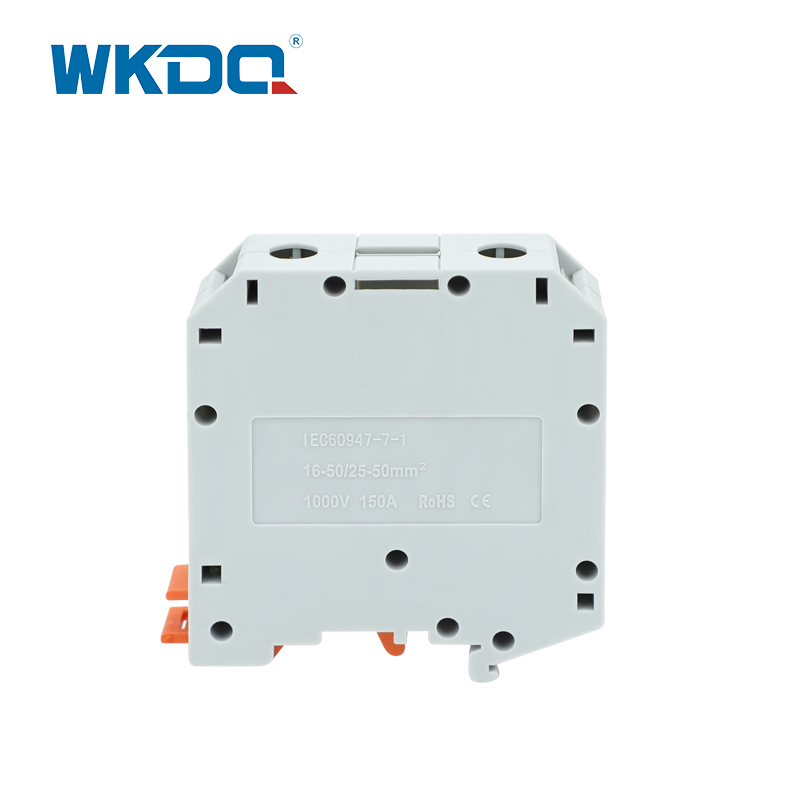

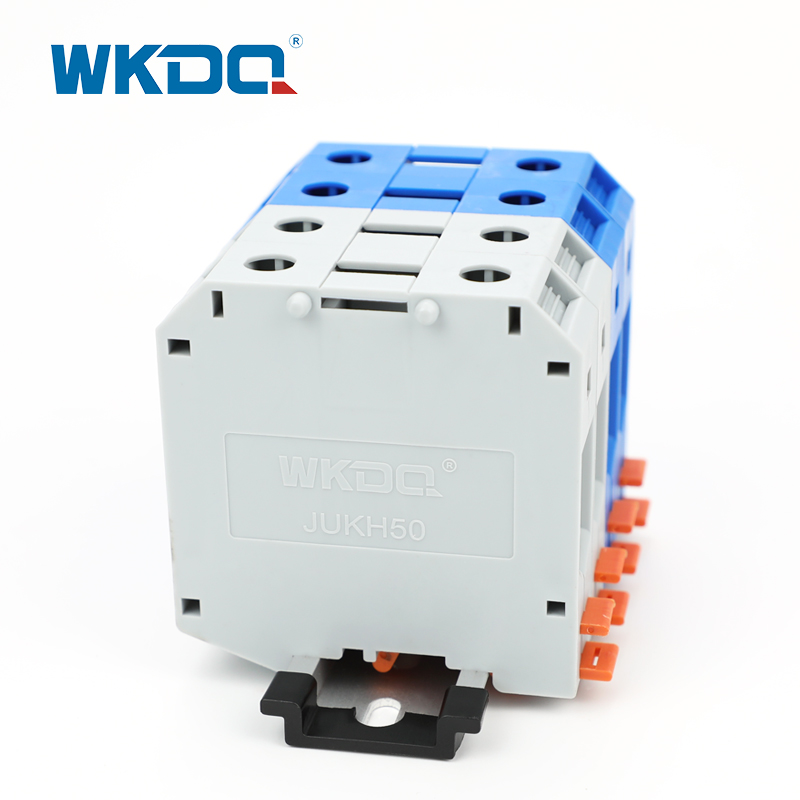

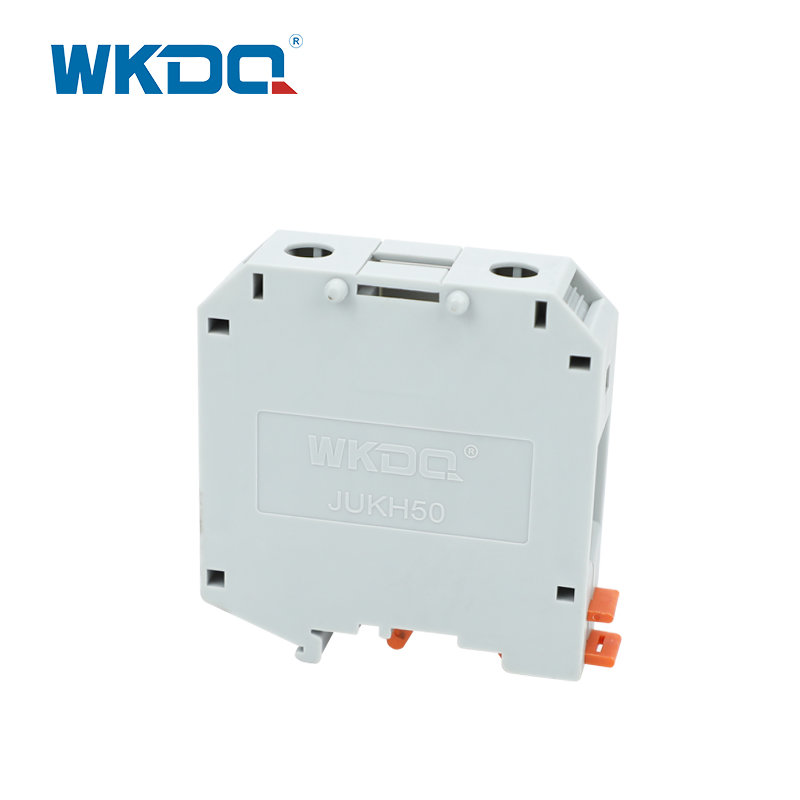

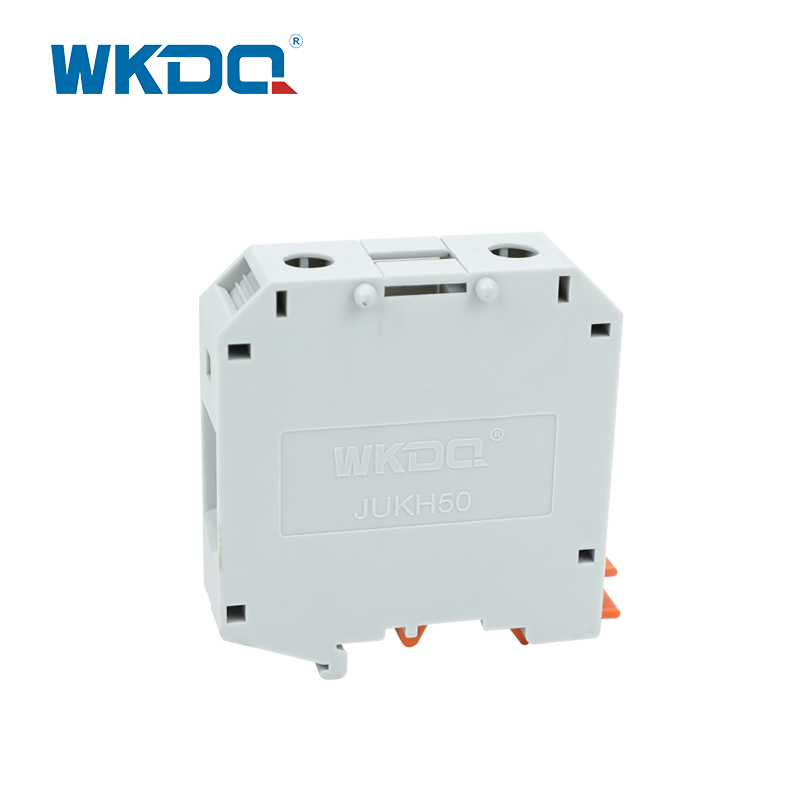

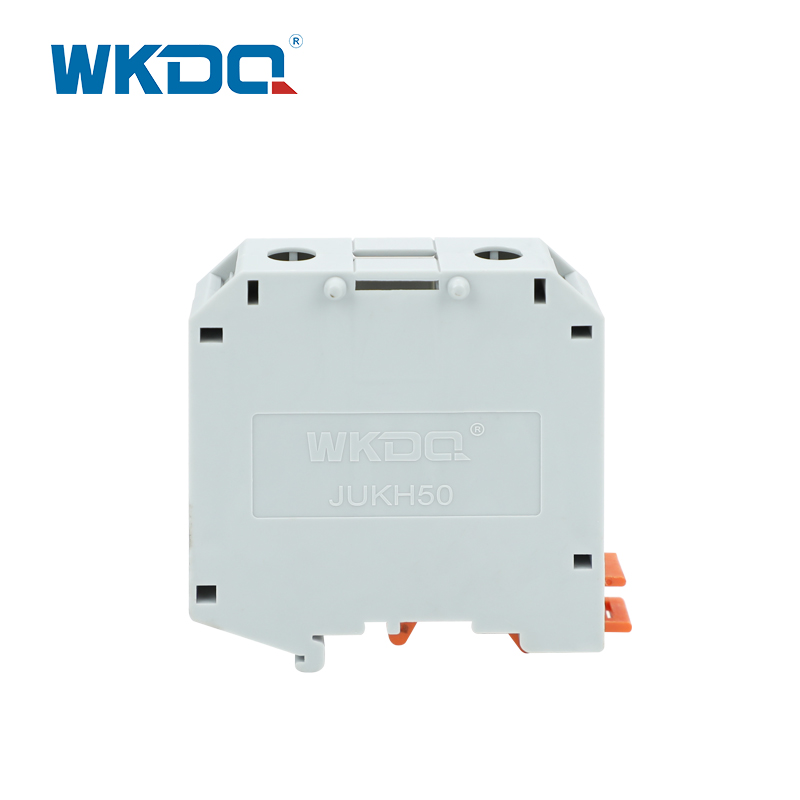

Screw Din Rail Terminal Block High Current
  • Screw Din Rail Terminal Block High CurrentScrew Din Rail Terminal Block High Current
  • Screw Din Rail Terminal Block High CurrentScrew Din Rail Terminal Block High Current
  • Screw Din Rail Terminal Block High CurrentScrew Din Rail Terminal Block High Current
  • Screw Din Rail Terminal Block High CurrentScrew Din Rail Terminal Block High Current
  • Screw Din Rail Terminal Block High CurrentScrew Din Rail Terminal Block High Current
  • Screw Din Rail Terminal Block High CurrentScrew Din Rail Terminal Block High Current

Screw Din Rail Terminal Block High Current

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUKH 50
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description
The screw clamp DIN rail terminal block is a versatile solution for various wiring needs, offering the following key features and specifications:

Easy Mounting: This terminal block can be easily mounted on any standard 35 mm DIN Rail, allowing for quick and efficient installation.

Flame-Retardant Construction: Constructed from industrial-grade flame-retardant nylon PA66, the terminal block provides increased safety and protection in case of fire.

Secure and Reliable Connection: It ensures a secure and reliable electrical connection, preventing accidental disconnections and maintaining consistent performance.

Durable Design: Built to withstand harsh industrial environments, the terminal block is designed for long-lasting durability, ensuring reliable operation over time.

Enclosed Insulating Case: The terminal block features an enclosed insulating case that adds an extra layer of protection and insulation, enhancing overall safety.

Safe and Easy Operation: With a focus on safety, the terminal block is designed for easy and safe operation, simplifying the wiring process and reducing the risk of errors or accidents.

Cost-Effective Installation: The terminal block helps reduce installation costs and speeds up the wiring process, saving time and effort.

High Current Grounding Terminals: It provides high-current grounding terminals, ensuring efficient grounding and electrical safety.

High-Quality Materials: All materials used in the terminal block are of high quality, guaranteeing reliable performance and long-term durability.

Elastic Structure and Self-Locking Screws: The terminal block utilizes an elastic structure and self-locking screws, ensuring secure and stable connections.

Comprehensive Range of Accessories: A wide range of accessories, including plug-in bridges, marking strips, and marking holders, is available to enhance functionality and customization options.

Strong Contact Force and Corrosion-Proof Contacts: The terminal block features strong contact force, resulting in low contact resistance and reliable electrical connections. The contact points are also corrosion-proof, minimizing maintenance needs.

Electrical Distribution Capability: By utilizing bridges in the terminal center, the terminal block enables the construction of electrical distribution systems, providing flexibility in wiring configurations.

Full Line of Accessories: A comprehensive selection of accessories such as end covers, end stoppers, partition plates, marker strips, fixed bridges, and insertion bridges is available to complement the terminal block and meet specific requirements.

In summary, the screw clamp DIN rail terminal block offers a reliable and convenient solution for various wiring needs. It is easy to install, provides secure connections, and is built to last. With its flame-retardant construction, high-quality materials, and comprehensive range of accessories, it ensures safety, flexibility, and customization options.

Part No. JUKH 50
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) 71.5/72/20
Connection method Screw connection
Material Nylon Polyamide 66
Rated Voltage/Current 1000V/150A
Cross section, solid/soft Cable 16-50 mm² / 25-35 mm²
Conductor Size 60AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 112.49g/pc, 10PCS/BOX,2000PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
