Home > Products > Screw Terminal Block > UT6-PE 6mm2 Screw Test Disconnect Ground Terminal Block

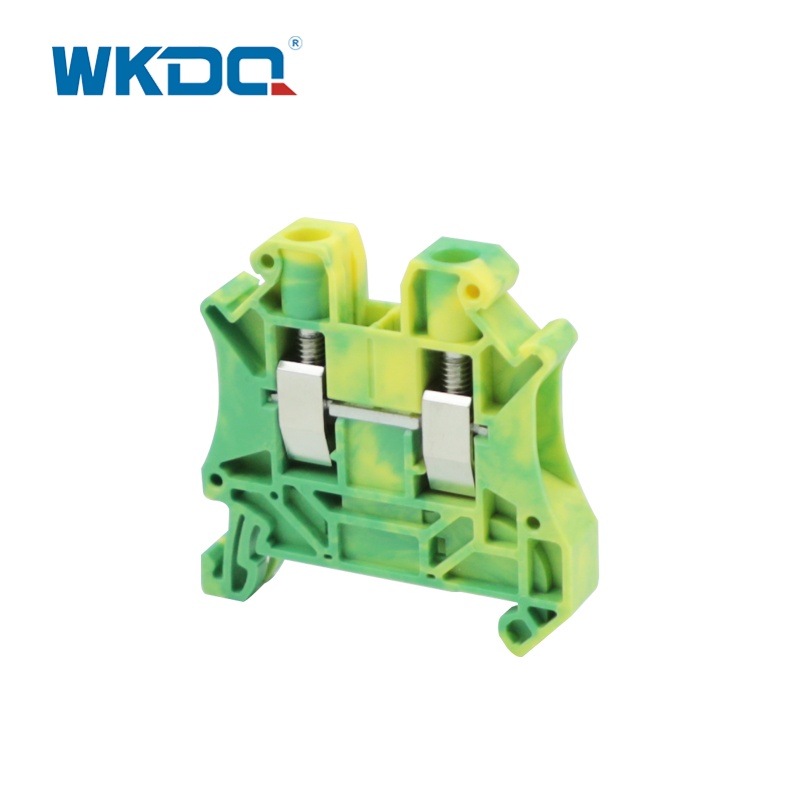

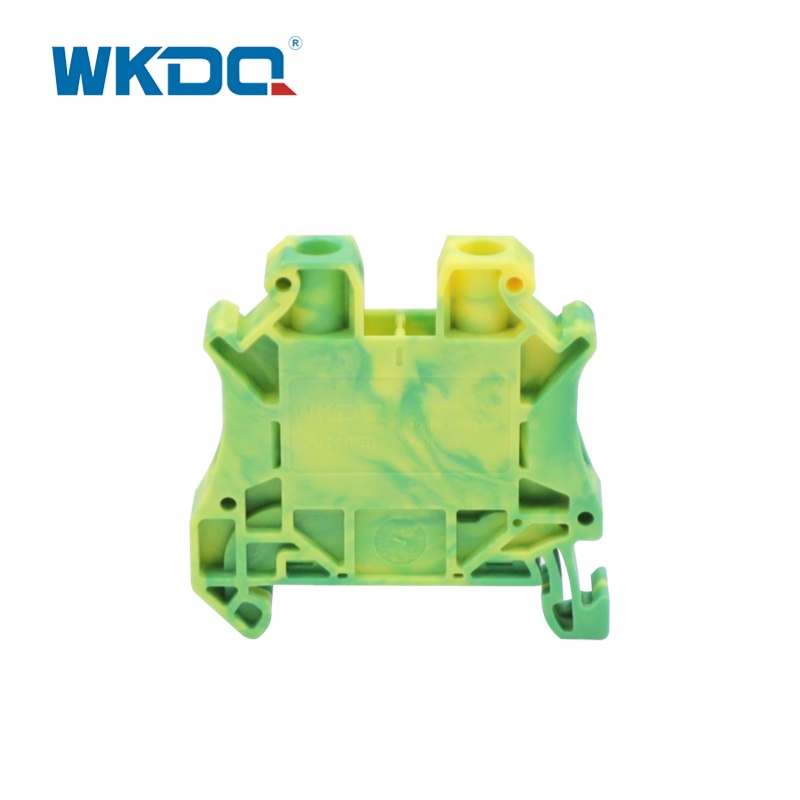

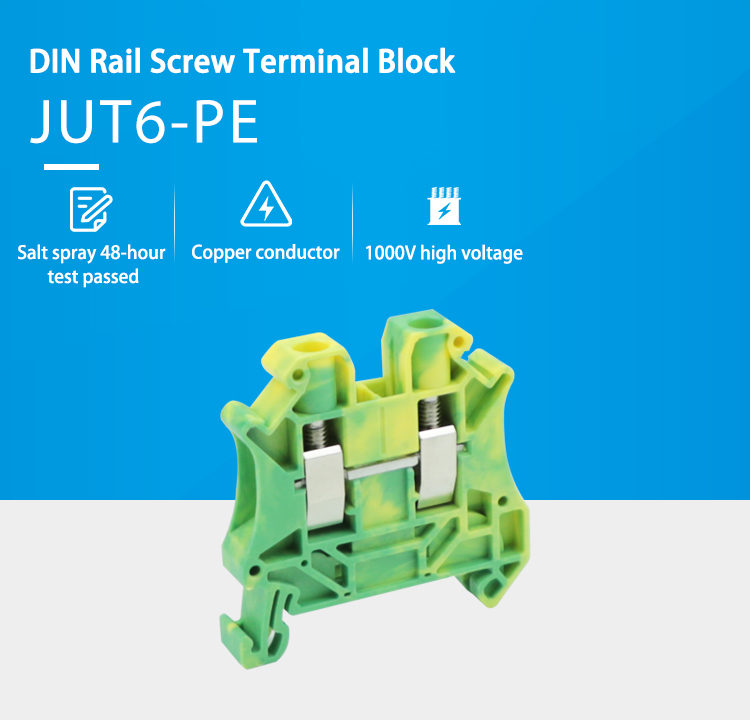

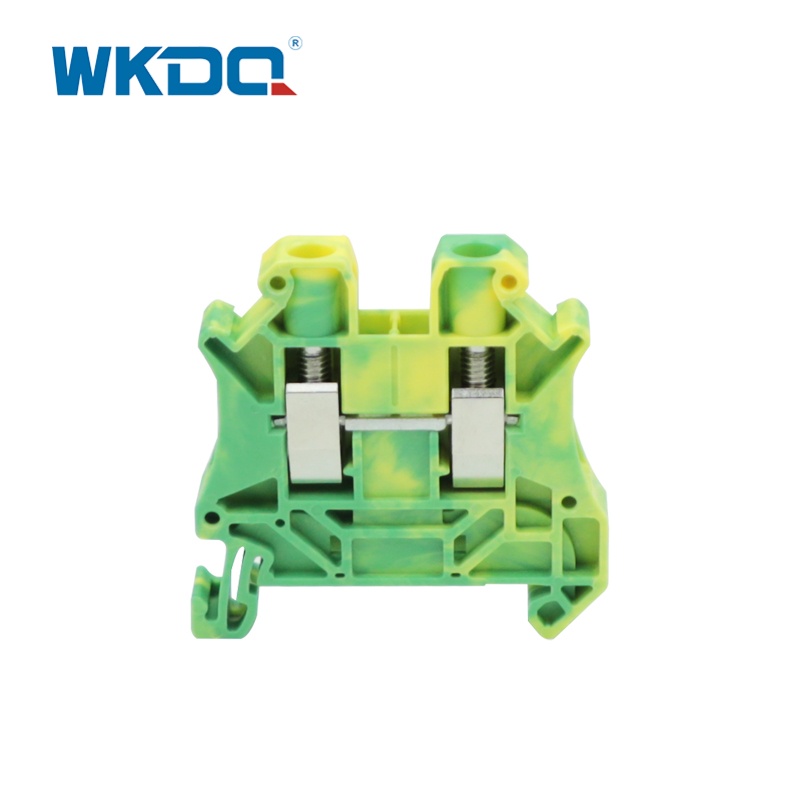

UT6-PE 6mm2 Screw Test Disconnect Ground Terminal Block
  • UT6-PE 6mm2 Screw Test Disconnect Ground Terminal BlockUT6-PE 6mm2 Screw Test Disconnect Ground Terminal Block
  • UT6-PE 6mm2 Screw Test Disconnect Ground Terminal BlockUT6-PE 6mm2 Screw Test Disconnect Ground Terminal Block
  • UT6-PE 6mm2 Screw Test Disconnect Ground Terminal BlockUT6-PE 6mm2 Screw Test Disconnect Ground Terminal Block
  • UT6-PE 6mm2 Screw Test Disconnect Ground Terminal BlockUT6-PE 6mm2 Screw Test Disconnect Ground Terminal Block

UT6-PE 6mm2 Screw Test Disconnect Ground Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number:UT6-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:UT6-PE

Send Inquiry

Product Description

    The UT6-PE high-performance grounding terminal block is specially designed for reliable grounding in industry and commerce, and is easy to install with DIN rails. The screw connection is anti-vibration and airtight, compatible with fixed/twisted copper wires. High-quality flame-retardant materials are heat-resistant and impact-resistant, meeting industry standards. They are suitable for harsh scenarios such as control cabinets and power distribution systems, providing efficient and durable grounding solutions.

TECHNICAL PARAMETERS

Model Number UT6-PE
Color Grey, Blue, other color can be customized

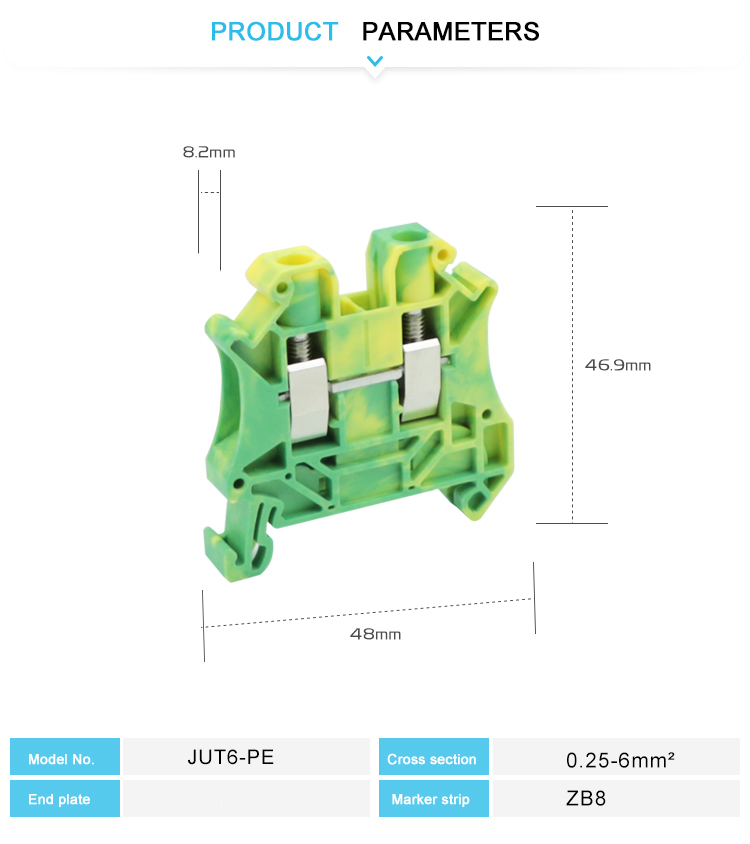

Length/Height/Wide (mm) L47/H46.9/W8.2 mm
Connection method Screw connection
Material Anti inflaming Nylon PA66
Rated Voltage/Current 1000V/57A
Cross section, solid/soft Cable 0.2-10mm²/0.25-6mm²
Conductor Size 23-10 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WKDQ, OEM serivce is supporting
Packing Detail 9.3g/PC, 100PCS/BOX, 3000PCS/CTN
Certification CE/RoHS/CQC/ISO 9001


Hot Tags: UT6-PE 6mm2 Screw Test Disconnect Ground Terminal Block, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
