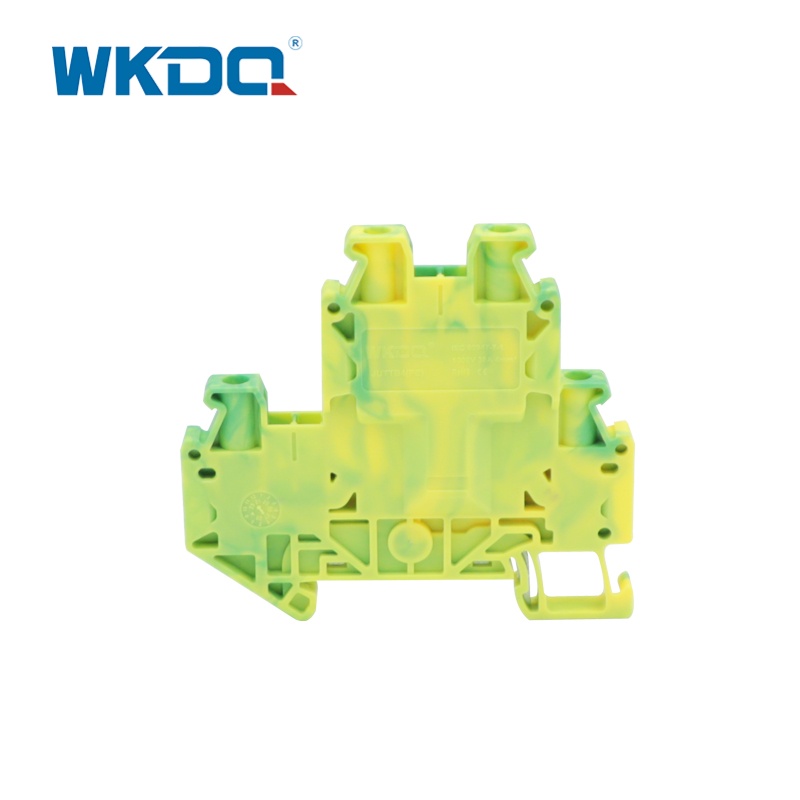

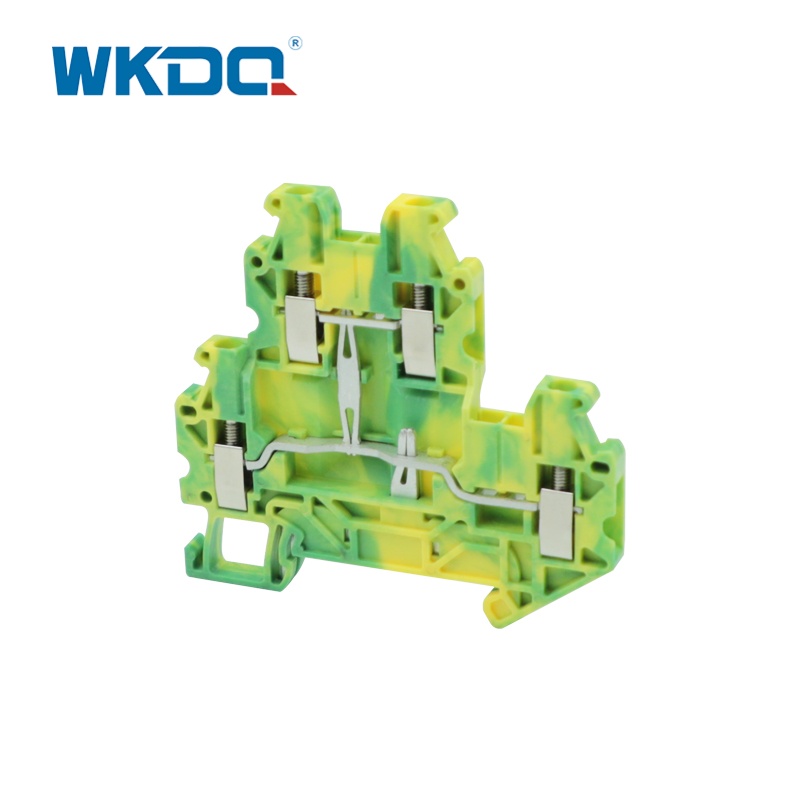

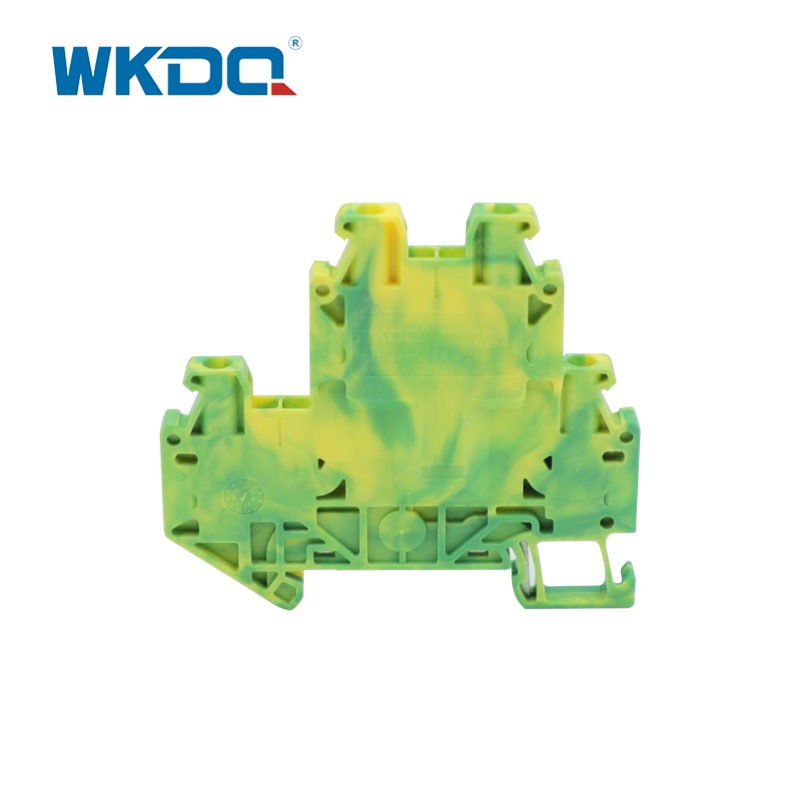

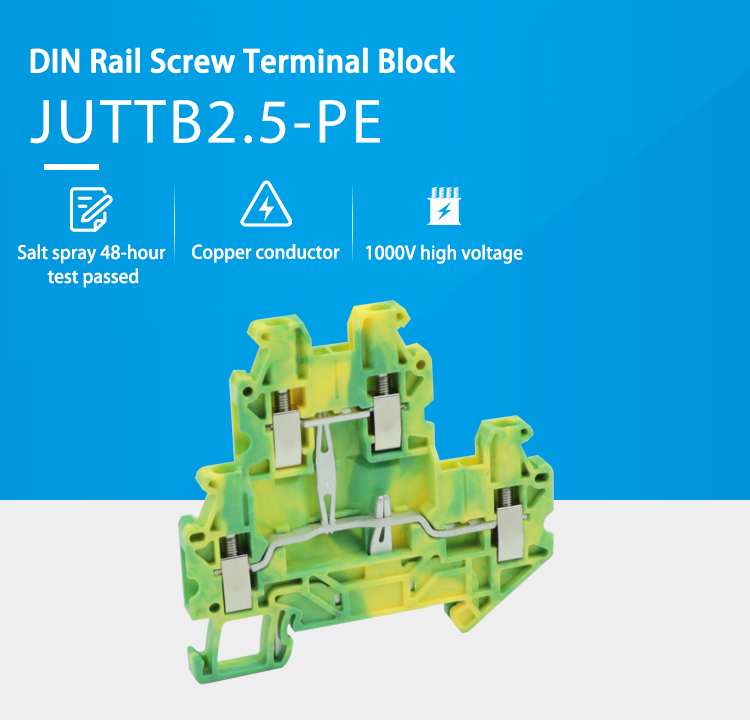

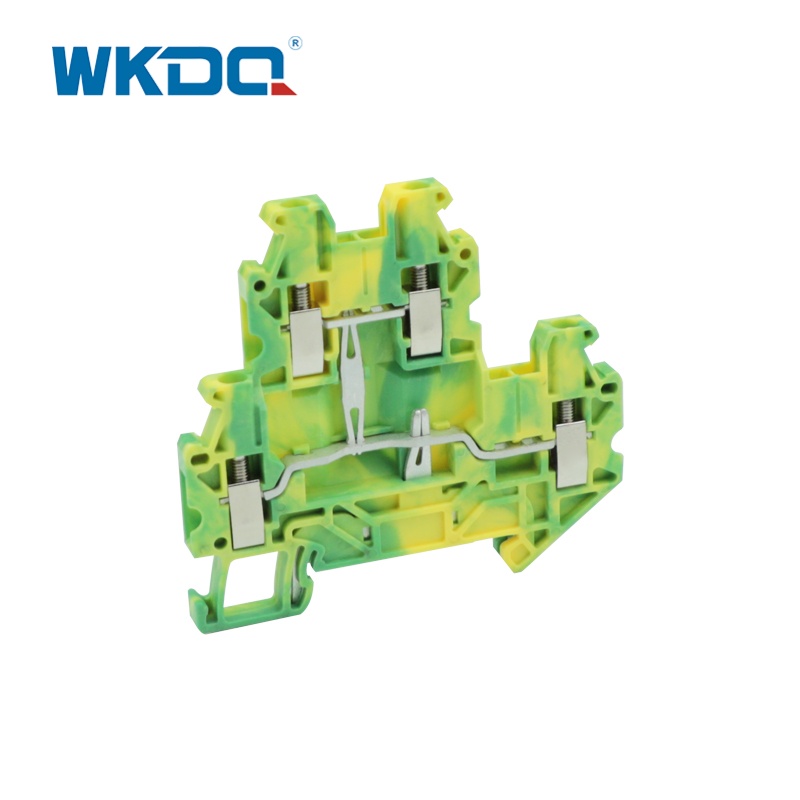

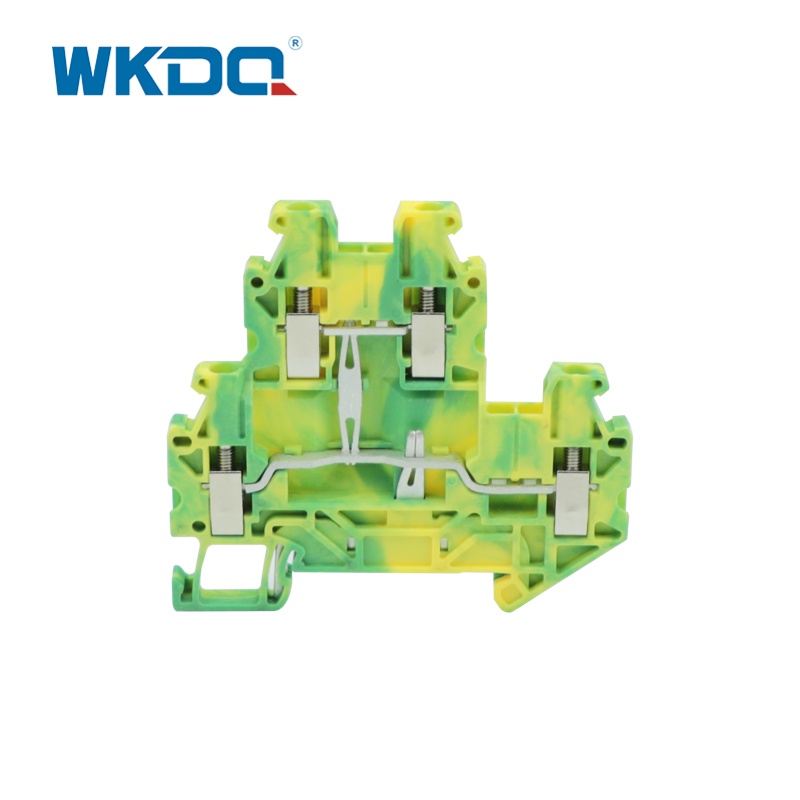

UTTB2.5-PE 2.5mm2 DIN Rail Double Level Screw Ground Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number:UTTB2.5-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:UTTB2.5-PE

Send Inquiry

Product Description

The UTTB2.5-PE dual-stage screw grounding terminal block is specially designed for reliable grounding in industrial and commercial Settings. With a 2.5mm² capacity, it is suitable for low and medium current scenarios. The DIN rail is easy to install and the two-stage structure saves space. The screw connection is anti-vibration and airtight, compatible with fixed/twisted copper wires. The high-quality flame-retardant material is heat-resistant and impact-resistant, meeting industry standards. It is suitable for control cabinets, power distribution systems and automated equipment, providing an efficient and safe grounding solution.

TECHNICAL PARAMETERS

Model Number	UTTB2.5-PE
Color	Grey, Blue, other color can be customized

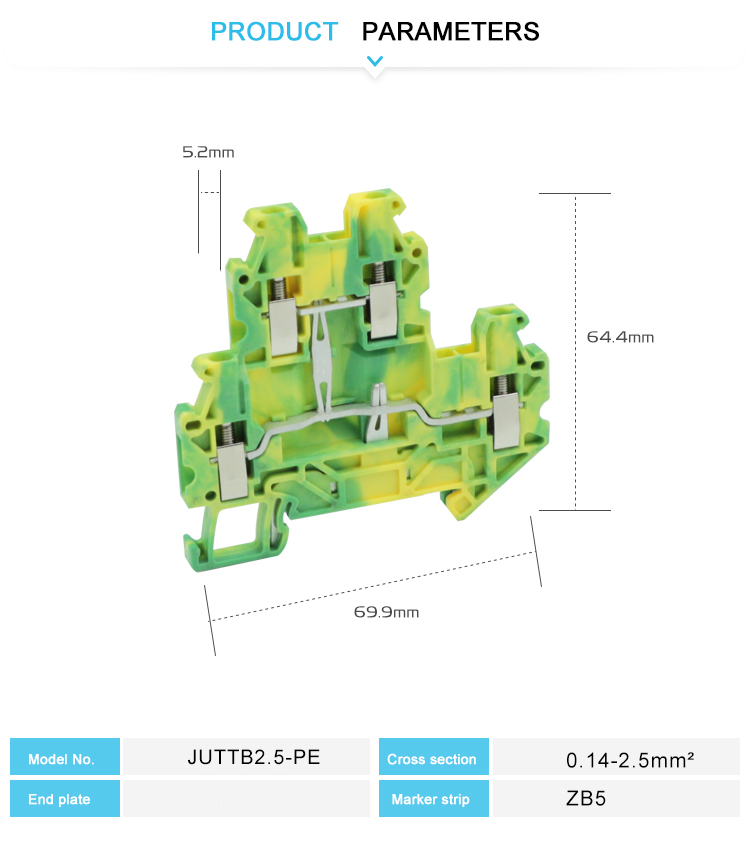

Length/Height/Wide (mm)	L69.9/H64.4/W5.2 mm
Connection method	Screw connection
Material	Anti inflaming Nylon PA66
Rated Voltage/Current	1000V/32A
Cross section, solid/soft Cable	0.14-4mm²/0.14-2.5mm²
Conductor Size	26-14 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WKDQ, OEM serivce is supporting
Packing Detail	9.3g/PC, 100PCS/BOX, 3000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
