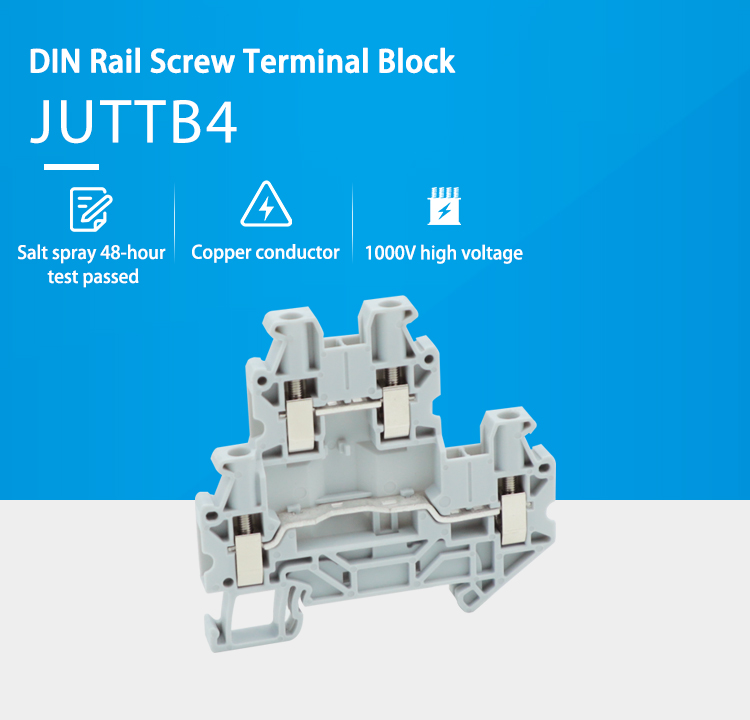

UTTB4 4mm2 Ut Series Multi Level Screw Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number:UTTB4
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:UTTB4

Send Inquiry

Product Description

The UTTB4 is a Multi-Level Screw Terminal Block engineered to provide secure and high-capacity electrical connections for industrial and commercial systems. With a 4mm² capacity, it is perfect for medium to high-current applications, ensuring stable performance in control panels, power distribution setups, and heavy-duty equipment. Its multi-level design optimizes space utilization in electrical enclosures, while the DIN rail mounting system ensures quick and hassle-free installation. The screw-based connection mechanism delivers robust, vibration-proof, and gas-tight connections, compatible with both solid and stranded copper wires.

Built from premium flame-retardant materials, the UTTB4 offers exceptional resistance to heat, impact, and electrical hazards, ensuring long-term reliability in challenging environments. Each unit is rigorously tested to comply with industry standards, guaranteeing consistent performance and safety. With its compact design and universal compatibility, the UTTB4 is a dependable choice for professionals seeking efficient and high-performance electrical connections in modern industrial and commercial systems.

TECHNICAL PARAMETERS

Model Number	UTTB4
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	L69.9/H64.4/W6.2 mm
Connection method	Screw connection
Material	Anti inflaming Nylon PA66
Rated Voltage/Current	1000V/36A
Cross section, solid/soft Cable	0.14-6mm²/0.14-4mm²
Conductor Size	26-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WKDQ, OEM serivce is supporting
Packing Detail	9.3g/PC, 100PCS/BOX, 3000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
