Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number:UTTB4-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

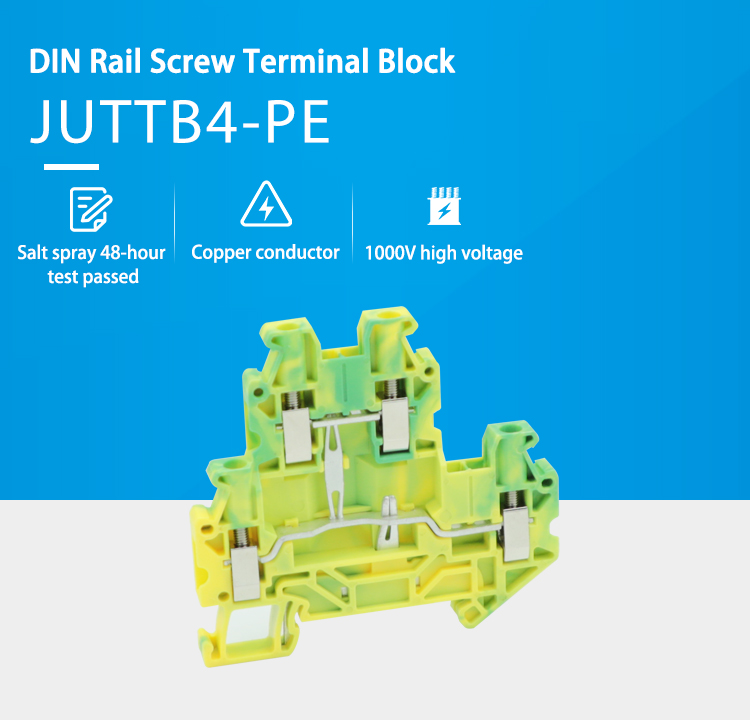

The UTTB4-PE 4mm² DIN rail multi-stage grounding terminal block is a high-quality component specially designed for efficient grounding in industrial and commercial Settings. With a 4mm² wire diameter capacity, it ensures universal applicability for large currents. The DIN rail is easy to install, and the multi-level compact structure is suitable for space-constrained scenarios. Durable material, resistant to harsh environments, stable and reliable, suitable for various grounding requirements such as factory power distribution and building control cabinets.
TECHNICAL PARAMETERS
Model Number | UTTB4-PE |
Color | Grey, Blue, other color can be customized |

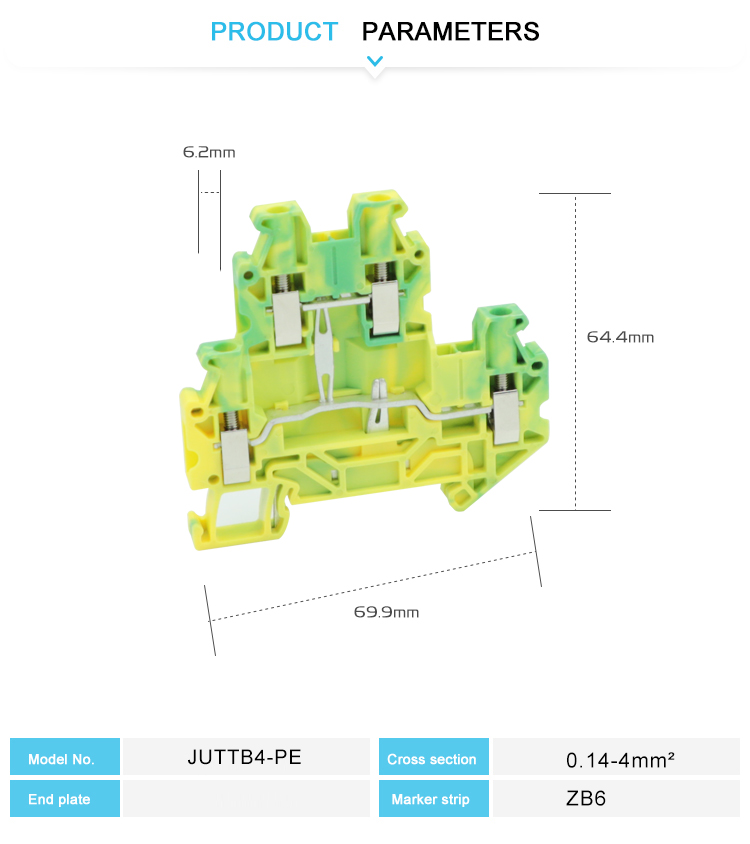

Length/Height/Wide (mm) | L69.9/H64.4/W6.2 mm |
Connection method | Screw connection |
Material | Anti inflaming Nylon PA66 |
Rated Voltage/Current | 1000V/36A |
Cross section, solid/soft Cable | 0.14-6mm²/0.14-4mm² |
Conductor Size | 26-12 AWG |
Mounting Type | NS 35/7.5 |
Standard | IEC 60947-7-1 |
LOGO | WKDQ, OEM serivce is supporting |
Packing Detail | 9.3g/PC, 100PCS/BOX, 3000PCS/CTN |
Certification | CE/RoHS/CQC/ISO 9001 |
