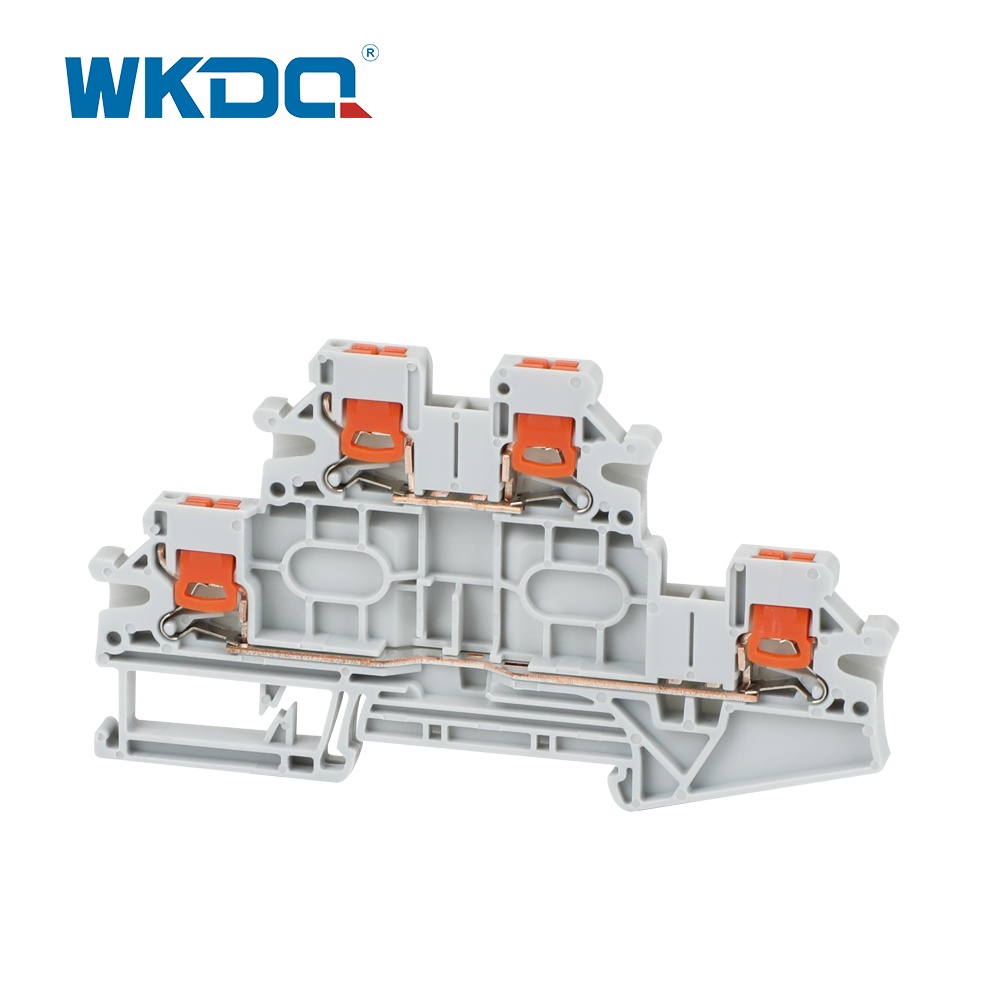

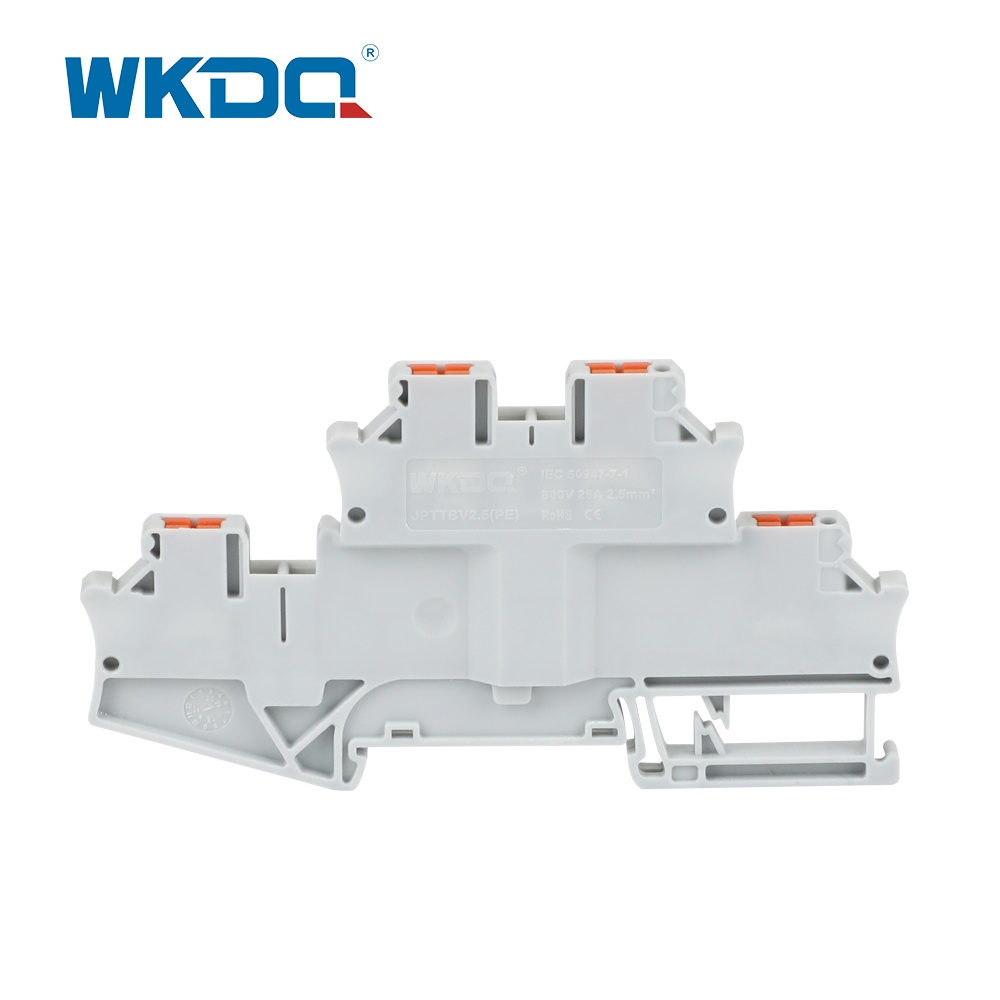

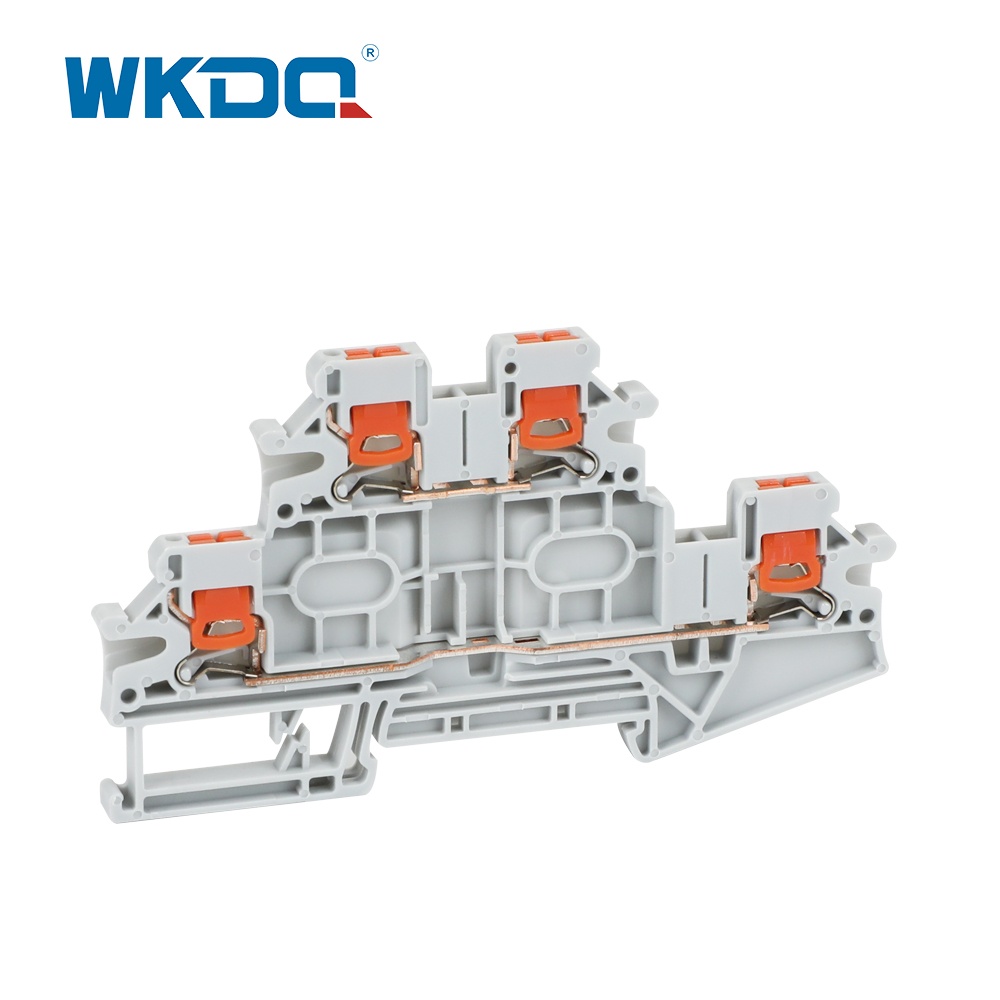

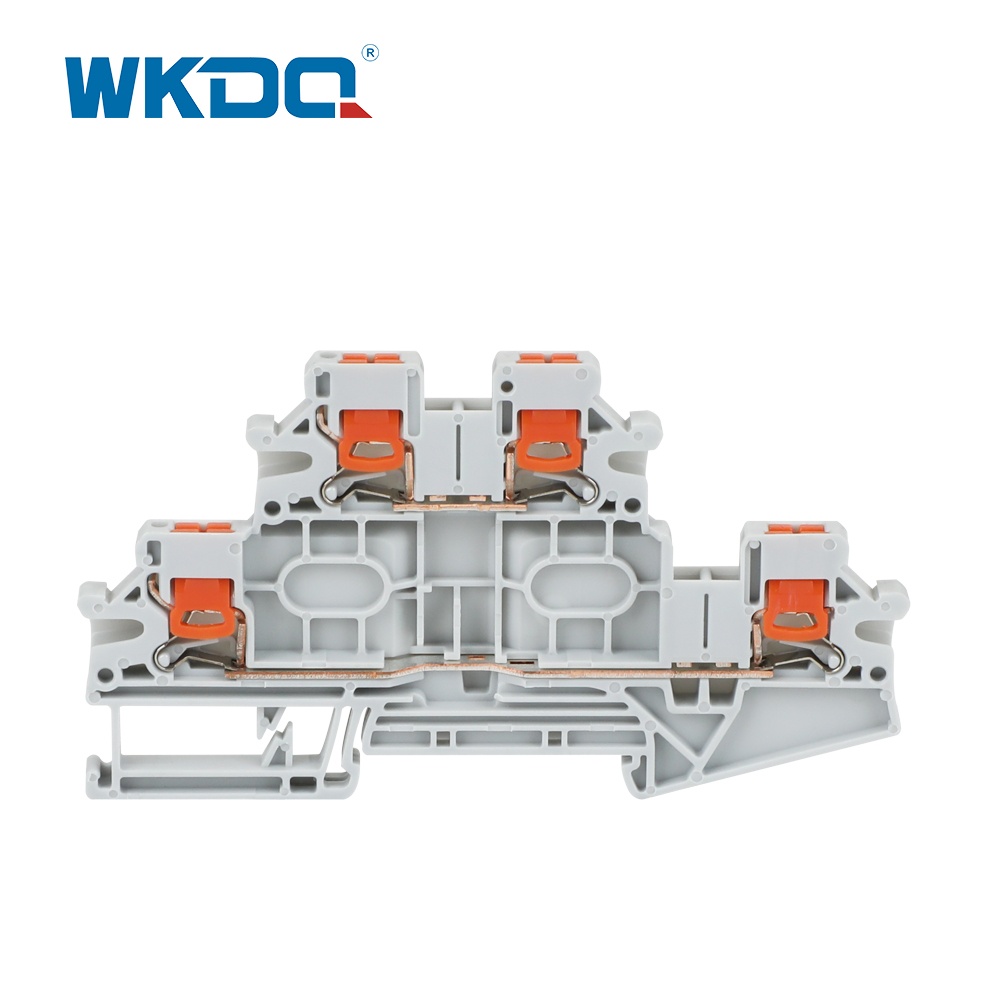

2 Level Push In Type Terminal Block JPTTBV2.5

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTTB 2.5-PV
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPTTBV2.5

Send Inquiry

Product Description

‌PT connection technology has achieved multi-national certification and employs a compact, modular inline design that reduces insertion force by 50%, significantly saving wiring time. It features color-coded buttons for clear polarity identification and safe, touchless wire unlocking, allowing maintenance without contact with live components. This design ensures error-free wiring and enhances operational safety during installation and upkeep.

Model No.	JPTTBV2.5
Color	Grey,Blue, other color can be customized
Length/Height/Wide (mm)	50.8/36/5.2
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/22A
Cross section, solid/soft Cable	0.14-4mm²/0.14-2.5mm²
Conductor Size	26-12AWG

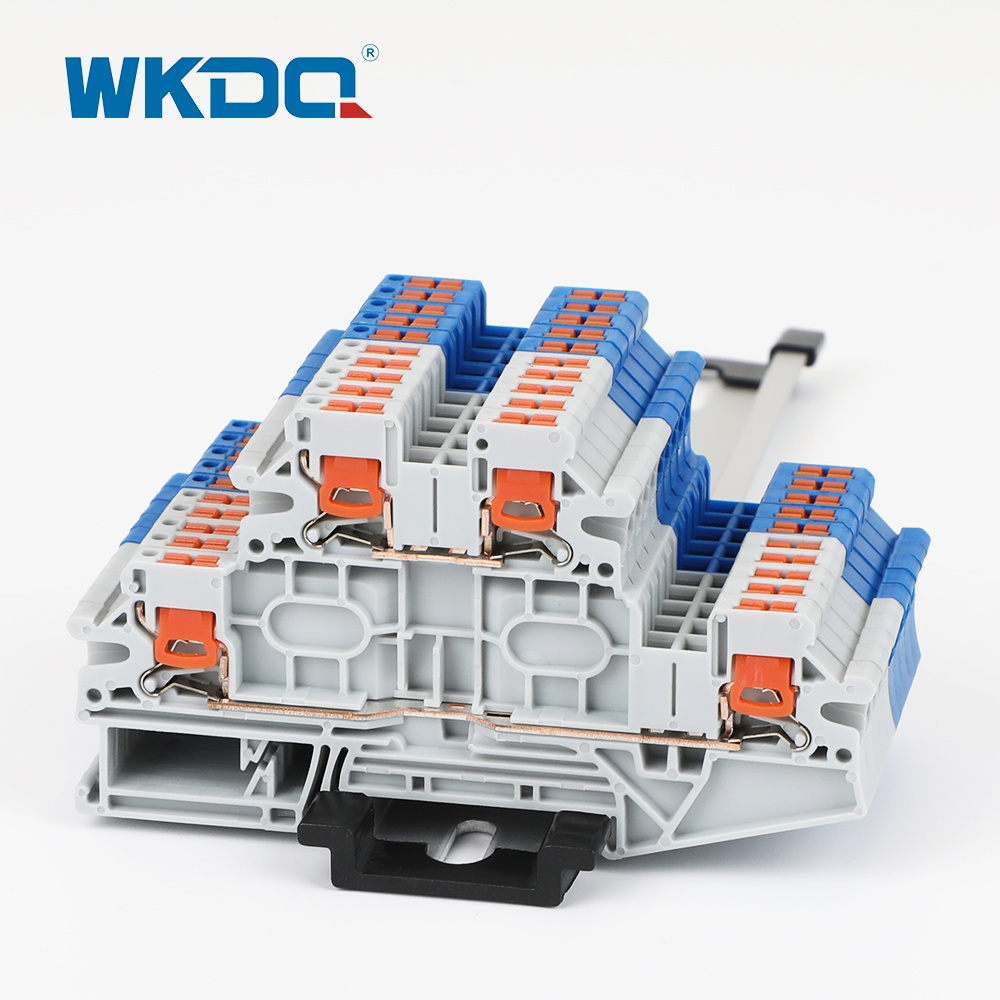

Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	10.23g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
