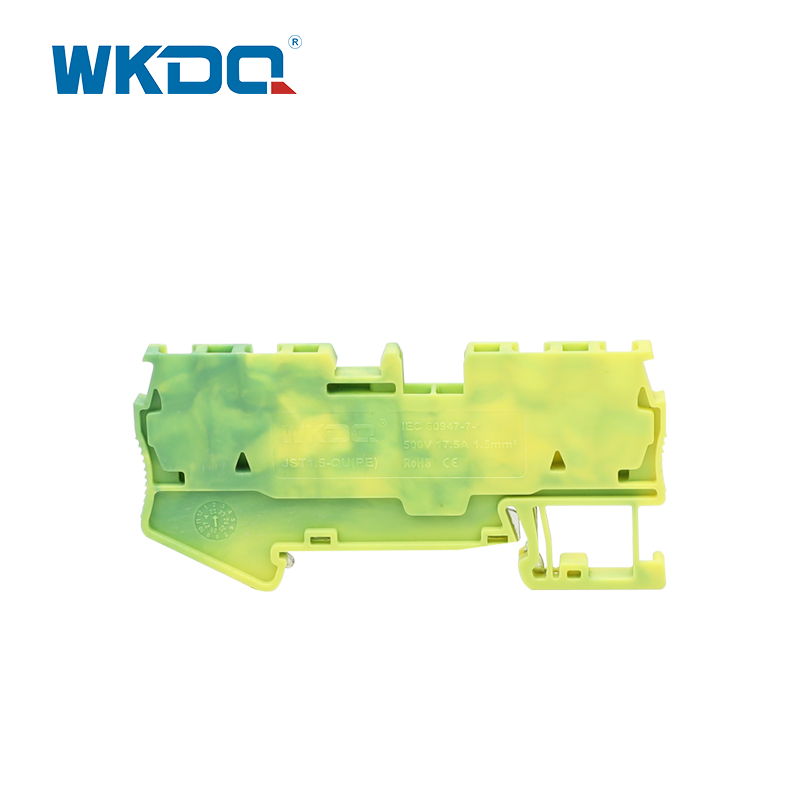

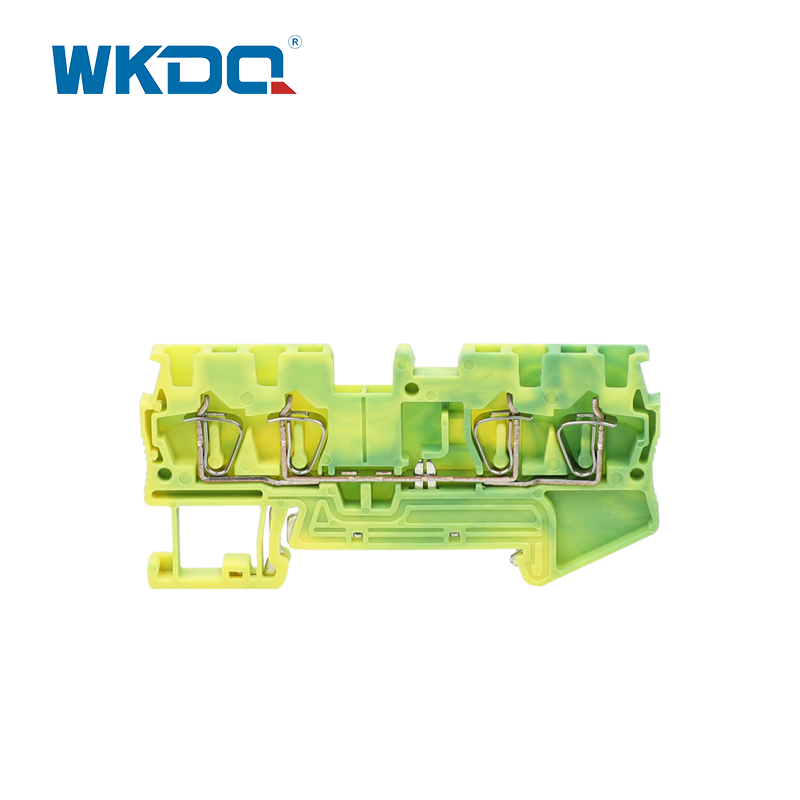

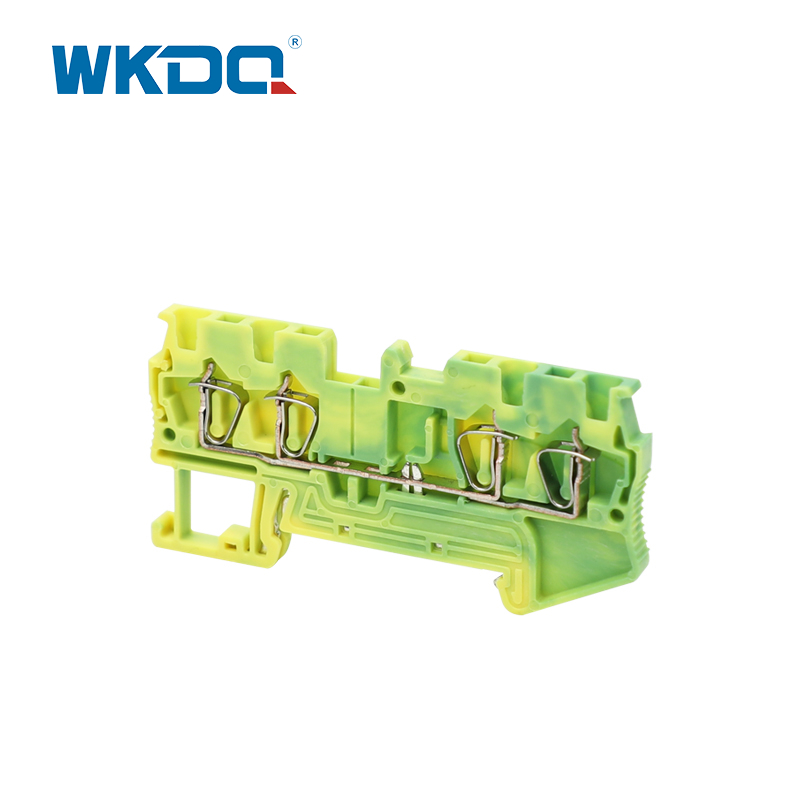

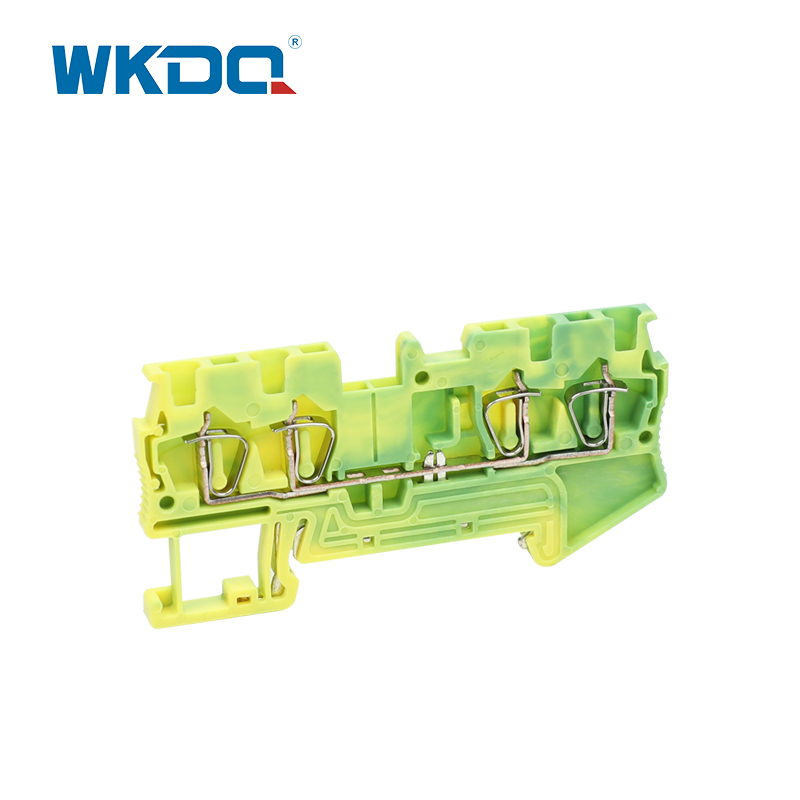

4 Points Spring type Earth Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JST1.5-QU-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST1.5-QU-PE

Send Inquiry

Product Description

Spring terminal blocks (also known as spring clamp terminals) are electrical connectors that use a spring mechanism to fix wires. Compared with traditional screw terminals, they achieve quick and tool-free wiring through a press-type operation. Its core structure consists of a metal conductive sheet and a spring clamp: when the wire is inserted, the spring generates a constant pressure, forming a reliable anti-vibration connection while avoiding the risk of cable damage.

Model Number	JST1.5-QU-PE
Color	Grey, Blue, other color can be customized
Length/Wide/Height(mm)	L72.9/H36/W4.2mm
Connection method	Spring Connection
Material	Nylon PA66
Rated Voltage/Current	500V/17.5A
Cross section, solid/soft Cable	0.08-1.5mm2/0.14-1.5mm2
conductor Size	26-15AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	carton
Certification	CE/RoHS/CQC/ISO 9001
