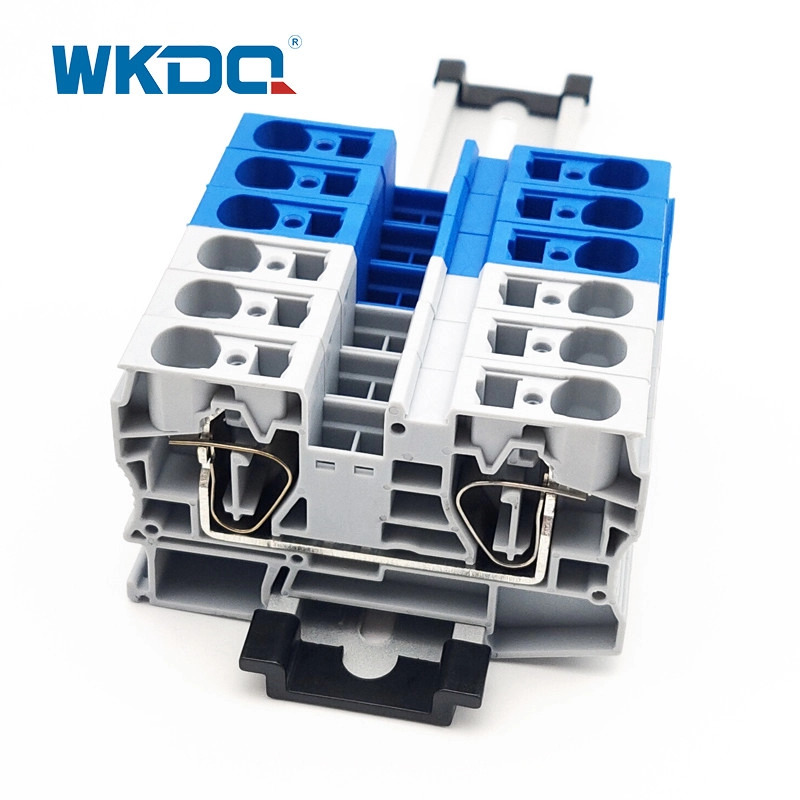

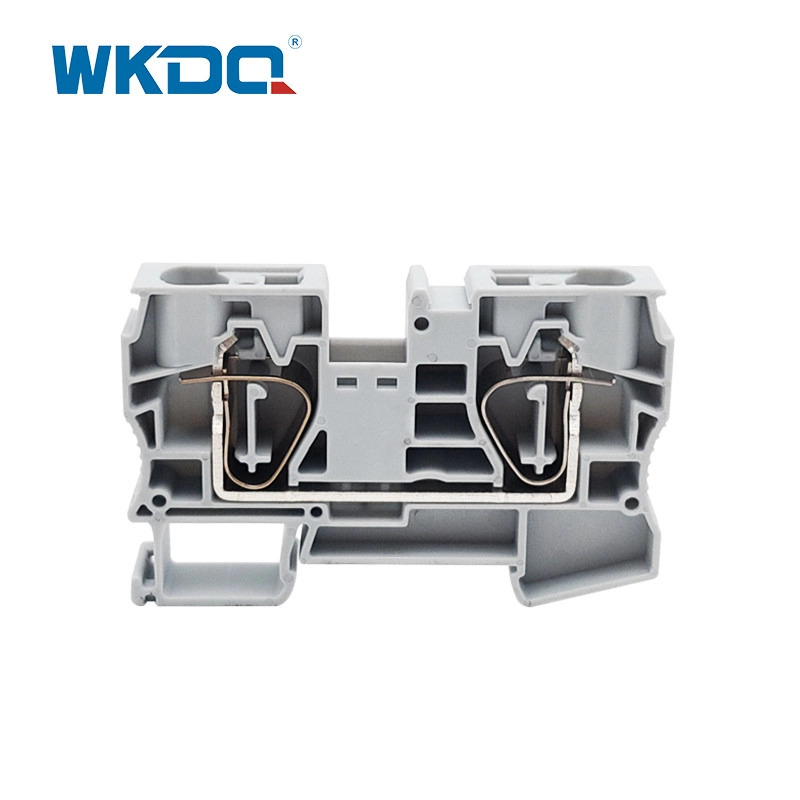

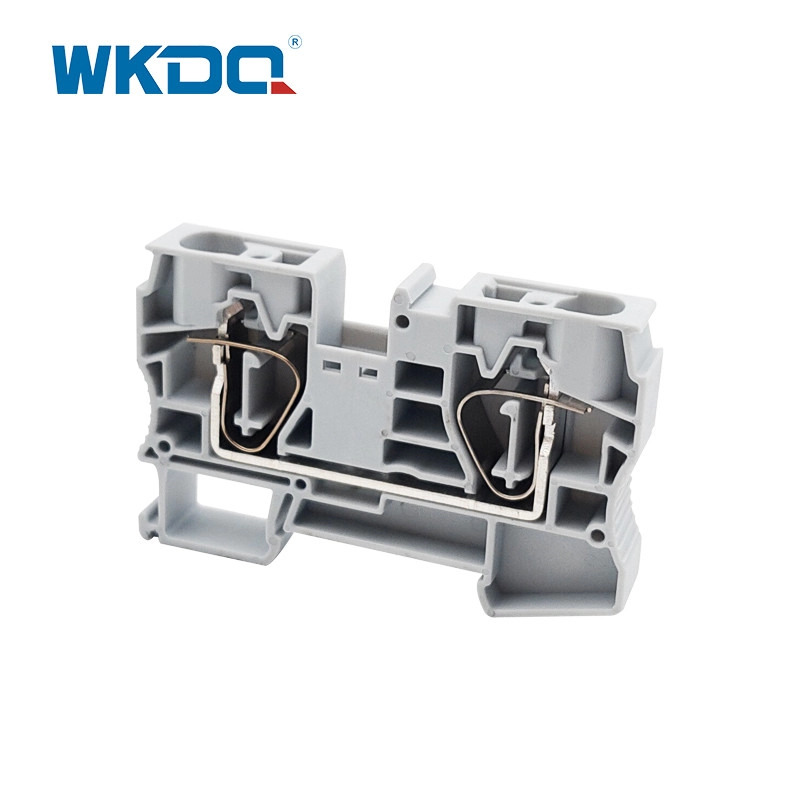

JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²
  • JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²
  • JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²
  • JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²
  • JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²
  • JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²
  • JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²
  • JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²

JST 16 Spring Clamp Terminal Block Din Rail TB 16 Mm²

Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 16

Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: CE/RoHS/CQC/ISO 9001

Model:JST 16

Send Inquiry

Product Description

   The spring cage terminal block is made of flame-retardant PA66 and stainless steel spring nickel-plated brass material. It features a unique screw-free spring crimping technology, supporting tool-free quick wiring. The single shell integrates multiple circuits, saving 15% of the cabinet space. The airtight and anti-loosening structure is resistant to vibration and corrosion. The coating contact points ensure low-resistance and stable power supply. The front DIN rail NS35 universal installation and flat identification area simplify management. It is compatible with end covers, plug-in Bridges and other accessories, meeting the efficient power distribution requirements of harsh scenarios such as industrial and hazardous environments.

Technical Parameters

Model Number JST 16
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) L80.2/H51/W12.2 mm
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 1000V 90A
Cross section, solid/soft Cable 0.2-25mm²/0.2-16mm²
Conductor Size 16-6 AWG
Mounting Type NS 35/7.5
International Standard IEC 60947-7-1
Brand Customized logo are supported
Packing method 26g/pc, 40PCS/BOX, 800PCS/CTN
Certificates CE/RoHS/CQC/ISO 9001
