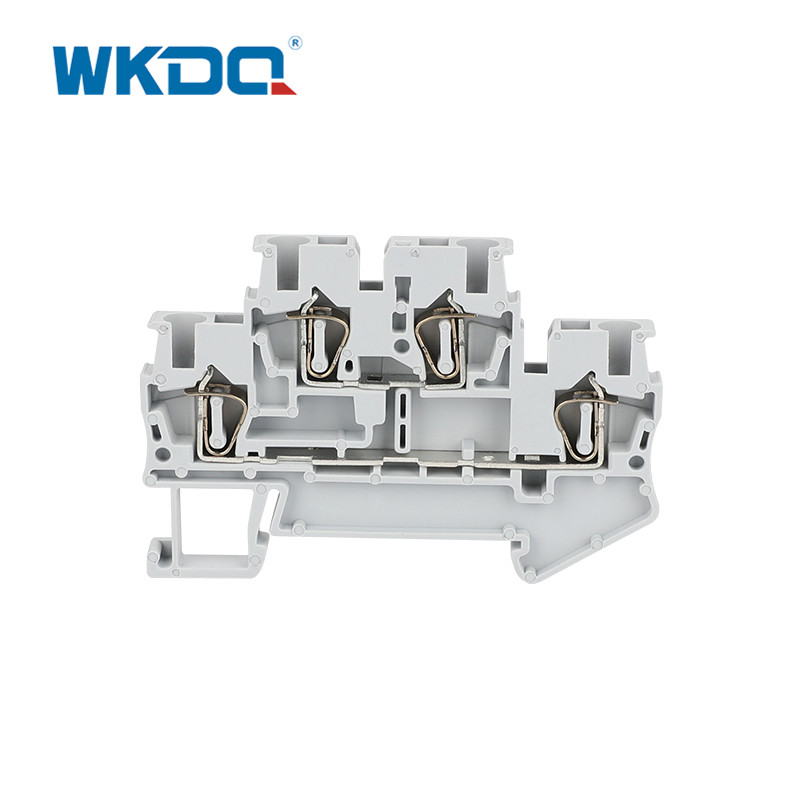

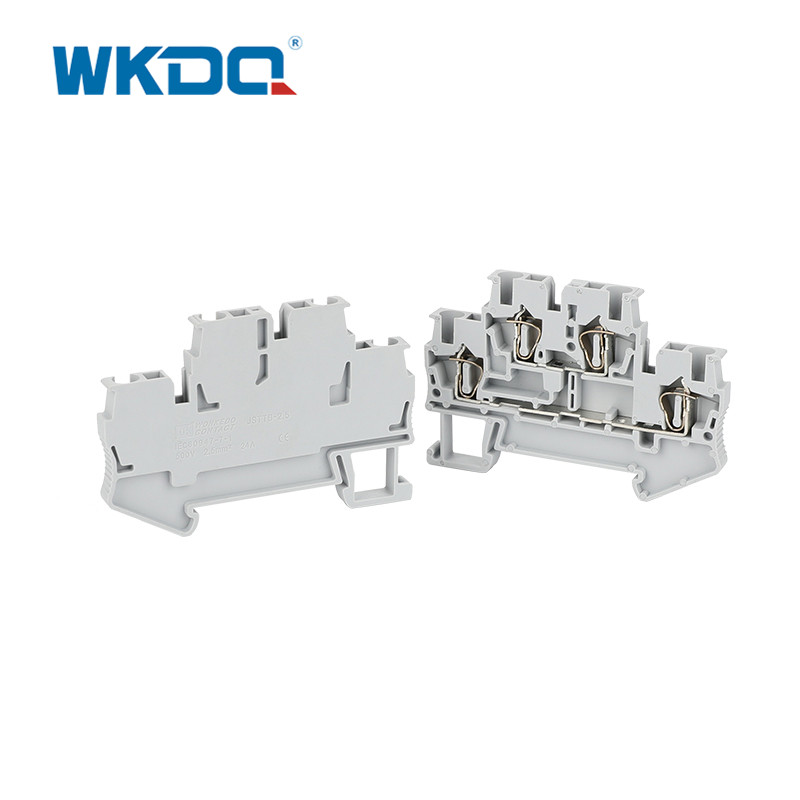

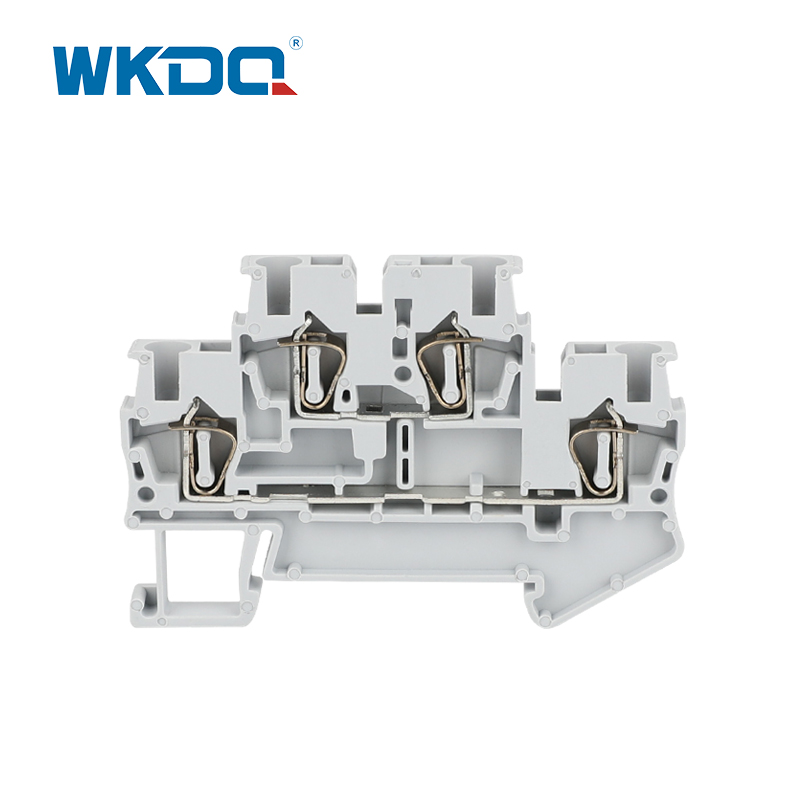

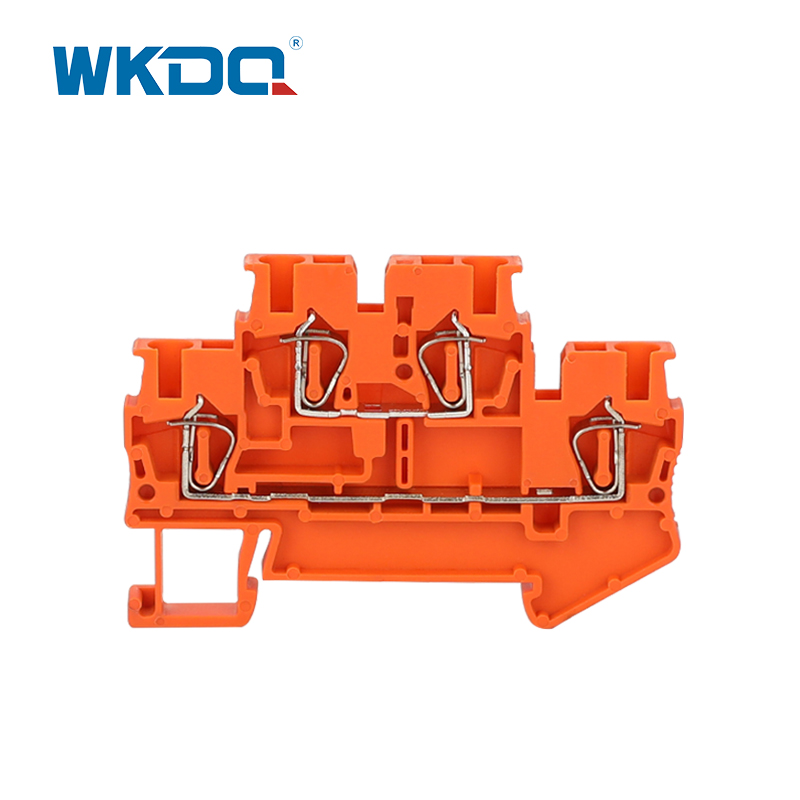

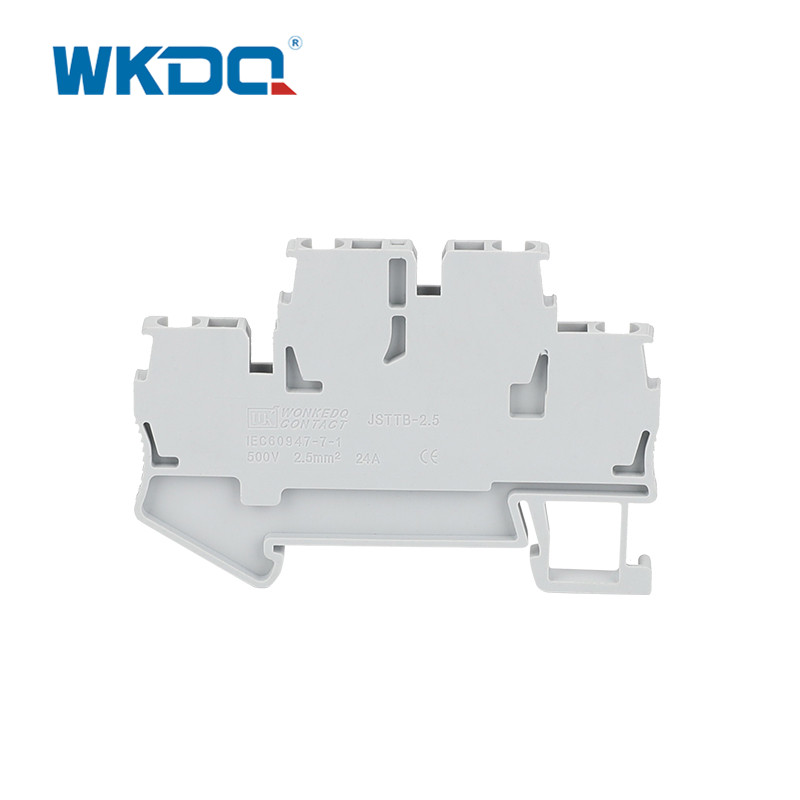

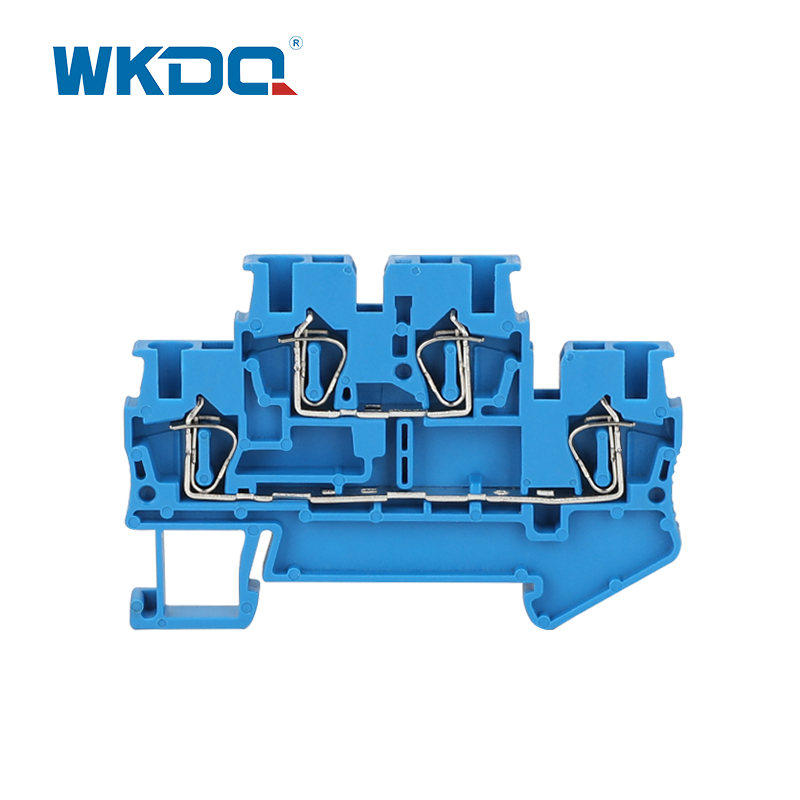

Three Layer Spring Terminal Blocks Multi Levels 4mm² IEC 60947-7-1

Three Layer Spring Terminal Blocks Multi Levels 4mm² IEC 60947-7-1

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSTTB 2.5

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

When space is limited, our multi-level spring terminal blocks offer a convenient solution for distributing potentials. These terminal blocks allow for increased wiring density, making them ideal for applications where space is at a premium.

Key features of our multi-level spring terminal blocks include:

Made from inflaming retarding PA 66 with nickel-plated brass crossbars, ensuring high-quality and durable construction.

Space-saving design: Up to three potentials can be accommodated within a single terminal housing, maximizing efficiency in limited spaces.

Easy operation for hassle-free wiring.

Long-lasting durability for reliable performance over time.

Corrosion-proof contact points for enhanced longevity.

Reliable gas-tight connections for secure and stable electrical connections.

Multiple identification options for clear organization and labeling.

High-quality materials guaranteed for optimal performance.

Simple potential distribution using the function shafts available on each level.

Labeling area provided for each level, allowing for easy identification and organization.

Universal foot suitable for DIN Rail 35mm, ensuring compatibility and flexibility in installation.

Various accessories available, including end covers, end brackets, marking strips, plug-in bridges, and more, to meet your specific needs.

Our multi-level spring terminal blocks provide a reliable and efficient solution for distributing potentials in space-limited applications. With their durable construction and versatile features, they are designed to meet your wiring requirements with ease and convenience.

Technical Parameters

Part No. JSTTB 2.5
Color Grey,other colors are also available.
Length/Height/Wide (mm) 68/46/5.2
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 500V/24A
Cross section, solid/soft Cable 0.2-4mm² / 0.2-2.5 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35 DIN Mount
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 10g/pc, 50PCS/BOX, 1500PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
