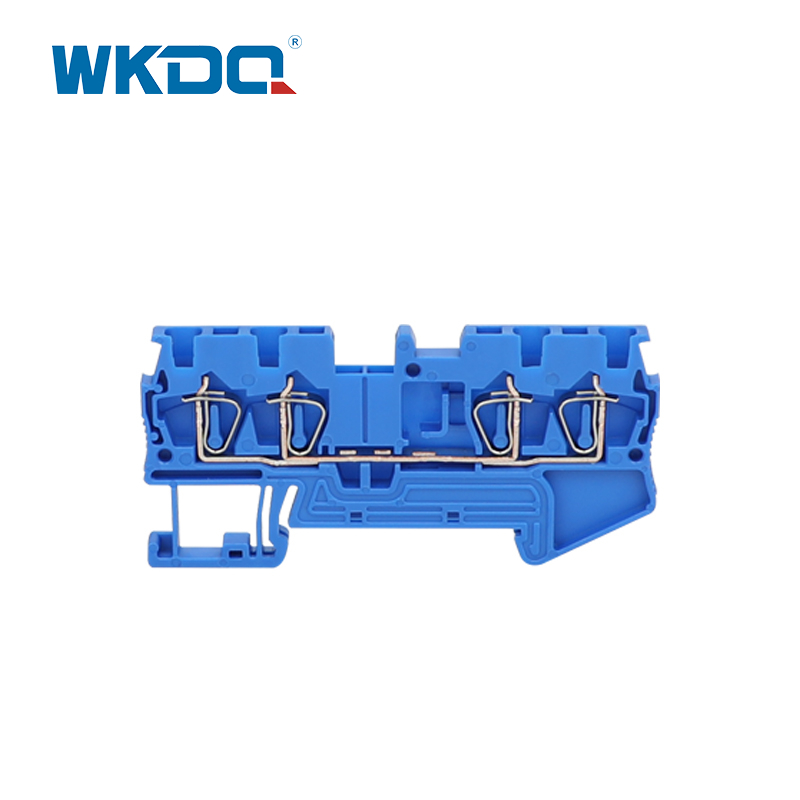

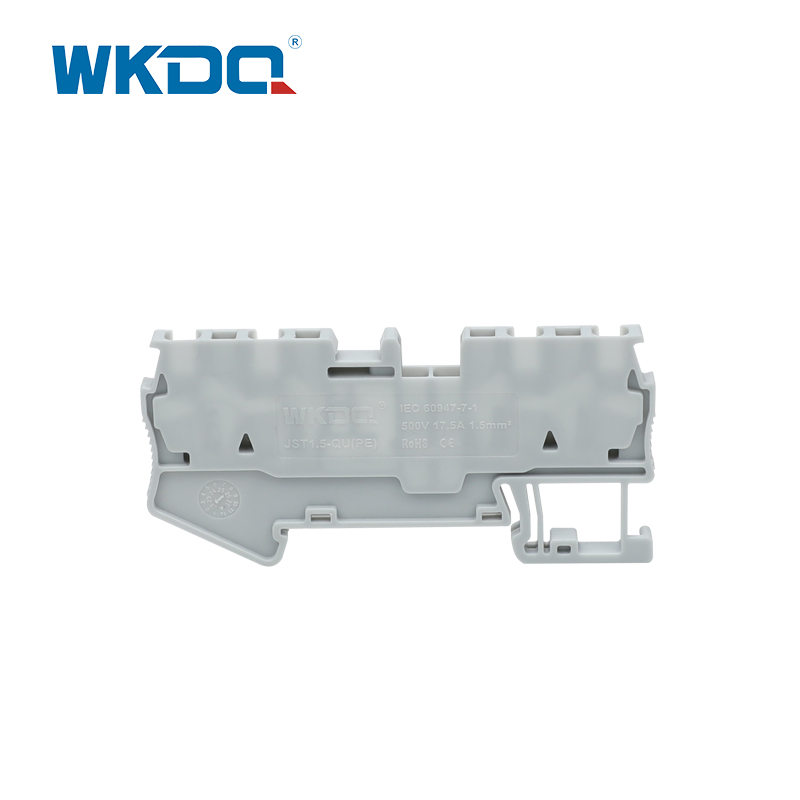

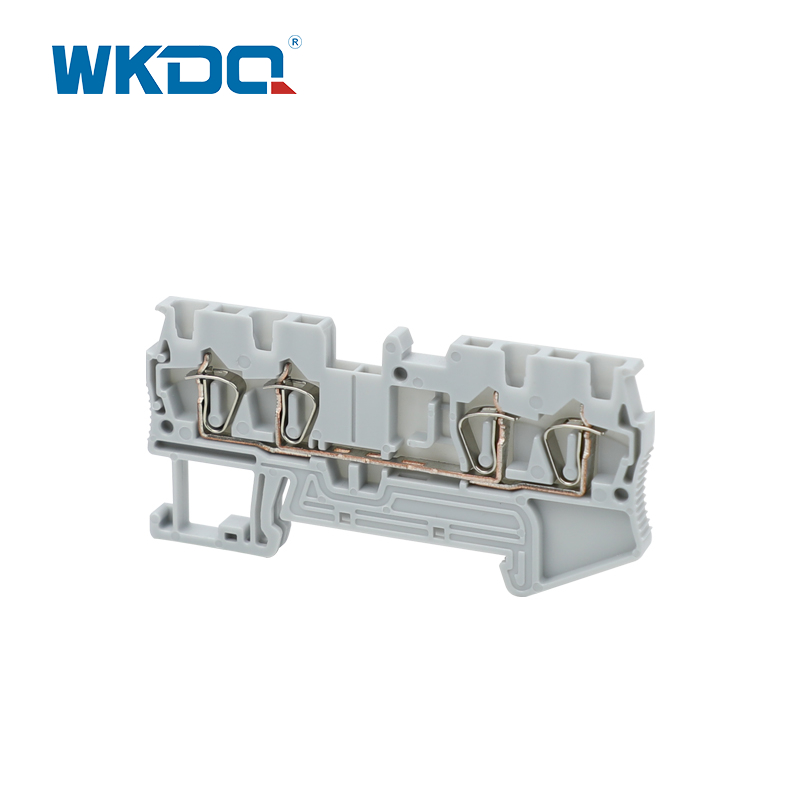

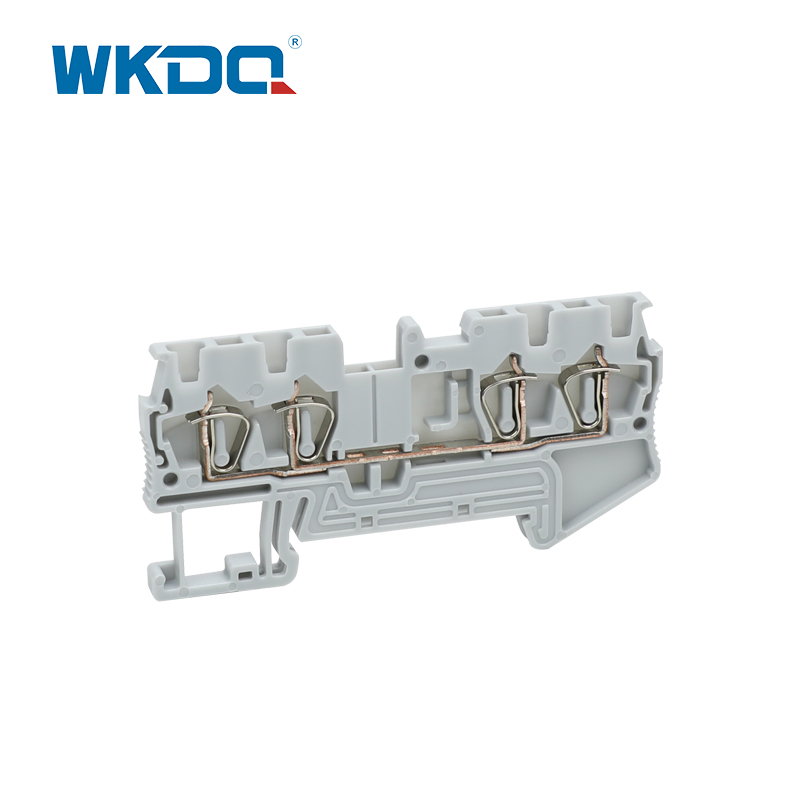

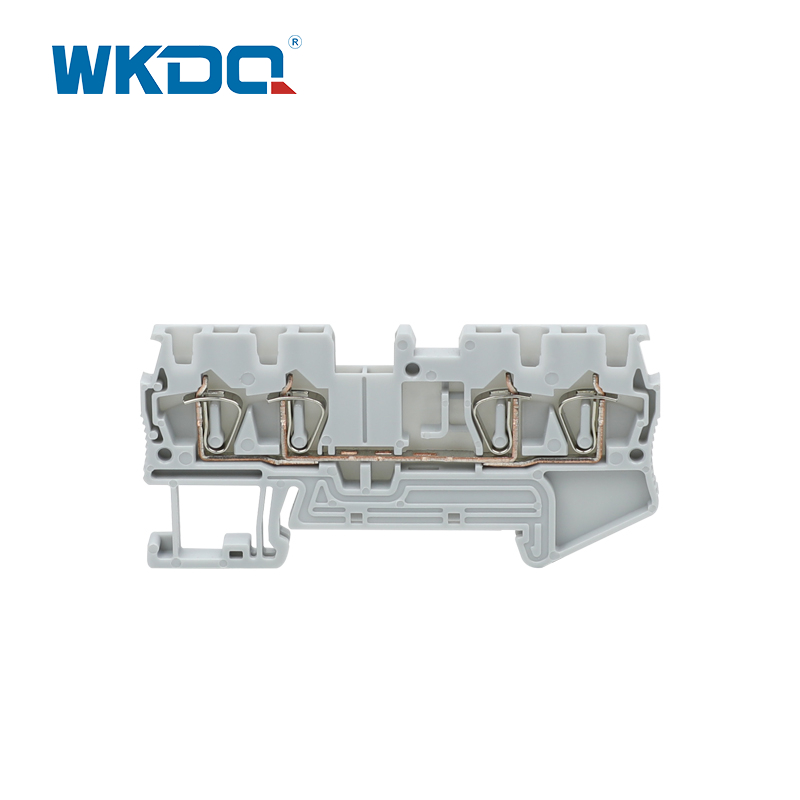

4 Points Spring type Terminal Block
  • 4 Points Spring type Terminal Block4 Points Spring type Terminal Block
  • 4 Points Spring type Terminal Block4 Points Spring type Terminal Block
  • 4 Points Spring type Terminal Block4 Points Spring type Terminal Block
  • 4 Points Spring type Terminal Block4 Points Spring type Terminal Block
  • 4 Points Spring type Terminal Block4 Points Spring type Terminal Block

4 Points Spring type Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JST1.5-QU
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST1.5-QU

Send Inquiry

Product Description

Spring terminal blocks (also known as spring clamp terminals) adopt spring clamping technology and achieve tool-free and quick connection of wires through press-type operation. Compared with traditional screw terminals, its core structure is a metal conductive sheet + spring press sheet. After the wire is inserted, the spring provides constant pressure for fixation, forming a reliable connection that is anti-vibration and maintenance-free. Advantages include: ① avoiding damage or poor contact of the wire body caused by excessive tightness/looseness; ② Suitable for multiple specifications of wire diameters ranging from 0.08-35mm ²; ③ Suitable for industrial automation, automotive electronics, and communication equipment, it has the characteristics of high installation efficiency (reducing wiring time by 60%), small space occupation, and strong seismic resistance (IP20 protection), significantly improving the stability of electrical systems.

Model Number

JST1.5-QU

Color
Grey, Blue, other color can be customized
Length/Wide/Height(mm)
L72.9/H36/W4.2mm
Connection method
Spring Connection
Material
Nylon PA66
Rated Voltage/Current
500V/17.5A
Cross section, solid/soft Cable
0.08-1.5mm2/0.14-1.5mm2
conductor Size
26-15AWG
Mounting Type
NS 35/7.5
Standard
IEC 60947-7-1
LOGO
Customized logo are supported
Packing Detail
carton
Certification
CE/RoHS/CQC/ISO 9001
