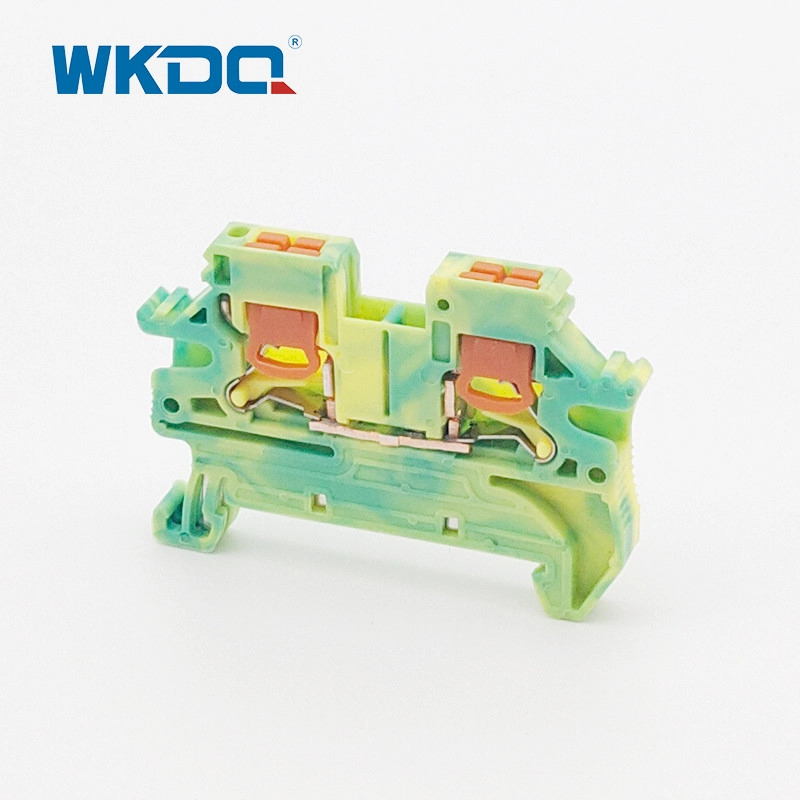

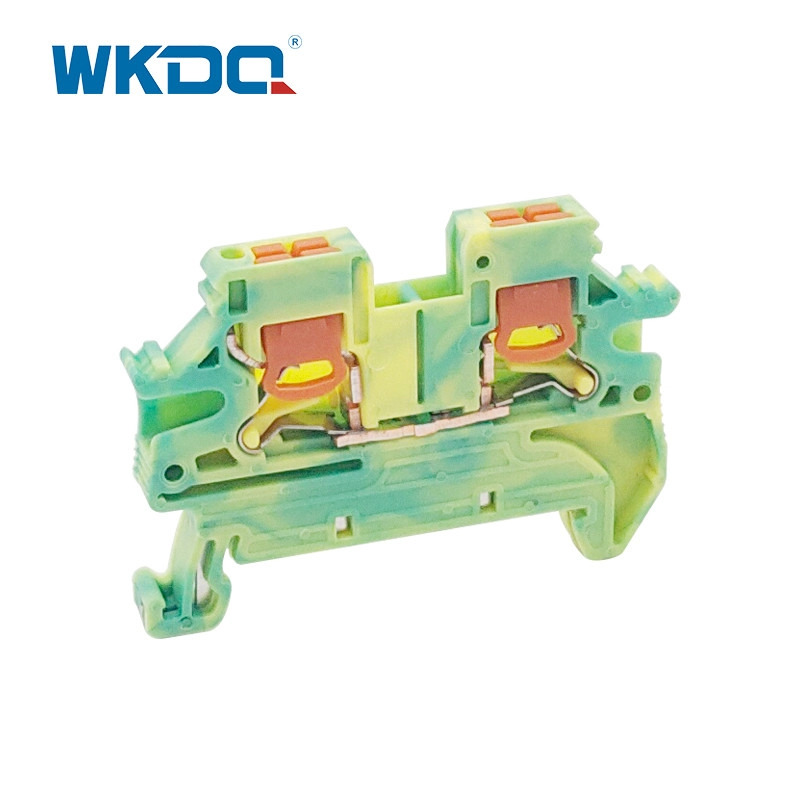

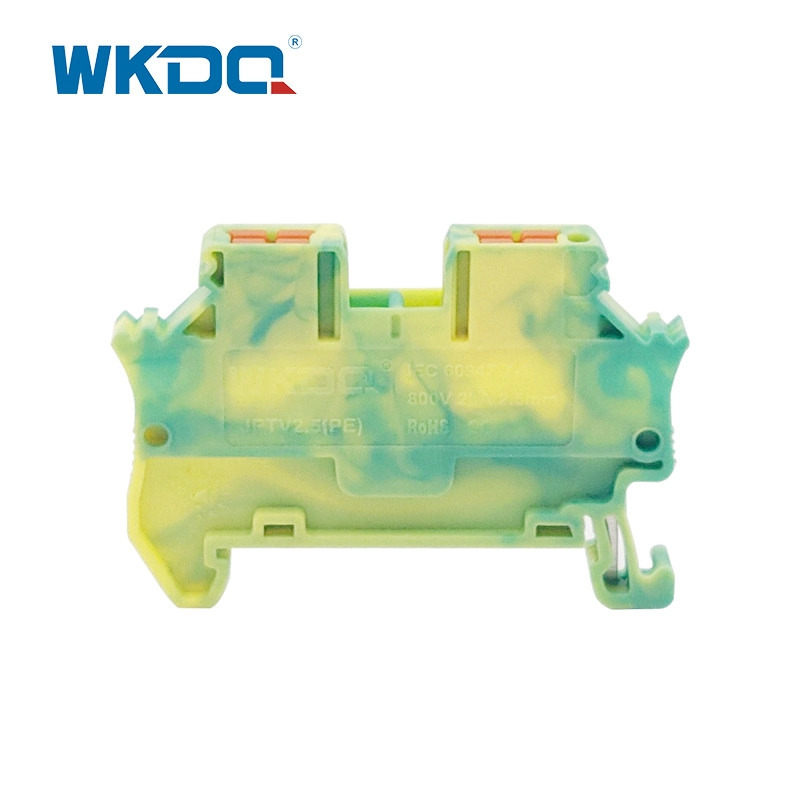

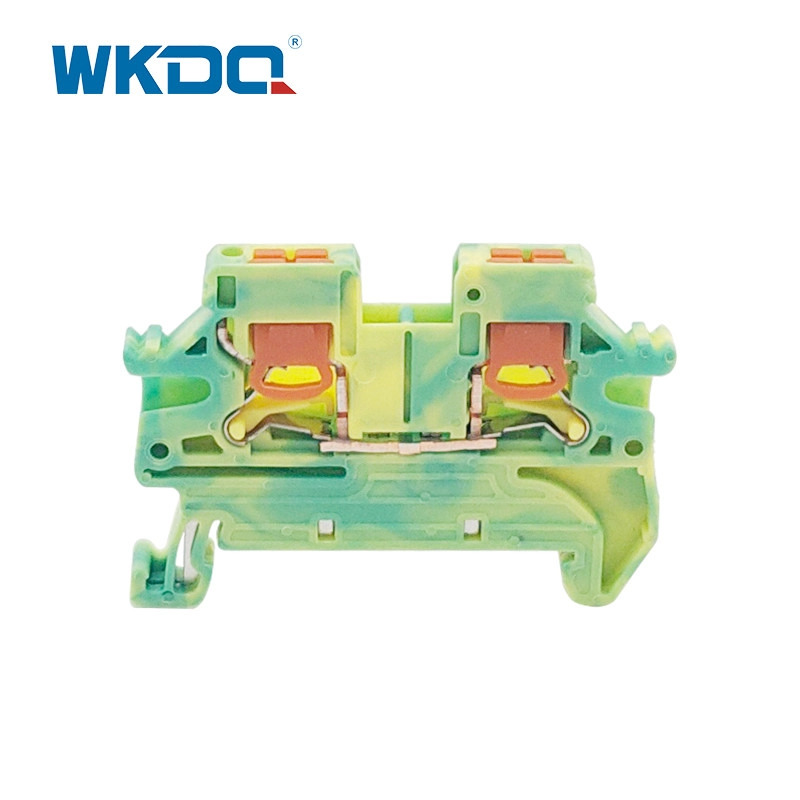

Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2
  • Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2
  • Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2
  • Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2
  • Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2
  • Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2

Anti Flamming Push In Ground Terminal Block Side Entry Wiring 2.5 Mm2

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTV 2.5-PE
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

This new design PUSH IN terminal blocks, wiring side entry with their simple handling and compact size allow. Saving space and wiring time.

Made from V0 Anti flamming PA 66, Copper

Tool-free wiring of conductors with ferrules or solid conductors.

The compact design and side entry way make the wiring clearly.

Simply pressing the orange push bottom to make the contact open and the conductor can be removed.No need to operate by any special tools.

Reliable and safe connection.

All types of materials are guaranteed in quality.

Vibration proof.

Automatic contact spring.

Shock resistance & Corrosion resistance.

Suitable for various applications.

The insertion force can be saved by 50%.

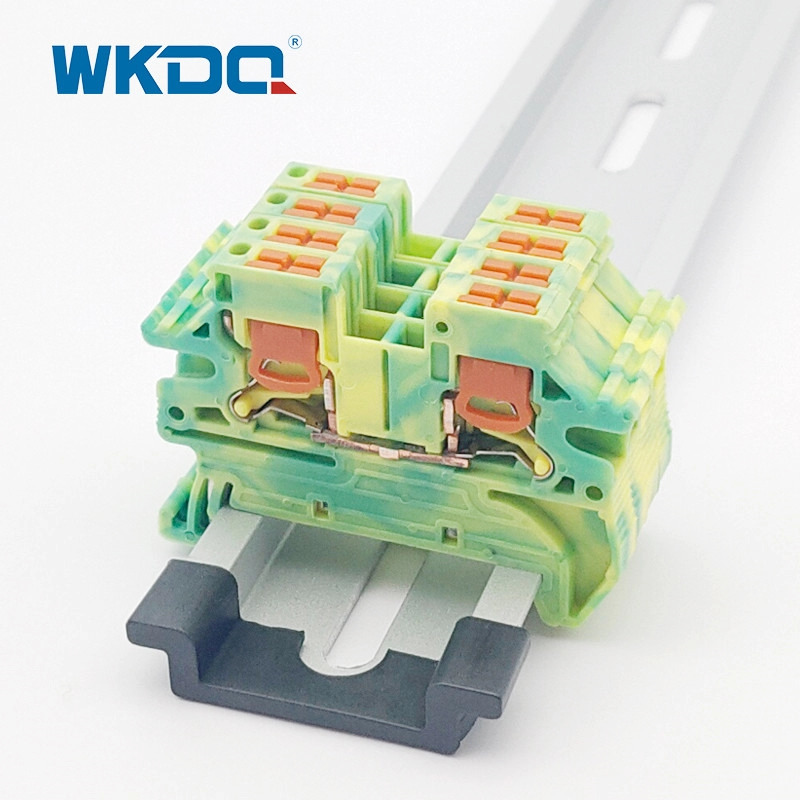

With universal foot which can be installed on Din Rail NS 35.

Accessories: End covers, End clamps, Marker strips, Plug-in bridges, etc.


TECHNICAL PARAMETERS

Model Number JPTV 2.5-PE
Color Yellow-Green
Length/Height/Wide (mm) 49.4/35.2/ 5.2
Connection method Push in connection
Material Anti inflaming Nylon PA66
Rated Voltage/Current 800V/24A
Cross section, solid/soft Cable 0.14-4mm² / 0.14-2.5mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WKDQ, OEM is supporting
Packing Detail 5.79g/pc, 100PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
