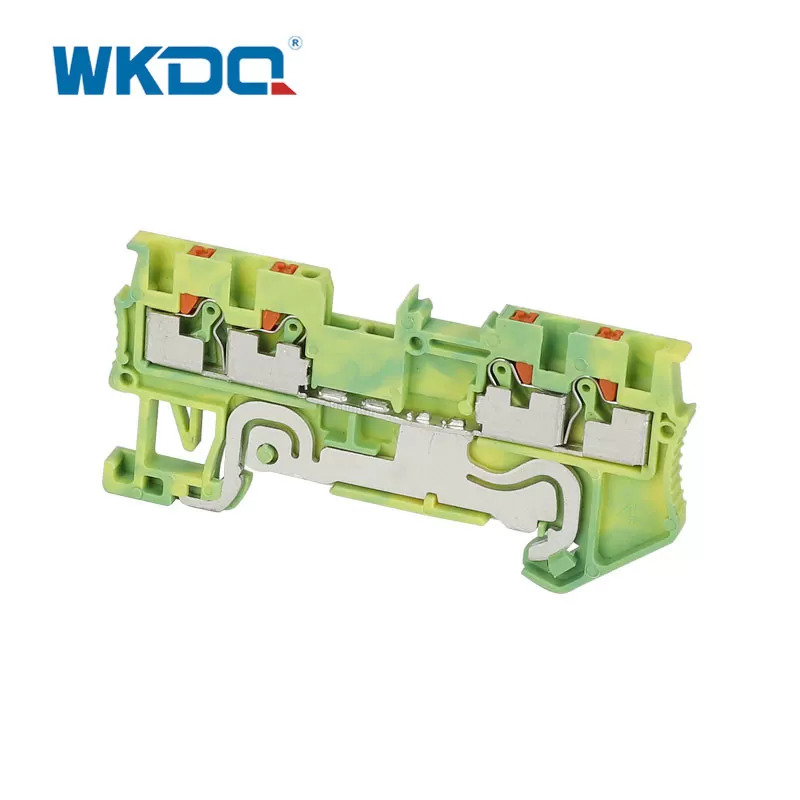

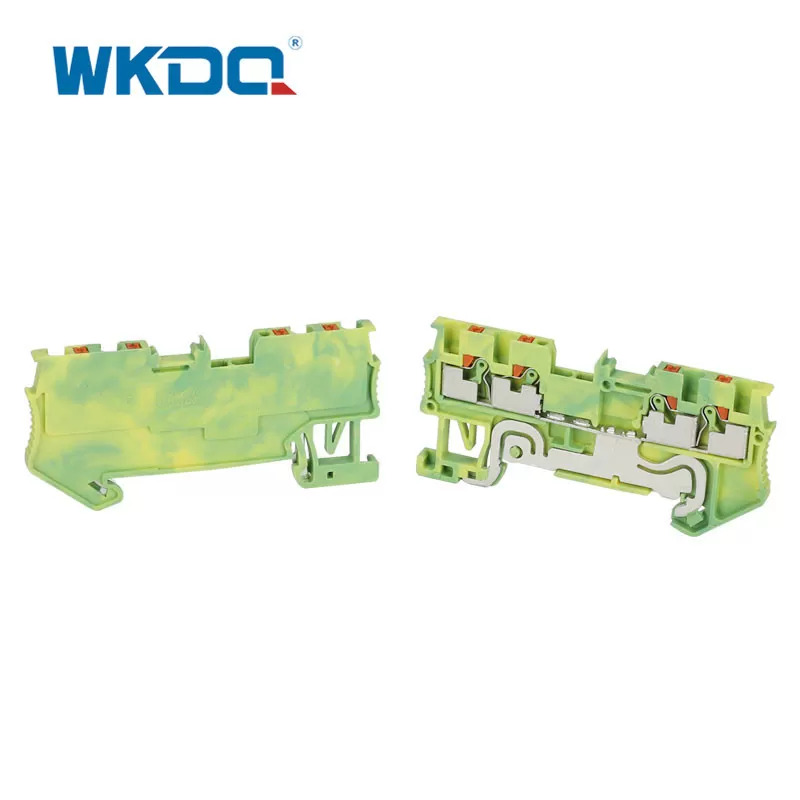

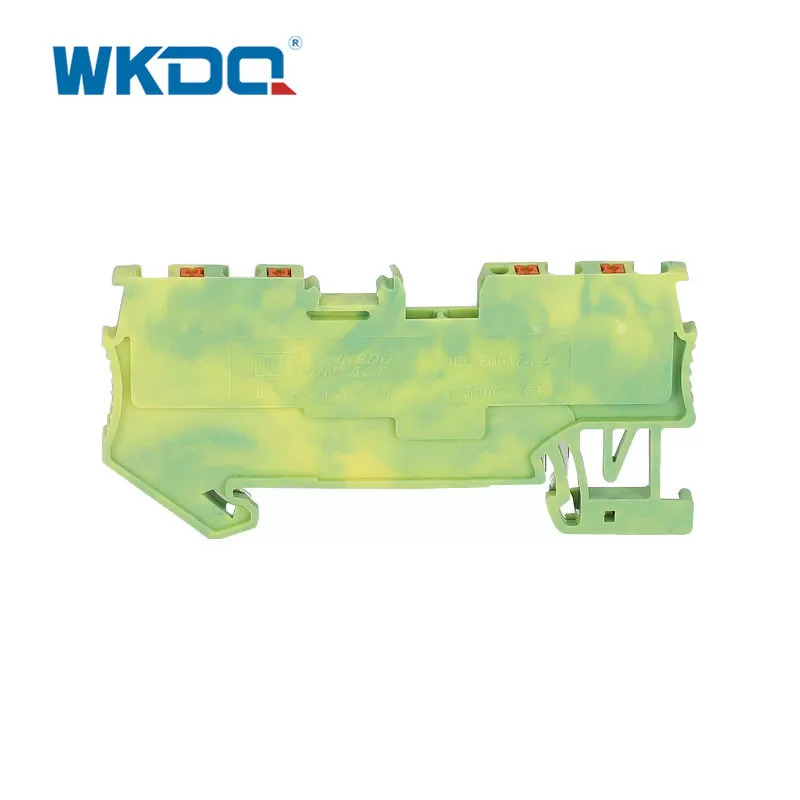

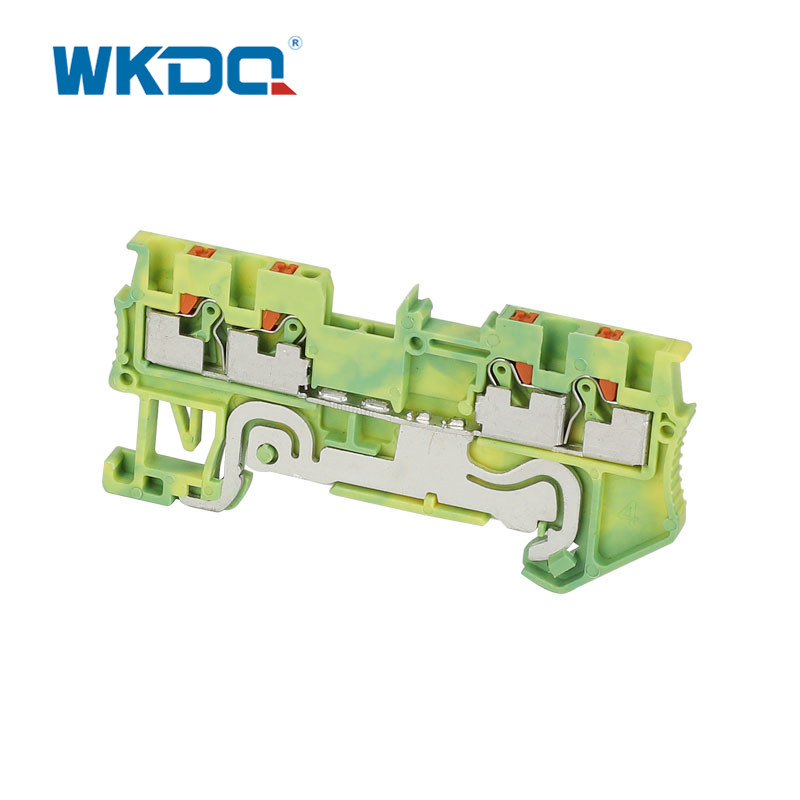

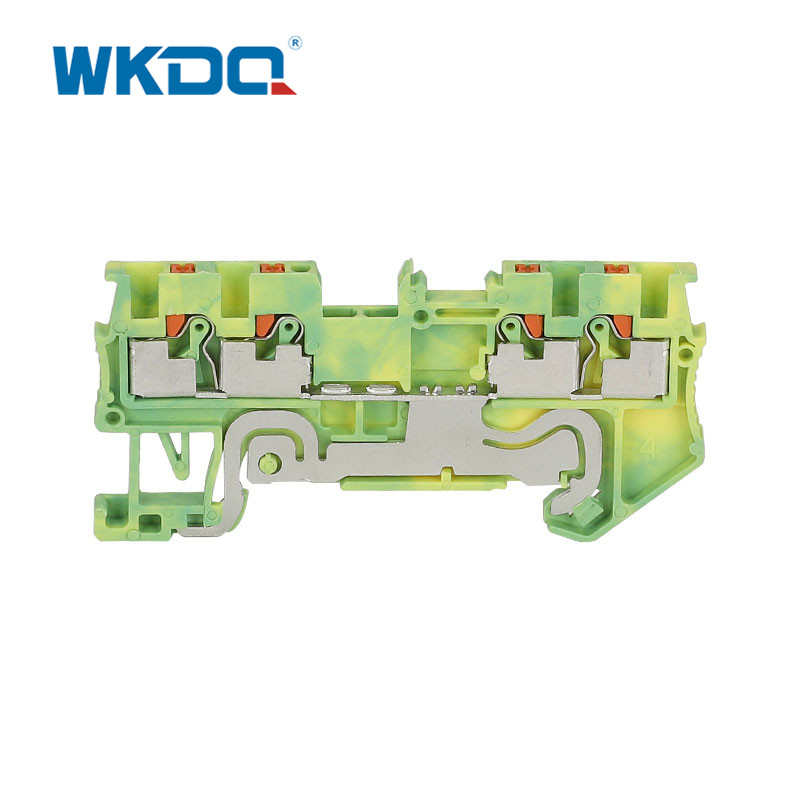

Din Rail Convenient Mounted Electrical Terminal Block Connectors With Long Life
  • Din Rail Convenient Mounted Electrical Terminal Block Connectors With Long LifeDin Rail Convenient Mounted Electrical Terminal Block Connectors With Long Life
  • Din Rail Convenient Mounted Electrical Terminal Block Connectors With Long LifeDin Rail Convenient Mounted Electrical Terminal Block Connectors With Long Life
  • Din Rail Convenient Mounted Electrical Terminal Block Connectors With Long LifeDin Rail Convenient Mounted Electrical Terminal Block Connectors With Long Life
  • Din Rail Convenient Mounted Electrical Terminal Block Connectors With Long LifeDin Rail Convenient Mounted Electrical Terminal Block Connectors With Long Life
  • Din Rail Convenient Mounted Electrical Terminal Block Connectors With Long LifeDin Rail Convenient Mounted Electrical Terminal Block Connectors With Long Life

Din Rail Convenient Mounted Electrical Terminal Block Connectors With Long Life

Place of Origin: China
Brand Name: WONKEDQ,WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 1.5/S-QUATTRO-PE
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

JPT series panel feed through terminal blocks facilitate single-wire connections between electronic components and control/field wiring. Multi type Conductor terminal blocks accommodate wire sizes up to 14 AWG; available styles include Universal Terminal Block, Ground terminal block and terminal block with diode.The push-in connection technology is tested for maximum vibration and shock resistance. Push-in connection technology meets these high requirements in terms of vibration and shock loads up to 350 g.

Spring Loaded Wire Connection

Push in spring-clamp Terminal Blocks are ideal for applications where control signals must be distributed and collected through the same blocks.

The blocks are a good solution for high-density wiring applications and are available in color customize

Helps to reduce wiring time by more than 50%

The conductor can be easily released – without special tools


TECHNICAL PARAMETERS

Model No. JPT 1.5/S-QUATTRO-PE
Color Yellow and Green
Length/Height/Wide (mm) 63.2/30.5/3.5
Connection method Push-in connection
Material Flame resistant Nylon PA66 V0
Rated Voltage/Current 500V/17.5A
Cross section, solid/soft Cable 0.14-1.5mm²/0.14-1.5mm²
Conductor Size 26-16 AWG

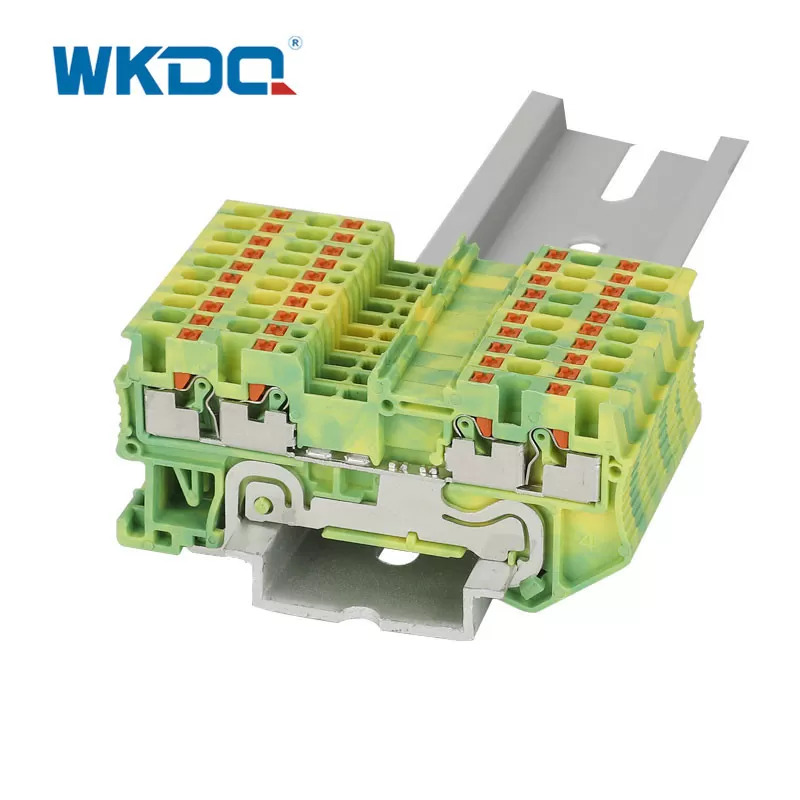

Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 6.58g/pc, 75PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
