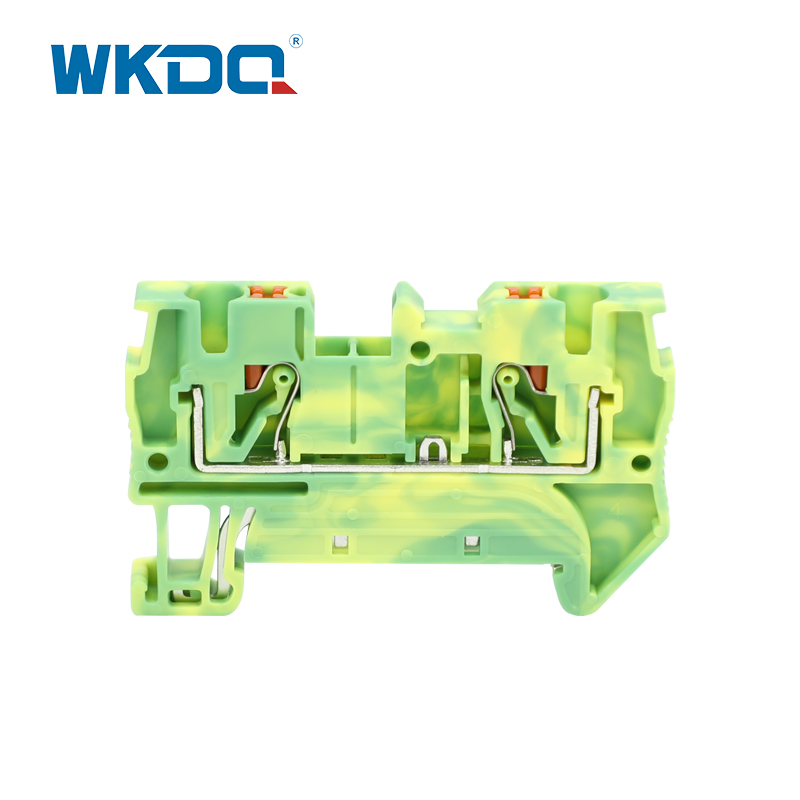

Din Rail Mounted Terminal Block Ground
  • Din Rail Mounted Terminal Block GroundDin Rail Mounted Terminal Block Ground
  • Din Rail Mounted Terminal Block GroundDin Rail Mounted Terminal Block Ground
  • Din Rail Mounted Terminal Block GroundDin Rail Mounted Terminal Block Ground
  • Din Rail Mounted Terminal Block GroundDin Rail Mounted Terminal Block Ground
  • Din Rail Mounted Terminal Block GroundDin Rail Mounted Terminal Block Ground

Din Rail Mounted Terminal Block Ground

Place of Origin: China
Brand Name: WONKEDQ,WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 4-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPT 4-PE

Send Inquiry

Product Description


Features of JPT 4-PE Terminal Block :

 1.toolless clip design ‌ : PE series Terminal Block adopts through type terminal clip structure, and the combined base can be directly stuck into the DIN guide rail without the assistance of tools.

‌2. high protection material ‌ : Terminal Block matrix is V0 flame retardant nylon PA66+ brass metal parts, anti-seismic and anti-corrosion, suitable for harsh industrial environment.


Advantages of JPT 4-PE Terminal Block:

1.Double installation efficiency: Terminal Block's toolless buckle design and modular base save 50% of installation time and reduce manual operation complexity.

2.Excellent safety performance: Terminal Block's flame-retardant material and brass conductive material ensure electrical connection stability and arc resistance in high vibration and strong impact scenarios.

3.Full scenario adaptability: Terminal Block's shock and corrosion resistance meets the complex environmental requirements of industrial automation, power control cabinets, and more.



Model Number JPT 4-PE
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) 56/36.5/6.2
Connection method Push-in connection
Material Nylon PA66
Rated Voltage/Current 800V/31A
Cross section, solid/soft Cable 0.5-6mm² / 0.5-4mm²
Conductor Size 20-10 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, OEM Service supported
Packing Detail 9.71g/pc, 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
