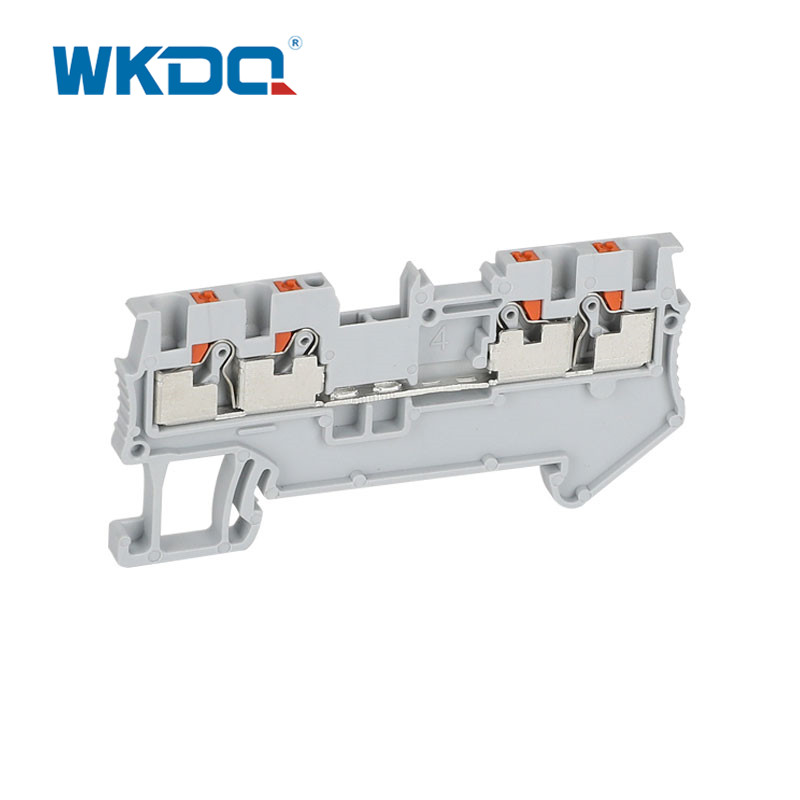

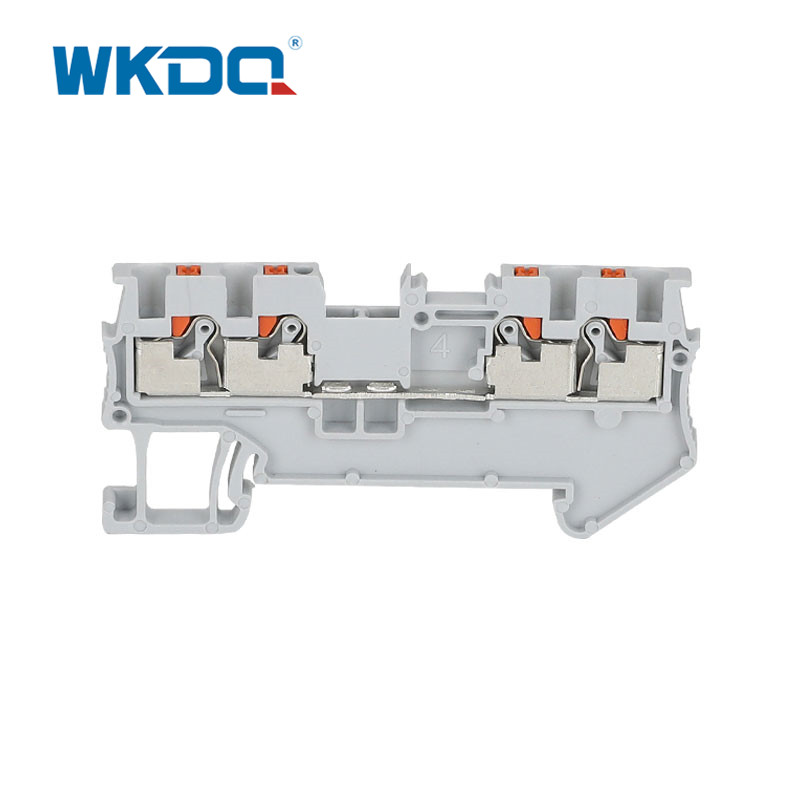

Din Rail Push In Connection Screw Terminal Wire Connectors CE / RoHS Certification

Place of Origin: China
Brand Name: WONKEDQ,WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 1.5/S-QUATTRO
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

A complete product range is available for every stage of your product, from field wiring through to power and control wiring. You can easily connect sensors and actuators, terminal blocks, and interface and automation components without using any tools.For releasing conductors, just easily push the Orange Button to open the direct contact spring parts, then pick out the wire.

Compact design Thickness 3.5mm

Quick and easy mounting of panel feed-through terminal blocks in device panels

Instrumentation and Power Distribution applications.

A specially designed flexible foot enable easy mounting and dismounting from the Din rail with the help of screw driver.

These Terminal Blocks have marker holding recesses to accept marking tags for circuit identification.


TECHNICAL PARAMETERS

Part No. JPT 1.5/S-QUATTRO
Color Grey,Blue, other color can be customized
Length/Height/Wide (mm) 63.2/30.5/3.5
Connection method Push-in connection
Material Flame resistant Nylon PA66 V0
Rated Voltage/Current 500V/17.5A
Cross section, solid/soft Cable 0.14-1.5mm²/0.14-1.5mm²
Conductor Size 26-16 AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 4.78g/pc, 75PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
