DIN Rail Spring Terminal Blocks

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSTTB 2.5-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JSTTB 2.5-PE

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

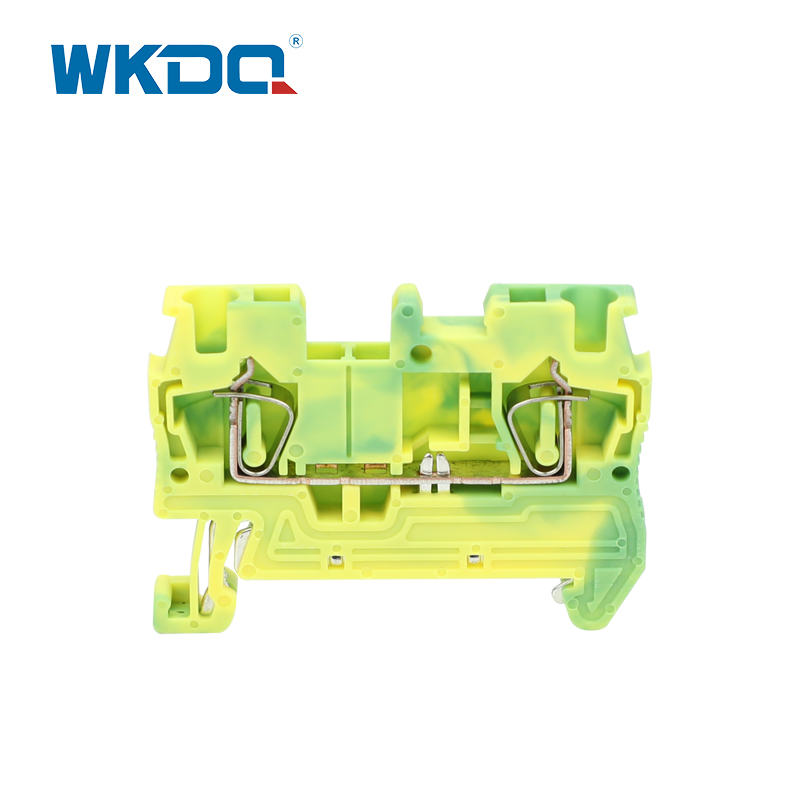

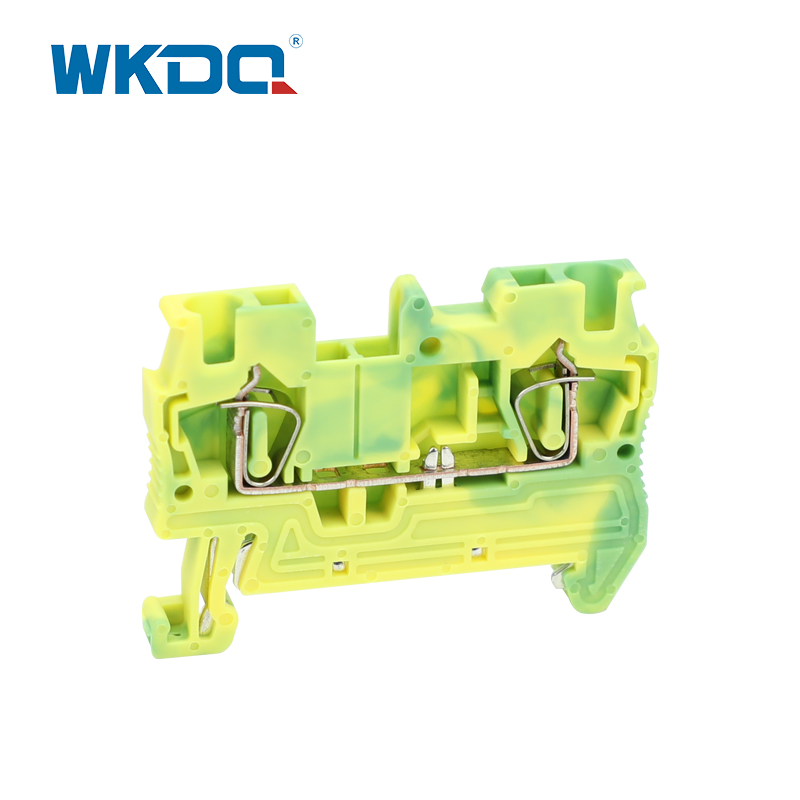

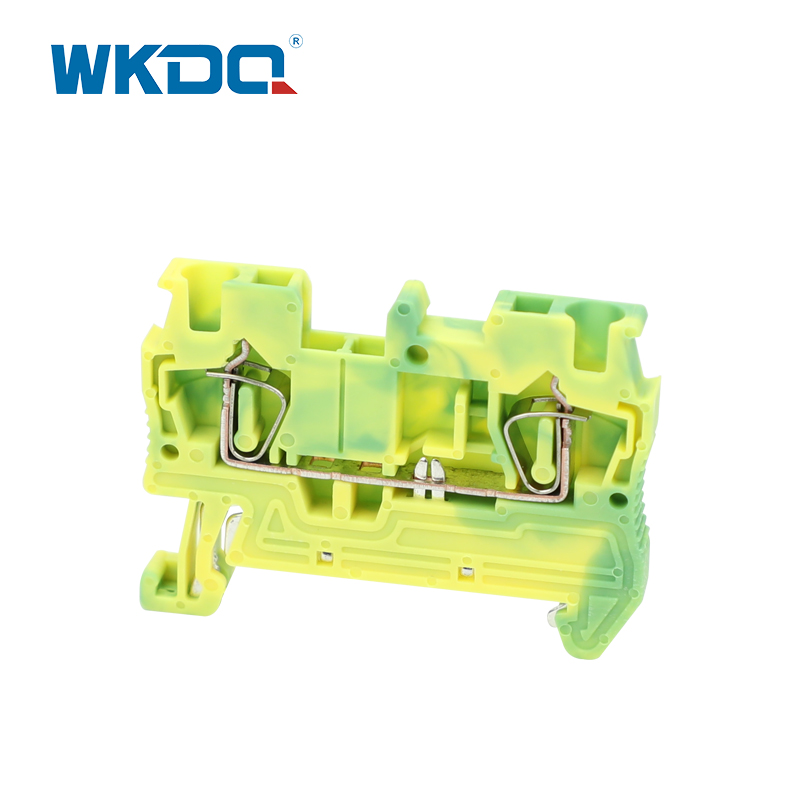

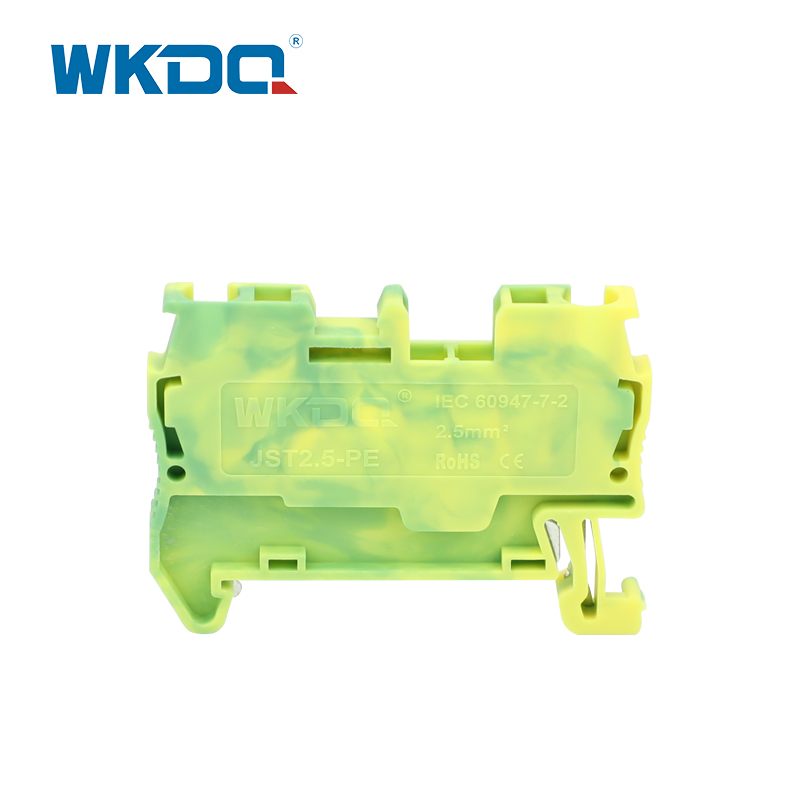

The spring clamp grounding terminal is made of flame-retardant PA66+tin plated copper material, which is earthquake resistant, corrosion-resistant, stable and low resistance; Spring crimping+front-end inlet design suitable for 35mm guide rail, quick installation in seconds, supports multiple identification distinctions, saves 50% space, and is suitable for reliable PE grounding systems in industrial vibration environments.

Model Number	JSTTB 2.5-PE
Color	Yellow/Green, other color can be customized
Length/Wide/Height (mm)	68/46/6.2
Connection method	Spring clamp connection
Material	Nylon PA66
Rated Voltage/Current	500V/24A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	13.73g/pc, 50PCS/BOX, 1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
