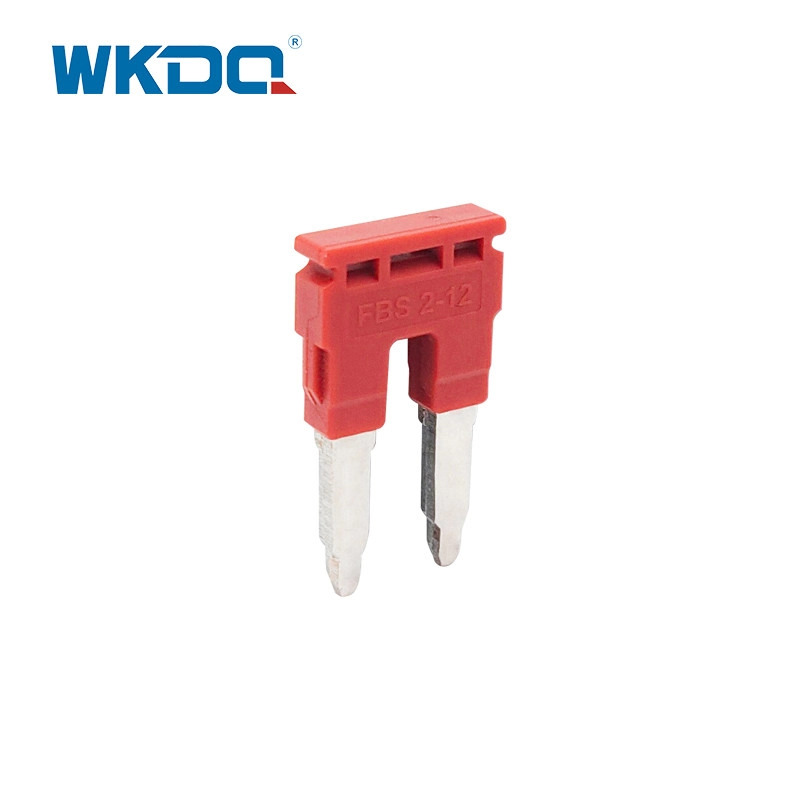

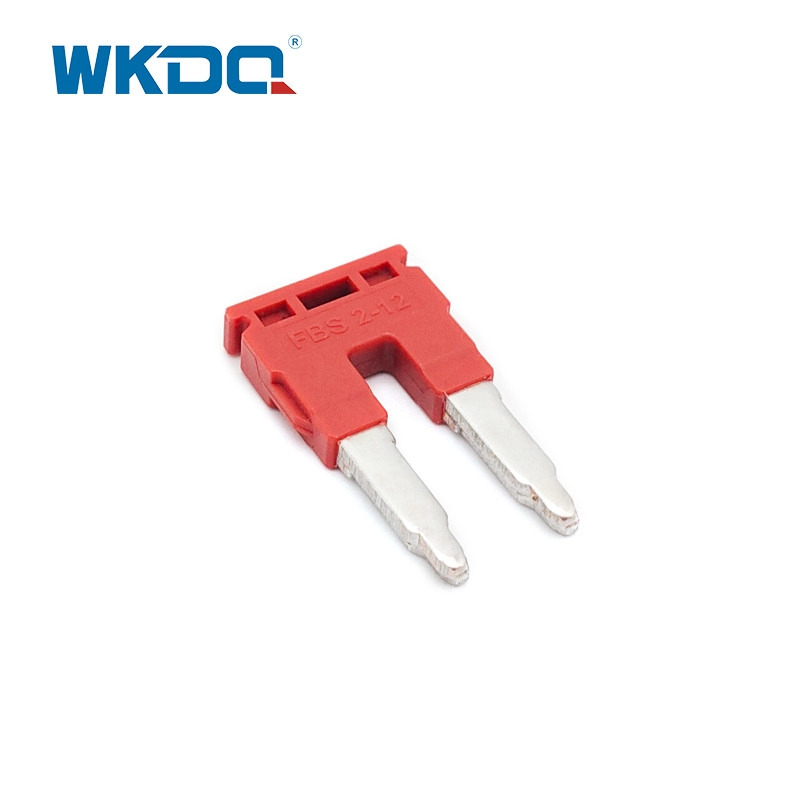

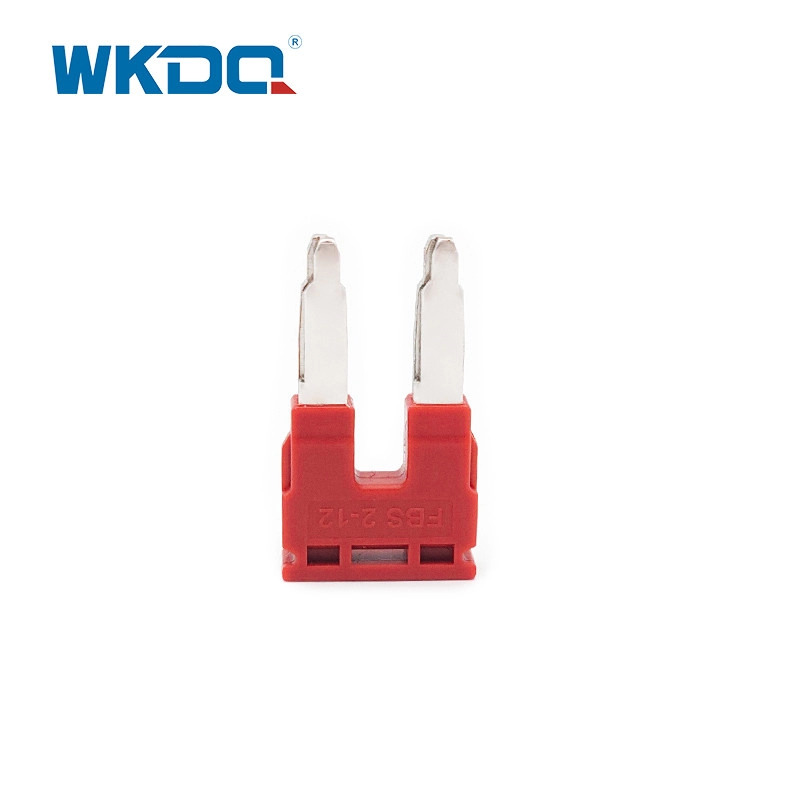

FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
  • FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For SpringFBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
  • FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For SpringFBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
  • FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For SpringFBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
  • FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For SpringFBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring

FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring

Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: FBS 2-12

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:FBS 2-12

Send Inquiry

Product Description

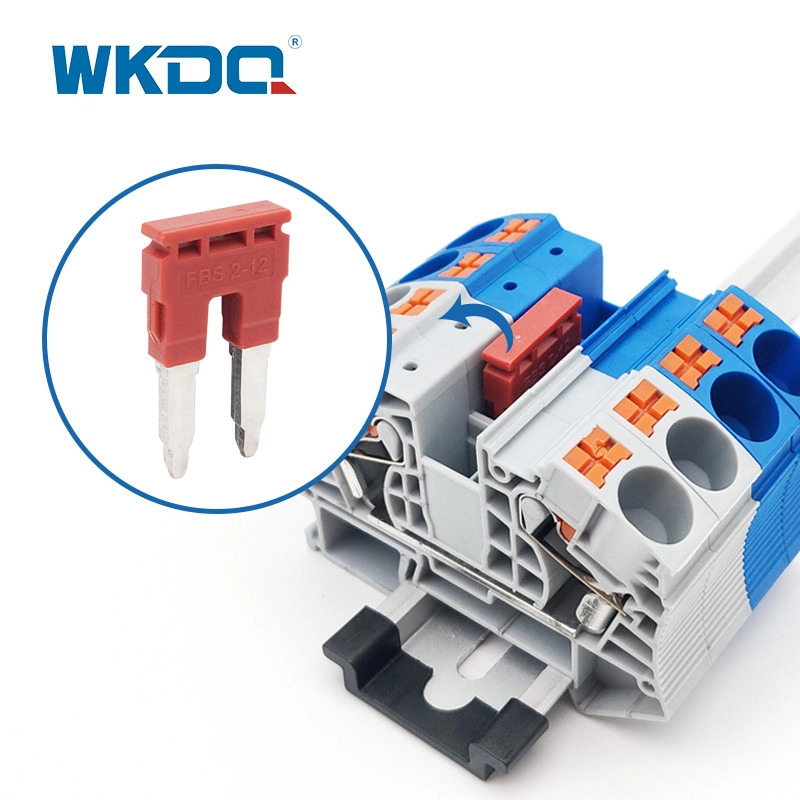

    The FBS 2-12 plug-in bridge is specially designed for JST/JPT 16 terminals, integrating spring crimping and nickel-plated brass + flame-retardant PA66 materials to achieve anti-corrosion, airtight and low-resistance connection. The dual-function shaft supports single-terminal dual-potential parallel connection. The plug-and-pull bridging simplifies high-density power distribution wiring. The anti-loosening and de-airtight design ensures long-term stability. The standardized contact marking improves maintenance efficiency and is suitable for the high-frequency maintenance requirements of industrial automation and power systems.

Technical Parameters

Fixed bridge Model No. Matched Terminal Model No.
FBS10-3.5 JPT 1.5/S
JPT 1.5/S-TW
JPT 1.5/S-QU
JPTTB 1.5/S
FBS 10-4 JST 1.5
FBS 2-5, JST/JPT 2.5
JST/JPT 2.5-TW
JST/JPT 2.5-QU
JSTTB/JPTTB 2.5
JST/JPT 2.5-3L
JPT2.5-PE/L/N
FBS 3-5,
FBS 4-5,
FBS 5-5,
FBS 10-5,
FBS 2-6, JST/JPT 4
JST/JPT 4-TW
JST/JPT 4-QU
JSTTB/JPTTB 4
JBPT1.5
FBS 3-6,
FBS 4-6,
FBS 5-6,
FBS 10-6
FBS 2-8 JST / JPT 6
FBS 3-8
FBS 4-8
FBS 5-8
FBS 10-8
FBS 2-10 JST 10/ JPT 10
FBS 2-12 JST 16/ JPT 16
FBS 2-16 JUT 35
