Fuse Terminal Block

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JST4-HESILED
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPTTB4-HESI

Send Inquiry

Product Description

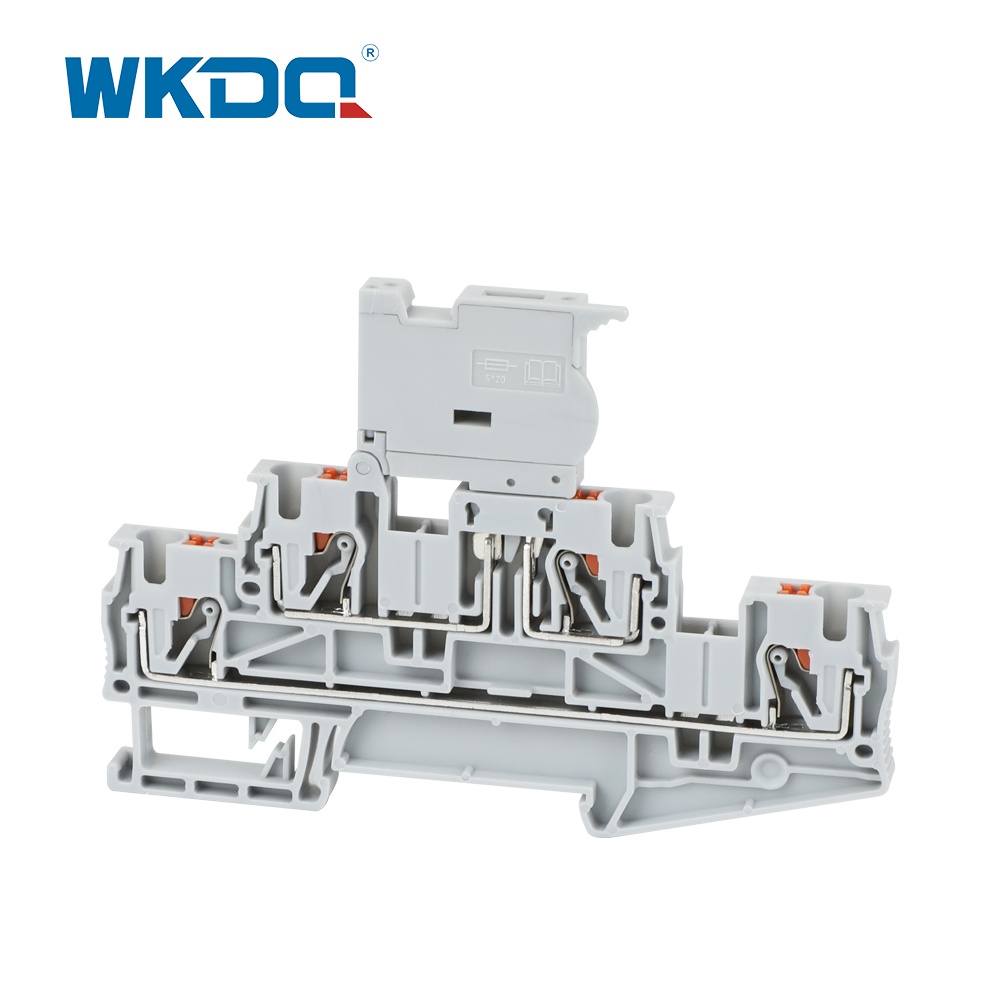

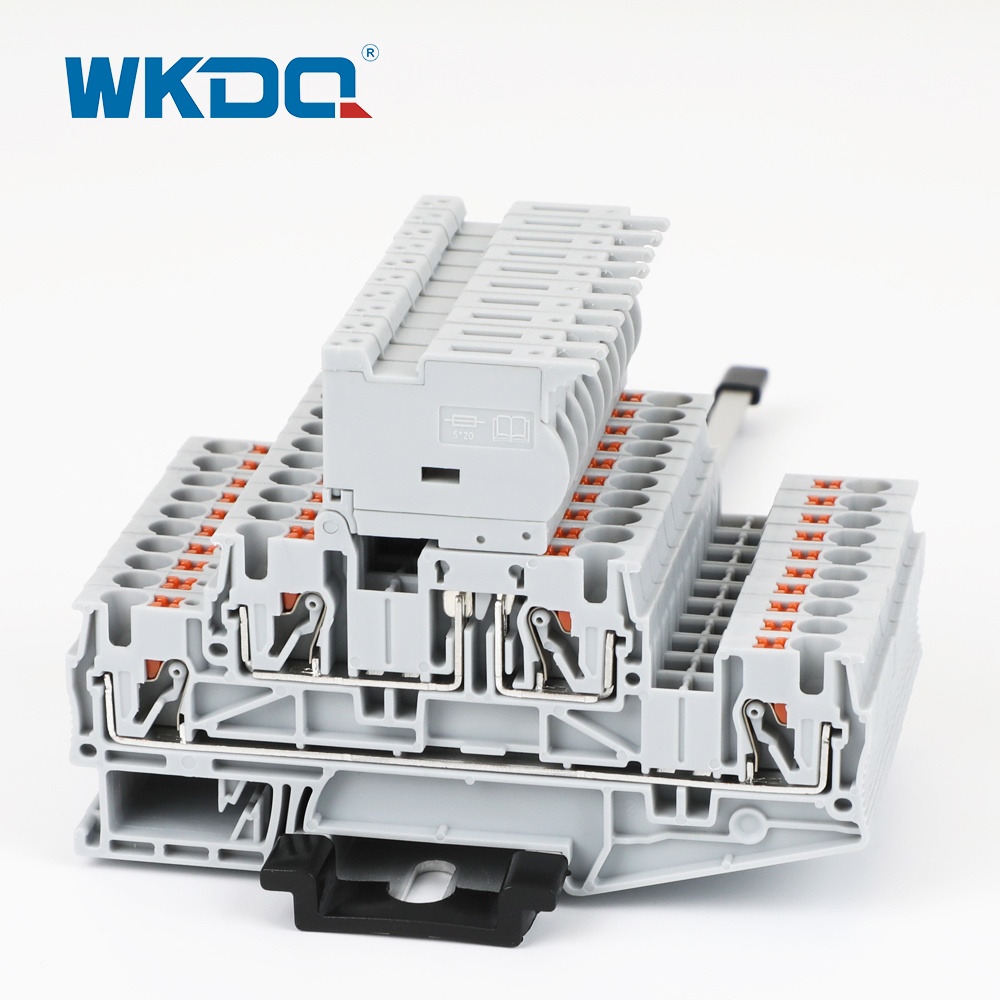

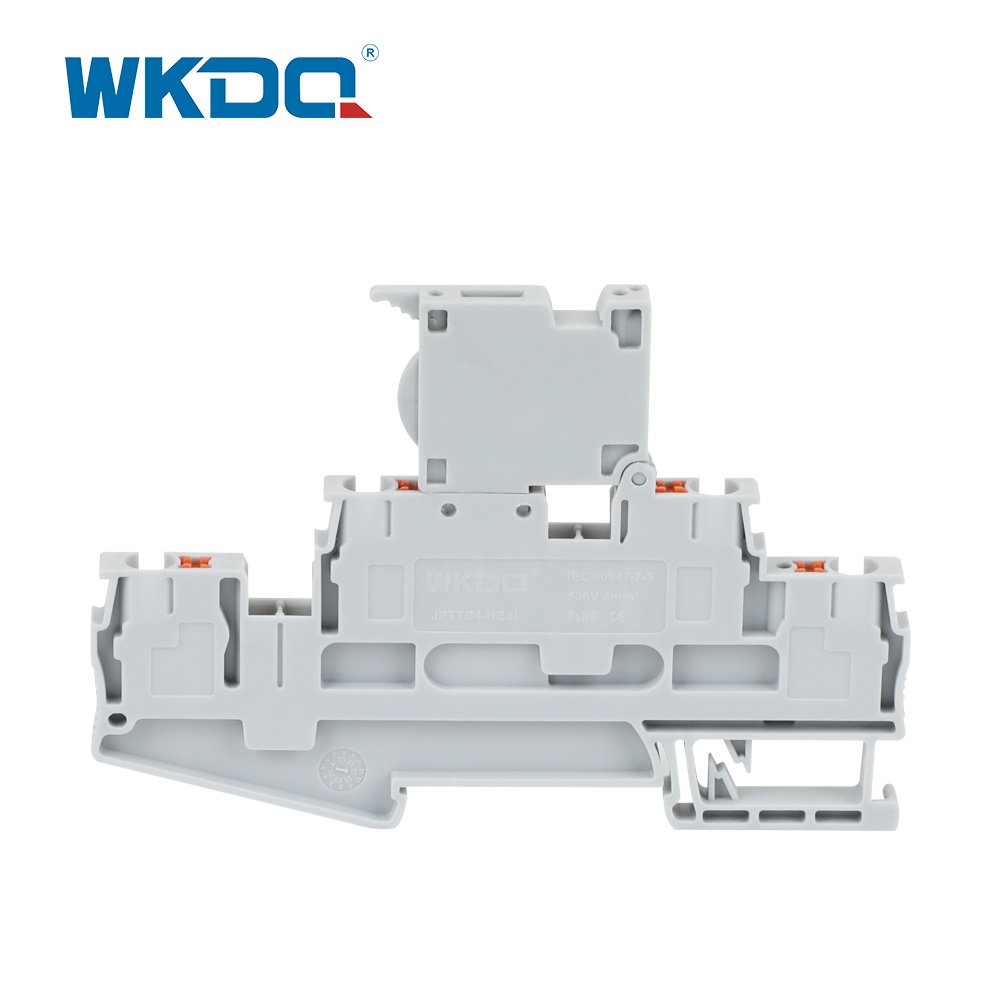

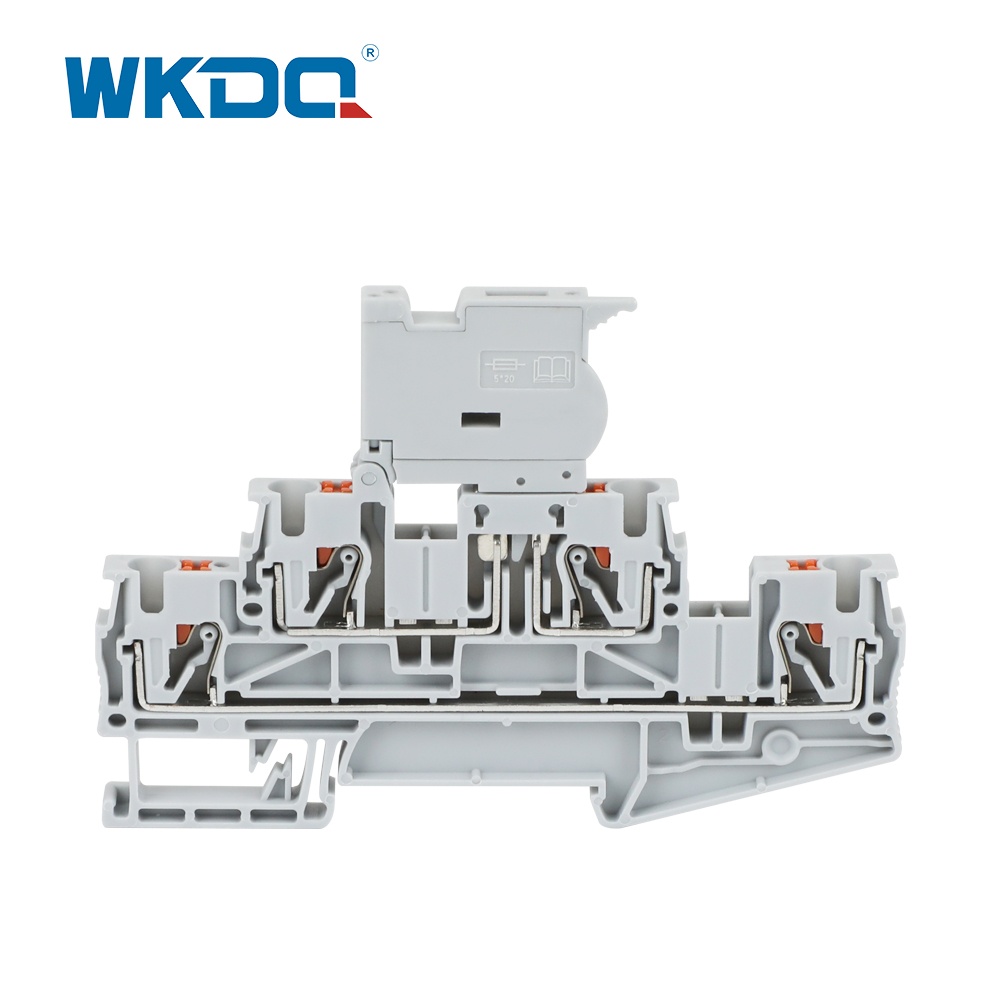

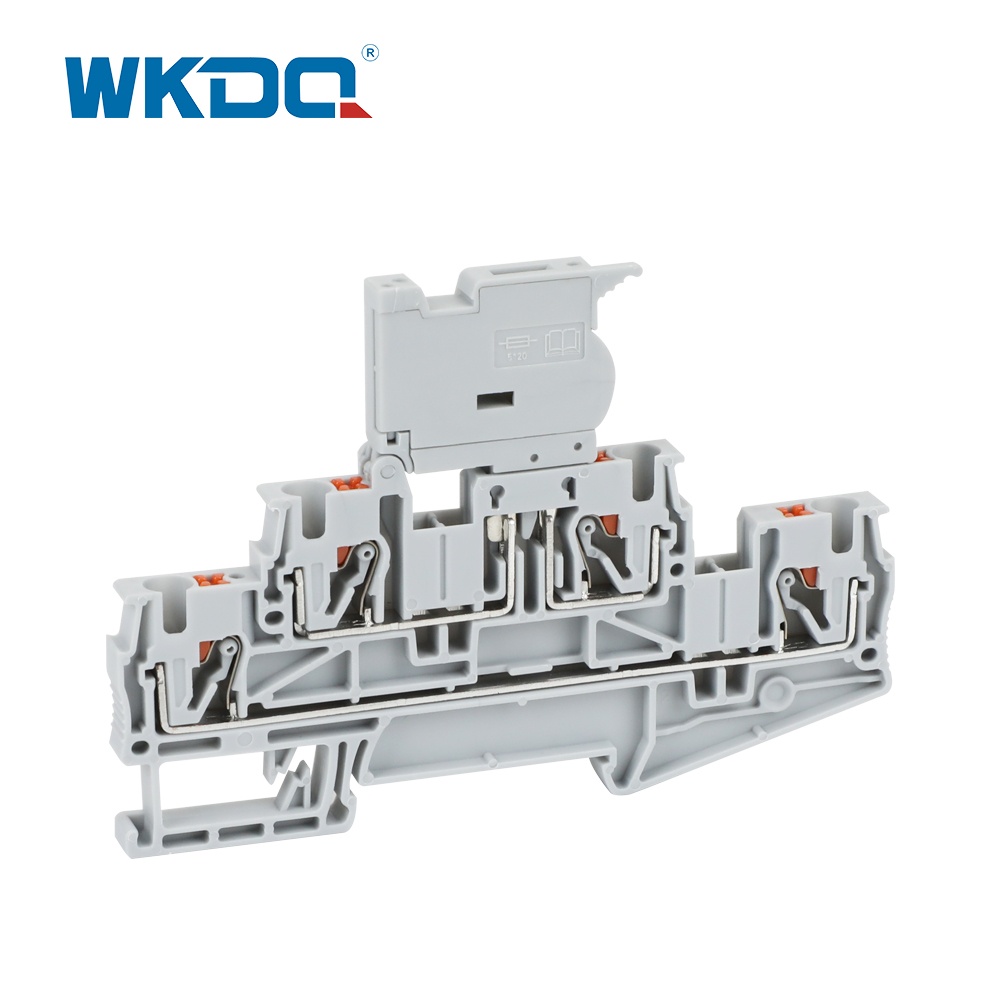

The JPTTB4-HESI terminal block provides enhanced wiring efficiency compared to screw-type designs. Compact yet durable, it features a flame-retardant PA66 housing and copper conductor to ensure low-resistance, reliable connections. Its integrated hinged-arm mechanism offers over-current protection. Designed for DIN rail mounting and compatible with end covers and partition plates, this block simplifies installation, supports easy maintenance, and enables space-saving integration into electrical systems.

Model No.	JPTTB4-HESI Fuse terminal block with led
Color	Black, Gray.
Length/Height/Wide (mm)	102.9 / 71.3 / 6.2 mm
Connection method	Spring cage connection
Material	Nylon PA66
Rated Voltage/Current	500V/22A
Cross section, solid/soft Cable	0.2-6mm²/0.25-4mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized LOGO can be made.
Packing Detail	17.35g/pc, 50PCS/BOX,1000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
