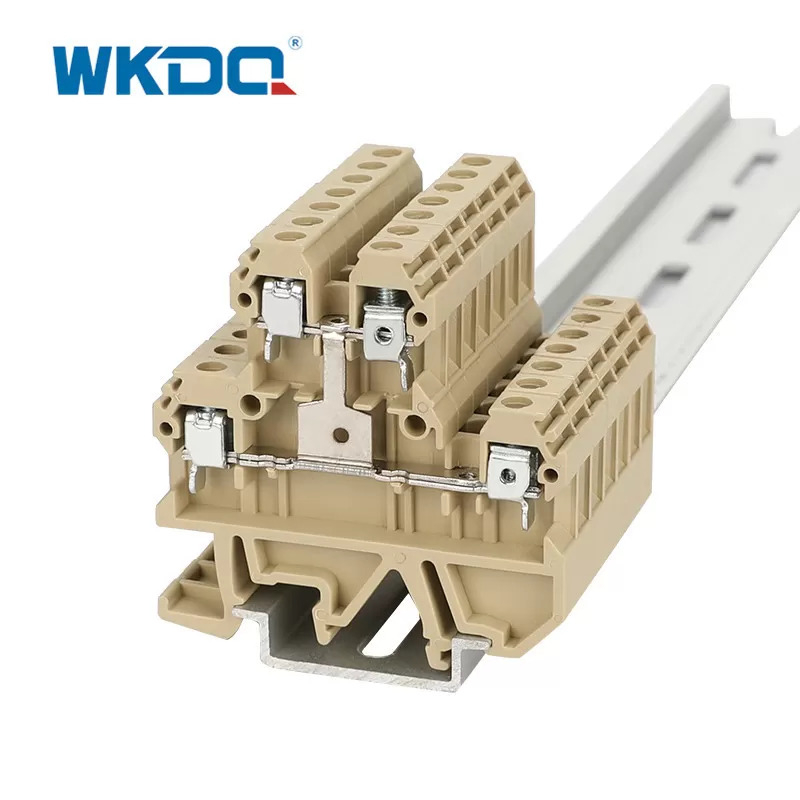

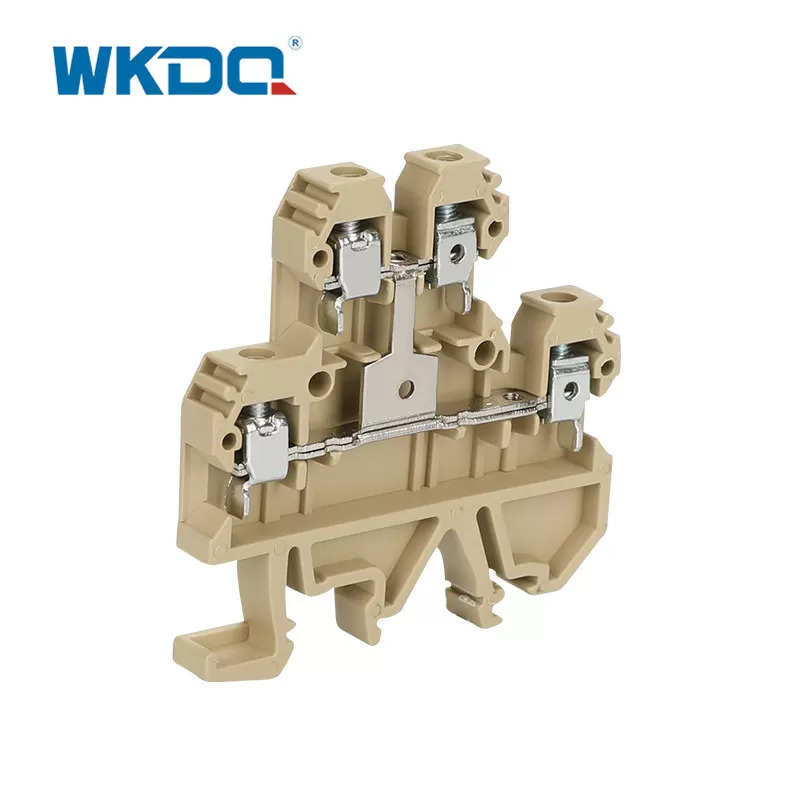

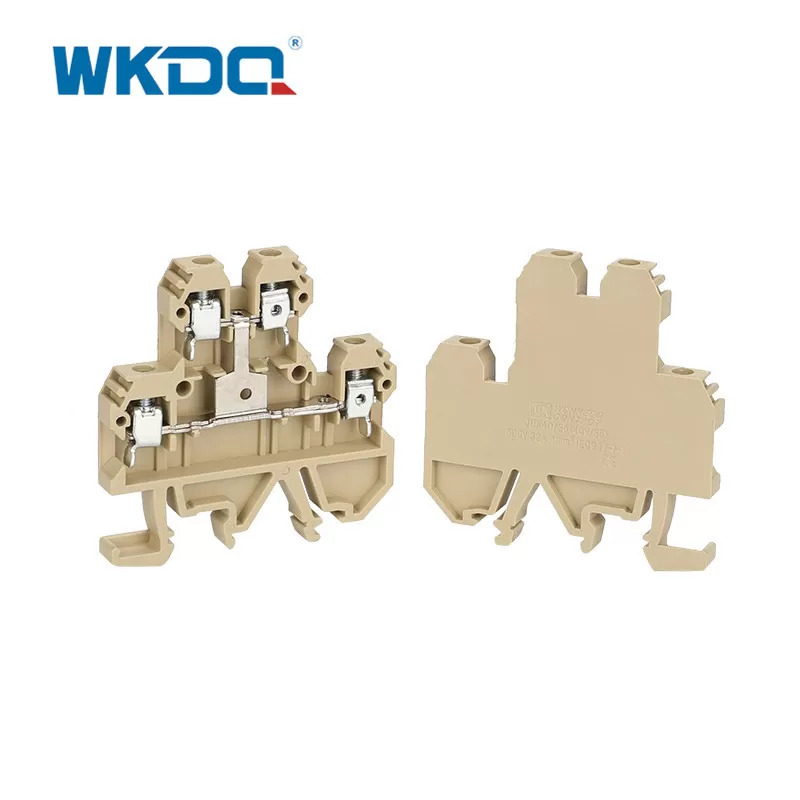

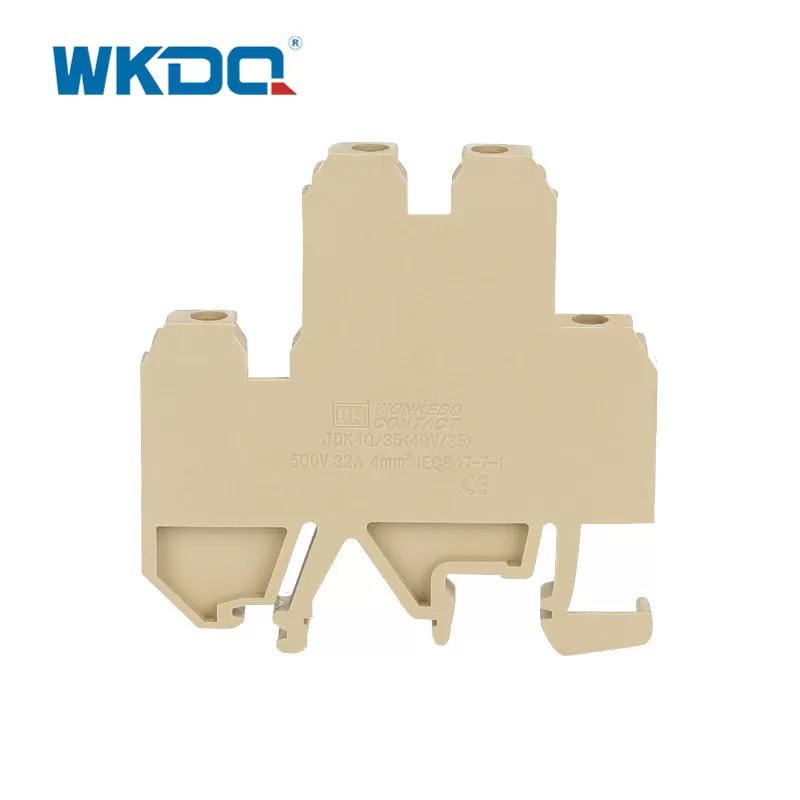

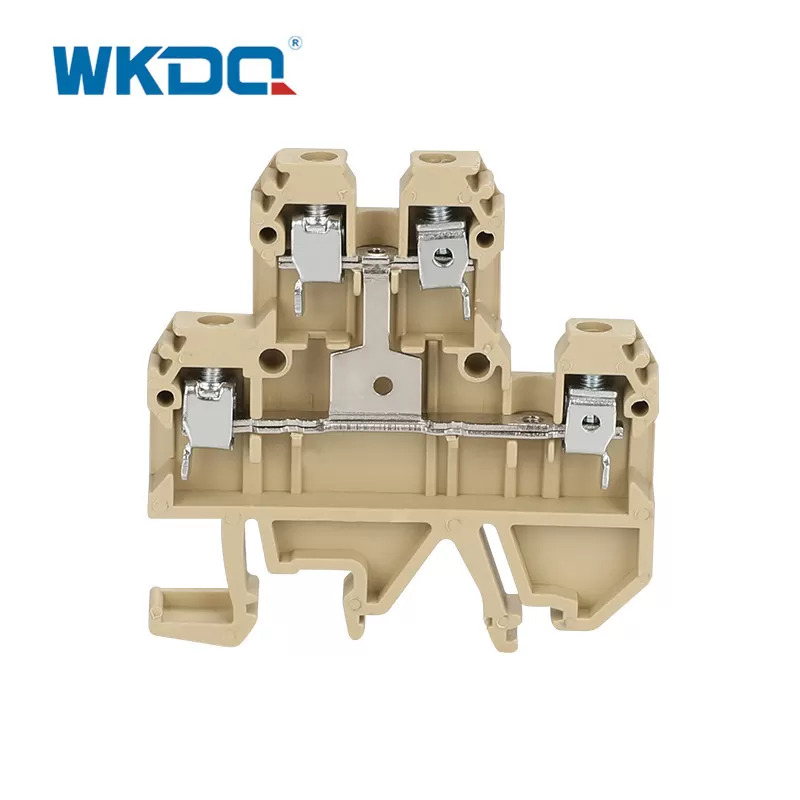

JDK 4QV_35 Screw Connection Terminal Block Double Layer 56mm Height
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JDK 4QV/35
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Model No.: | JDK 4QV/35 | Length: | 55.5mm |
| Height: | 56mm | Wide: | 6mm |
| Voltage: | 500V | Current: | 32A |
| High Light: | screw terminal wire connectors , electrical screw terminal block connector | ||
The JSAK Double-deck terminal blocks provide a clearer overview for tight spaces,saving time and space. Simple potential distribution, thanks to the function shafts on each level.With the vertical potential bridge makes to connect levels which is real potential distribution on one terminal point.
High safety.
Design in standard and compact body.
Stable and low contact resistances.
All types of accessories with high quality.
Ease of handling and a reliable electrical connection.
Reduce the installation costs and speed the wiring.
Strong contact force and excellent connection.
Can be clipped onto or removed from the terminal rail quickly and directly.
Our terminal blocks are preferably used in electrical machine control systems.
Made from engineering flaming retarding nylon PA 66.
Labeling on each level for clear identifying.
Maintenance-free and vibration-proof screw connection.
The universal foot make it easily to be installed on Din Rails.
Accessories: End covers, End Stops,Bridges,Markings, etc.
TECHNICAL PARAMETERS
| Part No. | JDK 4QV/35 |
| Color | Yellow, other color can be customized |
| Length/Height/Wide (mm) | 55.5/56/6 |
| Connection method | Screw connection |
| Material | Flaming retarding Nylon PA66 |
| Rated Voltage/Current | 500V/32A |
| Rated Cross section | 4 mm² |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 14.06g/pc, 50PCS/BOX, 2000PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
