JEK 2.5_35 RoHs Screw Connection Terminal Block 800V_125A Engineering Nylon
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JEK 2.5/35
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Model:JEK 2.5/35
Send Inquiry
Product Description
| Part No.: | JEK 2.5/35 | Product Color: | Yellow/Green, Other Color Can Be Offered |
| Brands: | WONKEDQ,others Can Be Provided | Wire Cross Section: | 2.5 Mm² |
| Rated Voltage: | 800V | Rated Current: | 24A |
| High Light: | electrical screw terminal block connector , screw down wire connector | ||

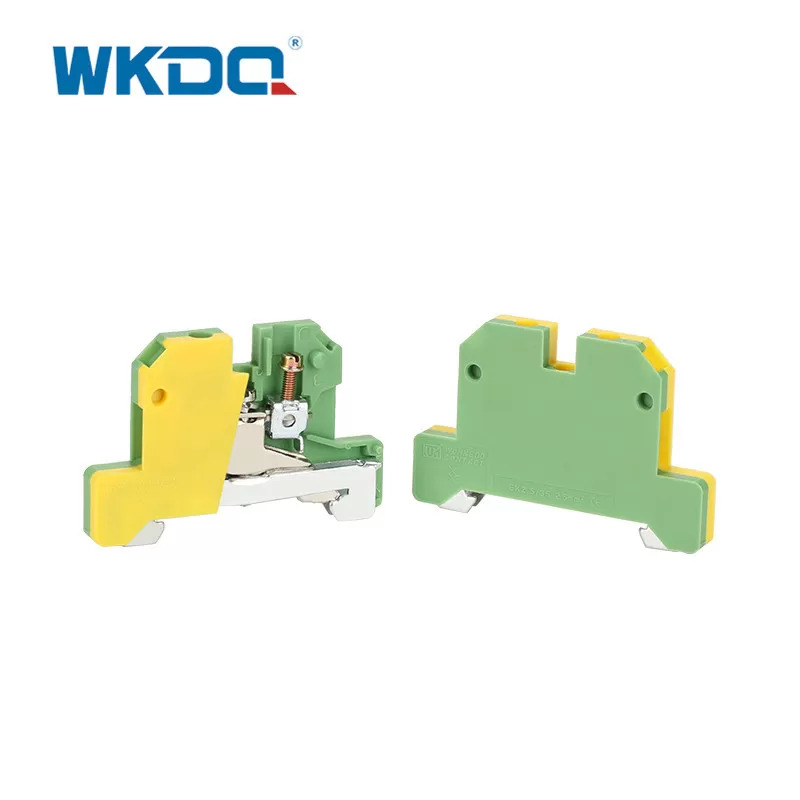

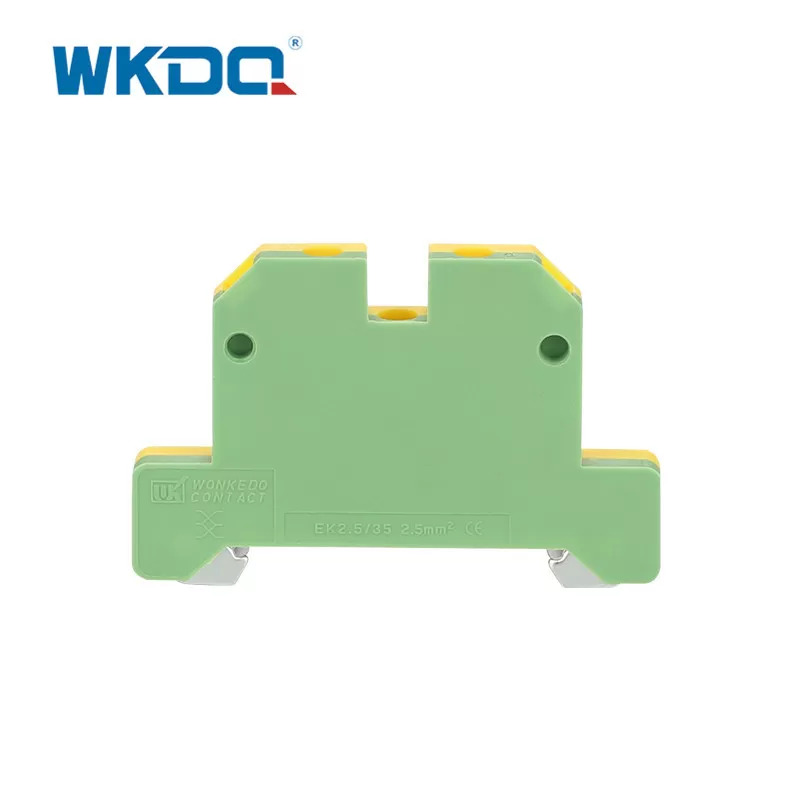

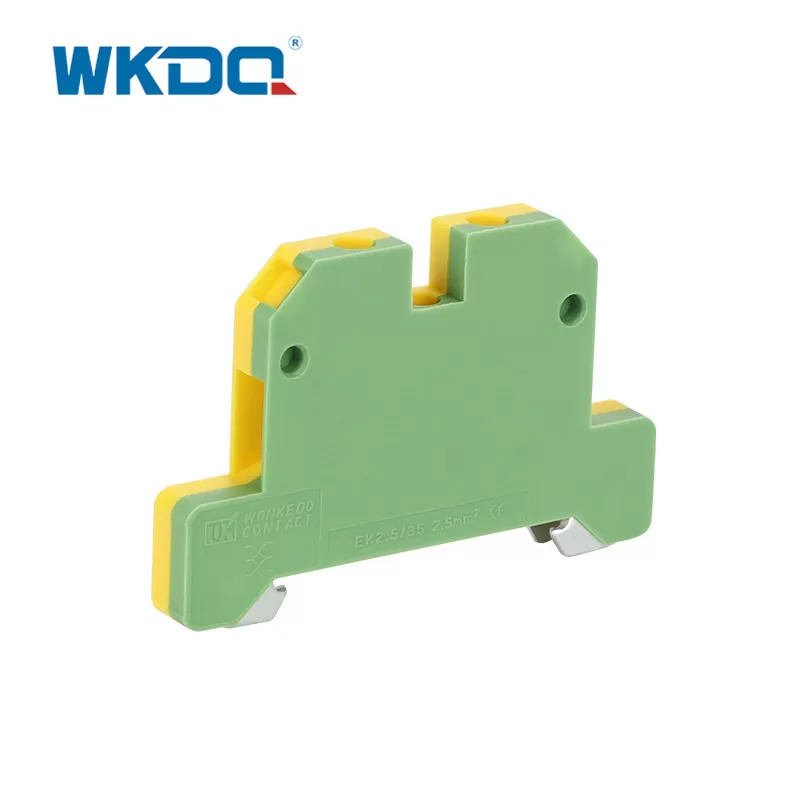

The housings of the ground circuit terminal blocks are molded with a material in the international recognized colors of green and yellow, which are used to signify a ground connection.
Easy to operate.
Steady structure.
Safe and stable performance.
Made from safe and high quality material.
High-strength durable material.
Simple and convenient installation.
Perfectly suitable for electrical machine control systems.
An excellent vibration proof protection against loosening.
The Ground Terminal Blocks offer protective insulation , it makes you confidence that your product is safe and secure.

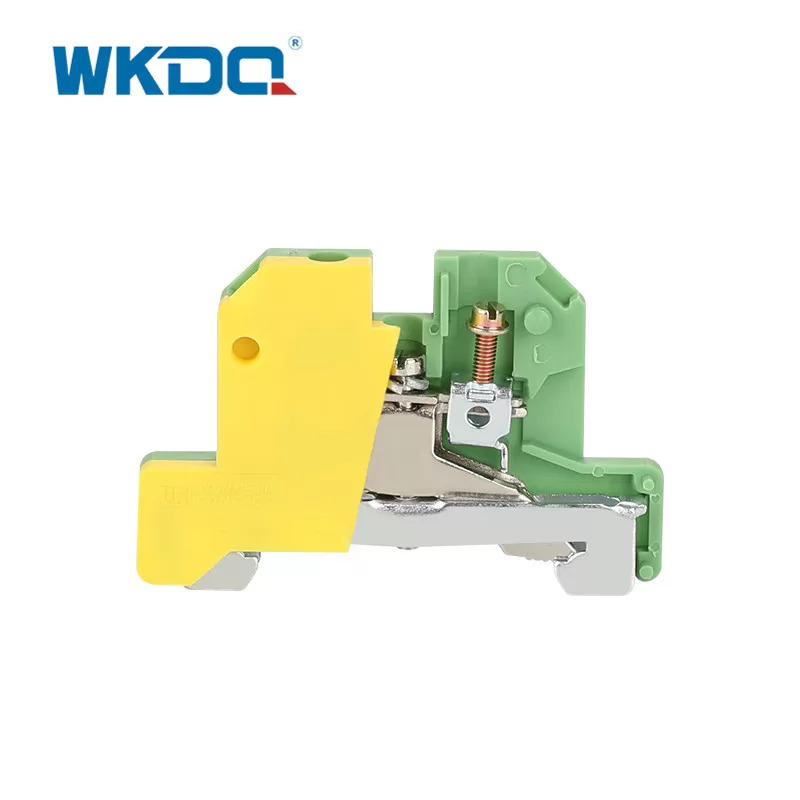

Made from engineering nylon PA 66 with brass foot.
Optimum screwdriver guidance through closed screw shafts.
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section.
Maintenance-free conductor connection and long-term reliable using.
Low voltage drop and gas-tight connecting.

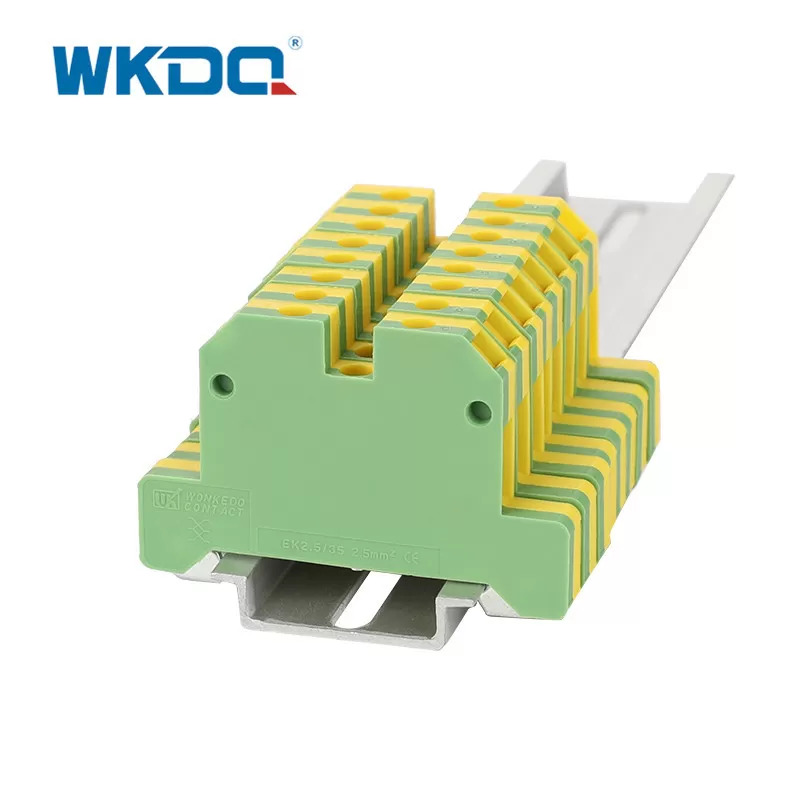

Stable foot can be fixed on the DIN Rail 35mm.
TECHNICAL PARAMETERS
| Model No. | JEK 2.5/35 |
| Color | Yellow/Green, other color can be customized |
| Length/Height/Wide (mm) | 57/37/6 |
| Connection method | Screw connection |
| Material | Flaming resistant Nylon PA66 |
| Rated Voltage/Current | 800V/24A |
| Rated Cross section | 2.5 mm² |
| Mounting Type | NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 17.96g/pc, 40PCS/BOX, 1400PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
